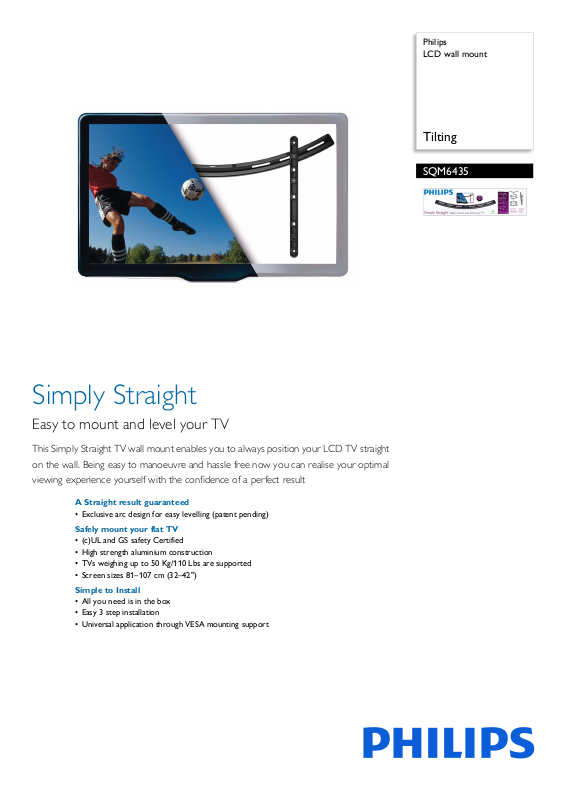

Page 1
Philips
LCD wall mount
Tilting
SQM6435
Simply Straight
Easy to mount and level your TV
This Simply Straight TV wall mount enables you to always position your LCD TV straight
on the wall. Being easy to manoeuvre and hassle free now you can realise your optimal
viewing experience yourself with the confidence of a perfect result
A Straight result guaranteed
• Exclusive arc design for easy levelling (patent pending)
Safely mount your flat TV
• (c)UL and GS safety Certified
• High strength aluminium construction
• TVs weighing up to 50 Kg/110 Lbs are supported
• Screen sizes 81–107 cm (32–42")
Simple to Install
• All you need is in the box
• Easy 3 step installation
• Universal application through VESA mounting support
Page 2
SQM6435/00
LCD wall mount
Tilting
Specifications
Packaging dimensions
• Packaging dimensions (W x H x D):
73.7 x 19.2 x 5 cm
• Packaging dimensions (W x H x D):
.0 x 7.6 x 2.0 inch
29
• Net weight: 1.731 kg
• Net weight: 3.816 lb
• Gross weight: 2.143 kg
• Gross weight: 4.724 lb
• Tare weight: 0.412 kg
• Tare weight: 0.908 lb
• EAN: 87 12581 56311 0
• Number of products included: 1
• Packaging type: Soother
• Type of shelf placement: Soother
Accessories
• User Manual
• Included accessories: Screwdriver, Screws
Dimensions
• VESA wall mount compatible: 200 x 100 mm, 200
x 200 mm, 200 x 300 mm, 300 x 300 mm, 400 x
300 mm
Outer Carton
• GTIN: 1 87 12581 56311 7
•Outer carton (L x W x H): 75.2 x 20.7 x 11.7 cm
•Outer carton (L x W x H): 29.6 x 8.1 x 4.6 inch
• Net weight: 3.462 kg
• Net weight: 7.632 lb
• Gross weight: 4.44 kg
• Gross weight: 9.788 lb
• Tare weight: 0.978 kg
• Tare weight: 2.156 lb
• Number of consumer packages: 2
Technical specifications
• Complies with: VESA, (c)UL and GS
• Maximum weight: 110 lbs or 50 kg
Weight and dimensions
• Wall Distance: 40 mm (1.6") and 55 mm (2.2")
•
Highlights
(c)UL and GS safety Certified
This mount meets and exceeds safety standards as
certified by official certification organisations like
(c)UL and GS.
All you need is in the box
The product is delivered with all the required
accessories that allows the consumer to enjoy the
product without having to return to the shop and
buy a part that is required.
Easy 3 step installation
By using the 1-2-3 installation steps the mount can by
easily installed by yourself with the confidence of a
straight result (drill tools not supplied)
Exclusive arc design
The exclusive arc design incorporated in this wall
mount allows you to adjust the levelling of the TV by
simply sliding the TV sideways (patent pending).
High strength aluminium alloy
The innovative aluminium alloy materials used for
the construction of this mount are of high strength
and still lightweight. The height strength enables a
small and safe design. The lightweight material
characteristic results in decreased transportation
efforts that help reduce environmental impart of this
product.
For TVs up to 50 Kg/110 Lbs
This wallmount is certified for TVs up to 50 Kg/110
Lbs
VESA compliant
This product has near universal compatibility
through its support for the VESA mounting patterns.
Screen sizes 81–107 cm/32–42"
The wall mount is capable of holding TVs with
different screen sizes.
Issue date 2015-11-26
Version: 1.0.5
12 NC: 8670 000 67794
EAN: 87 12581 56311 0
