Philips SQM5822-27 User Manual
Philips
LCD/plasma wall mount
Fixed
SQM5822

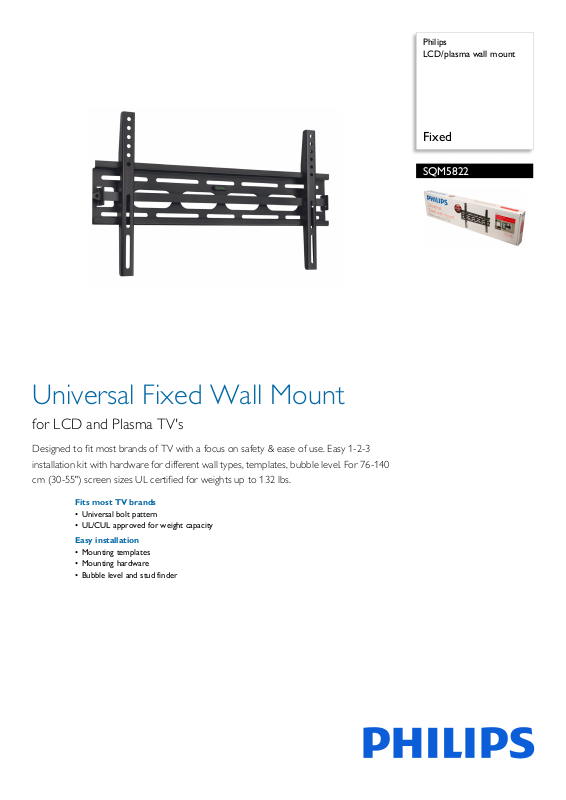

Universal Fixed Wall Mount
for LCD and Plasma TV's
Designed to fit most brands of TV with a focus on safety & ease of use. Easy 1-2-3
installation kit with hardware for different wall types, templates, bubble level. For 76-140
cm (30-55") screen sizes UL certified for weights up to 132 lbs.
Fits most TV brands
• Universal bolt pattern
• UL/CUL approved for weight capacity
Easy installation
• Mounting templates
• Mounting hardware
• Bubble level and stud finder
LCD/plasma wall mount
Fixed
SQM5822/27
Specifications
Packaging dimensions
• Packaging dimensions (W x H x D):
74 x 5.8 x 18.7 cm
• Packaging dimensions (W x H x D):
.1 x 2.3 x 7.4 inch
29
• Gross weight: 4.9 kg
• Gross weight: 10.803 lb
• Nett weight: 9.819 lb
• Nett weight: 4.454 kg
• Tare weight: 0.983 lb
• Tare weight: 0.446 kg
• Number of products included: 1
• Packaging type: Carton
• UPC: 6 09585 17666 9
Outer Carton
•Outer carton (L x W x H): 75.2 x 19.6 x 12.6 cm
•Outer carton (L x W x H): 29.6 x 7.7 x 5.0 inch
• Gross weight: 22.399 lb
• Gross weight: 10.16 kg
• Nett weight: 8.908 kg
• Nett weight: 19.639 lb
• Tare weight: 1.252 kg
• Tare weight: 2.760 lb
• GTIN: 1 06 09585 17666 6
• Number of consumer packagings: 2
•
Highlights
Universal bolt pattern
Accommodates numerous bolt patterns on larger
TVs that are not VESA compliant.
UL/CUL weight approved
Compliance with Underwriters Laboratories
requirements for weight certification ensures the
wall mount will safely hold your TV.
Mounting templates
Paper guides indicate the ideal hole pattern for
drilling into walls, ensuring users of exactly the right
hole configuration.
Mounting hardware
Includes all necessary screws, anchors and bolts for
different types of walls, ensuring the right type of
hardware is readily available for the particular type of
wall the support is being mounted on.
Bubble level and stud finder
Includes both tools necessary for installation. A
bubble level ensures a straight line. A stud finder
quickly, easily and accurately locates studs in the
wall.
Issue date 2014-03-14
Version: 1.0.5
12 NC: 8670 000 56658
UPC: 6 09585 17666 9
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
