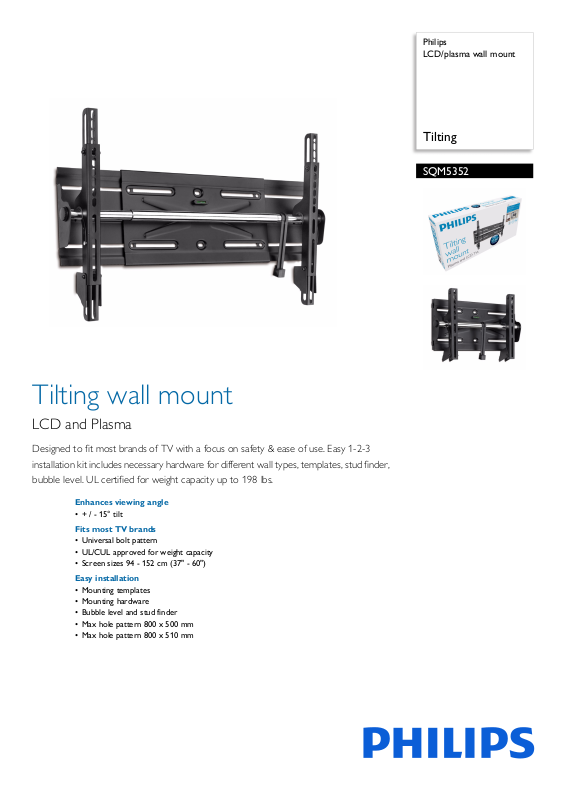

Philips SQM5352 User Manual

Philips LCD/plasma wall mount

Tilting

SQM5352

Tilting wall mount

LCD and Plasma

Designed to fit most brands of TV with a focus on safety & ease of use. Easy 1-2-3 installation kit includes necessary hardware for different wall types, templates, stud finder, bubble level. UL certified for weight capacity up to 198 lbs.

Enhances viewing angle

• + / - 15° tilt

Fits most TV brands

• Universal bolt pattern

• UL/CUL approved for weight capacity

• Screen sizes 94 - 152 cm (37" - 60")

Easy installation

• Mounting templates

• Mounting hardware

• Bubble level and stud finder

• Max hole pattern 800 x 500 mm

• Max hole pattern 800 x 510 mm

LCD/plasma wall mount

Tilting

SQM5352/27

Specifications

Packaging dimensions

• Packaging dimensions (W x H x D):

56.2 x 27.6 x 9.5 cm

• Packaging dimensions (W x H x D): .125 x 10.875 x 3.75 inch

• Nett weight: 4.309 kg

• Nett weight: 9.5 lb

• Gross weight: 4.831 kg

• Gross weight: 10.65 lb

• Number of products included: 1

• Packaging type: Carton

• UPC: 6 09585 14910 6

• Tare weight: 0.522 kg

• Tare weight: 1.15 lb

Outer Carton

•Outer carton (L x W x H): 60.3 x 29.2 x 20.3 cm

•Outer carton (L x W x H): 23.75 x 11.5 x 8 inch

• Nett weight: 8.618 kg

• Nett weight: 19 lb

• Gross weight: 18.416 kg

• Gross weight: 40.6 lb

• Tare weight: 9.798 kg

• Tare weight: 21.6 lb

• GTIN: 1 06 09585 14910 3

• Number of consumer packagings: 2

•

Highlights

+ / - 15° tilt

Allow the TV to be adjusted up and down + / - 15° to attain the optimum viewing angle.

Universal bolt pattern

Accommodates numerous bolt patterns on larger TVs that are not VESA compliant.

UL/CUL weight approved

Compliance with Underwriters Laboratories requirements for weight certification ensures the wall mount will safely hold your TV.

Mounting templates

Paper guides indicate the ideal hole pattern for drilling into walls, ensuring users of exactly the right hole configuration.

Mounting hardware

Includes all necessary screws, anchors and bolts for different types of walls, ensuring the right type of hardware is readily available for the particular type of wall the support is being mounted on.

Bubble level and stud finder

Includes both tools necessary for installation. A bubble level ensures a straight line. A stud finder quickly, easily and accurately locates studs in the wall.

Issue date 2014-03-14

Version: 2.1.5

12 NC: 8670 000 37252 UPC: 6 09585 14910 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
