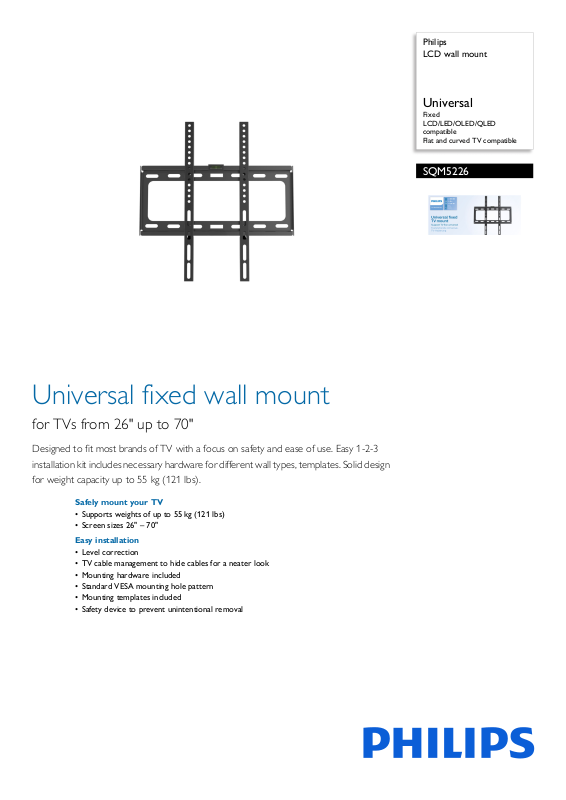

Page 1
Philips
LCD wall mount
Universal
Fixed
LCD/LED/OLED/QLED
compatible
Flat and curved TV compatible
SQM5226
Universal fixed wall mount
for TVs from 26" up to 70"
Designed to fit most brands of TV with a focus on safety and ease of use. Easy 1-2-3
installation kit includes necessary hardware for different wall types, templates. Solid design
for weight capacity up to 55 kg (121 lbs).
Safely mount your TV
• Supports weights of up to 55 kg (121 lbs)
• Screen sizes 26" – 70"
Easy installation
• Level correction
• TV cable management to hide cables for a neater look
• Mounting hardware included
• Standard VESA mounting hole pattern
• Mounting templates included
• Safety device to prevent unintentional removal
Page 2
SQM5226/00
LCD wall mount
Universal Fixed, LCD/LED/OLED/QLED compatible, Flat and curved TV compatible
Specifications
Dimensions
• VESA wall mount compatible: 200 x 100 mm,
200 x 200 mm, 300 x 300 mm, 400 x 400 mm
Weight and dimensions
• Extension of articulating arm: 35 cm
• Wall Distance: 3.9 cm
Accessories
• Mounting material included
• User Manual: Included
Inner Carton
• Gross weight: 1.830 lb
• Gross weight: 0.83 kg
• GTIN: 2 48 95229 11430 6
•Inner carton (L x W x H): 45.5 x 19.5 x 1 cm
•Inner carton (L x W x H): 17.9 x 7.7 x 0.4 inch
• Net weight: 1.257 lb
• Net weight: 0.57 kg
• Number of consumer packages: 1
• Tare weight: 0.26 kg
• Tare weight: 0.573 lb
Outer Carton
• Gross weight: 6.393 lb
•Gross weight: 2.9 kg
• GTIN: 1 48 95229 11430 9
•Outer carton (L x W x H): 48 x 21 x 9.5 cm
•Outer carton (L x W x H): 18.9 x 8.3 x 3.7
• Net weight: 3.770 lb
• Net weight: 1.71 kg
• Number of consumer packages: 3
• Tare weight: 1.19 kg
• Tare weight: 2.623 lb
Packaging dimensions
• Packaging dimensions (W x H x D):
45.5 x 1.05 x 19.5 cm
• Packaging dimensions (W x H x D):
.9 x 0.4 x 7.7 inch
17
• EAN: 48 95229 11430 2
• Gross weight: 0.83 kg
• Gross weight: 1.830 lb
• Net weight: 1.257 lb
• Net weight: 0.57 kg
• Number of products included: 1
• Packaging type: Carton
• Tare weight: 0.573 lb
• Tare weight: 0.26 kg
•
inch
Highlights
Screen sizes 26" – 70"
Screen sizes 26" – 70"
Mounting hardware included
Includes all necessary screws, anchors and bolts for
different types of walls, ensuring the right type of
hardware is readily available for the particular type of
wall the support is being mounted on.
TV cable management
The cable compartment is designed to tuck your
cables in neatly behind the television in one place.
Level correction
If the wall mount is slightly off-level after it is
installed, it allows for level corrections to
horizontally mount the TV.
Standard VESA mounting hole pa
Standard VESA mounting hole pattern
Issue date 2021-12-13
Version: 3.1.2
12 NC: 8670 001 71923
EAN: 48 95229 11430 2
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
