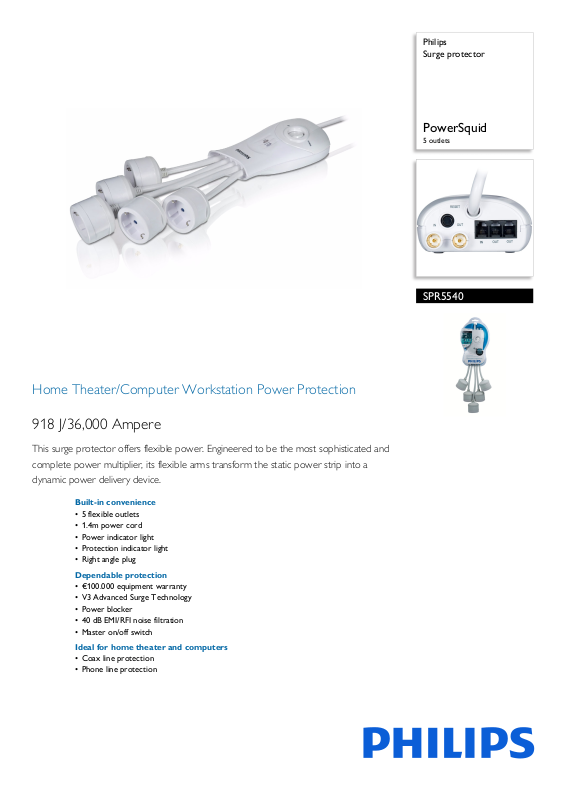

Page 1
Philips
Surge protector
PowerSquid
5 outlets
SPR5540
Home Theater/Computer Workstation Power Protection
918 J/36,000 Ampere
This surge protector offers flexible power. Engineered to be the most sophisticated and
complete power multiplier, its flexible arms transform the static power strip into a
dynamic power delivery device.
Built-in convenience
• 5 flexible outlets
•1.4m power cord
• Power indicator light
• Protection indicator light
• Right angle plug
Dependable protection
• €100.000 equipment warranty
• V3 Advanced Surge Technology
• Power blocker
• 40 dB EMI/RFI noise filtration
• Master on/off switch
Ideal for home theater and computers
• Coax line protection
• Phone line protection
Page 2
SPR5540/10
Surge protector
PowerSquid 5 outlets
Specifications
Packaging dimensions
• Packaging dimensions (W x H x D):
17.1 x 48.3 x 10.2 cm
• Nett weight: 1.42 kg
• Gross weight: 1.579 kg
• Tare weight: .159 kg
Outer Carton
•Outer carton (L x W x H): 50.5 x 19.1 x 32.7 cm
• Nett weight: 4.26 kg
• Gross weight: 4.736 kg
• Tare weight: .476 kg
•
Highlights
5 flexible outlets
Five outlets on separate cords that are all adapter
spaced accommodate multiple devices without
crowding.
€100.000 equipment warranty
Protects your connected equipment for the life of
the product.
V3 Advanced Surge Technology
This new surge protection technology provides 27%
greater surge protection capacity and better heat
dissipation for safe, more reliable and longer lasting
surge protection.
Power blocker
This automatic shutdown technology senses when
the device has reached capacity and automatically
shuts down electricity to your equipment. It protects
against subsequent surges, even if you are not
present
40 dB EMI/RFI noise filtration
Built-in filtering technology ensures the best
performance from your components. It guards
against signal interference and loss of data. The
higher the dB rating the better the noise reduction.
14m power cord
Provides power to the unit which can be 1.4 m from
the AC outlet.
Master on/off switch
This master switch controls power to the outlets on
the surge protector.
Power indicator light
This LED alert lights up to indicate that the surge
protector is drawing power from the AC outlet.
Protection indicator light
This LED alert lights up to indicate the surge
protector is working properly.
Coax line protection
Connectors route the coaxial signal through the
surge protector to protect against surges and spikes.
Phone line protection
These connectors accommodate an RJ11 cord,
routing the telephone line through the surge
protector to guard against spikes and surges.
1-line splitter
These connectors route the telephone line through
the surge protector and split the line to allow two
devices to be connected. It offers the convenience of
leaving two devices connected constantly even
though they may not be used simultaneously
Issue date 2017-12-07
Version: 1.0.14
12 NC: 8670 000 34443
EAN: 87 12581 36856 2
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
