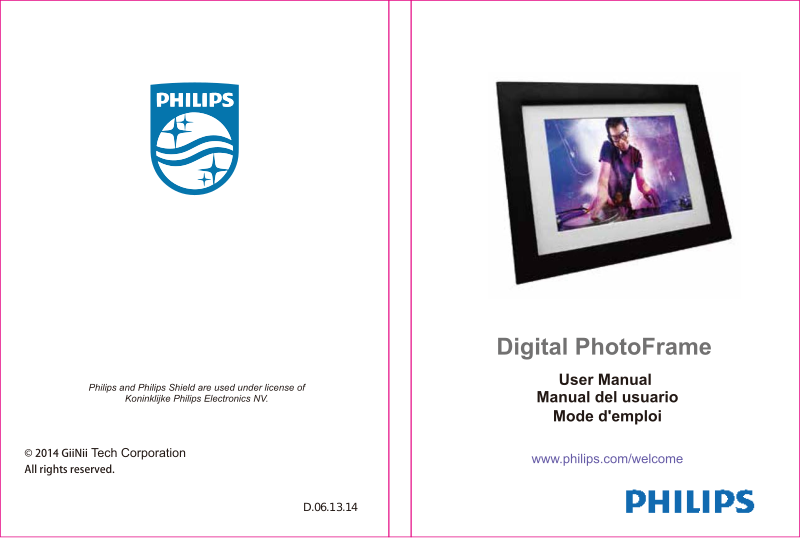

Philips SPF3473/G7 User manual

D.06.13.14

Philips Digital PhotoFrame

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of the company.

Disclaimer

The company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, the company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Safety Instructions

Before operating the PhotoFrame, carefully read and follow the instructions below. Retain this User Manual for future reference.

• Read the safety and operating instructions carefully before using the product. All warnings on the product and in the operating instructions should be observed.

• Do not place this product under direct sunlight or near heat sources, such as in a closed car under sunlight or near a stove. The outer casing of this product may become deformed and the sophisticated sensors inside may become damaged due to excessive heat.

• Do not use this product near water, in the rain or allow any liquid to get inside this product. Water and moisture may cause short-circuit to the electronic components and lead to malfunctions.

EN-i

Philips Digital PhotoFrame

• Do not use this product near strong electromagnetic sources, such as a microwave oven. The electromagnetic interference may cause this product to malfunction.

• Do not drop or apply shock/vibration to this product. Strong impacts may damage the components inside.

• Do not insert objects other than compatible memory cards into the memory card slots of this product. The metal contacts inside the slot can easily become damaged by foreign objects.

• Do not use an unknown power adapter other than the one supplied with the PhotoFrame. Connecting this product to an unknown power adapter is very dangerous and may lead to fire or explosion.

• Do not cut, bend, modify, place heavy objects, or step on the power adapter cord. Otherwise the external insulation may be damaged and result in short-circuit or fire.

• If there are strange odors or heat emitting from this product or any signs of malfunction, disconnect the PhotoFrame from the power immediately and contact your dealer for inspection or service.

• Use a smooth, soft cloth to clean the surface of the screen. Do not use liquid cleaners or glass cleaners.

• Do not attempt to disassemble or modify this product. There are no user serviceable parts inside this product, and any unauthorized modifications will void the warranty.

• Although the LCD panel is made with high-precision technology and has effective pixels of 99.99% or more, black dots or bright points of light (red, blue or green) may appear constantly on the LCD panel. This is a structural property of the LCD panel and is not a malfunction.

EN-ii

Safety Instructions

Philips Digital PhotoFrame

Table of contents

Safety Instructions .....................................................................................ii

Table of contents....................................................................................... 1

Key Features............................................................................................. 2

What's in the Box...................................................................................... 3

Overview.................................................................................................... 4

Right Rear View.............................................................................. 4

Getting started........................................................................................... 6

Step 1: Using the adjustable stand............................................... 6

Step 2: Connecting to power......................................................... 7

Step 3 Starting Slideshows Automatically................................... 8

Operating the PhotoFrame ...................................................................... 8

Using the Main Menu ..................................................................... 9

Viewing Photos ............................................................................. 10

Using Smart Energy Saver

Using the CLOCK (G-button)...................................................... 11

Using Settings............................................................................... 12

Appendix.................................................................................................. 14

Specifications................................................................................ 14

Frequently asked questions................................................................... 15

Regulation & Compliance ...................................................................... 16

Philips ONE(1)YEAR LIMITED WARRANTY ...................................... 17

.......................................................... 11

Table of contents

EN-1

Philips Digital PhotoFrame

Dear Customer:

Thank you for bringing our Philips Digital PhotoFrame into your home. Now you will be able to view your growing digital

picture library in stunning clarity and share great memories

with friends and family. To get the most out of your new Philips product, please

read through this entire User Manual before use.

Key Features

This PhotoFrame is equipped with the following features:

 Display clear and bright photos.  Enables you to play back photo files that are stored in a

memory card (SD/SDHC, MMC) or a USB flash drive.

 Smart Energy Saver software to personalize your frame,

saving power when frame is not in use.

 Clock function  Resolution: 800 x 480  Supported photo format: JPEG

 Rating: DC5V 1A

EN-2

Key Features

Philips Digital PhotoFrame

What's in the Box

Carefully open the packing box and ensure that you have the following items.

1. Digital PhotoFrame

2. AC power adapter

3. User Manual

 The appearance and accessories included may vary based on

model number

What’s in the Box

EN-3

Philips Digital PhotoFrame

Overview

Right Rear View

2 3 4

No. Description

Back stand Power button

Turn on/off the PhotoFrame

USB port

Allows for a USB flash drive.

Playback photos stored in the inserted drive.

Memory card slot

Allows for an SD/SDHC, MMC. Playback photos stored in the inserted card.

Power jack

Connect one end of the AC power adapter into the power

jack and the other end into a power outlet.

SD/MMC/MS/MS Pro

PHILIPS

EN-4

Overview

Philips Digital PhotoFrame

PHILIPS

Description

1 MENU button

Displays the pop-up menu.

2 EZ Access Button

Switches between Clock view and Slideshow view.

3 ESC button (ESCAPE button)

Cancels current operation and/or returns to the previous page

4 Scroll wheel/OK button

Scroll up/down to select the previous/next item Press to enter or confirm your operation /selection

5 Kensington® security slot

You can attach an anti-theft Kensington® lock and cable to this slot to help prevent possible theft.

6 EZ lock System

You can use the EZ Lock Screws to lock or unlock the wooden frame.

7 Wall mount hole (for landscape wall mounting)

Allows you to hang the PhotoFrame horizontally on a wall.

8 Wall mount hole (for portrait wall mounting)

Allows you to hang the PhotoFrame vertically on a wall.

Rear view

EN-5

Philips Digital PhotoFrame

Getting started

Step 1: Using the adjustable stand

1. Gently pop out the back stand as shown below

PHILIPS

2. To place the PhotoFrame horizontally or vertically, you can rotate the back stand by aligning the triangle mark with the rounded points (1 or 2).

PHILIPS

3. Pull out the back stand and adjust accordingly to the preferred viewing angle

EN-6

Getting started

Philips Digital PhotoFrame

SD/MMC/MS/MS Pro

PHILIPS

 It is recommended to place the PhotoFrame horizontally, because this

direction provides the best viewing and operating experience.

 By using the wall mount holes, you can hang the PhotoFrame

orizontally or vertically on the wall.

Step 2: Connecting to power

1. Place the PhotoFrame on a flat surface.

2. Connect the power adapter as below (1), and press the Power button to turn on the PhotoFrame (2)

SD/MMC/MS/MS Pro

PHILIPS

 Power systems and plug types may vary depending on your

country/region.

 To turn off the PhotoFrame,

press the PhotoFrame

Getting started

EN-7

Philips Digital PhotoFrame

Step 3 Starting Slideshows Automatically

Insert memory card or USB drive to start slideshow automatically. If there are no content, PhotoFrame will initiate slideshow playback from preinstalled images. If there is no operation more than 1 minute during menu or setting mode, the PhotoFrame will resume previous slideshow automatically.

Operating the PhotoFrame

You can use the control buttons on the back to operate the Photo Frame.

# Icon Description

ESC button (ESCAPE button)

1 ESC

3 MENU

Cancels current operation and/ page Scroll wheel/ OK button

◀

• Press this button to enter or confirm your operation

▶

/selection.

• Scroll this button to the left to select the previous item.

• Scroll this button to the right to select the next item.

MENU button Displays the pop-up menu. EZ Access Button Switches between Clock view and Slideshow view

or returns to the previous

EN-8

Getting started

Philips Digital PhotoFrame

Using the Main Menu

To get into Main Menu, press MENU in slideshow mode. From the main menu as below, you can scroll to select the desired option, and then press OK to enter. In main menu, press ESC or MENU will resume previous slideshow.

# Description

1 Source

Allows you to select the media source among USB flash drive, Memory card and Pre-install.

2 Interval

Allows you to select the slideshow interval between photos.

3 Transition Effect

Allows you to select the transition effect you wish to apply to the slideshow.

4 Smart Energy Saver

Allows you to select a power-saving option.

5 Setting

Allows you to configure the settings of the PhotoFrame.

Using the Main Menu

EN-9

Philips Digital PhotoFrame

Viewing Photos

1. In main menu, scroll to select SOURCE and then press OK to

enter.

 The USB and Memory Card albums can only be selected when a

USB flash drive and a memory card have been inserted to the PhotoFrame.

2. Scroll among the USB, Memory Card and Pre-install albums to

select the source you wish to play slideshow, and then press OK. Photos in the source you selected will appear in the window in thumbnails. Press OK to enable the selection mark.

Press MENU to display the pop-up menu, and then you can rotate



or delete the photo selected.

3. Scroll among thumbnails and press OK to select one to start

slideshow. If you wish to pause during slideshow, press OK; to resume slideshow, press OK again.

4. To configure slideshow settings, in main menu, scroll to select

INTERVAL or TRANSITION EFFECT, and then press OK to enter.

 Interval: selects the slideshow interval between photos.  Transition Effect: selects the transition effect you wish to

apply to the slideshow.

EN-10

Viewing Photos

Philips Digital PhotoFrame

Using Smart Energy Saver

The Smart Energy Saver mode provides various pre-defined power-saving options.

1. In the main menu, scroll to select Smart Energy Saver and then press OK.

2. Scroll to select a desired option, and then press OK. For details about the power-saving options, refer to the table below.

Options Description

OFF Turns off Smart Energy Saver. Save 20% Always saves 20% on backlight power consumption. Save 50% Always saves 50% on backlight power consumption.

 Using Smart Energy Sanver does not affect the photo quality.

Using the CLOCK (EZ Access Button)

You can press to toggle between Slideshow view and Clock view.

 When switching from Clock view to Slideshow view, the Photo

Frame starts from the photo that was run last.

 If the last slideshow was from a Memory Card or USB and is no

longer available, the PhotoFrame will start a slideshow from the Pre-install album.

Using Smart Energy Saver

EN-11

Philips Digital PhotoFrame

Using Settings

Configure the settings of the PhotoFrame

1. In the main menu, scroll to select SETTING and then press OK.

2. Scroll to toggle among Date & Time, Brightness, Language,

Information, Reset & Upgrade, and then press OK to enter a page.

3. Press OK again. When the selection marks appear, scroll to

adjust the settings, and then press OK to confirm.

4. Press ESC to exit.

EN-12

Using Settings

Philips Digital PhotoFrame

Date & Time page

Item Option Description

Date - Set the date.

Time - Set the time.

Mode

On Screen

Clock

On Off

Select a time format (12-hour clock or

24-hour clock). On screen display of the digit clock during

slideshow mode.

Brightness page

Item Option Description

20% 40%

Brightness

60% 80%

100%

Select the level of screen brightness.

Language page

Item Option Description

Language

English

Spanish

French

Set On-Screen Display (OSD) language.

Information page

Item Option Description

FW Version - Shows the current firmware version.

Reset & Upgrade page

Item Option Description

Reset

Upgrade Yes

Yes

Revert settings back to system default.

Upgrades the firmware of the Photo Frame.

Using Settings

EN-13

Philips Digital PhotoFrame

EN-14

Appendix

Philips Digital PhotoFrame

always keep a copy of the original photos on the computer.

The frame froze and will not respond, what can I do?

If the frame freezes, it is easy to restart by unplugging from power, then press power button again.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter ference in a residential installation. This equipment generates, uses,and can radiate radio frequency energy and, if not installed and used in accor

Frequently asked questions

EN-15

Philips Digital PhotoFrame

dance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Any changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Recycling

To minimize harm to the environment, the batteries supplied with the PhotoFrame do not contain mercury or nickelcadmium. If possible, when disposing of batteries, use recycling means available in your area.

The PhotoFrame uses materials that can be recycled. To minimize the amount of waste in the environment, check your area for companies that will recover used televisions for dismantling and collection of reusable materials, or contact your dealer for recycling tips.

Please dispose of the carton and packing material through the proper waste disposal management in your area.

* Visit www.recycle.philips.com for more information.

EN-16

Regulation and compliance
