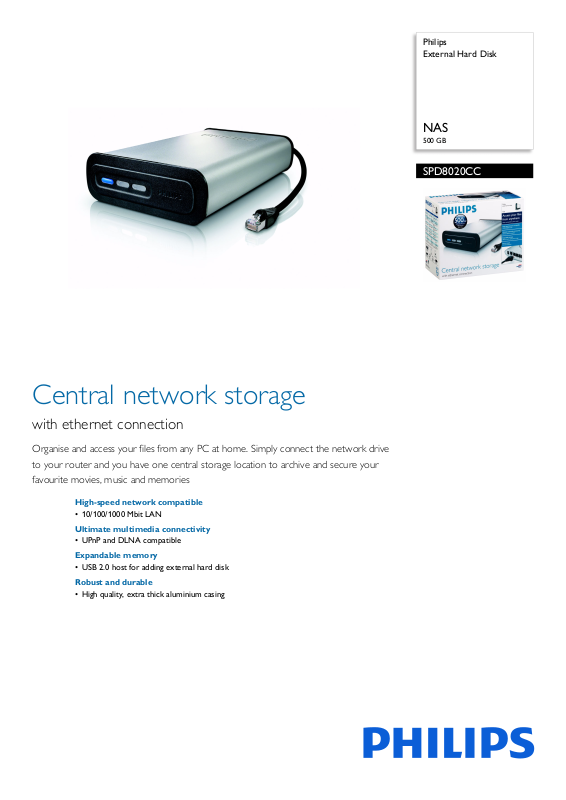

Page 1
Philips
External Hard Disk
NAS
500 GB
SPD8020CC
Central network storage
with ethernet connection
Organise and access your files from any PC at home. Simply connect the network drive
to your router and you have one central storage location to archive and secure your
favourite movies, music and memories
High-speed network compatible
• 10/100/1000 Mbit LAN
Ultimate multimedia connectivity
• UPnP and DLNA compatible
Expandable memory
• USB 2.0 host for adding external hard disk
Robust and durable
• High quality, extra thick aluminium casing
Page 2
SPD8020CC/10
External Hard Disk
NAS 500 GB
Specifications
Storage Media
• Hard Disk Capacity: 500 GB
• HDD Type: 3.5" HDD
• Rotational speed: 7200 rpm
• Transfer rate: 480 Mb/s (USB interface) and 10/
0/1000Mbit LAN
10
• Access time (typical): 8.5 ms
• Cache memory: 16 MB
Connectivity
• Interface: RJ45 ethernet connection and USB 2.0
host for additional mass storage device
Accessories
•USB cable: No
• Ethernet cable
• User Manual: ON CD-ROM
• Quick start guide
•AC Adapter
•CD-ROM
System Requirements
• PC OS: Windows 2000, Windows XP, Windows
Vista
• Processor: Pentium 4 1 GHz, 128 MB RAM
• PC Network required: Wire
network
less or wired PC
Network protocols
• Complies with: TCP/IP
Product dimensions
• Product dimensions (W x H x D):
14 x 4.9 x 23.4 cm
• Weight: 2.09 kg
Packaging dimensions
• EAN: 87 12581 34455 9
• Number of products included: 1
• Packaging type: Carton
• Packaging dimensions (W x H x D):
.4 x 24.2 x 14.5 cm
30
• Net weight: 2.09 kg
• Gross weight: 2.32 kg
• Tare weight: 0.23 kg
Outer Carton
• EAN: 87 12581 34456 6
• Number of consumer packages: 4
•Outer carton (L x W x H): 51.1 x 31.6 x 34.3 cm
• Net weight: 8.36 kg
• Gross weight: 9.78 kg
• Tare weight: 1.42 kg
•
Highlights
10/100/1000 Mbit LAN
The hard disk is compatible with all network speeds
and is ready for the next generation of high-speed
GB LAN devices.
UPnP and DLNA compatible
Play your music and movies anywhere in the house
by streaming content directly from the NAS via the
UPnP server.
USB 2.0 host for adding HD
Grow your storage capacity as your data grows by
simply adding another USB hard disk for extra
capacity via the high-speed USB 2.0 host.
Extra thick aluminium casing
The high quality aluminium casing protects the hard
drive from wear and tear - protecting your data and
guaranteeing a long working life. It also insulates the
sound of the drive to ensure quiet operation.
Issue date 2017-04-04
Version: 3.0.10
12 NC: 8670 000 31351
EAN: 87 12581 34455 9
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
