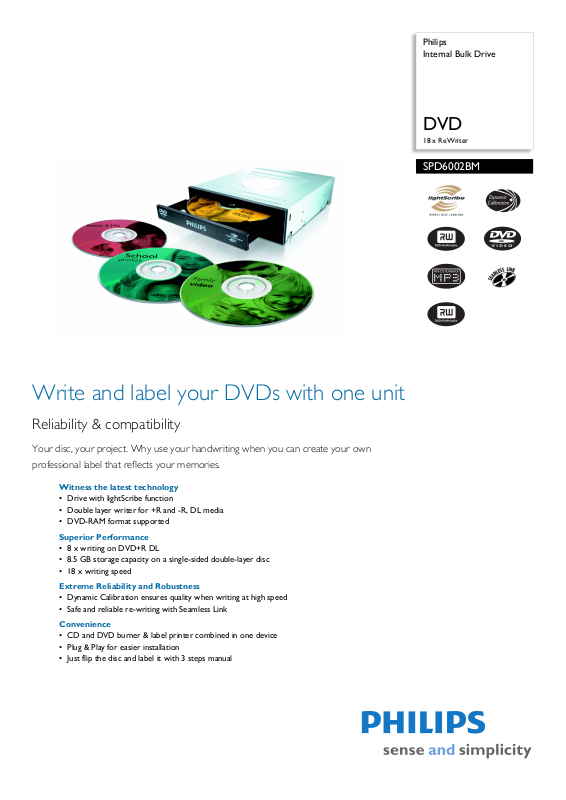

Page 1
Philips
Internal Bulk Drive
DVD
18 x ReWriter
SPD6002BM
Write and label your DVDs with one unit
Reliability & compatibility
Your disc, your project. Why use your handwriting when you can create your own
professional label that reflects your memories.
Witness the latest technology
• Drive with lightScribe function
• Double layer writer for +R and -R, DL media
• DVD-RAM format supported
Superior Performance
• 8 x writing on DVD+R DL
•8.5 GB storage capacity on a single-sided double-layer disc
• 18 x writing speed
Extreme Reliability and Robustness
• Dynamic Calibration ensures quality when writing at high speed
• Safe and reliable re-writing with Seamless Link
Convenience
• CD and DVD burner & label printer combined in one device
• Plug & Play for easier installation
• Just flip the disc and label it with 3 steps manual
Page 2
Internal Bulk Drive
DVD 18 x ReWriter
SPD6002BM/00
Specifications Product highlights
Writing Speed
• CD-R: 48 X (7200KB/sec) by CAV
• DVD+R: 18 X (24300KB/sec) by CAV
• DVD+R DL: 8 X (10800KB/sec) by Z-CLV
• DVD-R: 18 X (24300KB/sec) by CAV
• DVD-R DL: 8 X (10800KB/sec) by Z-CLV
• DVD-RAM: 12 X (16200KB/sec) by PCAV
Re-writing Speed
• CD-RW: 24 X (3600KB/sec) by CAV
• DVD+RW: 8 X (10800KB/sec) by CLV
• DVD-RW: 6 X (8100KB/sec) by CLV
Reading Speed
• Access time: 160 ms
• Buffer size: 2 MB
• CD-R: 48 X (7200KB/sec) by CAV
• DVD-ROM: 16 X (21600KB/sec) by CAV
• DVD-RAM: 5 X (6750KB/sec) by PCAV
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC in, IDE interface
connector, Master/Slave select jumper, Analogue
audio Left/Right out, DC power connector,
Digital audio out
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How-to manual, step by step
System Requirements
• Hard disk space: 650 MB
• PC OS: Windows® XP, 2000 SP4
• Processor: Pentium 4 1.3 GHz or Higher CPU
• RAM memory: 128 MB
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42
mm
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Storage temperature range: -40 - 65 °C
Inner Box
• 12NC: 8670 000 27147
• EAN/UPC/GTIN: 87 12581 31708 9
• Gross weight: 0.9 kg
• Height: 324 mm
• Length: 165 mm
• Quantity: 1
• Width: 146 mm
Outer Box
• 12NC: 867000027147
• EAN/UPC/GTIN: 87 12581 31711 9
• Gross weight: 9.1 kg
• Height: 244 mm
• Length: 363 mm
• Quantity: 10
• Width: 363 mm
Outer Carton 2
• 12NC: 8670 000 27147
• EAN/UPC/GTIN: 87 12581 31714 0
• Quantity: 128
Packaging Data
• 12NC: 867000027147
• EAN/UPC/GTIN: 87 12581 31708 9
• Gross weight: 0.9 kg
• Height: 324 mm
• Length: 165 mm
• Width: 146 mm
•
LightScribe
LightScribe Direct Disc Labelling makes messy marker
pens and awkward stick-on labels a thing of the past!
Simply flip over your specially coated recordable/rewritable CD or DVD, re-insert it in the drive and 'burn'
fantastic labels with the look and quality of professional
silk-screened labels. You can mix text and personalised
gr aph ics usin g th e sof twa re p rovi ded and eve n add to t he
label at a later date. It makes finding your archived
movies, music, photos and data files easier than ever
before.
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
Dual format writer on +/- DL
New drive, enabling writing on both +R and -R 8.5 GB
double layer media
Burner & Printer in one
LightScribe technology adds label printing functions to
your CD and DVD burner.
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedures or technical
analyses.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
8.5 GB of storage capacity
Store 8.5 GB of data or 4 hours of DVD quality video on
one single-sided double-layer disc
DVD-RAM
The DVD-RAM format is supported, which makes this
product a true MultiRecording drive supporting all CD
and DVD formats.
Issue date 2009-01-22
Version: 4.0.11
12 NC: 8670 000 27147
EAN: 87 12581 31708 9
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
