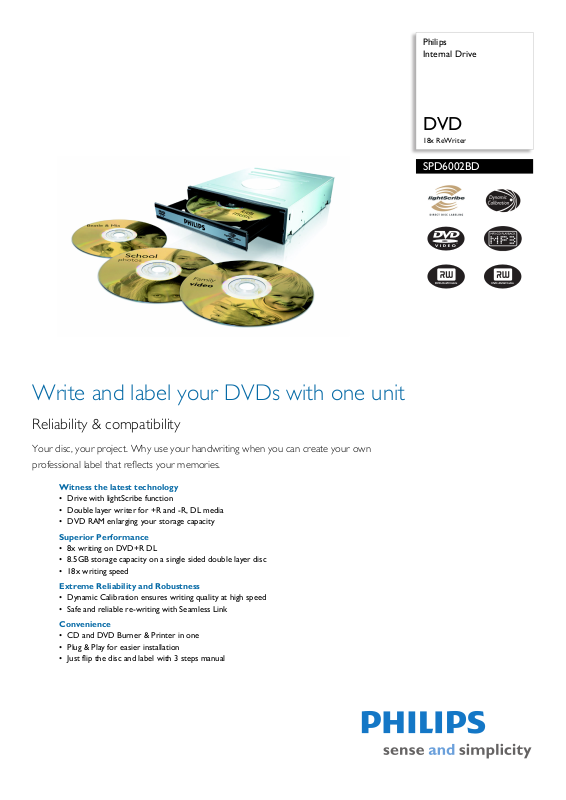

Page 1
Philips
Internal Drive
DVD
18x ReWriter
SPD6002BD
Write and label your DVDs with one unit
Reliability & compatibility
Your disc, your project. Why use your handwriting when you can create your own
professional label that reflects your memories.
Witness the latest technology
• Drive with lightScribe function
• Double layer writer for +R and -R, DL media
• DVD RAM enlarging your storage capacity
Superior Performance
• 8x writing on DVD+R DL
• 8.5GB storage capacity on a single sided double layer disc
• 18x writing speed
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Convenience
• CD and DVD Burner & Printer in one
• Plug & Play for easier installation
• Just flip the disc and label with 3 steps manual
Page 2
Internal Drive
DVD 18x ReWriter
SPD6002BD/10
Specifications Product highlights
Writing Speed
• CD-R: 48X (7200KB/sec) by CAV
• DVD+R: 18X (24300KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R: 18X (24300KB/sec) by CAV
• DVD-R DL: 8X (10800KB/sec) by Z-CLV
• DVD-RAM: 12X (16200KB/sec) by PCAV
Rewriting Speed
• CD-RW: 24X (3600KB/sec) by CAV
• DVD+RW: 8X (10800KB/sec) by CLV
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• Access time: 160ms
• Buffer size: 2MB
• CD-R: 48X (7200KB/sec) by CAV
• DVD ROM: 16X (21600KB/sec) by CAV
• RAM: 5X (6750KB/sec) by PCAV
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC in, IDE interface
connector, Master/Slave select jumper, Analogue
audio Left/Right out, DC power connector,
Digital audio out
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How to manual, step by step
Accessories
• Included Accessories: 4 mounting screws, CDROM with software + manual, LightScribe discs,
Quick install guide, User Manual
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42
mm
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Storage temperature range: -40 - 65 °C
Inner Carton
• 12NC: 8670 000 27148
• EAN/UPC/GTIN: 87 12581 31709 6
• Gross weight: 1.2 kg
• Height: 260 mm
• Length: 210 mm
• Quantity: 1
• Width: 107 mm
Outer Carton
• 12NC: 867000027148
• EAN/UPC/GTIN: 87 12581 31712 6
• Gross weight: 2 kg
• Height: 230 mm
• Length: 270 mm
• Quantity: 2
• Width: 230 mm
Outer Carton 2
• 12NC: 8670 000 27148
• EAN/UPC/GTIN: 87 12581 31715 7
• Quantity: 128
Packaging Data
• 12NC: 867000027148
• EAN/UPC/GTIN: 87 12581 31709 6
• Gross weight: 1.2 kg
• Height: 260 mm
• Length: 210 mm
• Width: 107 mm
Software
• Ahead Nero Suite 6: EasyWrite Reader 4, InCD 4,
Nero Burning Rights 1, Nero Burning Rom 6,
Nero media Player 1, Nero Vision express 2
•
LightScribe
LightScribe Direct Disc Labelling makes messy marker
pens and awkward stick-on labels a thing of the past!
Simply flip over your specially coated recordable/
rewritable CD or DVD, re-insert it in the drive and 'burn'
fantastic labels with the look and quality of professional
silk-screened labels. You can mix text and personalised
gr aph ics usin g th e so ftw are p rov ide d an d ev en ad d to the
label at a later date. It makes finding your archived
movies, music, photos and data files easier than ever
before.
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
Dual format writer on +/- DL
New drive enabling writing on both +R and -R 8.5 GB
double layer media
Burner & Printer in one
LightScribe technology adds the label printing function to
your CD and DVD burner.
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedure or technical analysis.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
DVD RAM
DVD RAM format supported which makes this drive a
Multi drive supporting CD, DVD Rom, DVD RAM.
Issue date 2009-01-22
Version: 2.0.6
12 NC: 8670 000 31919
EAN: 87 12581 34856 4
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
