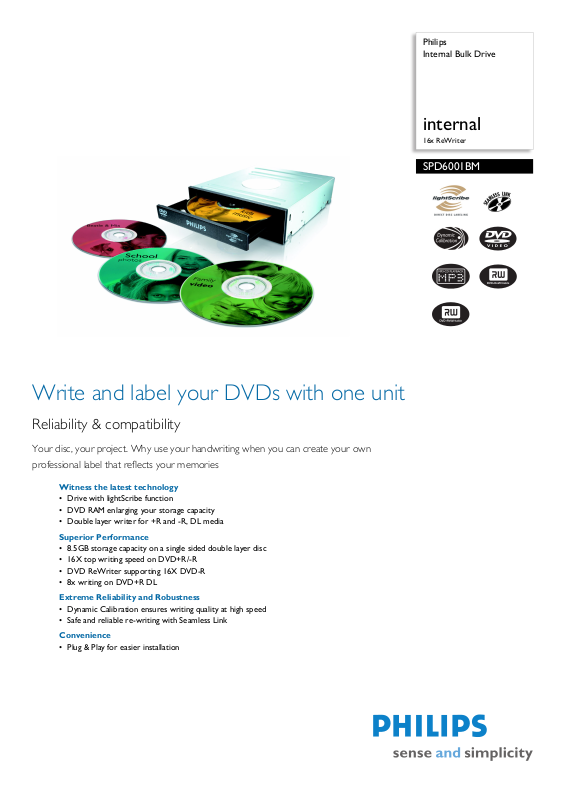

Page 1
Philips
Internal Bulk Drive
internal
16x ReWriter
SPD6001BM
Write and label your DVDs with one unit
Reliability & compatibility
Your disc, your project. Why use your handwriting when you can create your own
professional label that reflects your memories
Witness the latest technology
• Drive with lightScribe function
• DVD RAM enlarging your storage capacity
• Double layer writer for +R and -R, DL media
Superior Performance
• 8.5GB storage capacity on a single sided double layer disc
• 16X top writing speed on DVD+R/-R
• DVD ReWriter supporting 16X DVD-R
• 8x writing on DVD+R DL
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Convenience
• Plug & Play for easier installation
Page 2
Internal Bulk Drive
internal 16x ReWriter
SPD6001BM/00
Specifications Product highlights
Writing Speed
• CD-R: 48X (7200KB/sec) by CAV
• DVD+R: 16X (21600KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R: 16X (21600KB/sec) by CAV
• DVD-R DL: 4X (5400KB/sec) by CLV
• DVD-RAM: 5X (6750KB/sec) by PCAV
Rewriting Speed
• CD-RW: 24X (3600KB/sec) by CAV
• DVD+RW: 8X (10800KB/sec) by CLV
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• Access time: 160ms
• Buffer size: 2MB
• CD-R: 48X (7200KB/sec) by CAV
• DVD ROM: 16X (21600KB/sec) by CAV
• RAM: 5X (6750KB/sec) by PCAV
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC in, IDE interface
connector, Master/Slave select jumper, Analogue
audio Left/Right out, DC power connector,
Digital audio out
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How to manual, step by step
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42
mm
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Storage temperature range: -40 - 65 °C
Inner Carton
• 12NC: 908210007869
• EAN/UPC/GTIN: 87 10895 95869 1
• Gross weight: 0.9 kg
• Height: 324 mm
• Length: 165 mm
• Quantity: 1
• Width: 146 mm
Outer Carton
• 12NC: 908210007869
• EAN/UPC/GTIN: 87 10895 95870 7
• Gross weight: 9.1 kg
• Height: 244 mm
• Length: 363 mm
• Quantity: 10
• Width: 363 mm
Outer Carton 2
• 12NC: 9082 100 07867
• EAN/UPC/GTIN: 87 10895 95871 4
• Quantity: 128
Packaging Data
• 12NC: 908210007869
• EAN/UPC/GTIN: 87 10895 95869 1
• Gross weight: 0.9 kg
• Height: 324 mm
• Length: 165 mm
• Width: 146 mm
•
LightScribe
LightScribe Direct Disc Labelling makes messy marker
pens and awkward stick-on labels a thing of the past!
Simply flip over your specially coated recordable/
rewritable CD or DVD, re-insert it in the drive and 'burn'
fantastic labels with the look and quality of professional
silk-screened labels. You can mix text and personalised
gr aph ics usin g th e so ftw are p rov ide d an d ev en ad d to the
label at a later date. It makes finding your archived
movies, music, photos and data files easier than ever
before.
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R discs
16X write speed on DVD-R
16x DVD-R writing speed
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedure or technical analysis.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
DVD RAM
DVD RAM format supported which makes this drive a
Multi drive supporting CD, DVD Rom, DVD RAM.
Issue date 2007-12-06
Version: 3.0
12 NC: 9082 100 07869
EAN: 87 10895 95869 1
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
