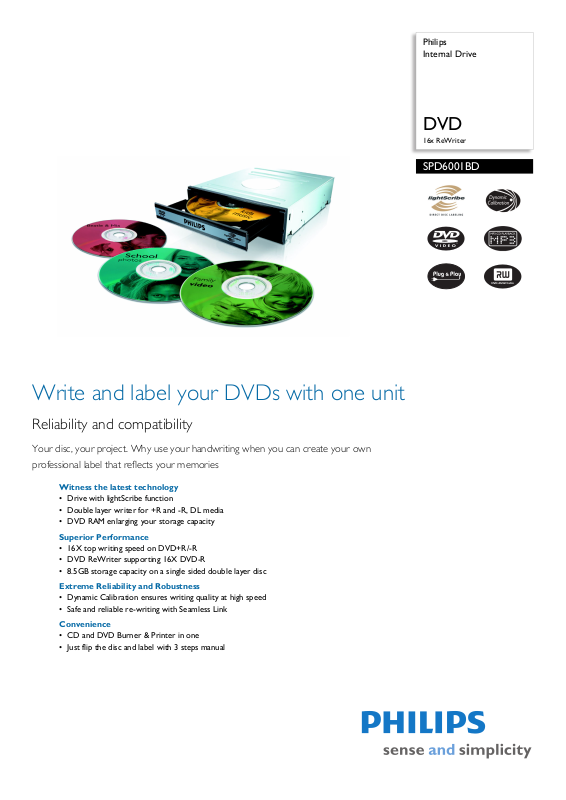

Page 1
Philips
Internal Drive
DVD
16x ReWriter
SPD6001BD
Write and label your DVDs with one unit
Reliability and compatibility
Your disc, your project. Why use your handwriting when you can create your own
professional label that reflects your memories
Witness the latest technology
• Drive with lightScribe function
• Double layer writer for +R and -R, DL media
• DVD RAM enlarging your storage capacity
Superior Performance
• 16X top writing speed on DVD+R/-R
• DVD ReWriter supporting 16X DVD-R
• 8.5GB storage capacity on a single sided double layer disc
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Convenience
• CD and DVD Burner & Printer in one
• Just flip the disc and label with 3 steps manual
Page 2
Internal Drive
DVD 16x ReWriter
SPD6001BD/00
Specifications Product highlights
Writing Speed
• CD-R: 48X (7200KB/sec) by CAV
• DVD+R: 16X (21600KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R: 16X (21600KB/sec) by CAV
• DVD-R DL: 4X (5400KB/sec) by Z-CLV
• DVD-RAM: 5X (6750KB/sec) by PCAV
Rewriting Speed
• CD-RW: 24X (3600KB/sec) by CAV
• DVD+RW: 8X (10800KB/sec) by CLV
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• Access time: 160ms
• Buffer size: 2MB
• CD-R: 48X (7200KB/sec) by CAV
• DVD ROM: 16X (21600KB/sec) by CAV
• RAM: 5X (6750KB/sec) by PCAV
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC in, IDE interface
connector, Master/Slave select jumper, Analogue
audio Left/Right out, DC power connector,
Digital audio out
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How to manual, step by step
Accessories
• Included Accessories: 4 mounting screws, CDROM with software + manual, LightScribe discs,
Quick install guide, User Manual
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Storage temperature range: -40 - 65 °C
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42
mm
Software
• Ahead Nero Suite 6: EasyWrite Reader 4, InCD 4,
Nero Burning Rom 6, Nero Vision express 2
Packaging Data
• 12NC: 908210008578
• EAN/UPC/GTIN: 87 10895 97628 2
• Gross weight: 1.2 kg
• Height: 260 mm
• Length: 210 mm
• Width: 107 mm
Inner Carton
• 12NC: 908210008578
• EAN/UPC/GTIN: 87 10895 97628 2
• Gross weight: 1.2 kg
• Height: 260 mm
• Length: 210 mm
• Quantity: 1
• Width: 107 mm
Outer Carton
• 12NC: 908210008578
• EAN/UPC/GTIN: 87 10895 97629 9
• Gross weight: 2 kg
• Height: 230 mm
• Length: 270 mm
• Quantity: 2
• Width: 230 mm
Outer Carton 2
• 12NC: 9082 100 07867
• EAN/UPC/GTIN: 87 10895 97630 5
• Quantity: 128
•
LightScribe
LightScribe Direct Disc Labelling makes messy marker
pens and awkward stick-on labels a thing of the past!
Simply flip over your specially coated recordable/
rewritable CD or DVD, re-insert it in the drive and 'burn'
fantastic labels with the look and quality of professional
silk-screened labels. You can mix text and personalised
gr aph ics usin g th e so ftw are p rov ide d an d ev en ad d to the
label at a later date. It makes finding your archived
movies, music, photos and data files easier than ever
before.
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R discs
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
DVD RAM
DVD RAM format supported which makes this drive a
Multi drive supporting CD, DVD Rom, DVD RAM.
Issue date 2009-02-12
Version: 6.0.9
12 NC: 9082 100 08578
EAN: 87 10895 97628 2
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
