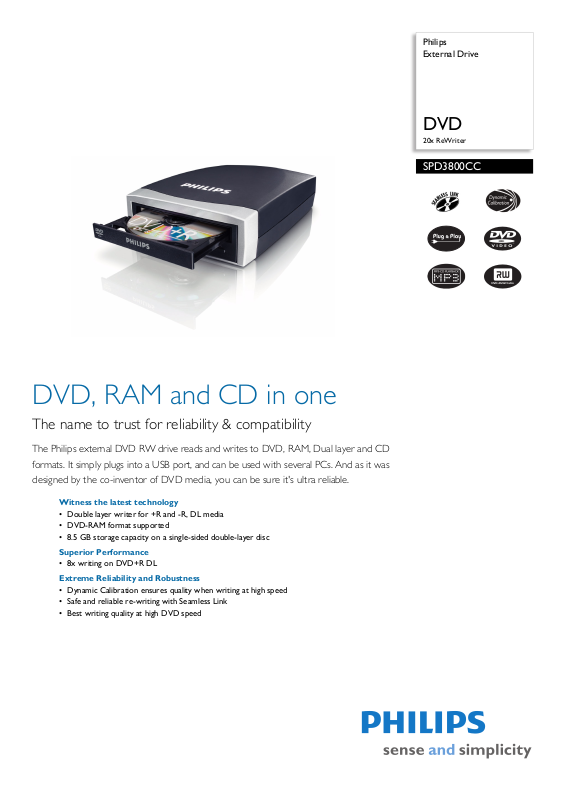

Page 1
Philips
External Drive
DVD
20x ReWriter
SPD3800CC
DVD, RAM and CD in one
The name to trust for reliability & compatibility
The Philips external DVD RW drive reads and writes to DVD, RAM, Dual layer and CD
formats. It simply plugs into a USB port, and can be used with several PCs. And as it was
designed by the co-inventor of DVD media, you can be sure it's ultra reliable.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD-RAM format supported
•8.5 GB storage capacity on a single-sided double-layer disc
Superior Performance
• 8x writing on DVD+R DL
Extreme Reliability and Robustness
• Dynamic Calibration ensures quality when writing at high speed
• Safe and reliable re-writing with Seamless Link
• Best writing quality at high DVD speed
Page 2
External Drive
DVD 20x ReWriter
SPD3800CC/05
Specifications Product highlights
Writing Speed
• CD-R: 48x (7200KB/sec) by CAV
• DVD+R: 20x (24300KB/sec) maximum by CAV
• DVD+R DL: 8x (5400KB/sec) by Z-CLV
• DVD-R: 20x (24300KB/sec) maximum by CAV
• DVD-R DL: 8x (5400KB/sec) maximum by CLV
• DVD-RAM: 12x (6750KB/sec) maximum by
PCAV
Rewriting Speed
• CD-RW: 24x (3600KB/sec) by ZCAV
• DVD+RW: 8x (10800KB/sec) by ZCLV
• DVD-RW: 6x (8100KB/sec) by CAV
Reading Speed
• Access time: 160 ms
• Buffer size: 2 MB
• CD-R: 48X (7200KB/sec) by CAV
• DVD-ROM: 16X (21600KB/sec) by CAV
Connectivity
• Interface: USB 2
System Requirements
• Hard disk space: 650 MB
• PC OS: Windows 98 SE, 2000, ME, XP
• Processor: Pentium 4 1.3 GHz or faster
• RAM memory: 128 MB
Software
• Ahead Nero Suite 6: InCD 4, Nero Burning Rom
6, Nero Vision express 2
Dimensions
• Product dimensions (WxDxH): 145 x 170 x 42
mm
• Product weight: <0.9 kg
Packaging Data
• Gross weight: 2.3 kg
• Height: 242 mm
• Length: 304 mm
• Width: 146 mm
Technical specifications
• EMC standards: EN55022, EMS55024,FCC Part
15
• Safety standards: EN60950, EN60825,UL1950
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Storage temperature range: -40 - 65 °C
Outer Box
• Gross weight: 9.925 kg
• Height: 324 mm
• Length: 517 mm
• Quantity: 4
• Width: 324 mm
Outer Carton 2
• Quantity: 144
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How-to manual, step by step
Power
• Adapter type: DC 5V/12V
• Power consumption: 25 W
Outer Box
• Gross weight: 9.925 kg
• Outer carton (L x W x H): 51.7 x 32.4 x 32.4 cm
• Net weight: 5.6 kg
• Tare weight: 4.325 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
30.8
x 24.8 x 15.2 cm
• Gross weight: 2.3 kg
• Net weight: 1.4 kg
• Tare weight: .9 kg
•
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
DVD-RAM
The DVD-RAM format is supported, which makes this
product a true MultiRecording drive supporting all CD
and DVD formats.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
8.5 GB of storage capacity
Store 8.5 GB of data or 4 hours of DVD quality video on
one single-sided double-layer disc
Issue date 2009-02-23
Version: 1.0.3
12 NC: 8670 000 39811
EAN: 87 12581 42382 7
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
