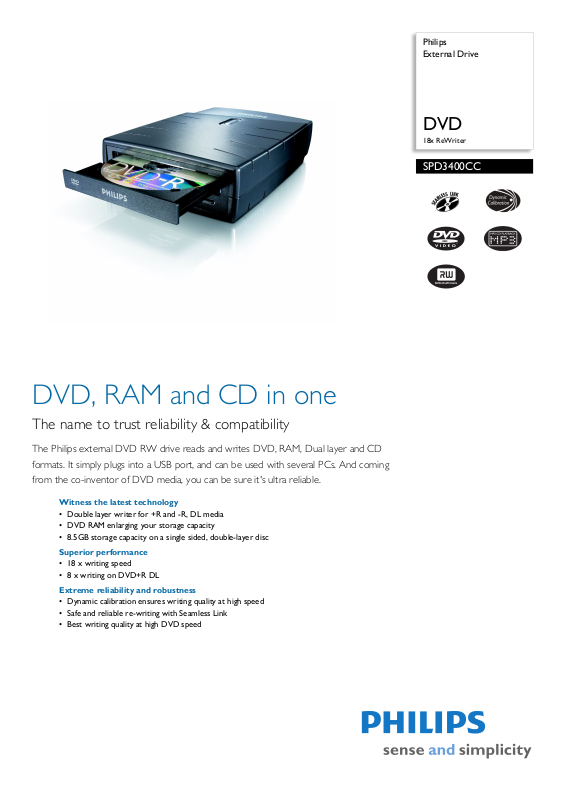

Page 1
Philips
External Drive
DVD
18x ReWriter
SPD3400CC
DVD, RAM and CD in one
The name to trust reliability & compatibility
The Philips external DVD RW drive reads and writes DVD, RAM, Dual layer and CD
formats. It simply plugs into a USB port, and can be used with several PCs. And coming
from the co-inventor of DVD media, you can be sure it's ultra reliable.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD RAM enlarging your storage capacity
• 8.5GB storage capacity on a single sided, double-layer disc
Superior performance
• 18 x writing speed
• 8 x writing on DVD+R DL
Extreme reliability and robustness
• Dynamic calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
• Best writing quality at high DVD speed
Page 2
External Drive
DVD 18x ReWriter
SPD3400CC/05
Specifications Product highlights
Writing Speed
• CD-R: 48x (7200KB/sec) by CAV
• DVD+R: 18x (21600KB/sec) maximum by CAV
• DVD+R DL: 8x (5400KB/sec) by Z-CLV
• DVD-R: 18x (21600KB/sec) maximum by CAV
• DVD-R DL: 8x (5400KB/sec) maximum by CLV
• DVD-RAM: 12x (6750KB/sec) maximum by
PCAV
Rewriting Speed
• CD-RW: 24x (3600KB/sec) by ZCAV
• DVD+RW: 8x (10800KB/sec) by ZCLV
• DVD-RW: 6x (8100KB/sec) by CAV
Reading Speed
• Access time: 160ms
• Buffer size: 2MB
• CD-R: 48X (7200KB/sec) by CAV
• DVD ROM: 16X (21600KB/sec) by CAV
Connectivity
• Interface: USB 2
System Requirements
• Hard disk space: 650MB
• PC OS: Windows 98 SE, 2000, ME, XP
• Processor: Pentium 4 1.3 GHz or faster
• RAM memory: 128 MB
Software
• Ahead Nero Suite 6: InCD 4, Nero Burning Rom
6, Nero Vision express 2
• Height: 242 mm
• Length: 304 mm
• Width: 146 mm
Technical specifications
• EMC standards: EN55022, EMS55024,FCC Part
15
• Safety standards: EN60950, EN60825,UL1950
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Storage temperature range: -40 - 65 °C
Inner Carton
• 12NC: 9082 100 06799
• Gross weight: 2.3 kg
• Height: 242 mm
• Length: 304 mm
• Quantity: 1
• Width: 146 mm
• EAN/UPC/GTIN: 8712581340537
Outer Carton
• 12NC: 908210006799
• Gross weight: 9.925 kg
• Height: 324 mm
• Length: 517 mm
• Quantity: 4
• Width: 324 mm
• EAN/UPC/GTIN: 8712581340544
Outer Carton 2
• Quantity: 144
Dynamic calibration
Dynamic calibration optimises DVD writing quality of
high-speed DVD+RW drives.
DVD RAM
DVD RAM format supported which makes this drive a
multi-drive supporting CD, DVD Rom, DVD RAM.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
8.5GB storage capacity
Single sided, double-layer disc with 8.5 GB storage
capacity
Dimensions
• Product dimensions (WxDxH): 145 x 170 x 42
mm
• Product weight: <0.9 kg
Packaging Data
• Gross weight: 2.3 kg
Convenience
• Ease of Installation: Plug and play
• Ease of Use: How to manual, step by step
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
•
Issue date 2009-02-12
Version: 2.0.3
12 NC: 8670 000 30804
EAN: 87 12581 34053 7
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
