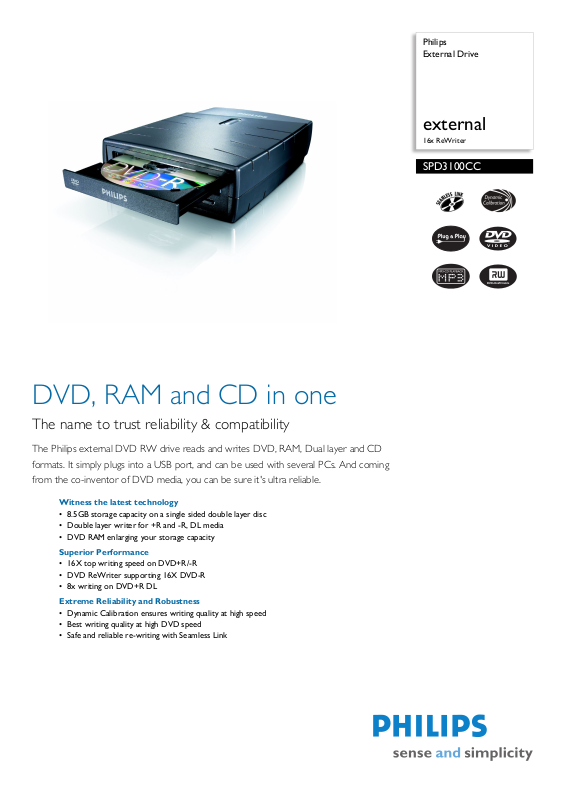

Page 1
Philips
External Drive
external
16x ReWriter
SPD3100CC
DVD, RAM and CD in one
The name to trust reliability & compatibility
The Philips external DVD RW drive reads and writes DVD, RAM, Dual layer and CD
formats. It simply plugs into a USB port, and can be used with several PCs. And coming
from the co-inventor of DVD media, you can be sure it's ultra reliable.
Witness the latest technology
• 8.5GB storage capacity on a single sided double layer disc
• Double layer writer for +R and -R, DL media
• DVD RAM enlarging your storage capacity
Superior Performance
• 16X top writing speed on DVD+R/-R
• DVD ReWriter supporting 16X DVD-R
• 8x writing on DVD+R DL
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Best writing quality at high DVD speed
• Safe and reliable re-writing with Seamless Link
Page 2
External Drive
external 16x ReWriter
SPD3100CC/05
Specifications Product highlights
Writing Speed
• CD-R: 48x (7200KB/sec) by CAV
• DVD+R: 16x (21600KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R: 16x (21600KB/sec) by CAV
• DVD-R DL: 4X (5400KB/sec) by Z-CLV
• DVD-RAM: 5X (6750KB/sec) by PCAV
Rewriting Speed
• CD-RW: 24x (3600KB/sec) by ZCAV
• DVD+RW: 8x (10800KB/sec) by ZCLV
• DVD-RW: 6x (8100KB/sec) by CAV
Reading Speed
• Access time: 160ms
• Buffer size: 2MB
• CD-R: 48x (7200KB/sec) by CAV
• DVD ROM: 16x (21600KB/sec) by CAV
• RAM: 5X (6750KB/sec) by PCAV
Connectivity
• Interface: USB 2
System Requirements
• Hard disk space: Windows 98 SE, 2000, ME, XP
• PC OS: Windows 98 SE, 2000, ME, XP
• Processor: Pentium 4 1.3 GHz or faster
• RAM memory: 128 RAM
Dimensions
• Product dimensions (WxDxH): 145 x 170 x 42
mm
• Product weight: <0.9 kg
Technical specifications
• EMC standards: EN55022, EMS55024,FCC Part
15
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• Storage temperature range: -40 - 65 °C
Packaging Data
• 12NC: 908210006692
• EAN/UPC/GTIN: 87 10895 93832 7
• Gross weight: 2.3 kg
• Height: 242 mm
• Length: 304 mm
• Width: 146 mm
Inner Carton
• 12NC: 9082 100 06692
• EAN/UPC/GTIN: 87 10895 93832 7
• Gross weight: 2.3 kg
• Height: 242 mm
• Length: 304 mm
• Quantity: 1
• Width: 146 mm
Outer Carton
• 12NC: 908210006692
• EAN/UPC/GTIN: 87 10895 97130 0
• Gross weight: 9.925 kg
• Height: 324 mm
• Length: 517 mm
• Quantity: 4
• Width: 324 mm
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R discs
DVD RAM
DVD RAM format supported which makes this drive a
Multi drive supporting CD, DVD Rom, DVD RAM.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
Software
• Ahead Nero Suite 6: InCD 4, Nero Burning Rom
6, Nero Vision express 2
Outer Carton 2
• Quantity: 480
•
Issue date 2007-12-01
Version: 2.0
12 NC: 9082 100 06692
EAN: 87 10895 93832 7
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
