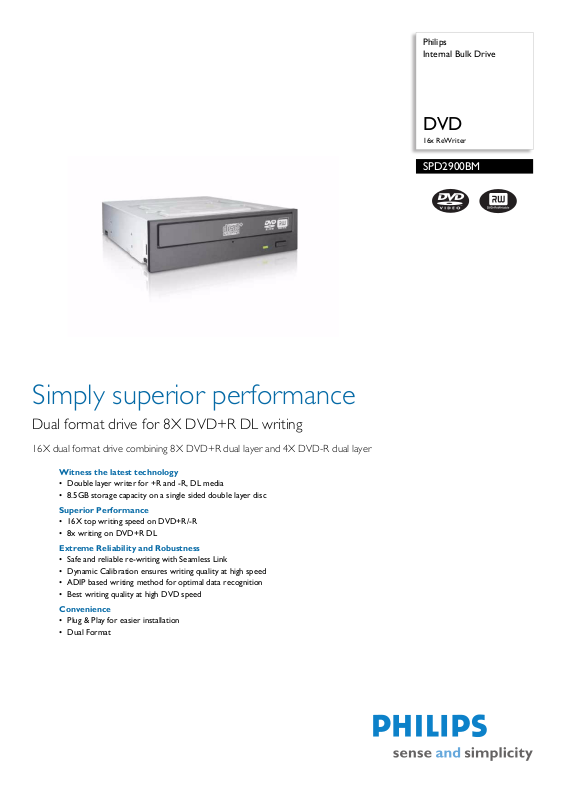

Page 1
Philips
Internal Bulk Drive
DVD
16x ReWriter
SPD2900BM
Simply superior performance
Dual format drive for 8X DVD+R DL writing
16X dual format drive combining 8X DVD+R dual layer and 4X DVD-R dual layer
Witness the latest technology
• Double layer writer for +R and -R, DL media
• 8.5GB storage capacity on a single sided double layer disc
Superior Performance
• 16X top writing speed on DVD+R/-R
• 8x writing on DVD+R DL
Extreme Reliability and Robustness
• Safe and reliable re-writing with Seamless Link
• Dynamic Calibration ensures writing quality at high speed
• ADIP based writing method for optimal data recognition
• Best writing quality at high DVD speed
Convenience
• Plug & Play for easier installation
•Dual Format
Page 2
Internal Bulk Drive
DVD 16x ReWriter
SPD2900BM/00
Specifications Product highlights
Writing Speed
• DVD+R: 16X (21600KB/sec) by CAV
• DVD-R: 16X (21600KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 4X (5400KB/sec) by CLV
• CD-R: 48x (7200KB/sec) by P-CAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 32X (4800KB/sec) by Z-CLV in
UltraSpeed disc
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• DVD ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• Buffer size: 2MB
Connectivity
• Other connections: 12 V DC in, Analogue audio
Left/Right out 2x, IDE interface connector,
Master/Slave select jumper
Convenience
• Ease of Installation: Plug & Play
System Requirements
• Hard disk space: 100MB
• PC OS: Win 98 SE, 2000, ME, XP
• Processor: Pentium 3 550MHz or Higher CPU
• RAM memory: 128 MB
Dimensions
• Product dimension (WxDxH) inch: 146X178X42
• Product weight: 0.9 kg
Power
• Adaptor type: DC 5V/12V
• Power consumption: 12 W
Technical specifications
• Humidity: 5 - 90 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Access time: CD: <120msec (typical), DVD:
<140msec (typical)
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
Packaging Data
• 12NC: 908210006052
• Gross weight: 0.9 kg
• Height: 42 mm
• Length: 178 mm
• Width: 146 mm
Outer Carton
• Gross weight: 11 kg
• Length: 525 mm
• Width: 320 mm
• Height: 237 mm
• Quantity: 10
Outer Carton 2
• Quantity: 480
•
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R discs
8x Double Layer Writing +R DL
A new drive with more powerful laser to reduce the
burning time for double layer discs
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
ADIP writing method
Drive recognises and uses full ADIP information from the
media to determine the most optimal writing speed.
Issue date 2007-12-06
Version: 3.0
12 NC: 9082 100 06052
EAN: 87 10895 93213 4
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
