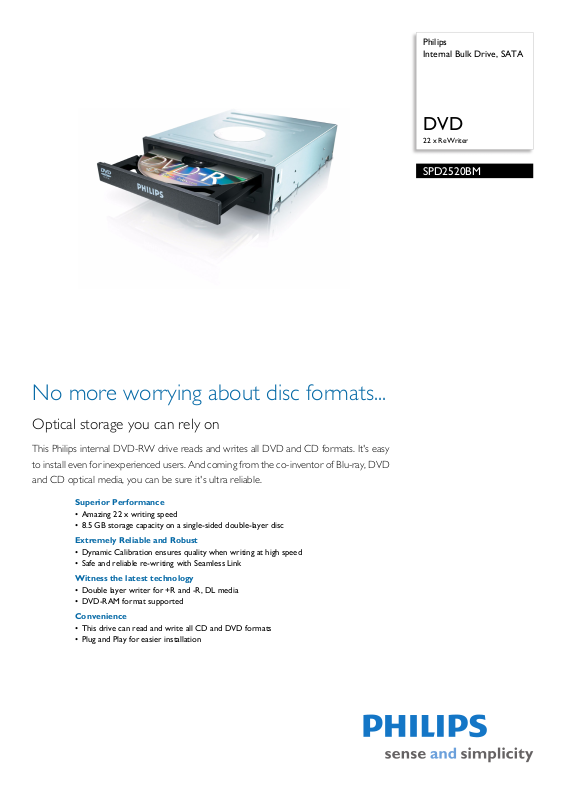

Page 1
Philips
Internal Bulk Drive, SATA
DVD
22 x ReWriter
SPD2520BM
No more worrying about disc formats...
Optical storage you can rely on
This Philips internal DVD-RW drive reads and writes all DVD and CD formats. It's easy
to install even for inexperienced users. And coming from the co-inventor of Blu-ray, DVD
and CD optical media, you can be sure it's ultra reliable.
Superior Performance
• Amazing 22 x writing speed
• 8.5 GB storage capacity on a single-sided double-layer disc
Extremely Reliable and Robust
• Dynamic Calibration ensures quality when writing at high speed
• Safe and reliable re-writing with Seamless Link
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD-RAM format supported
Convenience
• This drive can read and write all CD and DVD formats
• Plug and Play for easier installation
Page 2
Internal Bulk Drive, SATA
DVD 22 x ReWriter
SPD2520BM/00
Specifications
Writing Speed
• DVD+R: 22 x (29700 kB/s)
• DVD-R: 22 x (29700 kB/s)
• DVD-RAM: 12 x (16200 kB/s)
• DVD+R DL: 16 x (21600 kB/s)
• DVD-R DL: 12 x (16200 kB/s)
• CD-R: 48 x (7200 kB/s)
Re-writing Speed
• DVD+RW: 8 x (10800 kB/s)
• DVD-RW: 6 x (8100 kB/s)
• CD-RW: 32 x (4800 kB/s)
Reading Speed
• CD-ROM: 48 x (7200 kB/s)
• DVD-ROM: 16 x (21600kB/s)
• Access time: 110 ms
• Buffer size: 1.5 MB
Connectivity
• Interface: SATA interface
Convenience
• Ease of Installation: Plug and Play
System Requirements
• PC OS: Microsoft Windows® 7, Vista, XP, 2000
SP4
• Processor: Pentium 4 - 1.3 GHz or higher
• RAM memory: 256 MB
• Hard disk space: 650 MB
Technical specifications
• Operating temperature range: +5 ... +50 °C
• Storage temperature range: -40 ... +65 °C
• Humidity: 20 ... 80 % RH (no condensation)
• Safety standards: EN60950, EN60825
• EMC standards: EN55022, EN55024
Power
• Power input: DC 5 V 1.5 A/12 V 2 A
• Power consumption: max. 31 W
Product dimensions
• Product dimensions (W x H x D):
14.82 x 4.2 x 17 cm
• Weight: 0.75 kg
Packaging dimensions
• EAN: 87 12581 54645 8
• Packaging type: Bulk
Outer Carton
•Outer carton (L x W x H): 37.8 x 31.7 x 23.8 cm
•Gross weight: 9.5 kg
• Net weight: 7.5 kg
• Tare weight: 2 kg
• EAN: 87 12581 54646 5
• Number of consumer packages: 10
•
Highlights
All CD/DVD formats supported
This drive supports CD-ROM, CD-R(W), DVDROM, DVD+R(W), DVD-R(W), DVD+R DL, DVDR DL and DVD-RAM formats. Never worry again
about which discs are suitable for your drive!
DVD-RAM
The DVD-RAM format is supported, which makes
this product a true MultiRecording drive supporting
all CD and DVD formats.
8.5 GB of storage capacity
Store 8.5 GB of data or 4 hours of DVD quality video
on one single-sided double-layer disc
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality
of high-speed DVD+RW drives.
Seamless Link
Seamless Link prevents loss of discs caused by
writing errors
Plug and Play
Plug and Play gives you the ability to install or add a
new component and have it work without having to
perform any complex installation procedures or
technical analyses.
22 x writing speed
With the latest technology this drive reaches
maximum 22 x writing speed. This creates the fastest
drive in the world while stability is assured.
Issue date 2013-03-03
Version: 1.1.1
12 NC: 8670 000 63584
EAN: 87 12581 54645 8
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
