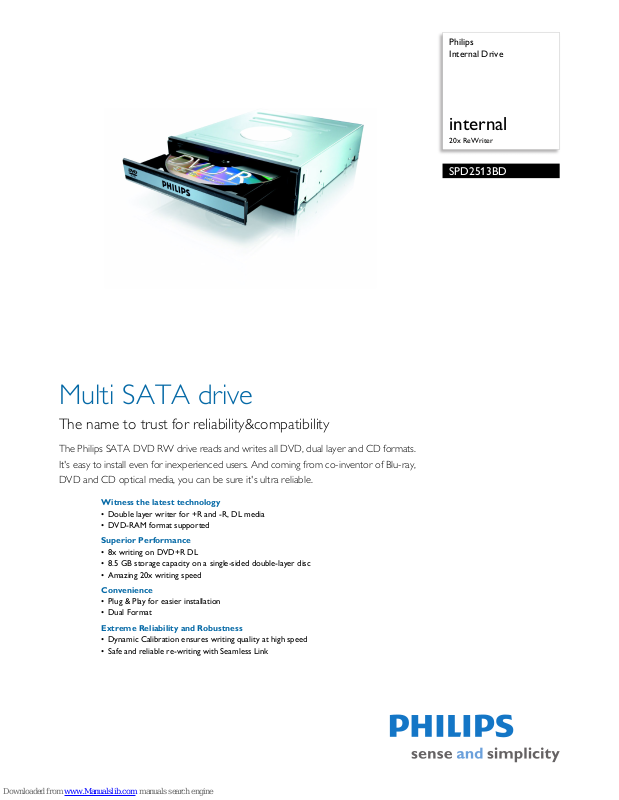

Page 1
Philips
Internal Drive
internal
20x ReWriter
SPD2513BD
Multi SATA drive
The name to trust for reliability&compatibility
The Philips SATA DVD RW drive reads and writes all DVD, dual layer and CD formats.
It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray,
DVD and CD optical media, you can be sure it's ultra reliable.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD-RAM format supported
Superior Performance
• 8x writing on DVD+R DL
• 8.5 GB storage capacity on a single-sided double-layer disc
• Amazing 20x writing speed
Convenience
• Plug & Play for easier installation
•Dual Format
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Page 2
Issue date 2009-11-06
Version: 3.0.4
12 NC: 8670 000 31303
UPC: 6 09585 13545 1
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Specifications
SPD2513BD/17
Internal Drive
internal 20x ReWriter
Highlights
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality
of high-speed DVD+RW drives.
Dual format writer on +/- DL
New drive enabling writing on both +R and -R 8.5
GB double layer media
Plug & Play
Plug & Play gives you the ability to install or add a
new component and have it work without having to
perform any complex installation procedure or
technical analysis.
Seamless Link
Seamless Link prevents loss of discs caused by
writing errors
8.5 GB of storage capacity
Store 8.5 GB of data or 4 hours of DVD quality video
on one single-sided double-layer disc
DVD-RAM
The DVD-RAM format is supported, which makes
this product a true MultiRecording drive supporting
all CD and DVD formats.
Writing Speed
• DVD+R: 20x (24000KB/sec) maximum by CAV
• DVD-R: 20x (24000KB/sec) maximum by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 8X (10800KB/sec) by Z-CLV
• CD-R: 48X (7200KB/sec) by CAV
• DVD-RAM: 12X (16200KB/sec) by PCAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• DVD-RW: 6X (8100KB/sec) by CLV
• CD-RW: 24x (3600KB/sec) maximum by Z-CTV in
Ul
traspeed disc
Reading Speed
• DVD-ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• DVD-RAM: 12X (16200KB/sec) by PCAV
• Access time: 140
• Buffer size: 2MB
Connectivity
•Interface: SATA
• Other connections: 12 V DC
in, Analog audio Left/
Right out
Convenience
• Ease of Installation: Plug & Play
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4, ME, NT, 98 SE
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Technical specifications
• Humidity: 20 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Storage temperature range: -40 - 80 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part 15
Outer Carton
• Gross weight: 21.429 lb
•Outer carton (L x W x H): 18.9 x 18.5 x 8.7 inch
• Nett weight: 19.445 lb
• Tare weight: 1.984 lb
Packaging dimensions
• Packaging dimensions (W x H x D):
9 x 8.1 x 3.6 inch
• Gross weight: 2.418 lb
• Nett weight: 1.944 lb
• Tare weight: .474 lb
•
