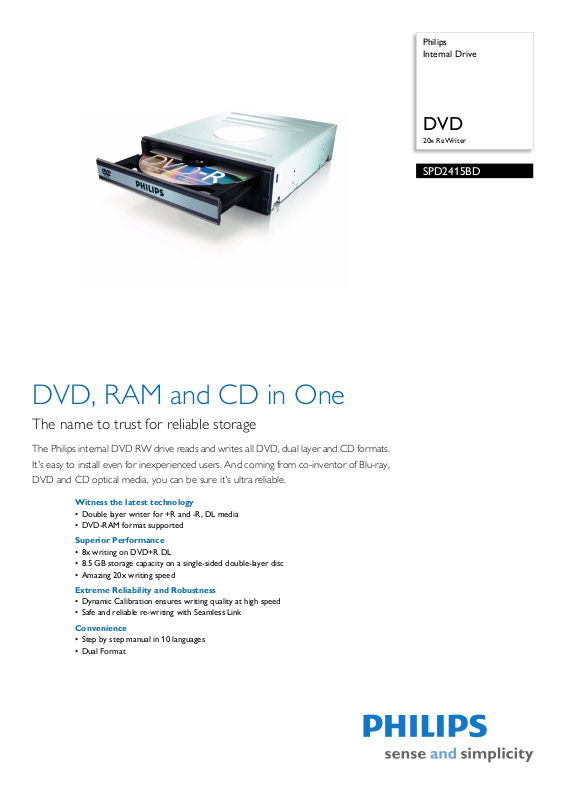

Philips SPD2415BD-17 User Manual

Philips Internal Drive

DVD

20x ReWriter

SPD2415BD

DVD, RAM and CD in One

The name to trust for reliable storage

The Philips internal DVD RW drive reads and writes all DVD, dual layer and CD formats. It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray, DVD and CD optical media, you can be sure it's ultra reliable.

Witness the latest technology

• Double layer writer for +R and -R, DL media

• DVD-RAM format supported

Superior Performance

• 8x writing on DVD+R DL

• 8.5 GB storage capacity on a single-sided double-layer disc

• Amazing 20x writing speed

Extreme Reliability and Robustness

• Dynamic Calibration ensures writing quality at high speed

• Safe and reliable re-writing with Seamless Link

Convenience

• Step by step manual in 10 languages

•Dual Format

Internal Drive

DVD 20x ReWriter

SPD2415BD/17

Specifications

Writing Speed

• DVD+R: 20x (24000KB/sec) maximum by CAV

• DVD-R: 20x (24000KB/sec) maximum by CAV

• DVD+R DL: 8x (10800KB/sec) by Z-CLV

• DVD-R DL: 4x (5400KB/sec) by CLV

• CD-R: 48x (7200KB/sec) by CAV

• DVD-RAM: 12x (6750KB/sec) maximum by PCAV

Rewriting Speed

• DVD+RW: 8X (10800KB/sec) by CLV

• CD-RW: 24x (3600KB/sec) maximum by Z-CTV in traspeed disc

• DVD-RW: 8X (10800KB/sec) by CLV

Reading Speed

• DVD-ROM: 16x (21600KB/sec) maximum by CAV

• CD-R: 48X (7200KB/sec) by CAV

• Buffer size: 2MB

• Access time: 160ms

• DVD-RAM: 12x (6750KB/sec) maximum by PCAV

Connectivity

• Interface: IDE interface (ATAPI)

• Other connections: IDE interface connector,

er/Slave select jumper

Mast

Convenience

• Ease of Installation: Plug & Play

• Ease of Use: How to manual, step by step

• Processor: Pentium 4 1.3GHz or Higher CPU

• RAM memory: 128MB

Dimensions

• Product weight: <0.9 kg

• Product dimensions (WxDxH): 146 x 170 x 42 mm

Power

• Adaptor type: DC 5V/12V

• Power consumption: 25 W

Technical specifications

• Humidity: 15 - 80 %RH (no condensation)

• Operating temperature range: 5 - 50 °C

• Safety standards: EN60950, EN60825,UL1950

• EMC standards: EN55022, EMS55024,FCC Part 15

• Storage temperature range: -40 - 65 °C

• Access time: DVD: <140msec (typical)

Software

• Ahead Nero Suite 6: EasyWrite Reader 4, InCD 4, Nero Burning Rom 6, Nero Vision express 2, Nero media Player 1

Outer Carton

• Gross weight: 9.72 kg

•Outer carton (L x W x H): 48 x 47 x 22 cm

• Nett weight: 8.82 kg

• Tare weight: .9 kg

Highlights

Multi language manual

By using the multi language manual your are guided through the installation process in your own language.

Dynamic Calibration

Dynamic Calibration optimizes DVD writing quality of high-speed DVD+RW drives.

Seamless Link

Seamless Link prevents loss of discs caused by writing errors

DVD-RAM

The DVD-RAM format is supported, which makes this product a true MultiRecording drive supporting all CD and DVD formats.

Accessories

• Included accessories: 4 mounting screws, CDROM with software + manual, User Manual

System Requirements

• Hard disk space: 650MB

• PC OS: Windows® XP, 2000 SP4, 98SE

Packaging dimensions

• Packaging dimensions (W x H x D):

22.8 x 20.5 x 9.1 cm

• Gross weight: 1.097 kg

• Nett weight: .882 kg

• Tare weight: .215 kg

•

Issue date 2013-02-11

Version: 1.0.1

12 NC: 8670 000 39639 UPC: 6 09585 15426 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
