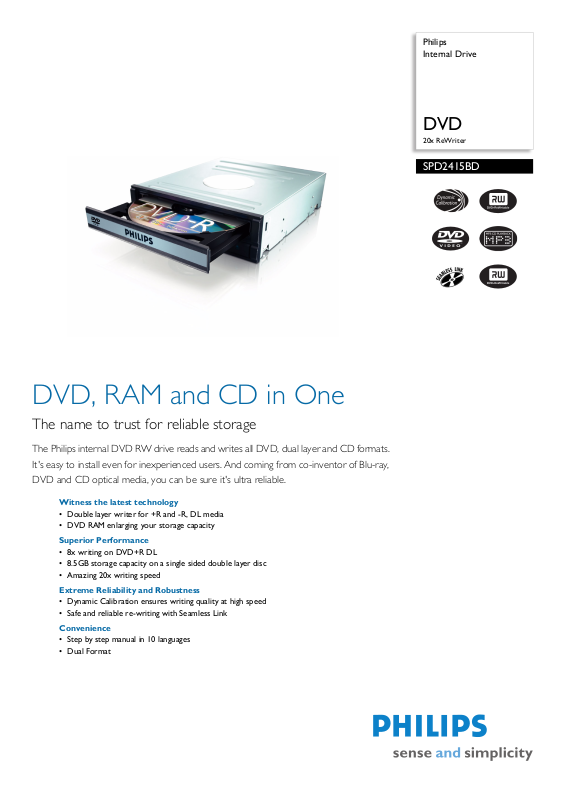

Philips SPD2415BD User Manual
Philips
Internal Drive
DVD
20x ReWriter
SPD2415BD
DVD, RAM and CD in One
The name to trust for reliable storage
The Philips internal DVD RW drive reads and writes all DVD, dual layer and CD formats.
It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray,
DVD and CD optical media, you can be sure it's ultra reliable.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD RAM enlarging your storage capacity
Superior Performance
• 8x writing on DVD+R DL
• 8.5GB storage capacity on a single sided double layer disc
• Amazing 20x writing speed
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Convenience
• Step by step manual in 10 languages
•Dual Format
Internal Drive
DVD 20x ReWriter
SPD2415BD/97
Specifications Product highlights
Writing Speed
• DVD+R: 20x (24000KB/sec) maximum by CAV
• DVD-R: 20x (24000KB/sec) maximum by CAV
• DVD+R DL: 8x (10800KB/sec) by Z-CLV
• DVD-R DL: 4x (5400KB/sec) by CLV
• CD-R: 48x (7200KB/sec) by CAV
• DVD-RAM: 12x (6750KB/sec) maximum by
PCAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 24x (3600KB/sec) maximum by Z-CTV
in Ultraspeed disc
• DVD-RW: 8X (10800KB/sec) by CLV
Reading Speed
• DVD ROM: 16x (21600KB/sec) maximum by
CAV
• CD-R: 48X (7200KB/sec) by CAV
• Buffer size: 2MB
• Access time: 160ms
• RAM: 12x (6750KB/sec) maximum by PCAV
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: IDE interface connector,
Master/Slave select jumper
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How to manual, step by step
Accessories
• Included Accessories: 4 mounting screws, CDROM with software + manual, User Manual
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4, 98SE
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42
mm
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Storage temperature range: -40 - 65 °C
• Access time: DVD: <140msec (typical)
Software
• Ahead Nero Suite 6: EasyWrite Reader 4, InCD 4,
Nero Burning Rom 6, Nero Vision express 2,
Nero media Player 1
Outer Carton
• EAN: 87 12581 40351 5
• Gross weight: 9.72 kg
• Outer carton (L x W x H): 48 x 47 x 22 cm
• Nett weight: 8.82 kg
• Number of consumer packagings: 10
• Tare weight: 0.9 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
22.8
x 20.5 x 9.1 cm
• EAN: 87 12581 40349 2
• Gross weight: 1.097 kg
• Nett weight: 0.882 kg
• Number of products included: 1
• Packaging type: Carton
• Tare weight: 0.215 kg
•
Multi language manual
By using the multi language manual your are guided
through the installation process in your own language.
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality of
high-speed DVD+RW drives.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
DVD RAM
DVD RAM format supported which makes this drive a
Multi drive supporting CD, DVD Rom, DVD RAM.
Issue date 2008-02-13
Version: 1.0.3
12 NC: 8670 000 37994
EAN: 87 12581 40349 2
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
