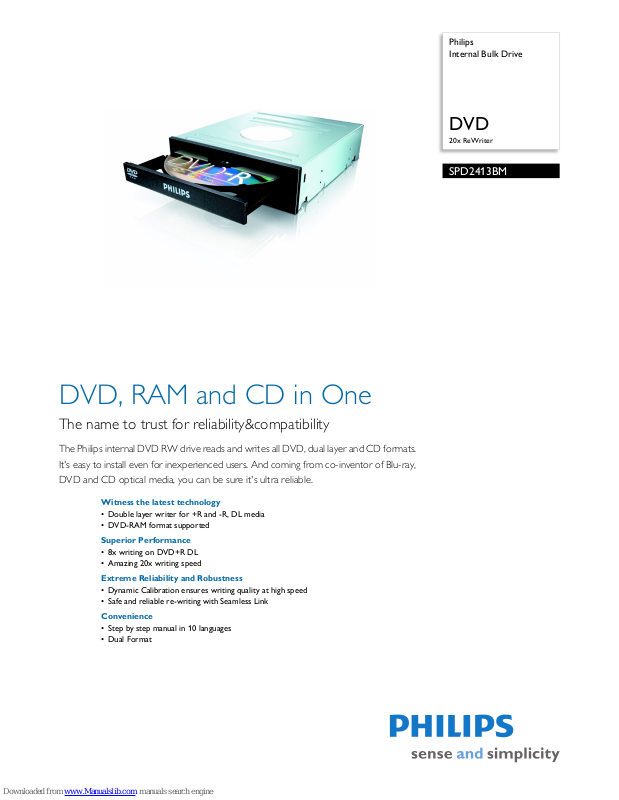

Page 1
Philips
Internal Bulk Drive
DVD
20x ReWriter
SPD2413BM
DVD, RAM and CD in One
The name to trust for reliability&compatibility
The Philips internal DVD RW drive reads and writes all DVD, dual layer and CD formats.
It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray,
DVD and CD optical media, you can be sure it's ultra reliable.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD-RAM format supported
Superior Performance
• 8x writing on DVD+R DL
• Amazing 20x writing speed
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Convenience
• Step by step manual in 10 languages
•Dual Format
Page 2
Issue date 2009-11-06
Version: 1.1.4
12 NC: 8670 000 32405
UPC: 6 09585 13915 2
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Specifications
SPD2413BM/17
Internal Bulk Drive
DVD 20x ReWriter
Highlights
Multi language manual
By using the multi language manual your are guided
through the installation process in your own
language.
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality
of high-speed DVD+RW drives.
Seamless Link
Seamless Link prevents loss of discs caused by
writing errors
DVD-RAM
The DVD-RAM format is supported, which makes
this product a true MultiRecording drive supporting
all CD and DVD formats.
Writing Speed
• DVD+R: 20x (24000KB/sec) maximum by CAV
• DVD-R: 20x (24000KB/sec) maximum by CAV
• DVD+R DL: 8x (10800KB/sec) by Z-CLV
• DVD-R DL: 4x (5400KB/sec) by CLV
• CD-R: 48x (7200KB/sec) by CAV
• DVD-RAM: 12x (6750KB/sec) maximum by PCAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 24x (3600KB/sec) maximum by Z-CTV in
Ul
traspeed disc
• DVD-RW: 8X (10800KB/sec) by CLV
Reading Speed
• DVD-ROM: 16x (21600KB/sec) maximum by CAV
• CD-R: 48X (7200KB/sec) by CAV
• Buffer size: 2MB
• Access time: 160ms
• DVD-RAM: 12x (6750KB/sec) maximum by PCAV
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: IDE interface connector,
Mast
er/Slave select jumper
Convenience
• Ease of Use: How to manual, step by step
• Ease of Installation: Plug & Play
Accessories
• Included Accessories: 4 mounting screws, CDROM with software + manual, User Manual
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4, 98SE
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42 mm
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part 15
• Storage temperature range: -40 - 65 °C
• Access time: DVD: <140msec (typical)
Packaging Data
•Gross weight: 0.9 kg
• Height: 107 mm
• Length: 260 mm
• Width: 210 mm
• 12NC: 867000032405
• EAN/UPC/GTIN: 609585139152
Inner Carton
•Gross weight: 1.2 kg
• Height: 107 mm
• Length: 210 mm
•Quantity: 1
• Width: 260 mm
• 12NC: 867000032405
• EAN/UPC/GTIN: 609585139152
Outer Carton
• Quantity: 10
•Gross weight: 2 kg
• Height: 230 mm
• Length: 270 mm
• Width: 230 mm
• EAN/UPC/GTIN: 609685139162
Outer Carton 2
• Quantity: 320
Software
• Ahead Nero Suite 6: InCD 4, Nero Burning Rom 6,
Nero Vision express 2, EasyWrite Reader 4, Nero
media Player 1
•
