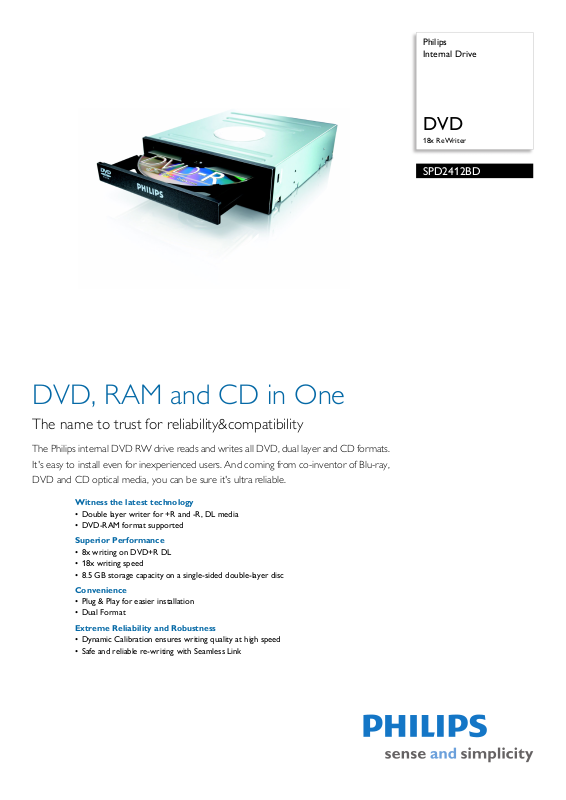

Page 1
Philips
Internal Drive
DVD
18x ReWriter
SPD2412BD
DVD, RAM and CD in One
The name to trust for reliability&compatibility
The Philips internal DVD RW drive reads and writes all DVD, dual layer and CD formats.
It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray,
DVD and CD optical media, you can be sure it's ultra reliable.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• DVD-RAM format supported
Superior Performance
• 8x writing on DVD+R DL
• 18x writing speed
• 8.5 GB storage capacity on a single-sided double-layer disc
Convenience
• Plug & Play for easier installation
•Dual Format
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
Page 2
Internal Drive
DVD 18x ReWriter
SPD2412BD/97
Specifications
Writing Speed
• DVD+R: 18X (24300KB/sec) by CAV
• DVD-R: 18X (24300KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 8X (10800KB/sec) by Z-CLV
• CD-R: 48X (7200KB/sec) by CAV
• DVD-RAM: 12X (16200KB/sec) by PCAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• DVD-RW: 6X (8100KB/sec) by CLV
• CD-RW: 32X (4800KB/sec) by CAV
Reading Speed
• DVD-ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• DVD-RAM: 12X (16200KB/sec) by PCAV
• Access time: 140
• Buffer size: 2MB
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC
Right out, DC power connector, Digital audio out,
IDE interface connector, Master/Slave select
jumper
in, Analog audio Left/
Convenience
• Ease of Installation: Plug & Play
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4, ME, NT, 98 SE
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Technical specifications
• Humidity: 20 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Storage temperature range: -40 - 80 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part 15
Outer Carton
• Gross weight: 9.72 kg
•Outer carton (L x W x H): 48 x 47 x 22 cm
• Nett weight: 8.82 kg
• Tare weight: .9 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
22.8 x 20.5 x 9.1 cm
• Gross weight: 1.097 kg
• Nett weight: .882 kg
• Tare weight: .215 kg
•
Highlights
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality
of high-speed DVD+RW drives.
Dual format writer on +/- DL
New drive enabling writing on both +R and -R 8.5
GB double layer media
Plug & Play
Plug & Play gives you the ability to install or add a
new component and have it work without having to
perform any complex installation procedure or
technical analysis.
Seamless Link
Seamless Link prevents loss of discs caused by
writing errors
18x writing speed
With the latest technolgy this drive reached
maximum 18x writing speed. This creates the fastest
drive in the world with speed and stability.
8.5 GB of storage capacity
Store 8.5 GB of data or 4 hours of DVD quality video
on one single-sided double-layer disc
DVD-RAM
The DVD-RAM format is supported, which makes
this product a true MultiRecording drive supporting
all CD and DVD formats.
Issue date 2009-11-06
Version: 2.0.3
12 NC: 8670 000 32591
EAN: 87 12581 35334 6
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
