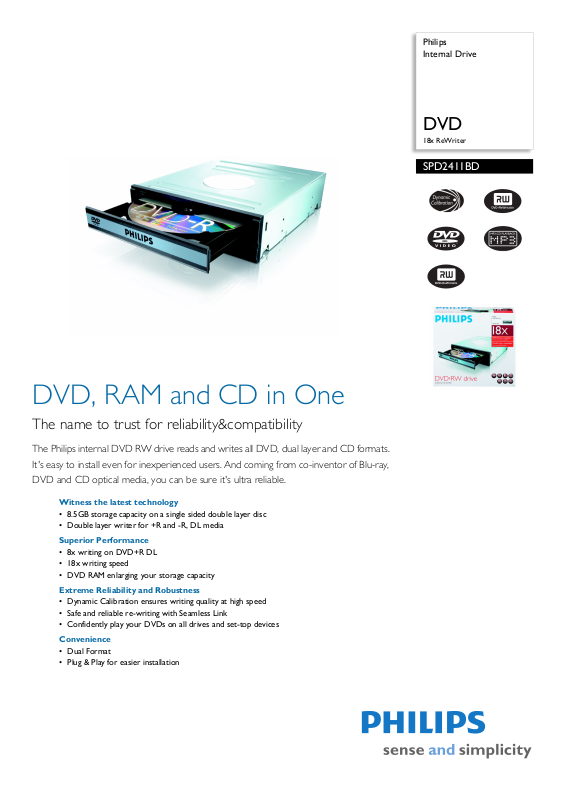

Page 1
Philips
Internal Drive
DVD
18x ReWriter
SPD2411BD
DVD, RAM and CD in One
The name to trust for reliability&compatibility
The Philips internal DVD RW drive reads and writes all DVD, dual layer and CD formats.
It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray,
DVD and CD optical media, you can be sure it's ultra reliable.
Witness the latest technology
• 8.5GB storage capacity on a single sided double layer disc
• Double layer writer for +R and -R, DL media
Superior Performance
• 8x writing on DVD+R DL
• 18x writing speed
• DVD RAM enlarging your storage capacity
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Safe and reliable re-writing with Seamless Link
• Confidently play your DVDs on all drives and set-top devices
Convenience
•Dual Format
• Plug & Play for easier installation
Page 2
Internal Drive
DVD 18x ReWriter
SPD2411BD/00
Specifications Product highlights
Writing Speed
• DVD+R: 18x (21600KB/sec) maximum by CAV
• DVD-R: 18x (21600KB/sec) maximum by CAV
• DVD+R DL: 8x (5400KB/sec) by Z-CLV
• DVD-R DL: 8x (5400KB/sec) maximum by CLV
• CD-R: 48x (7200KB/sec) by CAV
• DVD-RAM: 12x (6750KB/sec) maximum by
PCAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 24X (3600KB/sec) by CAV
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• DVD ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• Buffer size: 2MB
• Access time: 160ms
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: IDE interface connector,
Master/Slave select jumper
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How to manual, step by step
Accessories
• Included Accessories: 4 mounting screws, CDROM with software + manual, User Manual,
Quick install guide
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® XP, 2000 SP4
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Storage temperature range: -40 - 65 °C
Packaging Data
• 12NC: 908210008313
• EAN/UPC/GTIN: 87 10895 97082 2
• Gross weight: 0.9 kg
• Height: 107 mm
• Length: 260 mm
• Width: 210 mm
Inner Carton
• EAN/UPC/GTIN: 87 10895 97082 2
• Gross weight: 1.2 kg
• Height: 107 mm
• Length: 210 mm
• Quantity: 1
• Width: 260 mm
Outer Carton
• EAN/UPC/GTIN: 87 10895 97082 2
• Quantity: 2
• Gross weight: 2 kg
• Height: 230 mm
• Length: 270 mm
• Width: 230 mm
Outer Carton 2
• EAN/UPC/GTIN: 87 12581 30705 9
• Quantity: 128
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality of
high-speed DVD+RW drives.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
18x writing speed
With the latest technology this drive reached maximum
18x writing speed. This creates the fastest drive in the
world with speed and stability.
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
Dual format writer on +/- DL
New drive enabling writing on both +R and -R 8.5 GB
double layer media
DVD RAM
DVD RAM format supported which makes this drive a
Multi drive supporting CD, DVD Rom, DVD RAM.
Dimensions
• Product weight: <0.9 kg
• Product dimensions (WxDxH): 146 x 170 x 42
mm
Issue date 2009-02-12
Version: 4.4.9
12 NC: 8670 000 28774
EAN: 87 12581 32768 2
Software
• Ahead Nero Suite 6: InCD 4, Nero Burning Rom
6, Nero Vision express 2
•
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
