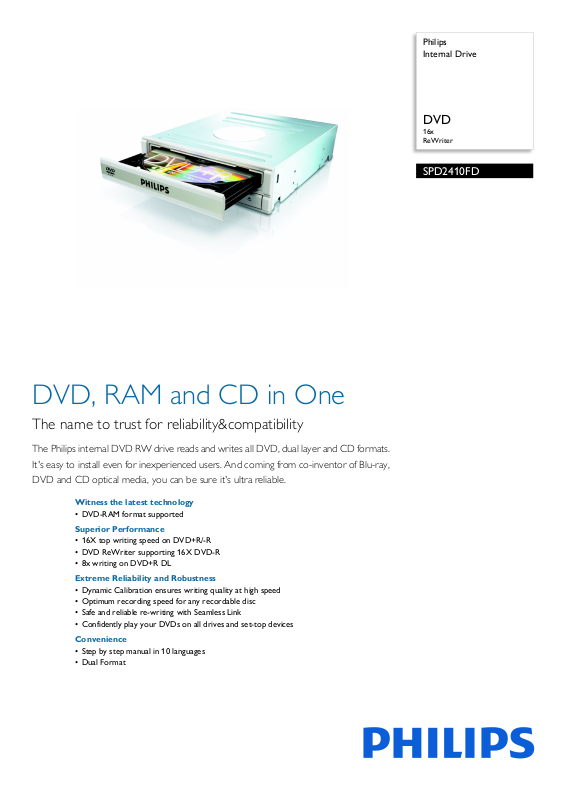

Page 1
Philips
Internal Drive
DVD
16x
ReWriter
SPD2410FD
DVD, RAM and CD in One
The name to trust for reliability&compatibility
The Philips internal DVD RW drive reads and writes all DVD, dual layer and CD formats.
It's easy to install even for inexperienced users. And coming from co-inventor of Blu-ray,
DVD and CD optical media, you can be sure it's ultra reliable.
Witness the latest technology
• DVD-RAM format supported
Superior Performance
• 16X top writing speed on DVD+R/-R
• DVD ReWriter supporting 16X DVD-R
• 8x writing on DVD+R DL
Extreme Reliability and Robustness
• Dynamic Calibration ensures writing quality at high speed
• Optimum recording speed for any recordable disc
• Safe and reliable re-writing with Seamless Link
• Confidently play your DVDs on all drives and set-top devices
Convenience
• Step by step manual in 10 languages
•Dual Format
Page 2
SPD2410FD/00
Internal Drive
DVD 16x, ReWriter
Specifications
Writing Speed
• DVD+R: 16X (21600KB/sec) by CAV
• DVD-R: 16X (21600KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 4X (5400KB/sec) by CLV
• CD-R: 48X (7200KB/sec) by CAV
• DVD-RAM: 5X (6750KB/sec) by PCAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• DVD-RW: 6X (8100KB/sec) by CLV
• CD-RW: 24X (3600KB/sec) by CAV
Reading Speed
• DVD-ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• DVD-RAM: 5X (6750KB/sec) by PCAV
• Access time: 160ms
• Buffer size: 2MB
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC
Right out, DC power connector, Digital audio out,
IDE interface connector, Master/Slave select
jumper
Convenience
• Ease of Installation: Plug & Play
Software
• Ahead Nero Suite 6: Nero Burning Rom 6, InCD 4,
Nero Vision express 2
System Requirements
• Hard disk space: 650MB
•PC OS: Windows
• Processor: Pentium 4 1.3GHz or Higher CPU
• RAM memory: 128MB
®
XP, 2000 SP4
Dimensions
• Product dimensions (WxDxH): 146 x 170 x 42 mm
• Product weight: <0.9 kg
in, Analog audio Left/
Power
• Adaptor type: DC 5V/12V
• Power consumption: 25 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Storage temperature range: -40 - 65 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part 15
Packaging Data
• 12NC: 908210005561
• EAN/UPC/GTIN: 87 10895 97362 5
•Gross weight: 0.9 kg
•Height: 42 mm
• Length: 170 mm
• Width: 145 mm
Inner Carton
• 12NC: 9082 100 08448
• EAN/UPC/GTIN: 87 12581 31754 6
•Gross weight: 0.9 kg
• Height: 324 mm
• Length: 165 mm
• Width: 146 mm
•Quantity: 1
Outer Carton
• 12NC: 908210005561
• EAN/UPC/GTIN: 87 12581 31832 1
•Gross weight: 9.1 kg
• Length: 363 mm
• Width: 363 mm
• Height: 244 mm
• Quantity: 10
Outer Carton 2
• EAN/UPC/GTIN: 87 12581 31833 8
• Quantity: 480
•
Highlights
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality
of high-speed DVD+RW drives.
Thermo Balanced Writing
Always the best and fastest recording of any of your
recordable discs
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R
discs
16X write speed on DVD-R
16x DVD-R writing speed
Seamless Link
Seamless Link prevents loss of discs caused by
writing errors
DVD-RAM
The DVD-RAM format is supported, which makes
this product a true MultiRecording drive supporting
all CD and DVD formats.
Issue date 2017-04-04
Version: 2.0.5
12 NC: 8670 000 27237
EAN: 87 12581 31754 6
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
