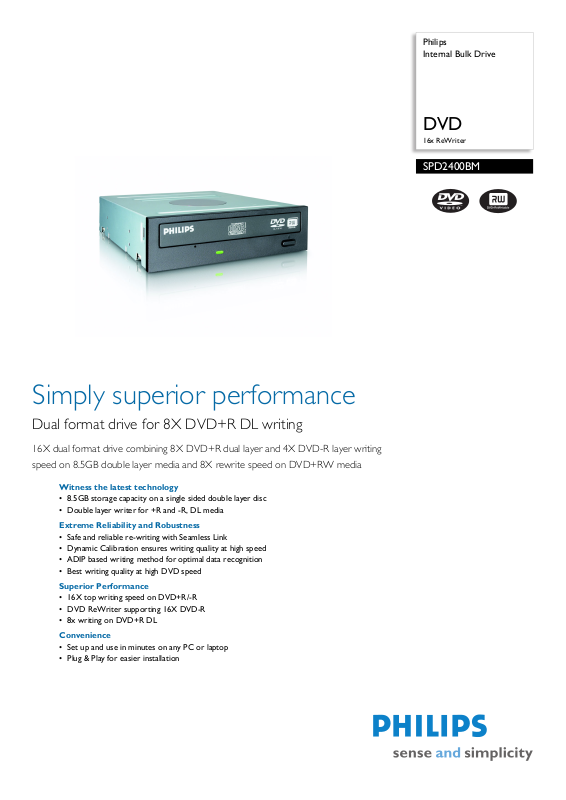

Page 1
Philips
Internal Bulk Drive
DVD
16x ReWriter
SPD2400BM
Simply superior performance
Dual format drive for 8X DVD+R DL writing
16X dual format drive combining 8X DVD+R dual layer and 4X DVD-R layer writing
speed on 8.5GB double layer media and 8X rewrite speed on DVD+RW media
Witness the latest technology
• 8.5GB storage capacity on a single sided double layer disc
• Double layer writer for +R and -R, DL media
Extreme Reliability and Robustness
• Safe and reliable re-writing with Seamless Link
• Dynamic Calibration ensures writing quality at high speed
• ADIP based writing method for optimal data recognition
• Best writing quality at high DVD speed
Superior Performance
• 16X top writing speed on DVD+R/-R
• DVD ReWriter supporting 16X DVD-R
• 8x writing on DVD+R DL
Convenience
• Set up and use in minutes on any PC or laptop
• Plug & Play for easier installation
Page 2
Internal Bulk Drive
DVD 16x ReWriter
SPD2400BM/00
Specifications Product highlights
Writing Speed
• DVD+R: 16X(21600KB/sec) maximum by CAV
• DVD-R: 16X(21600KB/sec) maximum by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 4X (5400KB/sec) by CLV
• CD-R: 48x (7200KB/sec) by P-CAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 24X (3600KB/sec) by Z-CLV in
UltraSpeed disc
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• DVD ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• Buffer size: 2MB
Connectivity
• Interface: IDE interface (ATAPI)
• Other connections: 12 V DC in, Analogue audio
Left/Right out 2x, IDE interface connector,
Master/Slave select jumper
Convenience
• Ease of Installation: Plug & Play
System Requirements
• Hard disk space: 650MB
• PC OS: Windows® 2000 and XP
• Processor: Pentium 3 450MHz or faster CPU
• RAM memory: 128MB
Dimensions
• Product dimension (WxDxH) inch:
145X170X41.3 mm
• Product weight: <0.9Kg kg
Power
• Adaptor type: DC 5V/12V
• Power consumption: 12 W W
Technical specifications
• Humidity: 5 - 90 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Access time: CD: <120msec (typical), DVD:
<140msec (typical)
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022
Packaging Data
• 12NC: 908210005952
• EAN/UPC/GTIN: 8710895928069
• Gross weight: 0.9 kg
• Height: 41.3 mm
• Length: 170 mm
• Width: 145 mm
Outer Carton
• EAN/UPC/GTIN: 8710895928076
• Gross weight: 11 kg
• Length: 367 mm
• Width: 367 mm
• Height: 246 mm
• Quantity: 10
Outer Carton 2
• Gross weight: 570 kg
• Length: 1130 mm
• Width: 1130 mm
• Height: 1842 mm
• Quantity: 630
•
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
Dual format writer on +/- DL
New drive enabling writing on both +R and -R 8.5 GB
double layer media
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
Dynamic Calibration
Dynamic Calibration optimises DVD writing quality of
high-speed DVD+RW drives.
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R discs
8x Double Layer Writing +R DL
A new drive with more powerful laser to reduce the
burning time for double layer discs
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedure or technical analysis.
Issue date 2007-12-06
Version: 2.0
12 NC: 9082 100 05951
EAN: 87 10895 92802 1
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
