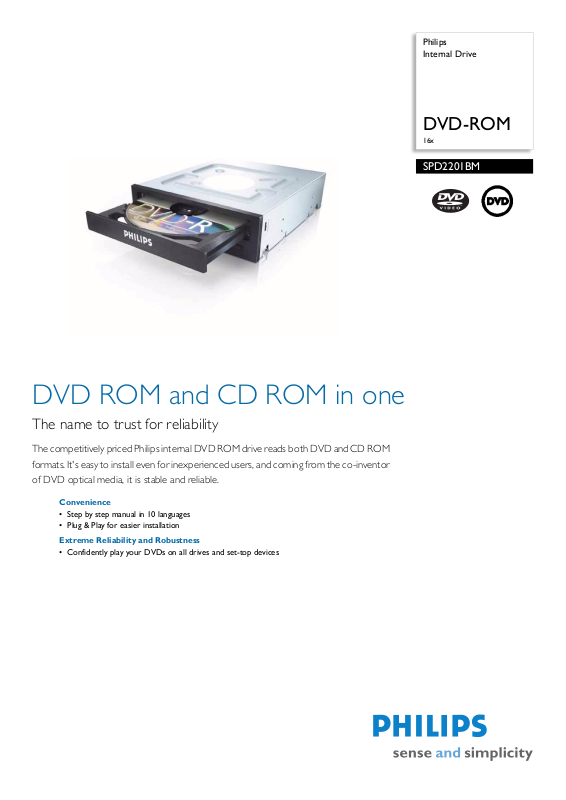

Page 1
Philips
Internal Drive
DVD-ROM
16x
SPD2201BM
DVD ROM and CD ROM in one
The name to trust for reliability
The competitively priced Philips internal DVD ROM drive reads both DVD and CD ROM
formats. It's easy to install even for inexperienced users, and coming from the co-inventor
of DVD optical media, it is stable and reliable.
Convenience
• Step by step manual in 10 languages
• Plug & Play for easier installation
Extreme Reliability and Robustness
• Confidently play your DVDs on all drives and set-top devices
Page 2
Internal Drive
DVD-ROM 16x
SPD2201BM/00
Specifications Product highlights
Power
• Adaptor type: DC 5V/12V
• Power consumption: 12 W
Technical specifications
• Operating temperature range: 5 - 40 °C
• Storage temperature range: -40 .. +65 °C
• Access time: CD: <120msec (typical), DVD:
<140msec (typical)
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part
15
• Humidity: 15 - 80 %RH (no condensation
Connectivity
• Interface: ATAPI/ E-IDE (UDMA-2)
• Other connections: 12 V DC in, Analogue audio
Left/Right out, DC power connector, Digital
audio out, IDE interface connector, Master/Slave
select jumper
Convenience
• Ease of Installation: Plug & Play
Dimensions
• Product dimensions (WxDxH): 146 x 170 x 42
mm
• Product weight: 0.9 kg
Inner Carton
• 12NC: 8670 000 24655
• EAN/UPC/GTIN: 87 10895 99662 4
• Gross weight: 0.9 kg
• Height: 42 mm
• Length: 170 mm
• Quantity: 1
• Width: 146 mm
Outer Carton
• 12NC: 867000024655
• EAN/UPC/GTIN: 87 10895 99663 1
• Gross weight: 9.1 kg
• Height: 244 mm
• Length: 363 mm
• Quantity: 10
• Width: 363 mm
Outer Carton 2
• Quantity: 480
Packaging Data
• 12NC: 867000024655
• EAN/UPC/GTIN: 87 10895 99662 4
• Gross weight: 0.9 kg
• Height: 42 mm
• Length: 170 mm
• Width: 146 mm
Reading Speed
• Access time: 80ms
• Buffer size: 256 KB
• CD-R: 48X (7200KB/sec) by CAV
• DVD ROM: 16X (21600KB/sec) by CAV
System Requirements
• PC OS: Windows 98, NT4.0, ME, 2000, XP
• Processor: Pentium III 500MHz or faster
• RAM memory: 128MB
•
DVD compatibility
DVD Compatibility ensures playability of self-made DVD
discs on as many set-top players and DVD-ROMs as
possible.
Issue date 2007-09-11
Version: 2.0
12 NC: 8670 000 24655
EAN: 87 10895 99662 4
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
