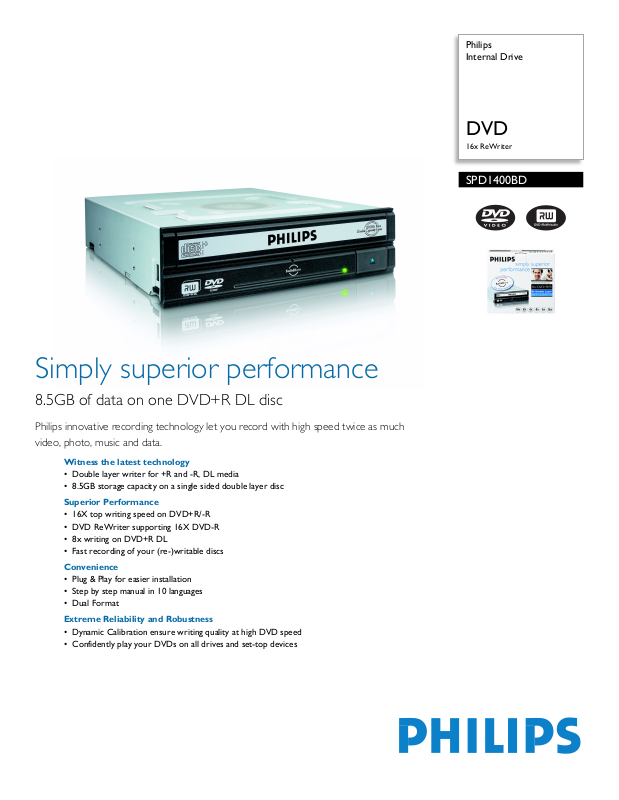

Page 1
For preview purpose only
Philips
Internal Drive
DVD
16x ReWriter
SPD1400BD
Simply superior performance
8.5GB of data on one DVD+R DL disc
Philips innovative recording technology let you record with high speed twice as much
video, photo, music and data.
Witness the latest technology
• Double layer writer for +R and -R, DL media
• 8.5GB storage capacity on a single sided double layer disc
Superior Performance
• 16X top writing speed on DVD+R/-R
• DVD ReWriter supporting 16X DVD-R
• 8x writing on DVD+R DL
• Fast recording of your (re-)writable discs
Convenience
• Plug & Play for easier installation
• Step by step manual in 10 languages
•Dual Format
Extreme Reliability and Robustness
• Dynamic Calibration ensure writing quality at high DVD speed
• Confidently play your DVDs on all drives and set-top devices
Page 2
For preview purpose only
Internal Drive
DVD 16x ReWriter
Technical specifications Product highlights
Writing Speed
• DVD+R: 16X (21600KB/sec) by CAV
• DVD-R: 16X (21600KB/sec) by CAV
• DVD+R DL: 8X (10800KB/sec) by Z-CLV
• DVD-R DL: 4X (5400KB/sec) by CLV
• CD-R: 48x (7200KB/sec) by P-CAV
Rewriting Speed
• DVD+RW: 8X (10800KB/sec) by CLV
• CD-RW: 32X (4800KB/sec) by Z-CLV in
UltaSpeed disc
• DVD-RW: 6X (8100KB/sec) by CLV
Reading Speed
• DVD ROM: 16X (21600KB/sec) by CAV
• CD-R: 48X (7200KB/sec) by CAV
• Buffer size: 2MB
Dimensions
• Product dimension (WxDxH) inch:
146X178X42 mm
• Product weight: 0.9 kg
Power
• Adaptor type: DC 5V/12V
• Power consumption: 12 W
Technical specifications
• Humidity: 5 - 90 %RH (no condensation)
• Operating temperature range: 5 - 50 °C
• Safety standards: EN60950,
EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC
Part 15
• Access time: CD: <120msec (typical), DVD:
<140msec (typical)
Connectivity
• Other connections: 12 V DC in, Analog
audio Left/Right out 2x, IDE interface
connector, Master/Slave select jumper
Convenience
• Ease of Installation: Plug & Play
Packaging Data
• 12NC: 908210007109
• EAN/UPC/GTIN: 8710895944458
• Gross weight: 0.9 kg
• Height: 42 mm
• Length: 178 mm
• Width: 146 mm
Software
• Ahead Nero Suite 6: Nero Burning Rom 6,
InCD 4, Nero Vision express 2, Nero media
Player 1, EasyWrite Reader 4, Nero Burning
Rights 1
Accessories
• Included Accessories: 4 mounting screws,
CD-ROM with software + manual, User
Manual
System Requirements
• Hard disk space: 100MB
• PC OS: Windows XP, 2000, ME, 1998
• Processor: Pentium 3 550MHz or higher
CPU
• RAM memory: 128 MB
Inner Carton
• EAN/UPC/GTIN: 8710895944458
• Gross weight: 0.9 kg
• Height: 42 mm
• Length: 178 mm
• Width: 146 mm
• Quantity: 1
Outer Carton
• EAN/UPC/GTIN: 8710895945028
• Quantity: 2
Outer Carton 2
• EAN/UPC/GTIN: 8710895945035
• Quantity: 128
•
SPD1400BD/96
Dual format writer on +/- DL
New drive enabling writing on both +R and -R 8.5 GB
double layer media
8.5GB storage capacity
Single sided double layer disc with 8.5 GB storage
capacity
16X write speed on DVD+R/-R
Top speed 16X recording on DVD+R and DVD-R discs
16X write speed on DVD-R
16x DVD-R writing speed
8x Double Layer Writing +R DL
A new drive with more powerfull laser to reduce the
burning time for double layer discs
Ultra Speed ReWriting
Record your discs faster than ever before
Multi language manual
By using the multi language manual your are guided
through the installation process in your own language.
Seamless Link
Seamless Link prevents loss of discs caused by writing
errors
Dynamic Calibration
Dynamic Calibration optimizes DVD writing quality of
high-speed DVD+RW drives.
Thermo Balanced Writing
Always the best and fastest recording of any of your
recordable discs
DVD compatibility
DVD Compatibility ensures playability of self-made DVD
discs on as many set-top players and DVD-ROMs as
possible.
Date of issue 2006-07-03
Version: 1.0
12 NC: 9082 100 07109
EAN: 87 10895 94445 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
