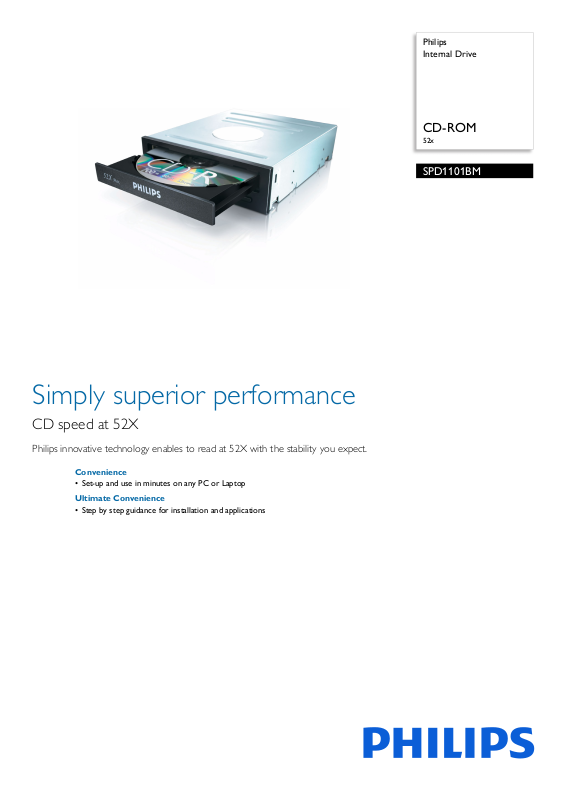

Page 1
Philips
Internal Drive
CD-ROM
52x
SPD1101BM
Simply superior performance
CD speed at 52X
Philips innovative technology enables to read at 52X with the stability you expect.
Convenience
• Set-up and use in minutes on any PC or Laptop
Ultimate Convenience
• Step by step guidance for installation and applications
Page 2
Internal Drive
CD-ROM 52x
SPD1101BM/97
Specifications
Reading Speed
• CD-R: 52X (7800KB/sec) by CAV
• Access time: 120ms
• Buffer size: 128KB
Connectivity
• Other connections: 12 V DC in, Analog audio Left/
Right out, DC power connector, Digital audio out,
IDE interface connector, Master/Slave select
jumper
• Interface: ATAPI/ E-IDE (UDMA-2)
Convenience
• Ease of Installation: Plug & Play
• Ease of Use: How to manual, step by step
Accessories
• Included accessories: 4 mounting screws, CDROM with software + manual, Quick install guide,
User Manual
System Requirements
• PC OS: Windows 95, 98 SE, ME, NT, 2000, XP
• Processor: Intel Pentium 166MHz or higher
•RAM memory: 64MB
Dimensions
• Product dimensions (WxDxH): 146 x 170 x 42 mm
• Product weight: <0.9 kg
Power
• Adaptor type: DC 5V/12V
• Power consumption: 12 W
Technical specifications
• Humidity: 15 - 80 %RH (no condensation)
• Access time: CD: <120msec (typical)
• Operating temperature range: 5 - 45 °C
• Storage temperature range: -35 - 60 °C
• Safety standards: EN60950, EN60825,UL1950
• EMC standards: EN55022, EMS55024,FCC Part 15
Packaging Data
• 12NC: 867000024509
• EAN/UPC/GTIN: 87 10895 99580 1
•Gross weight: 0.9 kg
•Height: 4.2 mm
• Length: 170 mm
• Width: 146 mm
Inner Carton
• 12NC: 8670 000 24509
• EAN/UPC/GTIN: 87 10895 99580 1
•Gross weight: 0.9 kg
•Height: 4.2 mm
• Length: 210 mm
• Width: 14.6 mm
•Quantity: 1
Outer Carton
• 12NC: 867000024509
• EAN/UPC/GTIN: 87 10895 99581 8
•Gross weight: 9.1 kg
• Length: 363 mm
• Width: 363 mm
• Height: 244 mm
• Quantity: 10
Outer Carton 2
• Quantity: 480
•
Highlights
Ease of use
Ease of use means every customer is able to install
and operate even complex products.
How to.. manual
Photo guided step by step tour through both
installation process and applications
Issue date 2014-02-10
Version: 1.0.3
12 NC: 8670 000 24509
EAN: 87 10895 99580 1
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
