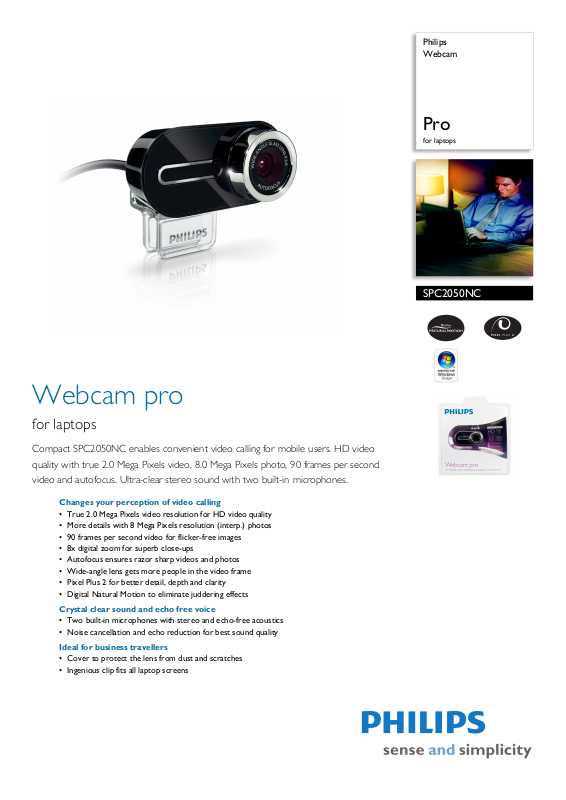

Philips SPC2050NC User Manual

Philips Webcam

Pro

for laptops

SPC2050NC

Webcam pro

for laptops

Compact SPC2050NC enables convenient video calling for mobile users. HD video quality with true 2.0 Mega Pixels video, 8.0 Mega Pixels photo, 90 frames per second video and autofocus. Ultra-clear stereo sound with two built-in microphones.

Changes your perception of video calling

• True 2.0 Mega Pixels video resolution for HD video quality

• More details with 8 Mega Pixels resolution (interp.) photos

• 90 frames per second video for flicker-free images

• 8x digital zoom for superb close-ups

• Autofocus ensures razor sharp videos and photos

• Wide-angle lens gets more people in the video frame

• Pixel Plus 2 for better detail, depth and clarity

• Digital Natural Motion to eliminate juddering effects

Crystal clear sound and echo free voice

• Two built-in microphones with stereo and echo-free acoustics

• Noise cancellation and echo reduction for best sound quality

Ideal for business travellers

• Cover to protect the lens from dust and scratches

• Ingenious clip fits all laptop screens

Webcam

Pro for laptops

SPC2050NC/27

Specifications Product highlights

Mechanics

• Sensor: 2.0 MP CMOS

• Lens maximum aperture: F:2.0

• Lens view angle: 70 degrees

• Lens construction: 5 elements

• Autofocus

• White balance: 2600 - 7600 k

• Minimum illuminance: < 2 lux

• Data format: YUY2, MJPEG

• Colour depth: 16 bit

Resolution

• Video resolution: 2.0 MP

• Photo resolution: 2.0 MP

• Interpolated photo resolution: 8.0 MP

• Maximum frame rate: 90 fps

Audio

• Microphone: Two built-in microphones

• Noise reduction

• Echo reduction

•Stereo sound

Additional features

• Digital zoom: 8x

• Face tracking

• Fun video features: Change your background, Fun frame, Fun logo, Fun effect

•Pixel Plus 2

• Digital Natural Motion

• Snapshot button

• On/off activity LED

Software

• Dedicated software: Philips CamSuite

• WebCam Viewer: WebCam Companion

• Add video to: Skype, Windows Live Messenger, Yahoo! Messenger, AOL Instant Messenger

System Requirements

• Operating System: Microsoft Windows XP (SP2), Microsoft Windows Vista

• Processor: Intel Pentium® 4 2.4 GHz or AMD® equivalent processor

• RAM memory: 512 MB RAM

• Hard disk space: 300-700 MB

• USB: Free USB port

• CD-ROM or DVD-ROM Drive

Connectivity

• Cable length: 80 centimetre

• Interfacing: USB 1.1, USB 2.0

• USB video class: UVC

• Power: Supplied via USB cable

Product dimensions

• Product dimensions (W x H x D):

6.47

x 3 x 2.66 cm

• Weight: 0.064 kg

• Product dimensions with stand (W x H x D):

6.47

x 5 x 5.5 cm

• Weight (with stand): 0.07 kg

Packaging dimensions

• Packaging dimensions (W x H x D):

5.8

x 16.3 x 18.2 cm

• Nett weight: 0.086 kg

• Gross weight: 0.165 kg

• Tare weight: 0.079 kg

• UPC: 6 09585 14879 6

• Number of products included: 1

• Packaging type: Carton

Outer Carton

• Outer carton (L x W x H): 37 x 20.5 x 22.7 cm

• Nett weight: 0.516 kg

• Gross weight: 1.86 kg

• Tare weight: 1.344 kg

• GTIN: 2 06 09585 14879 0

• Number of consumer packagings: 6

Inner Carton

• Inner carton (L x W x H): 19.1 x 17.5 x 19.7 cm

• Nett weight: 0.258 kg

• Gross weight: 0.26 kg

• Tare weight: 0.002 kg

• GTIN: 1 06 09585 14879 3

• Number of consumer packagings: 3

•

True 2.0 Mega Pixels

The number of Mega Pixels is a key determinant of image quality. The 2.0 Mega Pixels CMOS sensor gives you the ki nd of H D qualit y v id eo ima ge s not previously associated with webcams.

8 Mega Pixels photo resolution

Your webcam gives you more detail with 8 Mega Pixels (interpolated) resolution photos. This is high enough for printing poster-sized images in high-resolution.

90 frames per second video

The lightning fast 90 frames per second refresh rate produces incredibly stable images perfect for face-to-face video conferencing and remote home monitoring.

8x digital zoom

Zoom in and out to get the perfect framing for any image. You control the zoom entirely via the onscreen interface while you're looking at the image so you can adjust it perfectly.

Autofocus

Ensures razor sharp videos and photos. When the image sensor detects a loss of sharpness, autofocus quickly and precisely readjusts the lens without the need for manual adjustment. Now even faster due to a new focusing algorithm exclusive to Philips.

Wide-angle lens

The wide-angle high quality glass lens gives you a bigger field of view. The wide-angle lens operates in the same way as a wide-angle photography lens and it gets more people in the video frame without any loss in video quality.

Pixel Plus 2

With Pixel Plus 2, your webcam will always produce natural-looking, razor sharp pictures with incredible detail. It’s all thanks to the power of the Pixel Plus 2 processor – innovative TV imaging technology applied to PC vi deo. It incr ea ses the number of lines and the num be r of pixels to give you the best images possible.

Digital Natural Motion

Philips invented Digital Natural Motion to eliminate juddering effects that are visible with moving picture content. Digital Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

Two built-in microphones

Let your voice be heard naturally in clear stereo sound. Two built-in directional microphones and Philips-patented audio beaming technology create a virtual noise- and echo-free zone. Only the voice of the user is captured, with other sounds minimized.

Noise and echo cancellation

This superb noise reduction technology reduces background noise and it enhances clarity of speech in both quiet and noisy environments. It also surppresses echos so the other person hears your voice more clearly.

Protective cover

The first webcam to incorporate a protective lens cover as standard. Protects the high-quality, five-element glass

Issue date 2008-09-14

Version: 2.1.14

12 NC: 8670 000 37161 UPC: 6 09585 14879 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

lens from dust and scratches when travelling.

Ingenious clip

This webcam sits securely on your laptop screen. This is due to an ingenious, flexible clip that makes it easy to attach the webcam to any laptop.
