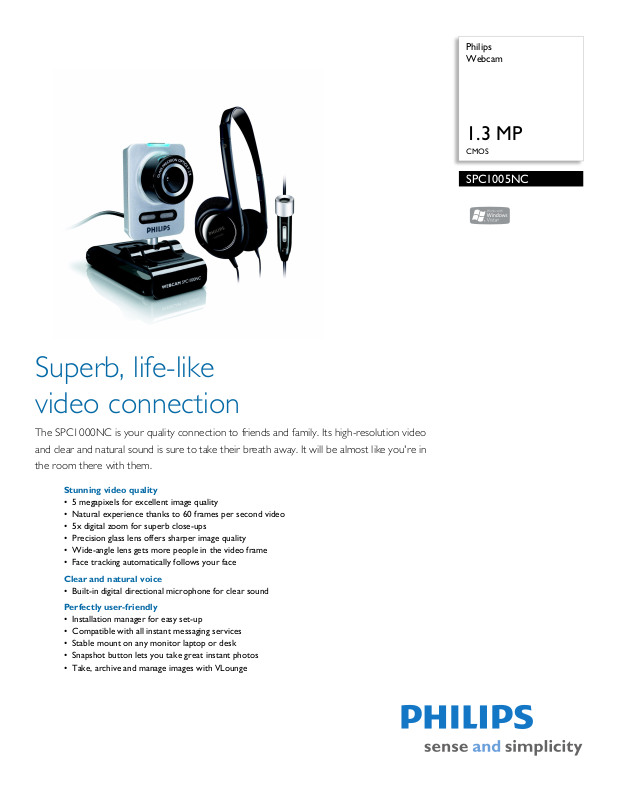

Philips SPC1005NC User Manual

Philips Webcam

1.3 MP

CMOS

SPC1005NC

Superb, life-like video connection

The SPC1000NC is your quality connection to friends and family. Its high-resolution video and clear and natural sound is sure to take their breath away. It will be almost like you're in the room there with them.

Stunning video quality

• 5 megapixels for excellent image quality

• Natural experience thanks to 60 frames per second video

• 5x digital zoom for superb close-ups

• Precision glass lens offers sharper image quality

• Wide-angle lens gets more people in the video frame

• Face tracking automatically follows your face

Clear and natural voice

• Built-in digital directional microphone for clear sound

Perfectly user-friendly

• Installation manager for easy set-up

• Compatible with all instant messaging services

• Stable mount on any monitor laptop or desk

• Snapshot button lets you take great instant photos

• Take, archive and manage images with VLounge

Webcam

SPC1005NC/27

1.3 MP CMOS

Specifications Product highlights

Video & snapshot capturing

• Sensor: CMOS

• Sensor resolution: 1.3 MP

• Video resolution: 1.3 MP

• Snapshot resolution: 1.3 MP

• Max. frame rate: 60 fps

• Lens: F2.8, D80°

• White balance: 2600 – 7600 k

• Min. illuminance: < 5 lux

• Color depth: 24 bit

• Interpolated snapshot res.: 5.0 MP

Mechanics

•Laptop clamp

• LCD clamp

•CRT stand

•Desktop stand

• Digital built-in microphone

• Quicklaunch button

• Snapshot button

Accessories

• Included Accessories: User Manual, Multimedia headset SHM3400, Quick install guide

Software

• VLounge: Premium

• Add video to: Yahoo! Messenger, AOL Messenger, Skype, ICQ, QQ, Windows Live Messenger

System Requirements

• Operating System: Microsoft Windows XP, Microsoft Windows Vista, Microsoft Windows Vista Home

• Processor: Pentium III 800MHz or faster

• RAM memory: 512 MB RAM

•Sound card

• USB: Free USB port

• Internet connection

• Hard disk space: 200 MB

• CD-ROM or DVD-ROM Drive

Connectivity

• Cable length: 1.5 m

• PC Link: USB 2.0

Dimensions

• Product dimensions (W x H x D): 40

x 82 x 88 mm

• Product weight (g): 110

Packaging Data

• 12NC: 8670 000 36883

• EAN/UPC/GTIN: 6 09585 147829

• Quantity: 1

• Height: 186 mm

• Length: 230 mm

• Width: 230 mm

• Gross weight: 0.400 kg

• Tare weight: 0.325 kg

Outer Carton

• EAN/UPC/GTIN: 1 06 0958514782 6

• Quantity: 6

• Length: 392 mm

• Width: 292 mm

• Height: 260 mm

• Gross weight: 3.2 kg

• Tare weight: 2.726 kg

•

5 megapixel snapshots

The technology enables 5 MP for photos and the quality is high enough for printing poster-sized images in highresolution. With the special software enhancement you get even 2 MP for interpolated video streaming.

60 frames per second video

Create natural-looking, full motion video at 60 frames per second. It's ideal for video-chatting with friends or highquality home monitoring.

5x digital zoom

Zoom in and out to get the perfect framing for any image. You control the zoom entirely via the onscreen interface while you're looking at the image so you can adjust it perfectly.

Wide-angle lens

The wide-angle high quality glass lens gives you a bigger fi eld of v iew . Th e wi de- ang le l ens operat es i n th e sa me w ay as a wide-angle photography lens and it gets more people in the video frame without any loss in video quality.

Automatic face tracking

The state-of-the-art camera software automatically detects your face and moves the lens to follow you as you move. You stay in the center of the image even if you move during a video conference. It gives you the freedom to express yourself and converse naturally.

Directional microphone

The directional microphone focuses in on your voice so you can talk naturally and don't have to move closer to the microphone to be heard. This automatically cuts down on background noise and gives a more natural sound.

Installation manager

Install your webcam in seconds with the handy Installation Manager. Just follow the easy, step by step instructions and you'll have the webcam set up to match your computer perfectly.

Compatible with all services

The webcam and its software have been designed with all instant messaging services in mind. Add video to Skype, Windows Live Messenger, Yahoo! Messenger, AOL Instant Messenger and other services.

Stable mount

The multifunctional stand makes it easy for you to mount the webcam on any monitor, laptop, notebook or flat surface.

Issue date 2008-07-01

Version: 1.0.6

12 NC: 8670 000 36883 UPC: 6 09585 14782 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
