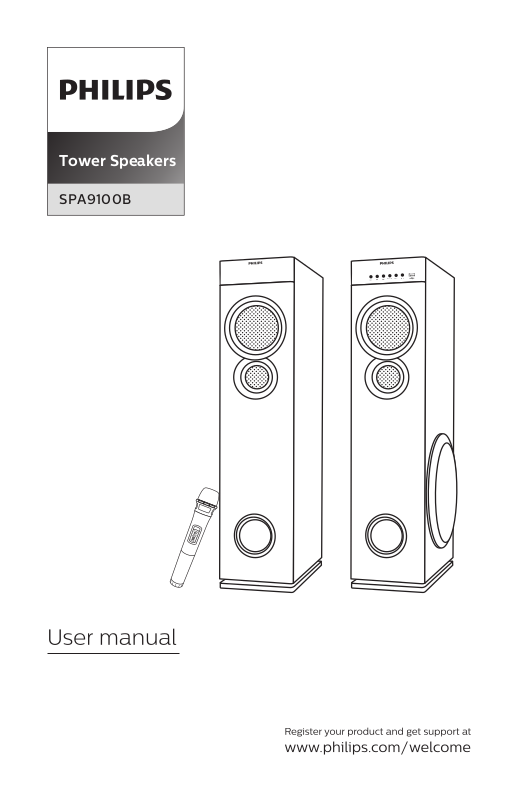

Tower Speakers
SPA9100B
VOL+
–
VOL
Source
Content
General Information ................................................3
Safety Instructions
Warnings
Care & Safety Information
Installation
Speaker Placement & Connections ...............................................4
Front Panel Main Unit ................................................5
Back Panel Main Unit ................................................5
Remote Control ...............................................6
Playing TV Audio ................................................7
Play from a USB Storage Device ................................................7
Play From Radio ...............................................8
Cordless MIC ...............................................8
Playing through Bluetooth ...............................................8
Trouble Shooting ...............................................9
Specification ..............................................10
Warranty ...............................................11
Accessories
Qty.
1. 2 RCA to 2 RCA Cable 1
2. Remote Control 1
3. User Manual 1
4. Cordless MIC 1
2
General Information
Safety Instructions
Please read carefully the
Safety Mark on the Back side
This mark is intended to alert
the users from the non isolated
dangerous voltage within the
product that may be of sufficient
magnitude to constitute a risk of
electric shock to persons
This mark is intended to alert
the user for important operating
!
and servicing instruction
Warnings
* Avoid sustained periods on high-volume
use, and do not turn the volume to
maximum level while using high output
signal, such as Mobile Phone or DVD,
etc., as this will cause distortion and may
damage the loudspeaker cones.
* Please switch off the system from the
wall socket, when not in use.
* Please unplug the system from the AC
outlet when unused for a long time
* Do not open the cover or back panel to
avoid electronic shock or any other
accidents. No user-serviceable parts are
inside.
* Only for indoor use.
* Plug the system to the AC outlet with the
right voltage marked on the back panel
of the Speaker System.
Care and safety information
Avoid high temperatures, moisture,
water and dust
– Apparatus should not be exposed
to dripping or splashing of liquid.
– Do not place any sources of danger
on the Tower Speaker (e.g. liquid
filled objects, lighted candles).
– Do not install near heat sources.
Do not block any ventilation
openings
– Place the apparatus in a location
with adequate ventilation to
prevent internal heat build up.
Allow at least 100cm (4 inches) of
free space all around the apparatus
for adequate ventilation.
– At high volume the back cover of
Tower Speaker becomes hot. Do
not touch it.
Care of the cabinet
– Use a soft cloth slightly moistened
to clean the cabinet. Do not use a
solution containing alcohol, spirits,
ammonia or abrasives.
Installation
Remote
*(Use AAA X 2 Battery)
MIC
*(Use AA X 2 Battery)
*Battery not provided
3
Speaker Placement & Connections
A
Placement
B
Connect audio from TV
C
Connect Corded MIC*
TV
TV
VOL+
–
VOL
Source
* Corded MIC not included in the accessories
D
Connect Speakers
4
Front Panel Main Unit
1
Source VOL– VOL+
3 4 5 6
* Available when connected
2
8
7
DISPLAY PANEL
1.
Display information of your system
SENSOR
2.
Point remote to operate
3.
(a) Play and Pause in USB/BT
(b) Long press to auto scan in radio mode
(c) Short press to store station manually
4.
(a) Play previous file in USB/BT
(b) Long press song will rewind
(c) Tuning down in radio mode
5.
(a) Play next file in USB/BT
(b) Long press song will fast forward
(c) Tuning up in radio mode
SOURCE
6.
To select desired input
USB / FM / AUX IN / BLUETOOTH
VOL- VOL+
7.
Adjusts volume of speakers.
USB*
8.
To play through USB drive.
Back Panel Main Unit
1. TONE
To adjust bass / Treble level.
2. MIC
Insert MIC into MIC jack.
3. MIC VOLUME
To adjust MIC volume.
4. ECHO
To adjust ECHO according to
your voice.
5. POWER*
To ON/OFF system
* The POWER needs to be put in OFF position,
when not in use, to save energy.
3
1
22
POWER
MAINS
AC 230V ~50Hz
OFF
5
ON
4
5
Remote Control
1
2
3
4
5
6
7
8
1.
Switches system ON or to STANDBY
2. MUTE
Mute or restore volume
3. VOL+ VOL-
9
10
11
Increase or decrease volume
4.
(a) Play previous file in USB
(b) Tuning down in radio mode
5.
Play and Pause USB / Bluetooth
6. NUMERIC KEYS
Press number key to play directly MP3 files
12
13
14
(Eg. To play 57th song press 5 then 7)
In radio mode key in station frequency
7. EQ
Select preset sound modes in USB/Bluetooth
8.
To rewind
9. SOURCE
To select desired input USB/FM/AUX IN/BT
10. REPEAT
15
16
Repeats a track or the entire USB
11.
(a) Play next file in USB
(b) Tuning up in radio mode
12. SOURCE KEYS
USB* - Switch to USB storage device
AUX - Select an audio input
FM - Switch to FM radio
BT - Play on bluetooth mode
13. SCAN
Auto Scan & store station in memory
14. TUN – /+
Up and Down preset channel on FM mode
15.
To forward
16.
Stop Play in USB mode
* Available when connected
Note : Equalizer works in USB & Bluetooth mode only.
Recording not works in SPA 9100B
6
Playing TV Audio
You can enjoy a theatre experience, just attach TV output to your
Tower Speaker Audio IN.
1. Select source from you source key on remote.
2. Display shown AUX.
Button Action
Vol – Volume Decrease
Vol + Volume Increase
Mute To Mute / Unmute Sound
Play from a USB Storage Device
The Speaker System is fitted with a USB connector that allow you to
listen music.
1. Connect the USB storage device to the Tower Speaker.
2. It auto shifts to USB mode.
3. Display shows USB.
4. Then song number & running time will appear on display.
(eg. if you listening sixteenth song 016 00:01 will appear).
5. Use number key to select song directly or +10 key.
Button Action
Select previous or next track
Start, pause or resume Play
To rewind and fast forward
Numeric Buttons Select and song to play
Repeat Repeat track or the entire USB
EQ Select a predefined sound effect
7
Play from Radio
You can store 40 stations in memory.
1. Select FM mode.
2. Press scan key to auto scan & store station in your area.
3. You can also store manually.
Tune desired station. Press scan key on panel, display starts flickers
and then display stops flickering the station will be stored.
Button Action
Search for a radio station
– TUN + TUN Select a preset radio station
SCAN Press to auto scan the radio station
Numeric Keys Key in station frequency (i.e. for 104.6 press 1046)
Note - While autoscan turn off your TV/DVD or other radiation source.
For best reception, while listening to radio, turn off TV/DVD or other
radiation source.
Cordless MIC
1. Switch MIC to "ON" Position.
2. When switch is turned ON than a blue colour LED
glows for 0.5 seconds only. MIC automatically get
connected with the Tower Speaker System. Now your
MIC is ready for use.
3. You can use MIC in all source (USB / BT / AUX / FM)
selections.
4. Adjust MIC Volume & Echo by rotary control given on
back panel of the Tower Speaker.
5. Turn switch to 'MUTE' to mute MIC during operation.
6. Turn "OFF" MIC switch when not in use.
ON
MUTE
OFF
Playing through Bluetooth
You can enjoy music wireless with Bluetooth
1. Select source.
2. Display shown BLUE (Flashing).
3. Pair "your Bluetooth device" with tower speaker system name Philips
SPA9100B.
4. Display stops flashing, once Bluetooth device is paired.
Now your system is ready to play through Bluetooth. Control all function
from your smart phone eg. , ,
8
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for
repair.
If you are unable to remedy the problem by following these hints, consult your
dealer or PHILIPS for help.
Problem Solution
No power. Check if the AC power cord is properly
inserted into the AC mains socket.
No sound or distorted sound. Adjust the volume.
Check the speaker connection.
Select the correct source
to choose the equipment that you want
to hear through the System.
The remote control does not function Reduce the distance between the remote
Properly. control and the system.
Replace the batteries with new ones.
Point the remote control directly toward the
IR sensor (located on front panel of the
Tower).
Low hum or buzz sound. Place the product as far away as possible
from electrical devices that may be
causing interference.
Speaker connector not fixed properly
The content of the USB flash drive The USB flash drive format is not compatible
cannot be read with the system.
Drive is formatted with a different file system
which is not supported by this unit (e.g. NTFS)
Slow operation of the USB Flash Large file size of high memory USB flash drive
drive takes longer time to read and play.
Cannot detect USB flash drive Take out USB drive insert it again properly.
FM not properly tuned Match with local frequency
FM reception not good While listening radio turn off TV/DVD
or other radiation source.
While listening radio turn off TV/DVD
Antenna wire not attached.
MIC not working MIC volume at zero.
Replace the batteries with new one
Bluetooth Reduce the distance between system
and your device.
Re-Pair the device.
9
Product Specifications*
Total System Power 100W RMS
Separation >35db
SNR >60db
Audio Input Socket RCA Type
Audio Output Socket RCA Type
Power Consumption 30W
Frequency Response 40Hz-20Khz
Bluetooth Range Upto 10 mtrs.
MIC Range Upto 35 mtrs.
MIC Frequency 866MHz
Speaker System 2 x 3 Way
Woofer
Size 8" (200mm)
Impedance 4 Ohm
Speaker
Size 4" (100mm)
Impedance 4 Ohm
Tweeter
Size 2¼" (57mm)
Impedance 6 Ohm
Dimension 165 x 815 x 310 (W X H X D)
Net Weight 23 Kg
USB
Class Support UMS (USB Mass Storage Class)
Capacity upto 16 GB
File Format MP3
* Specification subject to change without prior notice.
Measured under specific conditions.
10
This Philips Tower Speaker is warranted against any defect due to
defective materials or workmanship for 12 months from the date of
purchase. In case of a defect during the warranty period, TPV Technology
India Pvt. Ltd., an affiliate of MMD Hong Kong Holding Limited. undertake
to repair the apparatus FREE OF CHARGE at any of its Authorized
Service Center in India.
SPA9100B_94_UM_V1.00
