SPA9060B
User Manual
12 pgs374.04 Kb0

Philips SPA9060B User Manual

Download
Page 1
Tower Speakers
SPA9060B
Page 2
Content
General Information ....................................................3
Safety Instructions Warnings Care & Safety Information Installation
Front Panel Main Unit ................................................5
Remote Control ................................................6
Play From Radio ................................................8
Trouble Shooting ................................................9
Specification ..............................................10
Warranty ..............................................11
Accessories
Qty.
1. 2 RCA to 2 RCA Cable 1
2. Remote Control 1
3. User Manual 1
2
Page 3
General Information
Safety Instructions Please read carefully the
Safety Mark on the Back side
This mark is intended to alert the users from the non isolated dangerous voltage within the product that may be of sufficient magnitude to constitute a risk of electric shock to persons
This mark is intended to alert the user for important operating
!
and servicing instruction
Warnings
* Avoid sustained periods on
high-volume use, and do not turn the volume to maximum level while using high output signal, such as Mobile Phone or DVD, etc., as this will cause distortion and may damage the loudspeaker cones.
* Please switch off the system from the wall
socket, when not in use.
* Please unplug the system from the AC outlet
when unused for a long time
* Do not open the cover or back panel to avoid
electronic shock or any other accidents. No user-serviceable parts are inside.
* Only for indoor use.
* Plug the system to the AC outlet with the right
voltage marked on the back panel of the Speaker System.
Care and safety information
Avoid high temperatures, moisture, water and dust
– Apparatus should not be exposed to
dripping or splashing of liquid.
– Do not place any sources of danger on
the Tower Speaker (e.g. liquid filled objects, lighted candles).
– Do not install near heat sources.
Do not block any ventilation openings
– Place the apparatus in a location with
adequate ventilation to prevent internal heat build up. Allow at least 100cm (4 inches) of free space all around the apparatus for adequate ventilation.
– At high volume the back cover of Tower
Speaker becomes hot. Do not touch it.
Care of the cabinet
– Use a soft cloth slightly moistened
to clean the cabinet. Do not use a solution containing alcohol, spirits, ammonia or abrasives.
Installation
Remote
(Use AAA X 2 Battery)
*Battery not provided
3
Page 4
Speaker Placement & Connections
A
Placement
TV
B
Connect audio from TV
TV
C
Connect Corded MIC*
* Corded MIC not included in the accessories
D
Connect Speakers
4
Page 5

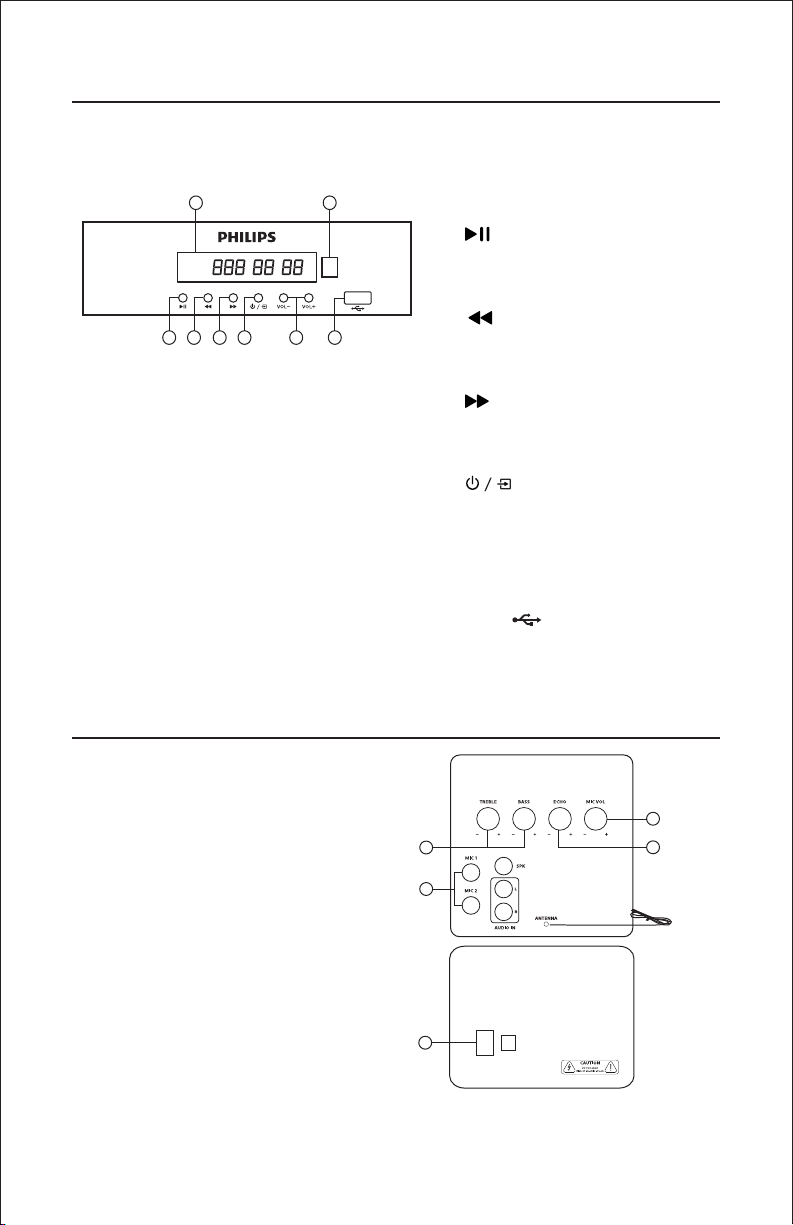

Front Panel Main Unit
1
3 4 5 6
* Available when connected
2
8
7
DISPLAY PANEL
1.
Display information of your system
SENSOR
2.
Point remote to operate
SCAN
3.
(a) Play and Pause in USB (b) Auto Scan in Radio Mode (c) Store station manually
4.
(a) Play previous file in USB (b) Long press song will rewind (c) Tuning down in radio mode
5.
(a) Play next file in USB (b) Long press song will fast forward (c) Tuning up in radio mode
6.
(a) To select desired input USB / FM / AUX IN / BLUETOOTH (b) Long press switch ON and STAND BY
VOL- VOL+
7.
Adjusts volume of speakers.
USB*
8.
To play through USB drive.
Back Panel Main Unit
1. TONE
To adjust bass / Treble level.
2. MIC
Insert MIC into MIC jack.
3. MIC VOLUME
To adjust MIC volume.
4. ECHO
To adjust ECHO according to your voice.
5. POWER*
To ON/OFF system
* The POWER needs to be put in OFF position, when not in use, to save energy.
3
1
22
POWER
MAINS
AC 230V ~50Hz
OFF
5
ON
4
5
Page 6

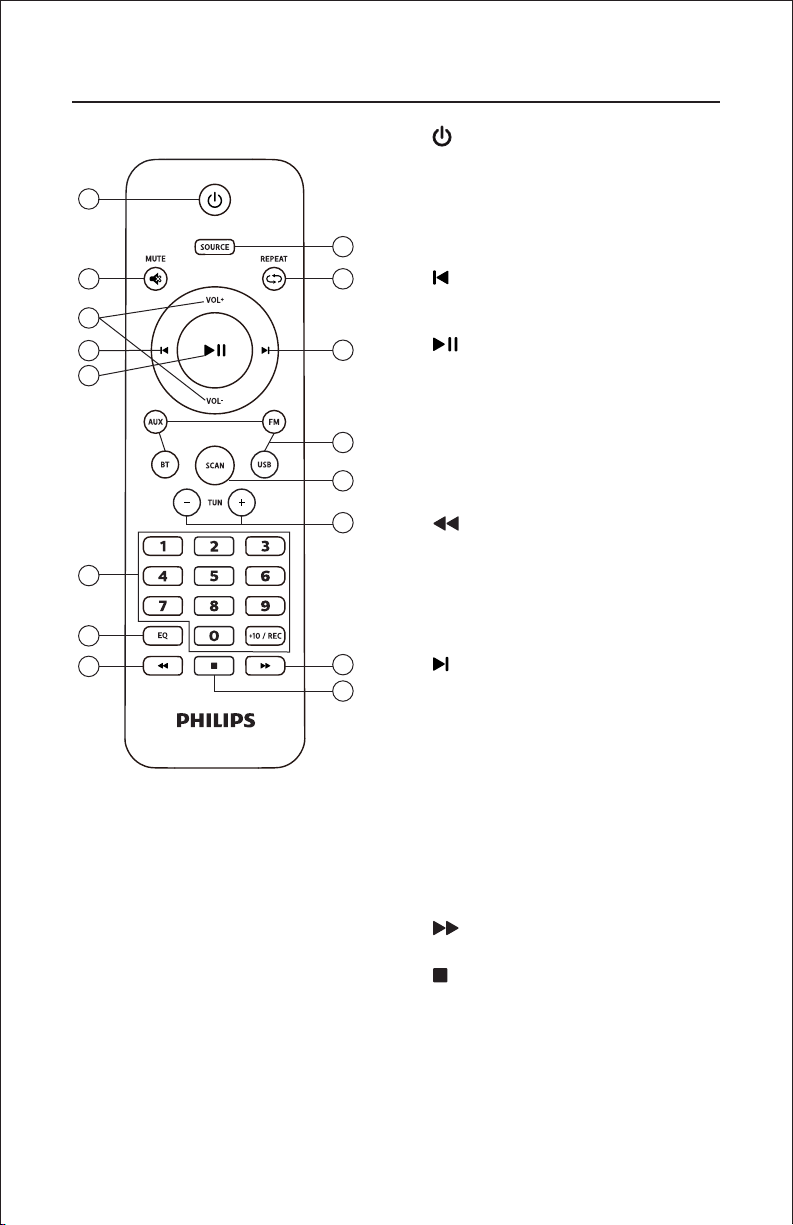

Remote Control
1
2
3
4
5
6
7
8
1.
Switches system ON or to STANDBY
2. MUTE
Mute or restore volume
3. VOL+ VOL-
9
10
11
Increase or decrease volume
4.
(a) Play previous file in USB (b) Tuning down in radio mode
5.
Play and Pause USB / Bluetooth
6. NUMERIC KEYS
Press number key to play directly MP3 files
12
13
14
(Eg. To play 57th song press 5 then 7) In radio mode key in station frequency
7. EQ
Select preset sound modes in USB / Bluetooth
8.
To rewind
9. SOURCE
To select desired input USB/FM/AUX IN/BT
10. REPEAT
Repeats a track or the entire USB
15
11.
16
(a) Play next file in USB (b) Tuning up in radio mode
12. SOURCE KEYS
USB* - Switch to USB storage device AUX - Select an audio input FM - Switch to FM radio BT - Play on bluetooth mode
13. SCAN
Auto Scan & store station in memory
14. TUN – /+
Up and Down preset channel on FM mode
15.
To forward
16.
Stop Play in USB mode
* Available when connected
Note : Equalizer works in USB & Bluetooth mode only.
6
Page 7
Playing TV Audio
You can enjoy a theatre experience, just attach TV output to your Tower Speaker Audio IN.
1. Select source from you source key on remote.
2. Display shown AUX.
Button Action
Vol – Volume Decrease
Vol + Volume Increase
Mute To Mute / Unmute Sound
Play from a USB Storage Device
The Speaker System is fitted with a USB connector that allow you to listen music.
1. Connect the USB storage device to the Tower Speaker.
2. It auto shifts to USB mode.
3. Display shows USB.
4. Then song number & running time will appear on display.
(eg. if you listening sixteenth song 016 00:01 will appear).
5. Use number key to select song directly or +10 key.
Button Action
Select previous or next track
Start, pause or resume Play
To rewind and fast forward
Numeric Buttons Select and song to play
Repeat Repeat track or the entire USB
EQ Select a predefined sound effect
7
Page 8
Play from Radio
You can store 40 stations in memory.
1. Select FM mode.
2. Press scan key to auto scan & store station in your area.
3. You can also store manually. Tune desired station. Press scan key on panel, display starts flickers and then display stops flickering the station will be stored.
Button Action
Search for a radio station
– TUN + TUN Select a preset radio station
SCAN Press to auto scan the radio station
Numeric Keys Key in station frequency (i.e. for 104.6 press 1046)
Note - While autoscan turn off your TV/DVD or other radiation source. For best reception, while listening to radio, turn off TV/DVD or other radiation source.
External MIC*
You can enjoy Karoake by just attaching MIC's to your Tower Speaker.
1. You can use MIC's in all source selections.
2. Adjust MIC volume by rotary control given on back panel.
3. For 'ECHO' adjustment, rotary control also provide on back panel.
4. Remove MIC's from back sockets when not in use.
* Corded MIC not included in the accessories
Playing through Bluetooth
You can enjoy music wireless with Bluetooth
1. Select source.
2. Display shown BLUE (Flashing).
3. Pair "your Bluetooth device" with tower speaker system name Philips SPA9060B.
4. Display stops flashing, once Bluetooth device is paired. Now your system is ready to play through Bluetooth. Control all function from your
smart phone eg. , ,
8
Page 9
Troubleshooting
WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy the problem by following these hints, consult your dealer or PHILIPS for help.
Problem Solution
No power. Check if the AC power cord is properly
No sound or distorted sound. Adjust the volume.
The remote control does not function Reduce the distance between the remote Properly. control and the system.
Low hum or buzz sound. Place the product as far away as possible
The content of the USB flash drive The USB flash drive format is not compatible cannot be read with the system.
Slow operation of the USB Flash Large file size of high memory USB flash drive drive takes longer time to read and play.
Cannot detect USB flash drive Take out USB drive insert it again properly.
FM not properly tuned Match with local frequency
FM reception not good While listening radio turn off TV/DVD
MIC not working MIC volume at zero.
Bluetooth Reduce the distance between system
inserted into the AC mains socket.
Check the speaker connection. Select the correct source to choose the equipment that you want to hear through the System.
Replace the batteries with new ones. Point the remote control directly toward the IR sensor (located on front panel of the Tower).
from electrical devices that may be causing interference. Speaker connector not fixed properly
Drive is formatted with a different file system which is not supported by this unit (e.g. NTFS)
or other radiation source. While listening radio turn off TV/DVD Antenna wire not attached.
and your device. Re-Pair the device.
9
Page 10
Product Specifications*
Total System Power 60W RMS
Separation >35db
SNR >60db
Audio Input Socket RCA Type
Audio Output Socket RCA Type
Power Consumption 30W
Frequency Response 40Hz-20Khz
Bluetooth Range Upto 10 mtrs.
Speaker System 2 x 2 Way
Woofer
Size 8" (200mm)
Impedance 4 Ohm
Tweeter
Size 3" (75mm)
Impedance 4 Ohm
Dimension 165 x 545 x 310 (WXHXD)
Net Weight 11.4 Kg
USB
Class Support UMS (USB Mass Storage Class)
Capacity upto 16 GB
File Format MP3
* Specification subject to change without prior notice. Measured under specific conditions.
10
Page 11
This Philips Tower Speaker is warranted against any defect due to defective materials or workmanship for 12 months from the date of purchase. Should a defect develop during the period of warranty, Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer from whom it has been purchased or at any of the Philips Authorised Service Centres.
The warranty is not valid in case :
1. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of
God or while in transit to the purchaser’s residence.
All consumables and parts susceptible to normal wear and tear are not covered under warranty.
Please fill the following for your reference and warranty validity:-
Week/S. No.______________________Bill No. __________________________
Date of Purchase: __________________________________________________
Dealer's name: ____________________________________________________
Dealers Stamp: ____________________________________________________
Customer’s name & address: _________________________________________
Model No.: _______________________________________________________
Dealer's Signature: _________________________________________________
Gibson Innovations India Private Limited, 4th Floor, Block-1, Vatika Business Park, Sec-49, Sohna Road, Gurgaon-122018, Haryana, India
The Philips trademark and Philips shield emblem are registered trademarks of koninklijke Philips N.V. used under license.
This product has been manufactured by and sold under the responsibility of Gibson Innovations India Private Ltd. and Gibson Innovations India private Ltd. is the warrantor in relation to this product.
11
Page 12
SPA9060B_94_UM_V1.0
www.philips.com
