Philips SPA5250B User Manual

5.1

SPA5250B

General information

Safety instructions

Please read carefully the safety mark on the back side

This mark is intended to alert the user from
the non isolated dangerous voltage within the

constitute a risk of electric shock to persons.

This mark is intented to alert the user for
important operating and servicing instruction.

Warnings

Avoid sustained periods on high-volume use, and

•

do not turn the volume to maximum level while using
high output signal, such as Mobile Phone or DVD,
etc., as this will cause distortion and may damage the
loudspeaker cones.

•

when not in use.

• Do not open the cover or back panel to avoid

electrical shock or any other accidents. No user­serviceable parts are inside.

• Only for indoor use.

• Plug the system to the AC outlet with the right voltage

marked on the back panel of the Subwoofer.

• The MAINS plug is used as the disconnect device, the

disconnect device shall remain readily operable.

Accessories

•

The product shall not be exposed to dripping or splashing

be placed on the product.

• Batteries shall not be exposed to excessive heat such as

Attention should be drawn to the environmental

•

aspects of battery disposal.

Care and safety information

Avoid high temperatures, moisture, water and dust

•

Apparatus should not be exposed to dripping or

splashing of liquid.

• Do not place any source of danger on the Subwoofer,

• Do not install near heat sources.

Do not block any ventilation opening

•

Place the apparatus in a location with adequate

ventilation to prevent internal heat build up. Allow at
least 10cm (4 inches) of free space all around the
apparatus for adequate ventilation.

• At high volume the back cover of Subwoofer becomes

hot. Do not touch it.

Care of the cabinet

Use a soft cloth slightly moistened to clean the cabinet.

•

Do not use a solution containing alcohol, spirits,
ammonia or abrasives.

Item

Quantity

2RCA to 2RCA cable

3 1 1 1 1

Remote control User manual FM Antenna cable

3.5mm stereo cable
to 2RCA

2

Connections

Subwoofer Back panel

Side panel

SD card Slot

USB Slot

3

Front panel operation

1 2 3 4 5 6

1. SRC

2.

3. SCAN

* AVAILABLE IF CONNECTED

4.

5.

6.

SRC

1.
Press to turn on speaker, long press into stand-by.
Change the input mode – AUH for Audio in, bt for
Bluetooth, dUd for DVD, USb for USB*, Sd for SD*,

87.5 for FM by short press.

2.
Play previous song in USB*, SD* & BT mode or go to
previous preset station in FM mode.

3.

SCAN

Long-press to auto store (scan) stations in FM mode
and short-press can play or pause a played song
alternately in USB*, SD*, and BT mode.

4.
Play next song in USB*, SD*, & BT mode or go to next
preset station in FM mode.

5.
Long-press volume down and short press decrease
each step by 0.1MHz in FM mode only.Short-press
volume down step by step and long press volume
down, when in all modes except FM mode.

6.
Long-press volume up and short press increase
each step by 0.1MHz in FM mode only.Short-press
volume up step by step and long press volume up,
when in all modes except FM mode.

4

Remote controls

2
4
6
8

10

13

15

17

21

1.REPEAT

2.ST-BY

3.MUTE

4.PRO-LOGIC

5.RESET

6.FM

7.AUD

8.DVD/BT

9.USB/BT

10.EQ

11.10+

12.SCAN

13.VOL+

14.PLAY/PAUSE

15.PREVIOUS

16.NEXT

17.VOL-

18.SELECT

19.TUNE+

20.TUNE-

21.0 9

* AVAILABLE IF CONNECTED

11
12
14

16

18
19

20

1

1.REPEAT----To put system into REPEAT mode in USB/SD mode only.

2. ----Turn on/Stand-by the speaker.

3

3. ----Press “MUTE ” to activate or deactivate mute, display blinks, when at MUTE mode.

5

4.PRO-LOGIC----Enable or disable the function of

7

the PRO-LOGIC. In case of USB/SD/FM/BT, you can switch the output from 2.1 to 5.1 and in case

9

of DVD mode, it selects between prologic o (real 5.1) and prologic on(for surround sound).

5.RESET----Reset all user settings.

6.FM----Press “FM” to enter 106.4 for FM radio.

7.AUD----Press “AUD” to enter audio input.

8.DVD/BT----Press “DVD/BT” to enter DVD input, and then short-press to switch to “bt” for
Bluetooth.

9.USB/SD----Press “USB/SD” to enter USB input, and then short-press to switch to SD input.

10.EQ----Dierent equalizer mode “POP, ROCK, JAZZ, CLASSIC, COUNTRY” can be selected
in USB/SD mode only.

11.10+ ----To select and play the music track present after the 10 tracks.

12.SCAN----Long press "SCAN", it will enter into automatic search and automatic save channel
in FM mode.

13.VOL+----Volume up.

14. ----Play or pause the music by pressing “ ” at USB*/SD*/BT mode.

15. ----Play the previous song by pressing “ ” at USB*/SD*/BT mode.
Choose previous channel by pressing “ ” at FM mode.

16. ----Play the next song by pressing “ ” at USB*/SD*/BT mode.
Choose next channel by pressing “ ” at FM mode.

17.VOL- ----Volume down.

18.SELECT----Press”SELECT” key can switch to dierent channels [FL(front speakers) /
SL(surround speakers) / CE(Centre speaker) / SU(subwoofer)]. At the same time,
press”VOL+/-” to increase or decrease every channel’s volume. The number of
numeral tube will change accordingly.

19.TUNE+ ----Press“TUNE+”each time to search channel step by step(each
step 0.1 MHz). Long press "TUNE+", it will search next channel and play the channel
automatically.

20.TUNE- ----Press“TUNE-”each time to search channel step by step(each
step(-) 0.1 MHz). Long press "TUNE-", it will search previous channel and play the channel
automatically.

21.0 9----Numeric keys, with the help of these keys you select song or track in USB,
and in FM, you can key in station frequency, i.e. for 92.7 key in 92.7.

5

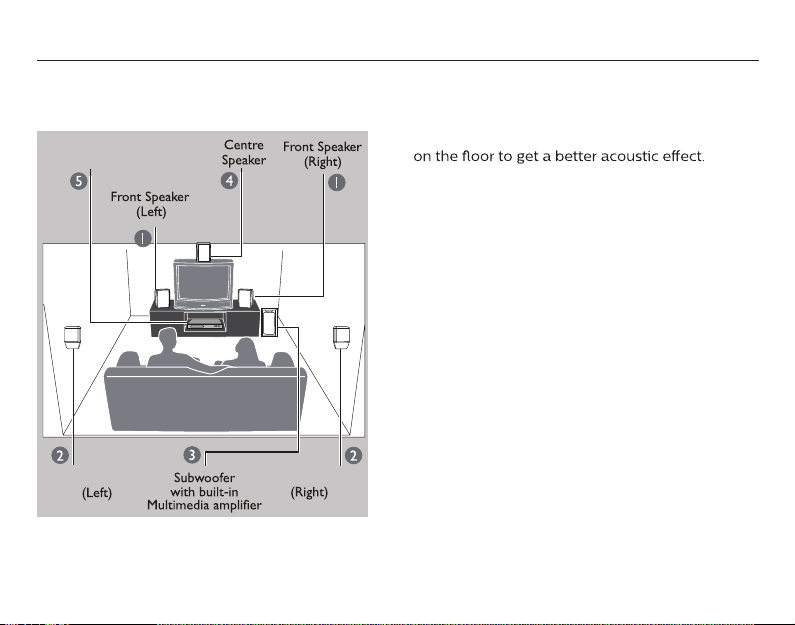

Playing the speakers and subwoofer

System positioning :

Audio source / player

The subwoofer is recommended to be put

For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.

Place the front left and right speakers at
equal distances from the TV and at an angle
of approximately 45 degrees (horizontal)
from the listening position.

Place the centre speaker above the TV so
that the centre channel’s sound is localised.

Place the surround speakers at normal
listening. ear level facing each other or
mounted on the wall.

Surround SpeakerSurround Speaker

Helpful Hint:

- To avoid magnetic interference, do not position
the speakers, too close to your TV.

6

Bluetooth Operating Instruction

1. Press SRC key from front panel or remote “DVD/BT” key to go to Bluetooth;

2. When selected the Bluetooth mode, in display, “bt” will start blinking and hear an audio tone which indicate in
Bluetooth pairing mode.

3. For pairing with mobile phone or other Bluetooth devices, search the device named “Philips SPA5250B” and
pair it. Once paired, “bt” stops blinking and an audio tone will come up.

4. Press and hold “ ” for continuous 3 seconds from remote in order to force disconnect the Bluetooth.

Note: While using Bluetooth, if external call comes, then speaker system goes in mute mode in

order to protect privacy of mobile phone user. Operation resumes once the call is disconnected.

7

Troubleshooting

Warning -

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty.

below before taking the system for repair. If you are unable to remedy the problem by following hints
mentioned in below table, Consult your dealer or PHILIPS APSC for help.

Problem Solution

1. No power.

2. No sound or distorted sound.

3. The remote control does not
function properly.

Check if the AC power cord is properly inserted into the AC mains socket.

Adjust the volume / select the correct source to choose the equipment
that you want to hear through the system.

Reduce the distance between the remote control and the system. Replace
the batteries with new ones / Point the remote control directly towards the
IR sensor (located on front panel of the subwoofer) / Check that the batteries

4. Low hum or buzz sound.

drive cannot be read.

6. Slow operation of the USB / SD

7. FM not properly tuned. Match with local frequency.

8. FM reception not good.

9. BT not working. Reduce the distance or device is not paired.

In case these measures do not work contact the nearest PHILIPS service center or call at customer care numbers.

Place the product as far away as possible from electrical devices that may be
causing interference / Check power supply voltage and consult electrician.

and play. / Take out USB / SD drive and insert it again properly.

Drive is

8

Warranty

This Philips 5.1 multimedia speakers system is warranted against any defect due to defective materials or
workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,
Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer
from whom it has been purchased or at any of the Philips Authorised Service Centres.

The warranty is not valid in case :

1. Proof of purchase is not accompanied with this warranty card.

2. The warranty card is not completed immediately after purchase.

3. The apparatus is not used according to this manual.

4. Defects are caused by improper or reckless use.

5. Any repairs are done by persons other than Philips Authorised service centre.

7. The serial number is tampered with.

8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in
transit to the purchaser’s residence.

All consumables and parts susceptible to normal wear and tear are not covered under warranty.

Week/S.No.: ___________________________ Bill No. ___________________________

Date of purchase _________________________________________________________

Dealer’s name: ___________________________________________________________

Dealers stamp: __________________________________________________________

Customer’s name and address: _____________________________________________

Model No.: _____________________________________________________________

Dealer’s signature: ________________________________________________________

Gibson Innovations India Private Limited 4th Floor, Block-1, Vatika Business Park, Sector 49, Sohna Road,
Gurgaon-122018, Haryana, India

9

Total system power 150W RMS

Satellite speaker power 19Wx5 RMS

Subwoofer power 55W RMS

Separation >40 dB

SNR >60 dB

Audio input socket RCA

Audio output socket RCA

Power consumption

120W

Subwoofer speaker 1 Way

Drive size 8 inches

Impedance 8 Ohm

Frequency range 2 0Hz - 150 Hz

Dimension (mm) W x H x D

316 x 322 x 436

Net Weight 10.9 kg

The Philips trademark and Philips shield emblem are
registered trademarks of koninklijke Philips N.V. used
under license.
This product has been manufactured by and sold
under the responsibility of Gibson Innovations India
Private Ltd. and Gibson Innovations India Private Ltd.
is the warrantor in relation to this product.

Satellite speaker power

Drive size

Impedance

Frequency range

Product Dimension (mm) W x H x D

Net Weight

1 Way, 5 Speakers

SAT 3 inches
CEN 4 inches

4 Ohm

150Hz - 20KHz

SAT 130 x 223 x 128
CEN 316 x 130 x 128

SAT 1.18 kg
CEN 1.19 kg

BT version V4.0

BT range

USB class support

USB capacity

USB playability

Question?
Contact
Philips

Or [e-mail]

UMS (USB mass
storage class)

Up to 16GB

MP3

www.india.philips.com
