General information
•
Safety instructions
Please read carefully the safety mark on the back side
This mark is intended to alert the user from
the non isolated dangerous voltage within the
constitute a risk of electric shock to persons.
This mark is intented to alert the user for
important operating and servicing instruction.
Warnings
Avoid sustained periods on high-volume use, and
•
do not turn the volume to maximum level while using
high output signal, such as Mobile Phone or DVD,
etc., as this will cause distortion and may damage the
loudspeaker cones.
•
when not in use.
• Do not open the cover or back panel to avoid
electrical shock or any other accidents. No userserviceable parts are inside.
• Only for indoor use.
• Plug the system to the AC outlet with the right voltage
marked on the back panel of the Subwoofer.
•
The MAINS plug is used as the disconnect device, the
disconnect device shall remain readily operable.
Accessories
Item 2RCA to 2RCA cable Remote control User manual FM Antenna cable
Quantity 1 1 1 1
The product shall not be exposed to dripping or splashing
and that no objects lled with liquids, such as vases, shall
be placed on the product.
• Batteries shall not be exposed to excessive heat such as
sunshine, re or the like.
Attention should be drawn to the environmental
•
aspects of battery disposal.
Care and safety information
Avoid high temperatures, moisture, water and dust
•
Apparatus should not be exposed to dripping or
splashing of liquid.
• Do not place any source of danger on the Subwoofer,
• Do not install near heat sources.
Do not block any ventilation opening
•
Place the apparatus in a location with adequate
ventilation to prevent internal heat build up. Allow at
least 10cm (4 inches) of free space all around the
apparatus for adequate ventilation.
• At high volume the back cover of Subwoofer becomes
hot. Do not touch it.
Care of the cabinet
Use a soft cloth slightly moistened to clean the cabinet.
•
Do not use a solution containing alcohol, spirits,
ammonia or abrasives.
2
Page 3
Connections
Back panel
CEN
FM Antenna Connection
FR
CD/TV
FL/FR
C/SW
SL/S R
FL
Mains Cord
Power On Switch
SR
SL
3
Page 4

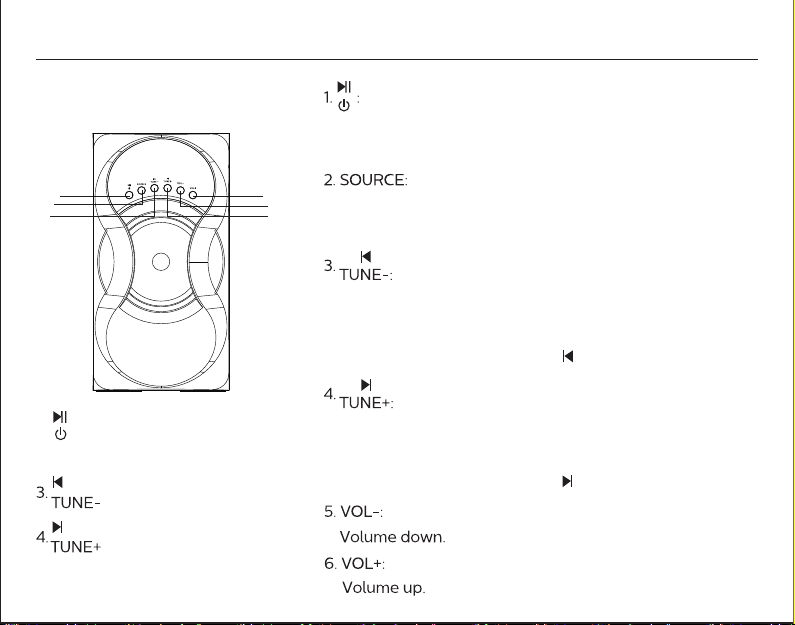

Front panel operation
Press to turn on speaker, long press into stand-by mode.
Short press for play/pause function in USB*/SD*/BT mode.
(1)
(2)
(3)
1.
2. SOURCE
5. VOL-
VOL+
6.
* AVAILABLE IF CONNECTED
(6)
(5)
(4)
Change the input mode-AU for Audio in, bt for Bluetooth,
dU for DVD, Ud for USB*, Sd for SD*, 87.5 for FM.
Short press to select previous station which had been stored.
Long press to semi-automatic search for radio.
In USB*/SD*/BT mode, press “ ” to play previous song.
Short press to select next station which had been stored.
Long press to semi-automatic search for radio.
In USB*/SD*/BT mode, press “ ” to play next song.
4
Page 5

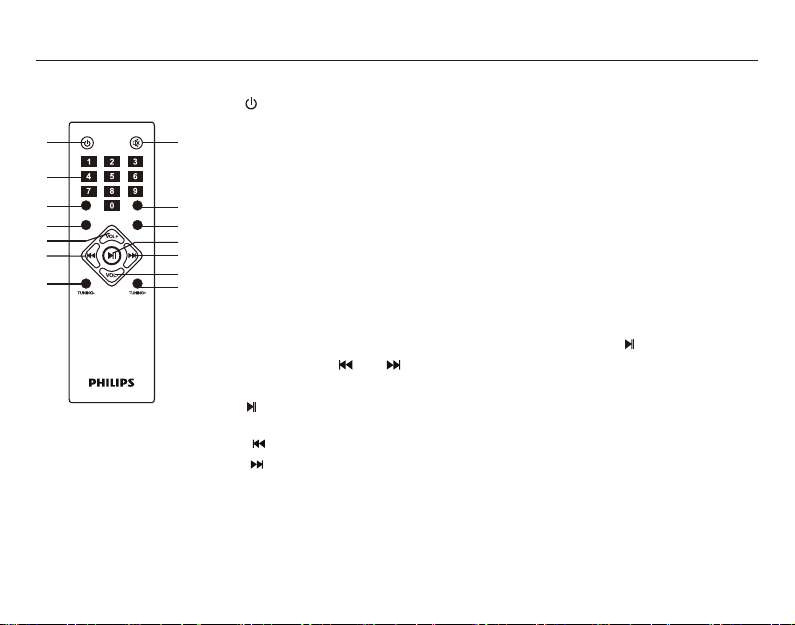

Remote controls
(1)
(3)
(4)
SOURCE
SELECT
PRO-LOGIC
MEMORY
8.VOL+
9.PLAY/PAUSE
10.PREVIOUS
11.NEXT
12.VOL-
13.TUNING-
14.TUNING+
(6)
(8)
(10)
(13)
ST-BY
1.
2.MUTE
3.0~9
4.SOURCE
5.PRO-LOGIC
6.SELECT
7.MEMORY
* AVAILABLE IF CONNECTED
1. ----- Turn on/Stand-by the speaker.
2. MUTE ----- To activate or deactivate mute, display blinks when in MUTE mode.
(2)
3.
0-9 ----- Numeric keys, with the help of these keys you select song or track in USB*,
and in FM, you can key in station frequency, i.e. for 92.7 key in 927.
4.
SOURCE ----- AU for AUX, bt for Bluetooth, dU for DVD, Ud for USB*, Sd for SD*, 87.5 for FM.
5. PRO-LOGIC ----- Enable or disable the function of the PRO-LOGIC. In USB*/SD*/FM/BT,
(5)
you can switch the output from 2.1 to 5.1 and in DVD mode, it selects between prologic o
(7)
(real 5.1) and prologic on(for surround sound).
(9)
(11)
6. SELECT ----- To switch to dierent channels [F(front speakers) / S(surround speakers) /
C(Centre speaker) / b(subwoofer)], press”VOL+/-” to increase or decrease volume of
(12)
the channel.
(14)
7. MEMORY -----
save channels.
For manual storage, user can press frequency (eg. 106.4) and press “ ”, station number
will ash, press “ ” or “ ” to choose the serial, press “MEMORY” again to store the station.
8. VOL+ ----- Volume up.
9.
----- Short press to play or pause in USB*/SD*/BT mode. In FM mode, short press to
reconnet Bluetooth pairing, long press to disconnect.
10.
----- To play previous song in USB*/SD*/BT mode, or to choose previous channel in FM mode.
11. ----- To play next song in USB*/SD*/BT mode, or to choose next channel in FM mode.
12. VOL- ----- Volume down.
13. TUNING- ----- Short press to search channel step by step (each step(-) 0.1 MHz),
and hold to search previous channel, it will stop and play once previous channel been searched.
14. TUNING+ ----- Short press to search channel step by step (each step 0.1 MHz), press “TUNING+”
and hold to search next channel, it will stop and play once next channel been searched.
In FM mode, short press to manually save channel, long press to auto search and
press “TUNING-”
5
Page 6
Playing the speakers and subwoofer
Surround SpeakerSurround Speaker

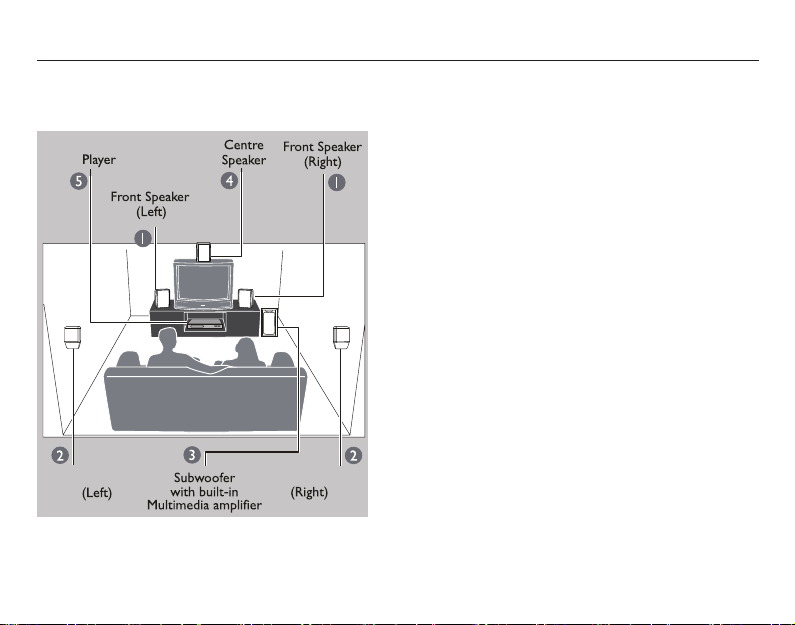

System positioning :
The subwoofer is recommended to be put
on the oor to get a better acoustic eect.
For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.
Place the front left and right speakers at
equal distances from the TV and at an angle
of approximately 45 degrees (horizontal)
from the listening position.
Place the centre speaker above the TV so
that the centre channel’s sound is localised.
Place the surround speakers at normal
listening. ear level facing each other or
mounted on the wall.
Helpful Hints:
- To avoid magnetic interference, do not position
the speakers, too close to your TV.
6
Page 7
Bluetooth Operating Instruction
1. Press SOURCE key from front panel or remote to go to Bluetooth;
2. When selected the Bluetooth mode, in display, “bt” will start blinking/ashing.;
3. For pairing with mobile or other Bluetooth devices, search the device named “Philips SPA5162B” and
pair it. Once paired, “bt” stops blinking/ashing;
4. Press “ ”for continuous 3 seconds from remote in order to force disconnect the Bluetooth.
Note: While using Bluetooth, if external call comes, then speaker system goes in mute mode in
order to protect privacy of mobile phone user. Operation resumes once the call is disconnected.
7
Page 8
Troubleshooting
Warning -
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty.
below before taking the system for repair. If you are unable to remedy the problem by following hints
mentioned in below table, Consult your dealer or PHILIPS APSC for help.
Problem Solution
1. No power.
2. No sound or distorted sound.
3. The remote control does not
function properly.
Check if the AC power cord is properly inserted into the AC mains socket.
Adjust the volume / select the correct source to choose the equipment
that you want to hear through the system.
Reduce the distance between the remote control and the system. Replace
the batteries with new ones / Point the remote control directly towards the
IR sensor (located on front panel of the subwoofer) / Check that the batteries
4. Low hum or buzz sound.
drive can not be read.
6. Slow operation of the USB / SD
7. FM not properly tuned. Match with local frequency.
8. FM reception not good.
9. BT not working. Reduce the distance or device is not paired.
In case these measures do not work contact the nearest PHILIPS service center or call at customer care numbers.
Place the product as far away as possible from electrical devices that may be
causing interference / Check power supply voltage and consult electrician.
and play. / Take out USB / SD drive and insert it again properly.
Drive is
8
Page 9
Warranty
This Philips 5.1 multimedia speakers system is warranted against any defect due to defective materials or
workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,
Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer
from whom it has been purchased or at any of the Philips Authorised Service Centres.
The warranty is not valid in case :
1. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in
transit to the purchaser’s residence.
All consumables and parts susceptible to normal wear and tear are not covered under warranty.
Week/S.No.: ___________________________ Bill No. ___________________________
Date of purchase _________________________________________________________
Dealer’s name: ___________________________________________________________
Dealers stamp: __________________________________________________________
Customer’s name and address: _____________________________________________
Model No.: _____________________________________________________________
Dealer’s signature: ________________________________________________________
Gibson Innovations India Private Limited 4th Floor, Block-1, Vatika Business Park, Sector 49, Sohna Road,
Gurgaon-122018, Haryana, India
9
Page 10
Total system power 60W RMS
Satellite 8Wx5 RMS
Subwoofer power 20W RMS
Separation >40 dB
SNR >60 dB
Audio input socket RCA
Audio output socket RCA
Power consumption
90W
Subwoofer speaker 1 Way
Speaker size 5.25 inch
Impedance 8 Ohm
Frequency range 20Hz - 2KHz
Dimension (mm) W x H x D
170 x 324 x 331
Net Weight 4.83 Kg
The Philips trademark and Philips shield emblem are
registered trademarks of koninklijke Philips N.V. used
under license.
This product has been manufactured by and sold
under the responsibility of Gibson Innovation India
Private Ltd. and Gibson Innovations India private Ltd.
is the warrantor in relation to this product.
Satellite speaker
Speaker size
1 Way, 5 Speakers
3 inch
Impedance 4 Ohm
Frequency range 120Hz - 20KHz
Dimension (mm) W x H x D 90 x 135 x 99
Net Weight(Satellite) 2 Kg
USB
Class support UMS (USB mass
storage class)
Capacity Upto 16GB
Playability MP3 track
Question?
Contact
Philips
www.india.philips.com
Loading...
