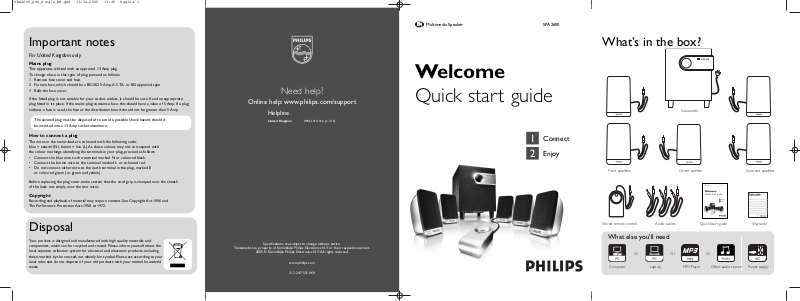

Welcome

Quick start guide

SPA2600

Specifications are subject to change without notice.

Trademarks are property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

312 247 501 069

Need help?

Online help: www.philips.com/support

Helpline

United Kingdom 0906 1010 016 (£ 0.15)

Multimedia Speaker

Connect

Enjoy

1 2

What’s in the box?

Subwoofer

Front satellites Center satellite Surround satellites

Wired remote control Audio cables Quick Start guide

Computer

Or Or Or

Laptop MP3 Player Other audio source Power supply

Warranty

What else you'll need

Important notes

For United Kingdom only

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1 Remove fuse cover and fuse. 2 Fix new fuse, which should be a BS1362 5 Amp,A.S.T.A. or BSI approved type. 3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead- not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Disposal

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheely bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste

SPA2600_QSG_Single_EN.qxd 13-12-2005 13:45 Pagina 1

Enjoy

1. Push the POWER button on the rear of the subwoofer to turn on the multimedia speakers.

> The green light on the subwoofer comes on.

2. Make sure that your audio source is correctly configured.

> Use a soundcard or other sound device with 5.1 capabilities for optimal functioning.

3. Adjust the bass level with the SUBWOOFER VOLUME control on the rear of the subwoofer.

4. Adjust the volume level with VOLUME control on the wired remote control.

> You can now enjoy the sound of your multimedia speakers.

Connect

1. Connect the front satellites (red and green plugs) to the FRONT R and FRONT L ports of the subwoofer.

2. Connect the surround satellites (yellow and blue plugs) to the REAR R and REAR L ports of the subwoofer.

3. Connect the center satellite (white plug) to the CENTER port of the subwoofer.

4. Connect the green part of the audio cable from the FRONT port of the subwoofer to the corresponding port of your audio source (for example, your computer).

5. Connect the blue part of the audio cable from the REAR port of the subwoofer to the corresponding port of your audio source.

6. Connect the orange part of the audio cable from the CENTER/SUBWOOFER port of the subwoofer to the corresponding port of your audio source.

7. Connect the black plug of the wired remote control to the CONTROL port of the subwoofer.

8. Connect the mains cable to a power supply.

Important Safety Instructions

For US/Canada only

This product was designed and manufactured to meet strict quality and safety standards.There are, however, some installation and operation precautions which you should be particularly aware of.

1 Read these instructions - All the safety

and operating instructions should be read before the appliance is operated.

2 Keep these instructions - The safety

and operating instructions should be retained for future reference.

3 Heed all warnings - All warnings on

the appliance and in the operating instructions should be adhered to.

4 Follow all instructions - All operating and

use instructions should be followed.

5 Do not use this apparatus near water -

for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6 Clean only with a damp cloth.

The appliance should be cleaned only as recommended by the manufacturer.

7 Install in accordance with the

manufacturers instructions. Do not block any of the ventilation openings.

For example, the appliance should not be situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

8 Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose

of the polarized or grounding-type plug. A polarized plug has two blades with one

wider than the other. Match wide blade of plug to wide slot, fully insert. A grounding type plug has two blades and a third grounding prong.The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being

walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories

specified by the manufacturer.

12 Use only with a cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning

storms or when unused for long periods of time.

14 Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 Warning! To reduce the risk of fire or

electric shock, do not expose this appliance to rain or moisture.

The socket-outlet shall be installed near the equipment and shall be easily accessible.
