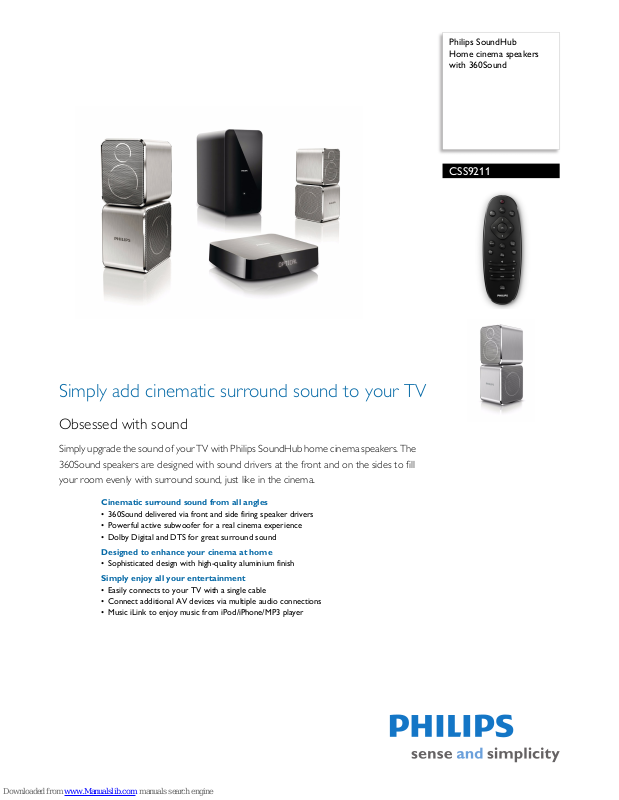

Philips SoundHub
Home cinema speakers
with 360Sound
CSS9211
Simply add cinematic surround sound to your TV
Obsessed with sound
Simply upgrade the sound of your TV with Philips SoundHub home cinema speakers. The
360Sound speakers are designed with sound drivers at the front and on the sides to fill
your room evenly with surround sound, just like in the cinema.
Cinematic surround sound from all angles
• 360Sound delivered via front and side firing speaker drivers
• Powerful active subwoofer for a real cinema experience
• Dolby Digital and DTS for great surround sound
Designed to enhance your cinema at home
• Sophisticated design with high-quality aluminium finish
Simply enjoy all your entertainment
• Easily connects to your TV with a single cable
• Connect additional AV devices via multiple audio connections
• Music iLink to enjoy music from iPod/iPhone/MP3 player
Page 2
CSS9211/12
Highlights
Home cinema speakers with 360Sound
360Sound
Vastly different from conventional 2.1 home
cinema speakers, 360Sound speakers are
uniquely designed with three drivers in each
satellite speaker—a front one and two side
firing ones—which are angled to project
immersive sound around you. In addition to
the principle of dipoles, Philips uses a
proprietary algorithm to further enhance the
embracing sound effect. Built with premium
acoustic components like soft dome tweeters,
Neodymium magnets and Class D digital
amplifiers, 360Sound delivers exceptional
sound from all angles — giving you a true
cinema experience in your own home.
Sophisticated design
Sophisticated design with high-quality
aluminium finish
Easily connects to your TV
Easily connects to your TV with a single cable
Connect additional AV devices
To enjoy cinematic surround sound for all your
entertainment you can easily connect
additional Audio/Video devices to your
SoundHub home cinema speakers. Connect,
for example, a Blu-ray or DVD player or a
games console by using one of the available
digital or analogue connections: Optical in,
Coaxial in or 2 AUX-in. You can also connect
your MP3 player using the Music iLink
connection on the side.
Music iLink
Philips Music iLink allows you to easily play
your music directly from your iPod/iPhone/
iPad, MP3 player or laptop via a simple
connection to your home theatre. Simply
connect your audio device to the Music iLink
jack to enjoy your music with the superior
sound quality of the Philips home theatre.
Dolby Digital and DTS
Go digital and get the most out of your music
and movies. Even stereo music sounds great
because Dolby Digital and DTS Digital
Surround enhance digital music and videos,
pumping it up so you get truly immersive
surround sound.
Powerful active subwoofer
Powerful active subwoofer for a real cinema
e
xperience
Page 3
Issue date 2011-10-20
Version: 4.2.9
12 NC: 8670 000 78522
EAN: 87 12581 60876 7
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
CSS9211/12
Specifications
Home cinema speakers with 360Sound
Accessories
• Compatible accessories: STS9501 Speaker stands,
STS9510 Wall mount brackets
• Included accessories: 2 x AAA Batteries, Digital
O
ptical cable, Music iLINK Cable, Power cord,
Quick start guide, Remote Control, User Manual,
World Wide Warranty leaflet
Connectivity
• Front/Side connections: Music iLINK
• Rear Connections: AUX IN 1, AUX IN 2,
Subwo
ofer out, Digital coaxial in, Digital optical in
• Subwoofer connections: Speaker sockets
Dimensions
• Main Unit (W x H x D): 150 x 40.6 x 126 mm
• Main Unit Weight: 0.4 kg
• Satellite Speaker (W x H x D): 99 x 247 x 117 mm
• Satellite Speaker Weight: 1.2 kg
• Satellite Speaker Cable length: 5 m
• Subwoofer (W x H x D): 196 x 392 x 357 mm
• Subwoofer Weight: 6.8 kg
• Subwoofer cable length: 5 m
• Packaging (W x H x D): 560 x 258 x 610 mm
• Weight incl. Packaging: 14.2 kg
Loudspeakers
• Loudspeaker types: 2 x Satellite speakers
• Drivers per Satellite speaker: 1 x 1" Soft dome
tw
eeter, 1 x 2.5" woofer, 2 x 2.5" Full range
woofers
• Satellite speaker impedance: 6 ohm
• Satellite speaker freq range: 150–20k Hz
• Subwoofer type: Active
• Subwoofer driver: 1 x 6.5" woofer
• Subwoofer freq range: 20–150 Hz
• Subwoofer impedance: 4 ohm
Power
• Power consumption: 55 W
• Power supply: 220-240 V, 50 Hz
• Standby power consumption: 0.5
Sound
• Equalizer settings: Auto, Gaming, Movie, Music,
News, Original
• Sound Enhancement: Auto Volume Leveller,
Dialogu
e Enhancer, Dolby Digital Prologic II,
DoubleBass, FullSound, MP3 Sound, Night Mode,
Treble and Bass Control
• Sound System: Dolby Digit
al 5.1, DTS Digital
Surround
• Satellite speaker output power: 150 W x 2
• Subwoofer output power: 100 W
• Total Power RMS @ 30% THD: 400 W
•
