Soft 6y 5W/827 E27 230-240V 50/60Hz T60
Product Description
4 pgs249.13 Kb0

Philips Soft 6y 5W/827 E27 230-240V 50/60Hz T60, Soft 6y 8W/827 E27 230-240V 50/60Hz T60, Soft 6y 12W/827 E27 230-240V 50/60Hz T60, Soft 6y 16W/827 E27 230-240V 50/60Hz T60, Soft 6y 20W/827 E27 230-240V 50/60Hz T65 Product Description

...
Download
2010, October 20 data subject to change

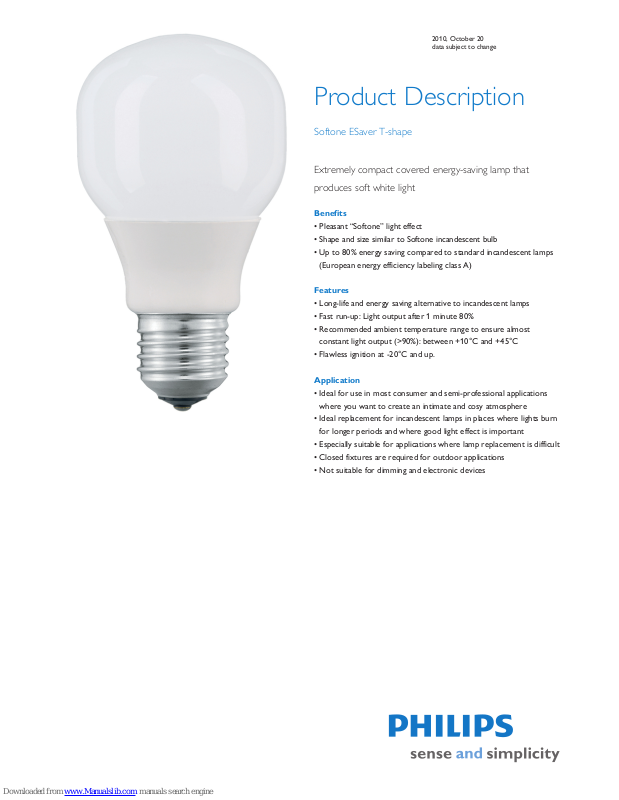

Product Description
Softone ESaver T-shape
Extremely compact covered energy-saving lamp that
produces soft white light
Benefits
• Shape and size similar to Softone incandescent bulb
• Up to 80% energy saving compared to standard incandescent lamps
(European energy efficiency labeling class A)
Features
• Long-life and energy saving alternative to incandescent lamps
• Fast run-up: Light output after 1 minute 80%
• Recommended ambient temperature range to ensure almost
constant light output (>90%): between +10°C and +45°C
• Flawless ignition at -20°C and up.
Application
• Ideal for use in most consumer and semi-professional applications
where you want to create an intimate and cosy atmosphere
• Ideal replacement for incandescent lamps in places where lights burn
for longer periods and where good light effect is important
• Especially suitable for applications where lamp replacement is difficult
• Closed fixtures are required for outdoor applications
• Not suitable for dimming and electronic devices
Related products
Dimensional drawing
F
C
D
Product C (Max) D (Max) F (Max)
Soft 6y 5W/827 E27 230-240V 50/60Hz T60 114.0 60.8 46.5
Soft 6y 8W/827 E27 230-240V 50/60Hz T60 114.0 60.8 46.5
Soft 6y 12W/827 E27 230-240V 50/60Hz T60 114.0 60.8 46.5
Soft 6y 16W/827 E27 230-240V 50/60Hz T60 114.0 60.8 46.5
Soft 6y 20W/827 E27 230-240V 50/60Hz T65 129.0 65.8 46.5
F
C
D
Product C (Max) D (Max) F (Max)
Soft 6y 8W/827 B22 230-240V 50/60Hz T60 112.5 60.8 46.5
Soft 6y 12W/827 B22 230-240V 50/60Hz T60 112.5 60.8 46.5
Soft 6y 16W/827 B22 230-240V 50/60Hz T60 112.5 60.8 46.5
Soft 6y 20W/827 B22 230-240V 50/60Hz T65 127.5 65.8 46.5
Compare table
Order code
Full product name Bulb Cap-
Base
Colour Code
Colour Designa­tion
Voltage Line
Frequency
Lamp Wattage
Lamp Current
Lamp Lumi­nous Flux
Dimmable
662552 10 Softone ESaver 5W WW E27
230-240V T60 1PF
T60 ES 827 Warm white 230-240 50/60 5 0.045 200 no
662569 10 Softone ESaver 8W WW E27
230-240V T60 1PF
T60 ES 827 Warm white 230-240 50/60 8 0.065 380 no
662606 10 Softone ESaver 8W WW B22
230-240V T60 1PF
T60 BC 827 Warm white 230-240 50/60 8 0.065 380 no
662576 10 Softone ESaver 12W WW E27
230-240V T60 1PF
T60 ES 827 Warm white 230-240 50/60 12 0.090 610 no
662613 10 Softone ESaver 12W WW B22
230-240V T60 1PF
T60 BC 827 Warm white 230-240 50/60 12 0.090 610 no
662583 10 Softone ESaver 16W WW E27
230-240V T60 1PF
T60 ES 827 Warm white 230-240 50/60 16 0.120 870 no
662620 10 Softone ESaver 16W WW B22
230-240V T60 1PF
T60 BC 827 Warm white 230-240 50/60 16 0.120 870 no
662590 10 Softone ESaver 20W WW E27
230-240V T65 1PF
T65 ES 827 Warm white 230-240 50/60 20 0.150 1160 no
662637 10 Softone ESaver 20W WW B22
230-240V T65 1PF
T65 BC 827 Warm white 230-240 50/60 20 0.150 1160 no
Compare table
Softone ESaver T-shape 2
2010, October 20 data subject to change
Compare table
Order code
Full product name Energy
Effi­ciency Label (EEL)
Chroma­ticity Coordi­nate X
Chroma­ticity Coordi­nate Y
Colour Rendering Index
Average Lifetime
Life to 50% fail­ures
Lumen Mainte­nance 2000h
Lumen Mainte­nance 5000h
Lumi­nous Inten­sity
Lamp Lumi­nous Efficacy
662552 10 Softone ESaver 5W WW
E27 230-240V T60 1PF
A 470 429 82 10000 8000 85 77 - 40
662569 10 Softone ESaver 8W WW
E27 230-240V T60 1PF
A 475 424 82 10000 8000 85 77 - 48
662606 10 Softone ESaver 8W WW
B22 230-240V T60 1PF
A 475 424 82 10000 8000 85 77 - 48
662576 10 Softone ESaver 12W WW
E27 230-240V T60 1PF
A 467 418 82 10000 8000 85 77 - 53
662613 10 Softone ESaver 12W WW
B22 230-240V T60 1PF
A 467 418 82 10000 8000 85 77 - 53
662583 10 Softone ESaver 16W WW
E27 230-240V T60 1PF
A 464 419 82 10000 8000 85 77 - 54.4
662620 10 Softone ESaver 16W WW
B22 230-240V T60 1PF
A 464 419 82 10000 8000 85 77 - 54.4
662590 10 Softone ESaver 20W WW
E27 230-240V T65 1PF
A 465 414 82 10000 8000 85 77 - 52
662637 10 Softone ESaver 20W WW
B22 230-240V T65 1PF
A 462 414 82 10000 8000 85 77 - 52
Compare table
Compare table
Order code
Full product name
Colour Tempera­ture
Mercury (Hg) Content
Switching cycle
Wattage Equiva­lent
Rated Wattage
Rated Lifetime (hours)
Rated Life­time (years)
Rated Lumi­nous Flux
Starting Time
Warm-up Time to 60% Light Outp
662552 10 Softone ESaver 5W
WW E27 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
6000X 21 5 10000 10 200 0.2 45 (nom), 60
(max)
662569 10 Softone ESaver 8W
WW E27 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
6000X 36 8 10000 10 380 0.2 40 (nom), 60
(max)
662606 10 Softone ESaver 8W
WW B22 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
6000X 36 8 10000 10 380 0.2 40 (nom), 60
(max)
662576 10 Softone ESaver 12W
WW E27 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
20000X 51 12 10000 10 610 0.2 20 (nom), 60
(max)
662613 10 Softone ESaver 12W
WW B22 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
20000X 51 12 10000 10 610 0.2 20 (nom), 60
(max)
662583 10 Softone ESaver 16W
WW E27 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
50000X 70 16 10000 10 870 1.0 10 (nom), 60
(max)
662620 10 Softone ESaver 16W
WW B22 230-240V
T60 1PF
2700 1.41 (nom), 1.56
(max)
50000X 70 16 10000 10 870 1.0 10 (nom), 60
(max)
662590 10 Softone ESaver 20W
WW E27 230-240V
T65 1PF
2700 1.23 (nom), 1.34
(max)
50000X 86 20 10000 10 1160 1.0 20 (nom), 60
(max)
662637 10 Softone ESaver 20W
WW B22 230-240V
T65 1PF
2700 1.23 (nom), 1.34
(max)
50000X 86 20 10000 10 1160 1.0 20 (nom), 60
(max)
Compare table
Softone ESaver T-shape 3
2010, October 20 data subject to change
Softone ESaver T-shape 4
© 2010 Koninklijke Philips Electronics N.V. All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
www.philips.com/lighting
2010, October 20 data subject to change
