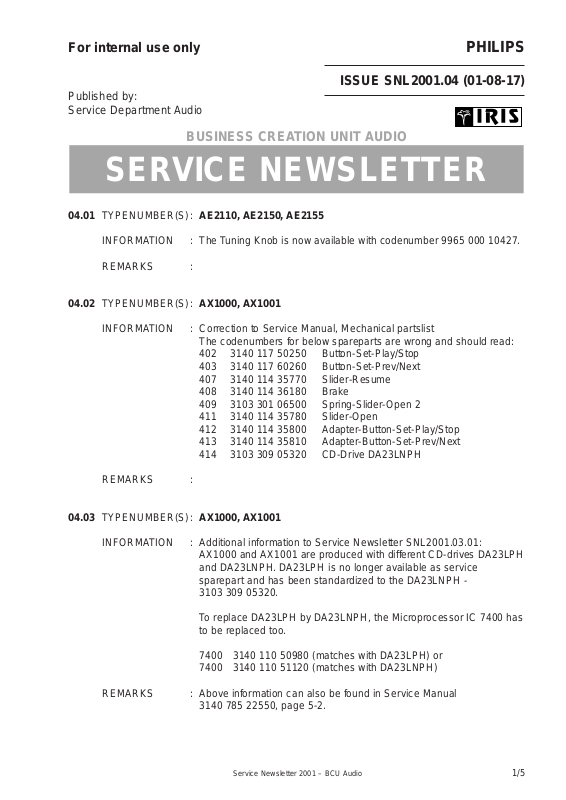

Service Newsletter 2001 – BCU Audio 1/5
For internal use only PHILIPS
ISSUE SNL2001.04 (01-08-17)
Published by:
Service Depar tment Audio
BUSINESS CREATION UNIT AUDIO
04.01 TYPENUMBER(S): AE2110, AE2150, AE2155
INFORMATION : The Tuning Knob is now available with codenumber 9965 000 10427.
REMARKS :
04.02 TYPENUMBER(S): AX1000, AX1001
INFORMATION : Correction to Service Manual, Mechanical partslist
The codenumbers for below spareparts are wrong and should read:
402 3140 117 50250 Button-Set-Play/Stop
403 3140 117 60260 Button-Set-Prev/Next
407 3140 114 35770 Slider-Resume
408 3140 114 36180 Brake
409 3103 301 06500 Spring-Slider-Open 2
411 3140 114 35780 Slider-Open
412 3140 114 35800 Adapter-Button-Set-Play/Stop
413 3140 114 35810 Adapter-Button-Set-Prev/Next
414 3103 309 05320 CD-Drive DA23LNPH
REMARKS :
04.03 TYPENUMBER(S): AX1000, AX1001
INFORMATION : Additional information to Service Newsletter SNL2001.03.01:
AX1000 and AX1001 are produced with different CD-drives DA23LPH
and DA23LNPH.DA23LPH is no longer available as service
sparepart and has been standardized to the DA23LNPH 3103 309 05320.
To replace DA23LPH by DA23LNPH, the Microprocessor IC 7400 has
to be replaced too.
7400 3140 110 50980 (matches with DA23LPH) or
7400 3140 110 51120 (matches with DA23LNPH)
REMARKS : Above infor mation can also be found in Service Manual
3140 785 22550, page 5-2.
SERVICE NEWSLETTER
Page 2
04.04 TYPENUMBER(S): AZ1110, AZ1111, AZ1112, AZ1114, AZ1116, AZ1117, AZ1118,
AZ1119, AZ8084, AZ8085, AZ8086, AZ8087
INFORMATION : Correction to Service Manual:
There are some mistakes in the CD Service Test Program.
• To enter the Service Program, hold
PLAY & STOP
buttons
depressed while switching CD mode ON.
• Disc Motor test : press
MODE
button and the disc motor turns
clockwise.

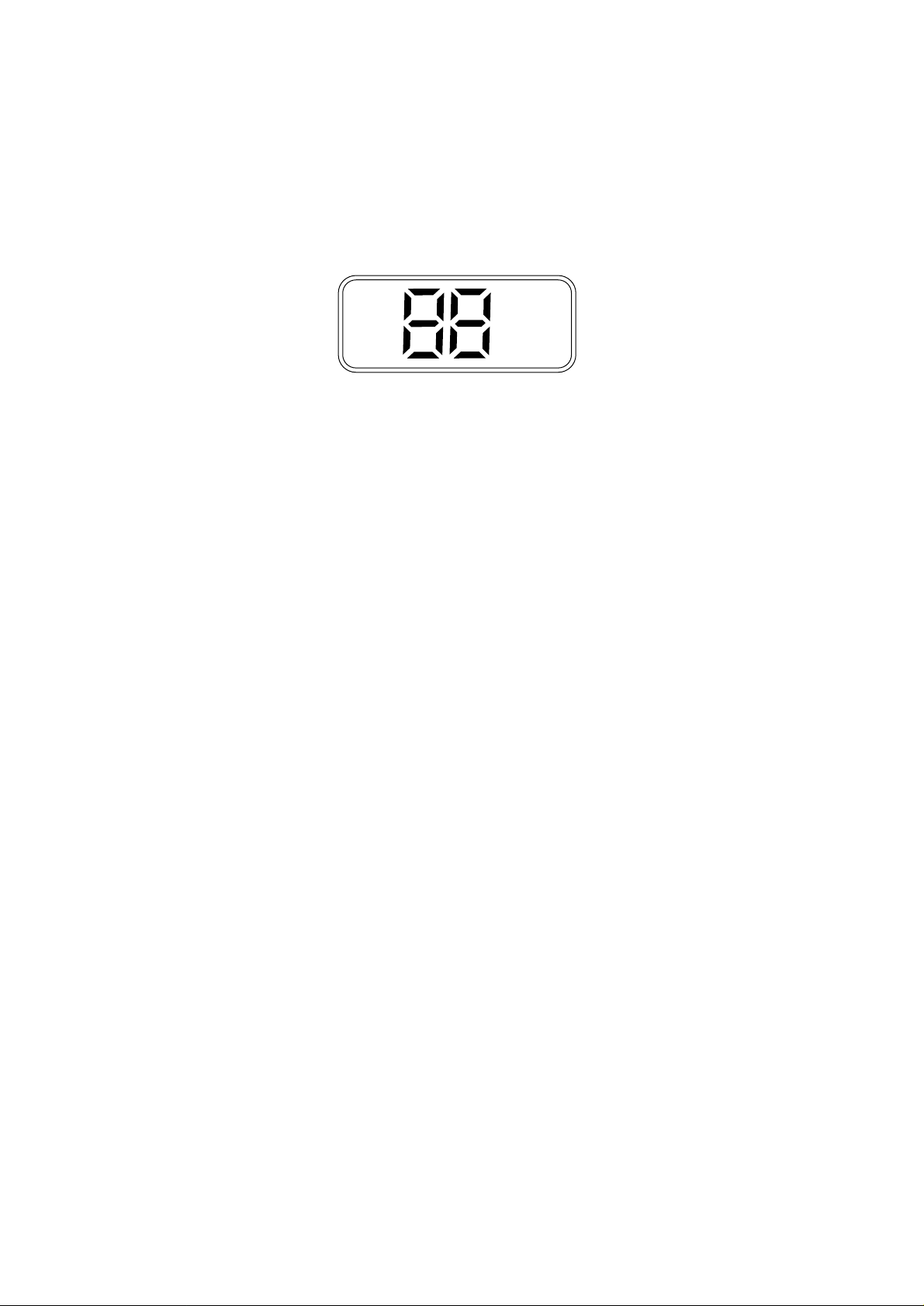

• Display Test : the correct display pattern is
REMARKS :
04.05 TYPENUMBER(S): AZ1550, AZ1560, AZ1564, AZ1565
INFORMATION : In course of production, the Control Board has been upgraded to
layout stage 4.
For repair infor mation of the new Control Board see Service
Information A01-552 (3140 785 22780)
REMARKS : The modification has been implemented in production from week
0013 onwards.
04.06 TYPENUMBER(S): AZ1560, AZ1564, AZ1565
INFORMATION : Correction to Service Manual, Electrical par tslist:
Following capacitors on the Feature Board should read:
2556 4822 126 14585 100nF 10% X7R 50V
2557 4822 126 14585 100nF 10% X7R 50V
REMARKS :
04.07 TYPENUMBER(S): AZ1570, AZ1574, AZ1575
INFORMATION : Correction to Service Manual:
The schematic and layout diagrams of the Control Board are wrong.
For corrected diagrams please refer to Ser vice Information A01-553
(3140 785 22790).
REMARKS :
REPEAT
ALL
SHUFFLE
PROGRAM
Service Newsletter 2001 – BCU Audio 2/5
Page 3
04.08 TYPENUMBER(S): AZ1570, AZ1574, AZ1575
SYMPTOM :
Sometimes the volume cannot be changed with the JOG volume
control.
CURE : When the voltage on pins 11 & 13 of connector 1504 reads 1,9 V
instead of 4,8V, the capacitors 2556 and 2557 on the Feature Board
are defective.
Exchange capacitors 2556 and 2557, 100nF 4822 126 13838.
REMARKS :
04.09 TYPENUMBER(S): FR968, FR975, FR976
SYMPTOM :
The set gives a burning smell.

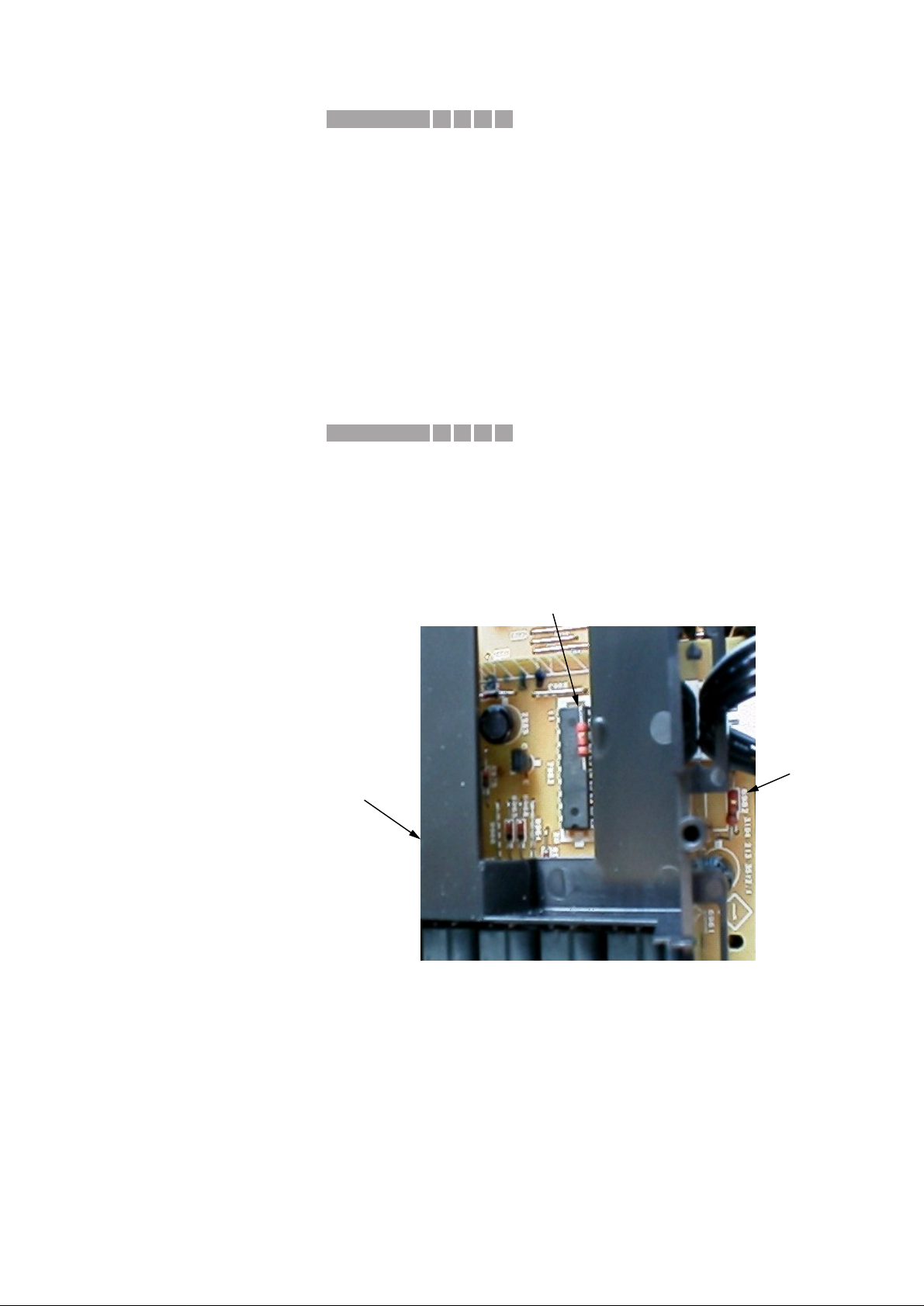

CURE : Safety resistors 3986 and 3998 on the S-VHS Video Selector Board
are mounted too close to the Tuner plastic holder frame.
In order to solve the problem, bend resistor 3986 approx. 40° towards
diode 6982 and bend resistor 3998 approx. 40° towards IC7962.
IMPORTANT: It is essential to check all sets brought in for repair
and to carry out above modification if required !!
REMARKS : The modification has been implemented in production from week
0131 onwards.
R3998
R3986
Tuner plastic
holder frame
F611IRIS CODE
X252IRIS CODE
Service Newsletter 2001 – BCU Audio 3/5
Page 4
04.10 TYPENUMBER(S): FW-C55, FW-C58, FW-C71, FW-C72, FW-C380, FW-M55, FW-V28,
FW-V55
SYMPTOM :
The set reacts on other Philips TV remote controls triggering
unwanted response.
CURE : The problem can be resolved by upgrading the Front Board
microprocessor software version.
The new microprocessors are available as follows:
pos. codenumber version typenumber(s)
–––––––––––––––––––––––––––––––––––––––––––––––––––––––
7401 9965 000 06155 11 FW-V28
7400 9965 000 10408 18 FW-C380
7400 9965 000 08007 18 FW-V55, FW-M55
7400 9965 000 10560 15 FW-C55, FW-C58, FW-C71, FW-C72
REMARKS : For solution of similar problems on other typenumbers see Ser vice
Newsletter SNL2001.01.30 resp.SNL2001.03.14.
04.11 TYPENUMBER(S): FW-C550, FW-C780
SYMPTOM :
1. Inter mittent headphone noise.
2. Noise is audible in the AUX or RADIO channel from Volume Level 1
to Maximum.The noise level varies with the Display illumination
(option NORMAL, MODE 1, MODE 2, MODE 3). An oscilloscope
connected to the speakers shows a frequency of 187Hz.
CURE : The problem is caused by glitches on the LPC line and can be
resolved by the following modification:
• Change 2570 from 47µF to 220µF (4822 124 12052) on the Front
Display Board.
• Change 3279 from 10kΩ to 47kΩ (4822 116 83884) on the L/R
Amplifier & Supply Board (MMPWR 100W Module).
REMARKS :
04.12 TYPENUMBER(S): FW-C83, FW-C85, FW-C90, FW-P88
INFORMATION : 1) To improve Reverse Record on tape 2, resistor 3379 on the Front
Board has been changed to 33Ω 5% 0,5W (4822 116 52191).
2) To improve CD sound distortion (for FW-C85/21/21M/30/37 and
FW-P88/37 only), the following resistors have been changed on the
AF8 Board:
• 3513 changed to 10kΩ 1% 0,1W (4822 117 10833)
• 3514 changed to 10kΩ 1% 0,1W (4822 117 10833)
• 3515 changed to 4,7kΩ 5% 0,1W (4822 051 20472)
• 3516 changed to 4,7kΩ 5% 0,1W (4822 051 20472)
REMARKS :
0452IRIS CODE
X511IRIS CODE
Service Newsletter 2001 – BCU Audio 4/5
Page 5
04.13 TYPENUMBER(S): MZ7/22, MZ7/34
INFORMATION : Correction to the Service Manual, schematic diagram and partslist
Front Board.The codenumber of the RDS demodulator IC 7403
should read:
7403 9352 679 67118 SAA6579T/V1/M4
REMARKS :
04.14 TYPENUMBER(S): SA100, SA101, SA107, SA125, SA126
INFORMATION : If the CD-ROM with the RealJukebox software has been lost or if
customers are using the operating system Windows ME, they can
download the most recent version of the free RealJukebox 2 Basic
software from RealNetworks at the following URL:
http://proforma.real.com/real/jukebox/jukebox.html?src=010709realho
me_1,010320rjbchoice_1&dc=816815814
REMARKS : The filesize of the full suite is about 8.7MB and the download will take
about 40 minutes with a 56k modem.
Service Newsletter 2001 – BCU Audio 5/5
