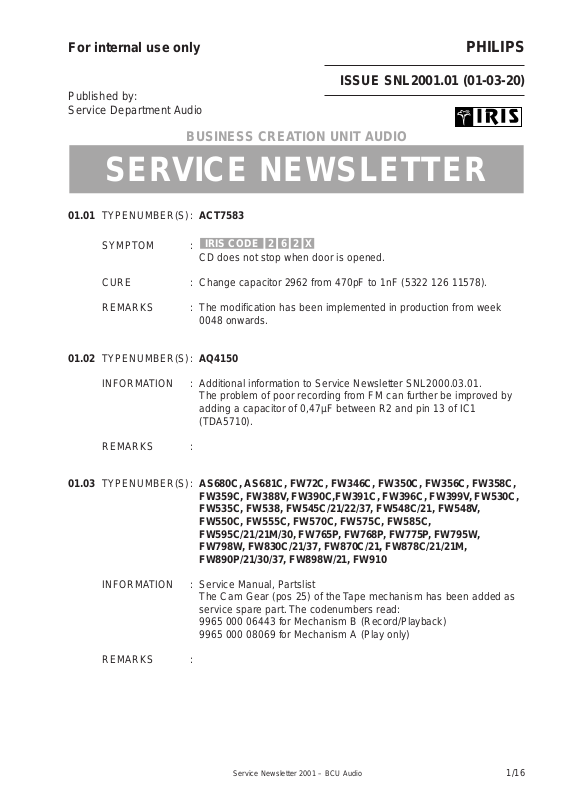

Philips SNL2001-01 Datasheet

For internal use only PHILIPS

ISSUE SNL2001.01 (01-03-20)

Published by:
Service Depar tment Audio

BUSINESS CREATION UNIT AUDIO

01.01 TYPENUMBER(S): ACT7583

SYMPTOM :

CD does not stop when door is opened.
CURE : Change capacitor 2962 from 470pF to 1nF (5322 126 11578).
REMARKS : The modification has been implemented in production from week

0048 onwards.

01.02 TYPENUMBER(S): AQ4150
INFORMATION : Additional information to Service Newsletter SNL2000.03.01.

The problem of poor recording from FM can further be improved by
adding a capacitor of 0,47µF between R2 and pin 13 of IC1
(TDA5710).

REMARKS :

01.03 TYPENUMBER(S): AS680C, AS681C, FW72C, FW346C, FW350C, FW356C, FW358C,

FW359C, FW388V, FW390C,FW391C, FW396C, FW399V, FW530C,
FW535C, FW538, FW545C/21/22/37, FW548C/21, FW548V,
FW550C, FW555C, FW570C, FW575C, FW585C,
FW595C/21/21M/30, FW765P, FW768P, FW775P, FW795W,
FW798W, FW830C/21/37, FW870C/21, FW878C/21/21M,
FW890P/21/30/37, FW898W/21, FW910

INFORMATION : Service Manual, Partslist

The Cam Gear (pos 25) of the Tape mechanism has been added as
service spare par t. The codenumbers read:
9965 000 06443 for Mechanism B (Record/Playback)
9965 000 08069 for Mechanism A (Play only)

REMARKS :

X262IRIS CODE

SERVICE NEWSLETTER

Service Newsletter 2001 – BCU Audio 1/16

01.04 TYPENUMBER(S): AZ1030
INFORMATION : Correction to Service Information A00-558 (3140 785 22460):

Actually, IC LA6531 (4822 209 32636) is used instead of LA6530.
LA6531 is functionally identical to LA6530.

REMARKS :

01.05 TYPENUMBER(S): AZ1040, AZ1045
INFORMATION : Correction to the Service Manual, Mechanical Partslist:

The CD Door of AZ1045 is different to AZ1040.
The correct code numbers are:
3140 114 32950 CD Door (AZ1040)
3140 114 32930 CD Door (AZ1045)

REMARKS :

01.06 TYPENUMBER(S): AZ1550, AZ1560, AZ1564, AZ1565
INFORMATION : It might happen that sets are returned with broken Front Cabinet.The

broken area is around the holder for Cassette Door Spring.From
production week 0108 onwards the part has been strengthened by
increasing the wall thickness of the holder from 1mm to 2.5mm.The
improved Front Cabinet assembly can be ordered at LO-PCS with
following code numbers:
AZ1550 : item 414 3140 117 58840
AZ1560 : item 417 3140 117 58580
AZ1564 : item 417 3140 117 58580
AZ1565 : item 417 3140 117 58580

REMARKS : The modified parts are used in production with production code

KT010108085xxx from week 0108 onwards.

01.07 TYPENUMBER(S): AZ1602, AZ1605

SYMPTOM :

Hiss is audible on recordings.
CURE : Change resistor 3787 from 33Ω to 100Ω (4822 116 52175).
REMARKS : The modification has been implemented in production from week

0102 onwards.

2451IRIS CODE

Service Newsletter 2001 – BCU Audio 2/16

01.08 TYPENUMBER(S): AZ2020, AZ2025
INFORMATION : It might happen that sets are returned with broken CD Door (item

441) and Top Cabinet (item 503).The broken area is around the
holder for CD Door Spring. From production week 0106 onwards the
parts have been strengthened by adding ribs and increasing the wall
thickness of the holder. The improved par ts can be ordered at LO­PCS with following code numbers.
AZ2020 : item 441 3140 117 59050 CD Door Assembly
AZ2020 : item 503 3140 117 59150 Top Cabinet Assembly

AZ2025 : item 441 3140 117 59130 CD Door Assembly
AZ2025 : item 503 3140 117 59150 Top Cabinet Assembly

REMARKS : The modified parts are used in production with production code

KT010106020xxx from week 0106 onwards.

01.09 TYPENUMBER(S): CDR570, CDR770, CDR775, CDR776, CDR785, CDR786, CDR930,

CDR950, CDR951, FW-R7, FW-R8

INFORMATION : Summary of hardware and software modifications to the CDR

Main Board.

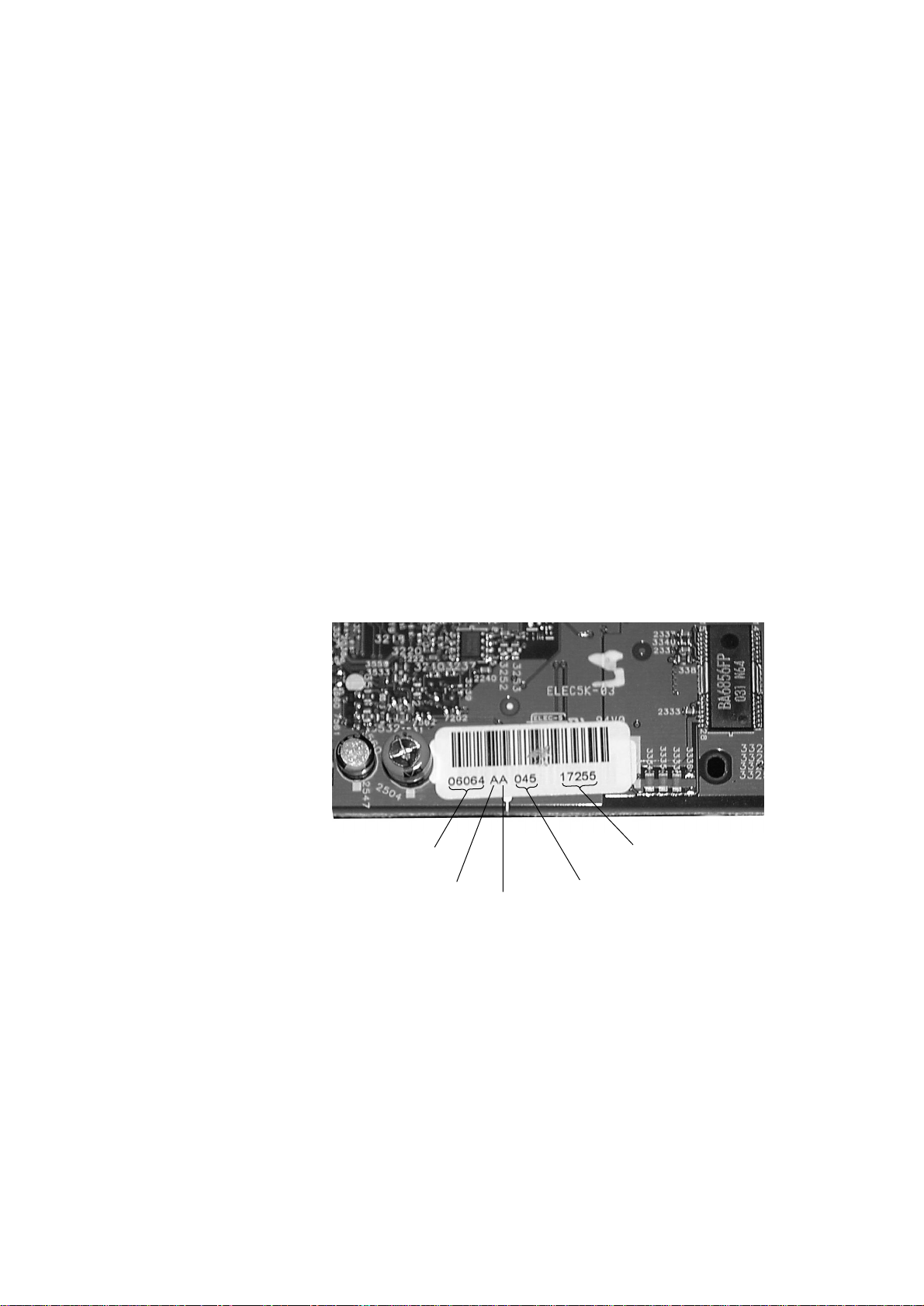

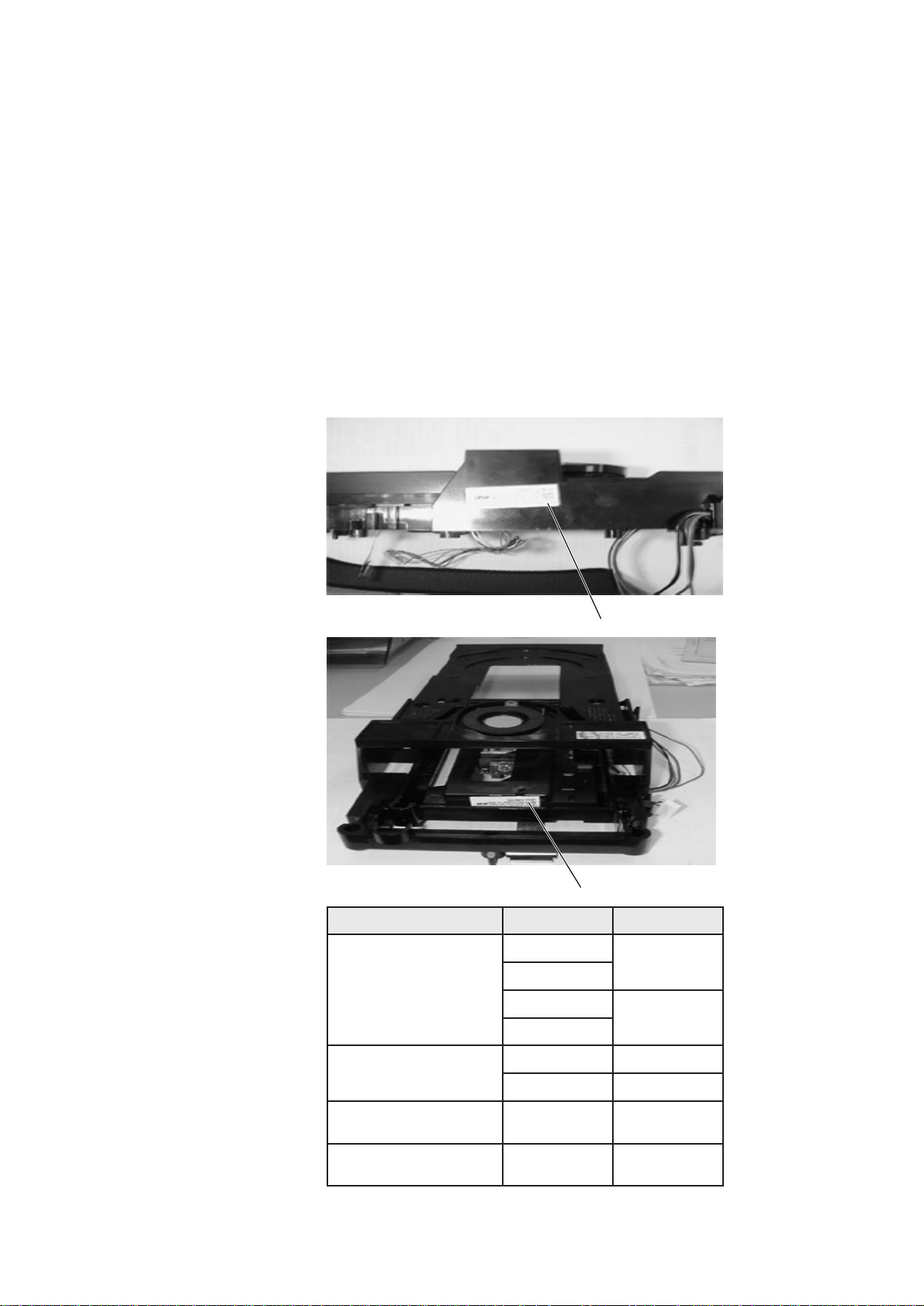

In the following tables there is given reference to “main board labelled
with change code”.This label can be found on top at the front side of
the main board.

When “AA” is printed (as shown in picture above) this means that the
main board has once been upgraded before assembling in the set.
In this case the status has to be determined by reading out the
software versions via service testprogram - the procedure is
described in the service manual of the relevant set - or can be found
on a sticker on Flash ROM 7208.
Note: A clear determination of the status can best be given by

reading out the software versions!

“Y” means that software has to be/can be upgraded

or mentioned hardware change has to be done.
Empty fields mean that changes are already implemented in boards
with corresponding label.

last 5 digits of
code number

change code

production line

production week

serial number

Service Newsletter 2001 – BCU Audio 3/16

software version

1.04 &

91.48

1.34 &

91.80

1.43 &

91.91

1.47 &

91.96

1.51 &

92.01

1.55 &

92.11

1.56 &

92.11

Y SNL 2000.07.08

<FGHI JKLMNOPT

Y Y Y Y Y Y Y Y Y Y Y SNL 2000.07.08

Y

SNL 2000.03.09

Y Y Y Y Y Y Y Y SNL 2000.07.13

YYYYYYYYYYY

SNL 2000.07.10

see also

SNL 2000.07.09
Y Y Y Y Y Y Y Y Y SNL 2000.04.02
Y Y Y Y Y Y Y Y SNL 2000.07.12

3104 128 0586x

24sept ’99 03apr ’00

1.54&

92.08

CDR775

28sept ’00NAM-File

mainboard labelled with

update SW to 1.56 & 92.11 possible?

--> adjust via COMPAIR 1.6

change 2322 from 3.3nF to 1.5nF

Print layout A2 or A3 to be replaced by

a new main board 3104 128 05860

1.23 &

91.63

change 2335 from 10nF to 47nF &

3337 from 68kOhm to 56kOhm

add resistor 3535, 27Ohm

replace 2725, 2726, 2727 by

100n 50V

change 3411 and 3439 from 4.7Ohm

to coil 50µH

TYPENUMBER

Already published

with

software version

1.04 &

91.48

1.34 &

91.80

1.43 &

91.91

1.47 &

91.96

1.51 &

92.01

1.56 &

92.11

Y SNL 2000.07.08

<FGH I JKLMNOS

YYYYYYYYYY SNL 2000.07.08

Y

SNL 2000.03.09

Y Y Y Y Y Y Y SNL 2000.07.13

YYYYYYYYYY

SNL 2000.07.10

see also

SNL 2000.07.09
YYYYYYYY SNL 2000.04.02
Y Y Y Y Y Y Y SNL 2000.07.12

28sept ’00

3104 128 0585x

24sept ’99 03apr ’00

1.54&

92.08

NAM-File

mainboard labelled with

update SW to 1.56 & 92.11 possible?

--> adjust via COMPAIR 1.6

CDR770

Print layout A2 or A3 to be replaced by

a new main board 3104 128 05850

1.23 &

91.63

change 2335 from 10nF to 47nF &

3337 from 68kOhm to 56kOhm

add resistor 3535, 27Ohm

replace 2725, 2726, 2727 by

100n 50V

to coil 50µH

TYPENUMBER

software version

1.04 &

91.48

1.34 &

91.80

1.43 &

91.91

1.47 &

91.96

1.51 &

92.01

1.56 &

92.11

Y SNL 2000.07.08

<FGH I J KLMNOS

Y Y Y Y Y Y Y Y Y Y SNL 2000.07.08

Y

SNL 2000.03.09

Y Y Y Y Y Y Y SNL 2000.07.13

YYYYYYYYYY

SNL 2000.07.10

see also

SNL 2000.07.09
Y Y Y Y Y Y Y Y SNL 2000.04.02
Y Y Y Y Y Y Y SNL 2000.07.12

28sept ’00

3104 128 0584x

24sept ’99 03apr ’00

1.54&

92.08

NAM-File

mainboard labelled with

update SW to 1.56 & 92.11 possible?

--> adjust via COMPAIR 1.6

CDR570, CDR930

Print layout A2 or A3 to be replaced by

a new main board 3104 128 05840

1.23 &

91.63

change 2335 from 10nF to 47nF &

3337 from 68kOhm to 56kOhm

add resistor 3535, 27Ohm

replace 2725, 2726, 2727 by

100n 50V

change 3411 and 3439 from 4.7Ohm to

coil 50µH

TYPENUMBER

Service Newsletter 2001 – BCU Audio 4/16

change 2322 from 3.3nF to 1.5nF

change 3411 and 3439 from 4.7Ohm

change 2322 from 3.3nF to 1.5nF

Solved phenomena with the following software versions:

Version 1.23

• improvement and shortening startup procedure

• CD-sync start procedure improved
Version 1.34 (0.23 for CDR785 and Mini sets)

• further improving and shor tening star tup procedure
Version 1.43 (0.24 for CDR785 and Mini sets)

• does not start : display shows insert disc

• does not start : display shows OPC error

• does not start finalising / unfinalising

• extra track increments during analog and digital recording

• does not start erase

• does not start analog recording

• bad audio

• player in standby during recording or finalising
Version 1.47 (0.25 for CDR785 and Mini sets)

• does not start: set in hangup

• in hangup after finalising / unfinalising

software version

1.23 &

91.63

1.34 &

91.80

1.43 &

91.91

1.47 &

91.96

1.56 &

92.11

ABCDEFGHK

Y Y Y Y Y Y Y Y SNL 2000.07.08

Y

SNL 2000.03.09

Y Y Y Y Y SNL 2000.07.13

YYYYYYY

SNL 2000.07.10

see also

SNL 2000.07.09
Y Y Y Y Y SNL 2000.04.02
Y Y Y Y Y SNL 2000.07.12

1.54&

92.09
28sept ’00

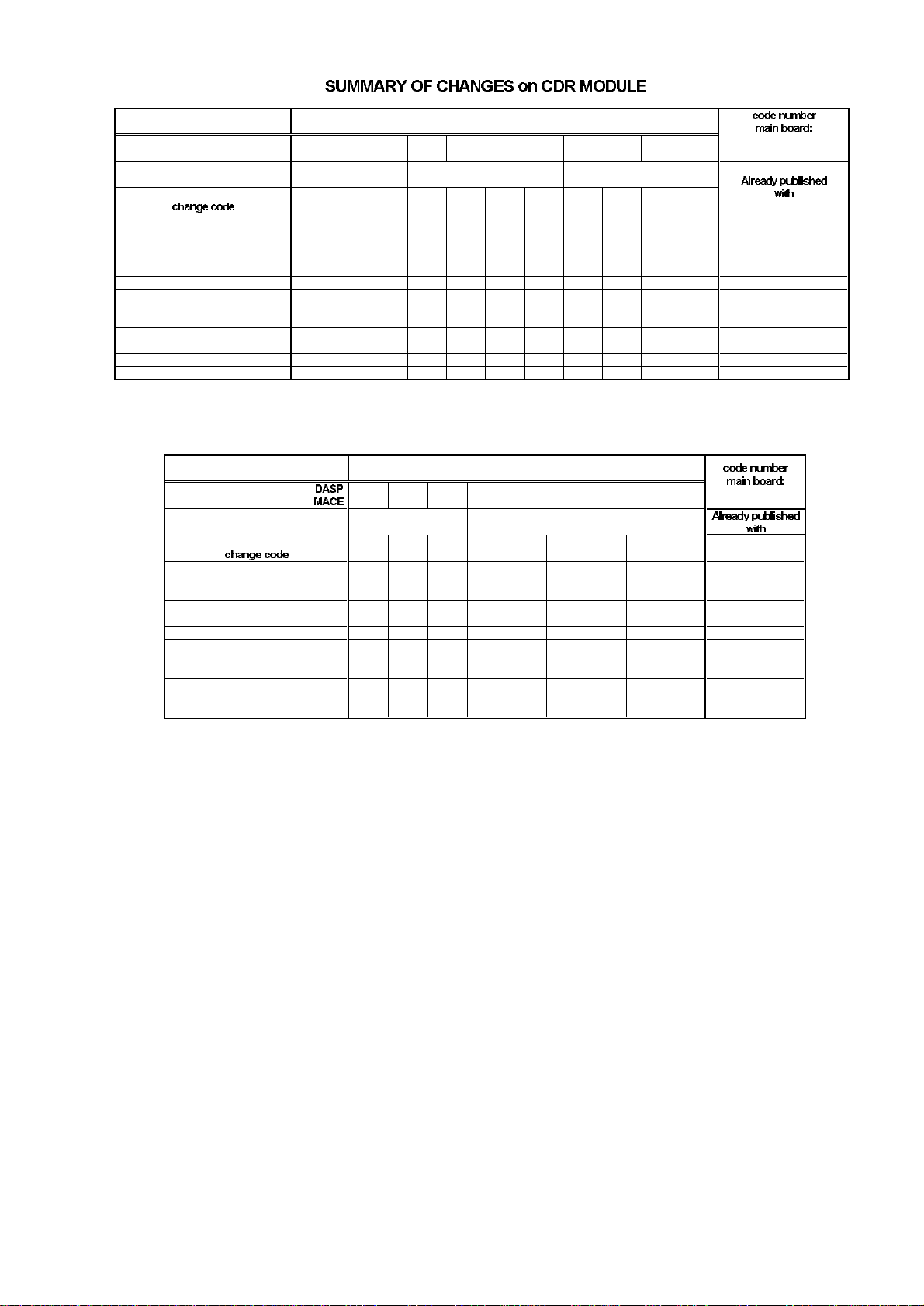

SUMMARY OF CHANGES on CDR MODULE

3104 128 0587x

24sept ’00

CDR950, CDR951

1.51 &

92.01

03apr ’00NAM-File

mainboard labelled with

update SW to 1.56 & 92.11 possible?

--> adjust via COMPAIR 1.6

change 2335 from 10nF to 47nF &

3337 from 68kOhm to 56kOhm

add resistor 3535, 27Ohm

replace 2725, 2726, 2727 by

100n 50V

change 3411 and 3439 from 4.7Ohm to

coil 50µH

TYPENUMBER

TYPENUMBER

software version

0.24 &

91.91

0.25 &

91.96

0.30 &

92.11

0.31 &

92.11

NAM-File

mainboard labelled with

<C D E F G H I J K L M

update SW to 0.31 & 92.11 possible?

--> adjust via COMPAIR 1.6

Y Y Y Y Y Y Y Y Y Y Newsletter 2000.07.08

change 2335 from 10nF to 47nF &

3337 from 68kOhm to 56kOhm

Y Newsletter 2000.03.09

add resistor 3535, 27Ohm Y Y Y Y Y Newsletter 2000.08.09

replace 2725, 2726, 2727 by

100n 50V

YYYYYYYY

Newsletter 2000.07.10

see also

Newsletter 2000.07.09

change 3411 and 3439 from 4.7Ohm

to coil 50µH

Y Y Y Y Y Y Newsletter 2000.04.02

add item 2721, 6.8kOhm Y Y Y Y Y Y Y Y

change 2322 from 3.3nF to 1.5nF Y Y Y Y Y Newsletter 2000.07.12

24sept '99 03apr '00 28sept '00

CDR785, CDR786, FW-R7, FW-R8

CDR Mini 3104 128 0659x

CDR78x 3104 128 0606x

0.23 &

91.80

0.26 &

92.01

0.29&

92.08

DASP

MACE

Service Newsletter 2001 – BCU Audio 5/16

change 2322 from 3.3nF to 1.5nF

Version 1.51 (0.26 for CDR785 and Mini sets)

• does not recognize the Philips HR100 CDR disc
Version 1.54 (0.29 for CDR785 and Mini sets)

• does not recognize Philips Megalife Audio 100 CDR disc (produced
by MITSUI) and other brand CDR discs

Version 1.56 (0.31 for CDR785 and Mini sets)

• adaption for 2Mbit flash EPROM AM29LV160BB (used to cover
supply shortfall of original 1MBit type)

• communication with internal CD player improved (only valid for
double deck sets) → uniform software for all applications

REMARKS :

01.10 TYPENUMBER(S): CDR570, CDR770, CDR775, CDR930, CDR950

SYMPTOM :

Not reading/recording of Non-Philips branded CDR-discs respectively
Philips Megalife disc produced by Mitsui.
(for details concerning the MITSUI-discs see information in
SNL2000.07.14 respectively point 01.14 in this Service Newsletter)

CURE : The problem can be solved by applying the modifications as

mentioned in SNL2000.07.08 and with an update to the latest
software versions.The hardware modification which has to be
executed depends on the original SW version. Details are also given
in the

Summary of hardware and software modifications to the CDR

Main Board

, published with point 01.09 in this Service Newsletter.

• The Flash ROM software version of item 7208 (MACE) on the top
side (in socket) has been changed into version 92.11. Programmed
Flash ROM with SW-version 92.11 or higher can be ordered with
codenumber 3104 123 94850.

• The Flash ROM software version of item 7703 (DASP) on the top
side has been changed into version 1.56. Programmed Flash ROM
with SW-version 1.56 or higher can be ordered with codenumber
3104 123 85760.

REMARKS : After the update of both Flash ROMs, the module has to be re-

aligned with the improved COMPAIR-tool (release 1.6 or higher).
The CDR-alignment includes now beta adjustment via Test Disc 99
(TD99). After this modification and alignment all Digital Audio CDR­discs can be applied (no longer restricted to only Philips brand).Test
Disc 99 is available with codenumber 7104 099 93132.

165CIRIS CODE

Service Newsletter 2001 – BCU Audio 6/16

01.11 TYPENUMBER(S): CDR570, CDR770, CDR775, CDR930, CDR950, CDR951

SYMPTOM :

After switching on the set, the standby-LED will start blinking and the

display does not light up.
CURE : Delete item 2546 (Elcap 47µF 6,3V) on the mainboard.
REMARKS : The modification has been implemented in production from week

0048 onwards.

01.12 TYPENUMBER(S): CDR570, CDR770, CDR930
INFORMATION : When customers complain that the Remote Control does not work

this does not necessarily mean that it is defective.More often the
customer has simply selected the wrong source on the RC.
Especially sets with single CDR loader will not react at all when “CD”
has been pressed on the RC.
Therefore the customer has to be advised as follows:

1) Select the right source first → Press <CDR> button and tr y again.

2) Point the Remote Control directly to the CD recorder.

3) Check the batteries and replace if necessary.

REMARKS :

01.13 TYPENUMBER(S): CDR770, CDR771, CDR775
INFORMATION : Item 251-252 (foot) with codenumber 4822 462 42159 has been

changed from “MATT SILVER”into “GLOSSY SILVER”.
The new codenumber for the GLOSSY SILVER foot reads
4822 462 11174.

REMARKS : The modification has been implemented in production from week

0047 onwards.

01.14 TYPENUMBER(S): CDR785, CDR786, FW-R7, FW-R8

SYMPTOM :

Not reading/recording of Non-Philips branded CDR-discs respectively
Philips Megalife disc produced by Mitsui.

All returned discs, causing complaints on the CDR sets of the 3rd
generation have been investigated.This results in the following
conclusion:

The Philips Megalife disc has been produced by Ricoh and Mitsui.
Most of the problems have been found with discs produced by Mitsui.

How to recognize the production centre?
Ricoh : Made in USA printed on the jewel box.
Mitsui : Made in Europe printed on the jewel box.

165CIRIS CODE

A112IRIS CODE

Service Newsletter 2001 – BCU Audio 7/16

Please note: Discs packed in a carton box(5pcs/car ton) are marked
with made in USA.

Ricoh : Marked Audio HR100
Mitsui : Marked Audio 100
Ricoh : Serial number on inner circle consists of 4 character + 12

digits (e.g. ALXH 061099022143)

Mitsui : Serial number on inner circle consists of 12 digits

(e.g. 9287 2217 4953)

Note: It is not advised to apply the Mitsui disc in 3rd generation

CDR recorders up to software version 0.26.

CURE : This problem can be solved by applying hardware modifications and

with an update to the latest software version.The hardware
modification which has to be executed depends on the or iginal SW
version. Details are given in the

Summary of hardware and software

modifications to the CDR Main Board

, published with point 01.09 in

this Service Newsletter.

• The Flash ROM software version of item 7208 (MACE) on the top
side (in socket) has been changed into version 92.11. Programmed
Flash ROM with SW-version 92.11 or higher can be ordered with
codenumber 3104 123 94850.

• The Flash ROM software version of item 7703 (DASP) on the top
side has been changed into version 0.31. Programmed Flash ROM
with SW-version 0.31 or higher can be ordered with codenumber
3104 123 85810.

REMARKS : After the update of both Flash ROMs, the module has to be re-

aligned with the improved COMPAIR-tool (release 1.6 or higher).
The CDR-alignment includes now beta adjustment via Test Disc 99
(TD99). After this modification and alignment all Digital Audio CDR­discs can be applied (no longer restricted to Philips brand only).
Test Disc 99 is available with codenumber 7104 099 93132.

01.15 TYPENUMBER(S): EXP101, EXP103

SYMPTOM :

Abnormal Noise is audible during playback.
CURE : Replace diode 6251 by a jumper (4822 051 20008).
REMARKS : The modification has been implemented in production from week

0049 onwards.

01.16 TYPENUMBER(S): FW-C1, FW-C99, FW-C100
INFORMATION : To solve CD lens knocking problem adapt the following:

a) change 2342 from 100µF to 47µF 25V (4822 124 40433)
b) replace 5501 2,2µH by a bare wire

REMARKS :

2451IRIS CODE

Service Newsletter 2001 – BCU Audio 8/16

01.17 TYPENUMBER(S): FW-C1/21, FW-C10/21, FW-C100/21/21M/19

SYMPTOM :

The set functions normally with the following observation on the
Combi Board:

- Elcap 2225 4700µF / 16V becomes bloated.

- PC Board area below resistors 3246 and 3248 becomes blacken
with overheating sign.

CURE : The voltage across Elcap 2225 is close/higher than its rated voltage

and resistors 3246 and 3248 are overstressed.
The problem is resolved by the following modification:

1. Replace Elcap 2225 with 4700µF / 25V (4822 124 12012).

2. Replace resistors 3246 and 3248 by 3 pieces of 330Ω 1/6W

(4822 116 52219) each as follows:

• replace 3246 and 3248 by 330Ω 1/6W

• solder 4 resistors 330Ω 1/6W across 3246 and 3248 on the
copper side as shown.

REMARKS :

01.18 TYPENUMBER(S): FW-C3/37, FW-C30/37, FW-C35/37, FW-C38/37
INFORMATION : To reduce failures of Power Amplifier IC 7391 (AN7125):

change capacitor 2355 from 2,2nF to 560pF 50V (5322 116 80853).

REMARKS : The modification has been implemented in production from week

0045 onwards.

BC547B

7245

+C

Q

BC337-25

7248

32483246

3214

2225

4m7

4R7

1K

3252

9224

7247

3249

100R

BC337-25

4R7

3242

1206

100R

3247

AP

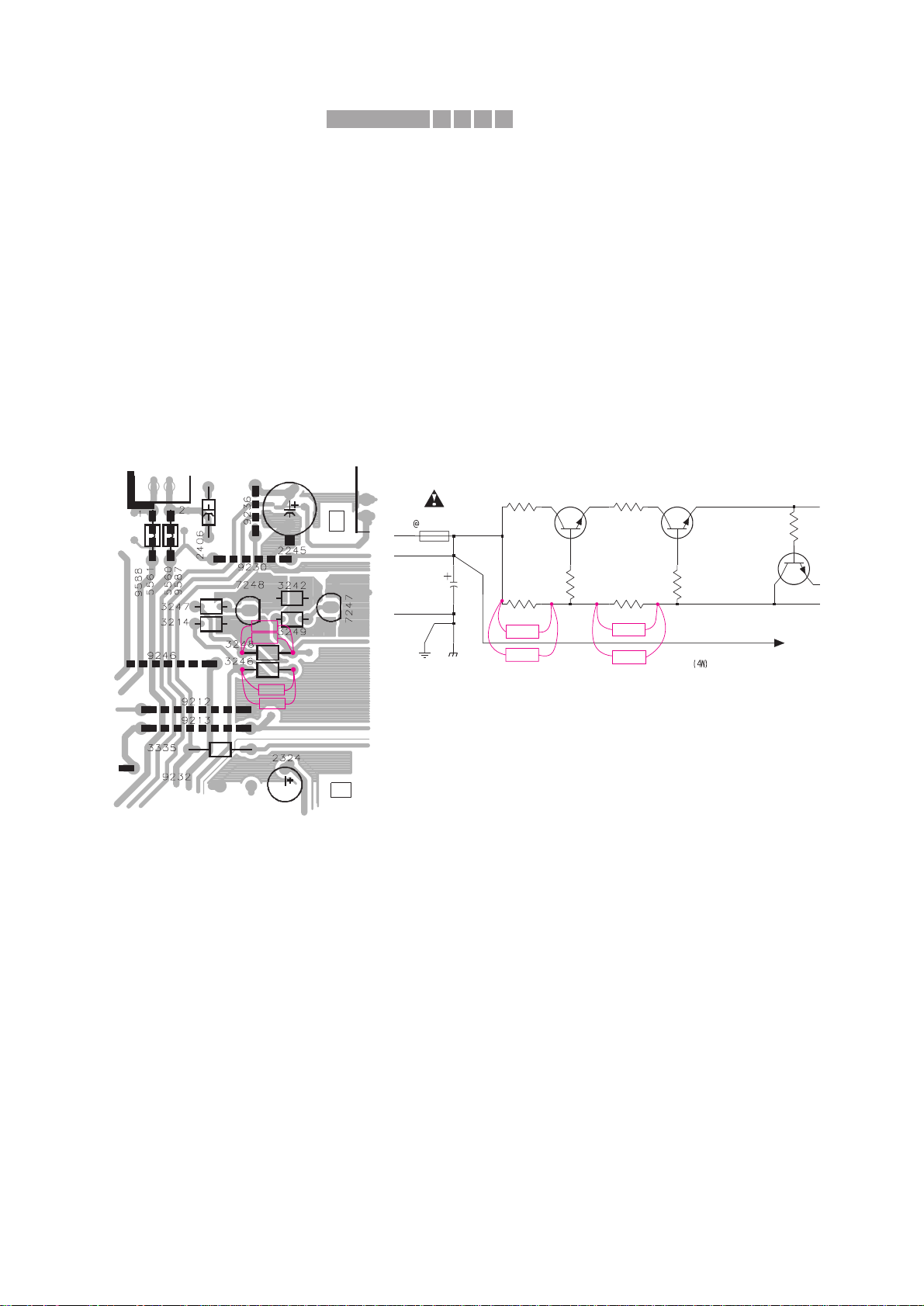

Portion of Combi Board,
componentside view

Portion of Power Supply Circuit

330R
330R

330R
330R

330R330R

330R

330R

330R

330R

/ 25V

X611IRIS CODE

Service Newsletter 2001 – BCU Audio 9/16

01.19 TYPENUMBER(S): FW-C80, FW-C83, FW-C85, FW-P88
INFORMATION : Additional service par ts

The loudspeaker cord (3 meter length) is now available with service
code 4399 294 04131.

REMARKS :

01.20 TYPENUMBER(S): FW-C80, FW-C83, FW-C85, FW-P88, FW-C870, FW-P880
INFORMATION : wOOx Demo mode

When a wOOx Demo Disc is placed on the tray - CD pos.1, the
wOOx Demo mode is activated as soon as the TOC is read. In this
mode the tray is locked and the Open/Close button cannot be
activated anymore.

To exit the wOOx Demo mode, do the following:

1) Press the Standby button

2) Hold the wOOx button depressed until the CD tray opens.

REMARKS : On tray - CD pos.2 and 3 the disc will play normally without going into

locked mode.

01.21 TYPENUMBER(S): FW-C100/37
INFORMATION : On commercial request the loadspeaker box has been changed to

FWB100W/17.
The new code number (pos.350) reads 3139 118 78690.
The adapted Instruction for Use (pos.387) is available with code
number 3139 115 20880.

REMARKS :

01.22 TYPENUMBER(S): FW-C100, FW-C200, FW-C250, FW-C290
INFORMATION : For ESD improvement SMD jumper 4549 (4822 051 20008) has been

added on Front board.

REMARKS : The modification has been implemented in production from week

0042 onwards.

01.23 TYPENUMBER(S): FW-C150/37
INFORMATION : Correction to the Service Manual

Combi Board:
Delete 6266, 6245 and 6263-6266

REMARKS :

Service Newsletter 2001 – BCU Audio 10/16

01.24 TYPENUMBER(S): FW-C200
INFORMATION : Correction to the Service Manual

Front Board

Delete: 3465, 3528-3530, 3614-3615, 6410-6411, 6428 and 7403.
Add: 4413 4822 051 20008 Jumper 0805
Change: 3417 to4822 117 11454 820Ω 1% 0,1W

3419 to 4822 116 52231 820Ω 5% 0,5W
3433 to 4822 117 11454 820Ω 1% 0,1W
3448 to 4822 117 11454 820Ω 1% 0,1W
3449 to 4822 116 52231 820Ω 5% 0,5W
3451 to 4822 116 52231 820Ω 5% 0,5W
3452 to 4822 117 11454 820Ω 1% 0,1W
3475 to 4822 116 52231 820Ω 5% 0,5W

Combi Board:

Delete 4591

REMARKS :

01.25 TYPENUMBER(S): FW-C250
INFORMATION : Correction to the Service Manual

Front Board:
Delete: 3465, 3528-3530, 3614-3615, 6410-6411, 6428 and 7403

Add: 4413 4822 051 20008 Jumper 0805

REMARKS :

01.26 TYPENUMBER(S): FW-C290
INFORMATION : Correction to the Service Manual

The service code for pos. 251 Rear Cabinet reads
3139 114 72860 instead of 3139 114 73000.

REMARKS :

01.27 TYPENUMBER(S): FW-C290/21
INFORMATION : To reduce noise during Karaoke mode (generated by surround

passive components) change resistors 3634 and 3635 to 8,2kΩ 0,1W
(4822 051 20822).

REMARKS : The modification has been implemented in production from week

0048 onwards.

Service Newsletter 2001 – BCU Audio 11/16

01.28 TYPENUMBER(S): FW-D1, FW-D5
INFORMATION : During the introduction of ASD-1 DVD Module there is a problem with

vibration noise during DVD play. This vibration noise is solved by the
addition of 2 screws D3 x 12 to tighten the ASD-1 DVD Module to the
Bottom plate (pos 236).

These additional screws have an impact on the dismantling steps

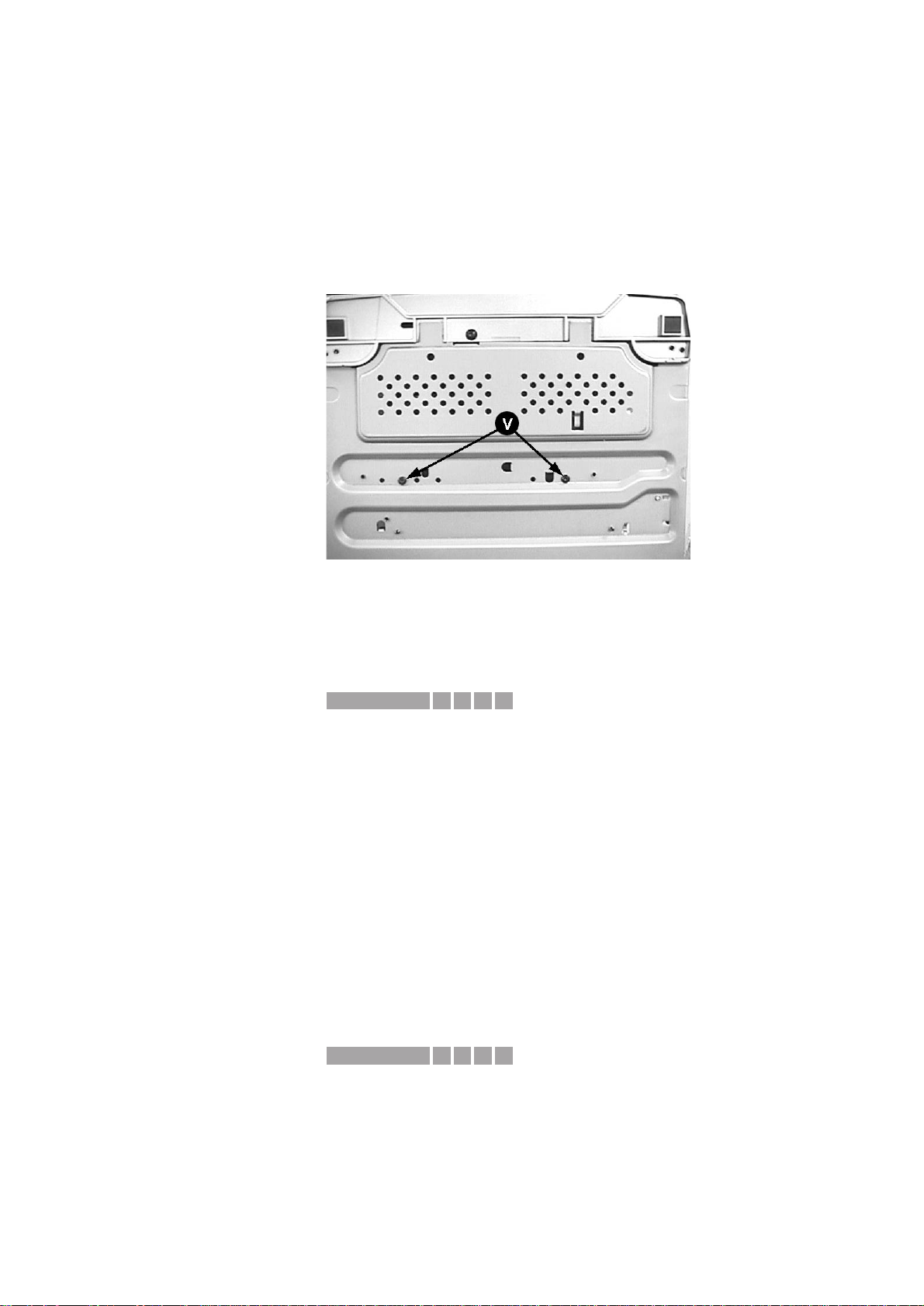

given in the Service Manual.The picture below shows the screw
location on the bottom plate (see screws V).
Take care when dismantling the DVD/DAC Module.

REMARKS :

01.29 TYPENUMBER(S): FW-D5/22

SYMPTOM :

Poor picture quality when the set is connected to the TV with a
standard SCART cable.

CURE : In the TV-set pin 19 and 20 are connected via an internal loop.

Via the standard SCART cable also pin 19 and pin 20 of the AV
Board are short-circuited. As pin 20 is grounded on the AV Board this
results in poor picture quality on the TV-set.

Interrupt the ground connection for SCART socket pin 20 on the AV
Board by cutting the copper track.

REMARKS :

01.30 TYPENUMBER(S): FW-V39

SYMPTOM :

The set is responding to some TV remote control codes

CURE : Some TV RC codes will activate VCD and other functions.

This problem is resolved by replacing the microprocessor IC 7401 on
the Front board by one with software version 17.
The new IC is available with othering code 9965 000 06154.

REMARKS :

X511IRIS CODE

X331IRIS CODE

Service Newsletter 2001 – BCU Audio 12/16

01.31 TYPENUMBER(S): FW-V39

SYMPTOM :

CD, Tape and Tuner not working, transistor 7233 (BD242BFP) blown.

CURE : Due to high inrush current at excessive mains supply values

transistor 7233 becomes defective (C-E shor ted). This causes a
sudden increase of supply voltages +PA, +LED, +12A and +12M
(jumping from +12 volts to +30 volts) killing other components along
the way.

SOLUTION: Reduce value of Elcap 2245 from 1000µF 16V to 220µF
16V (4822 124 40196).

REMARKS : Preventive action: In countries with high mains fluctuation it is

recommended to exchange 2245 on every set brought in for repair.

01.32 TYPENUMBER(S): MC-50, MC-70

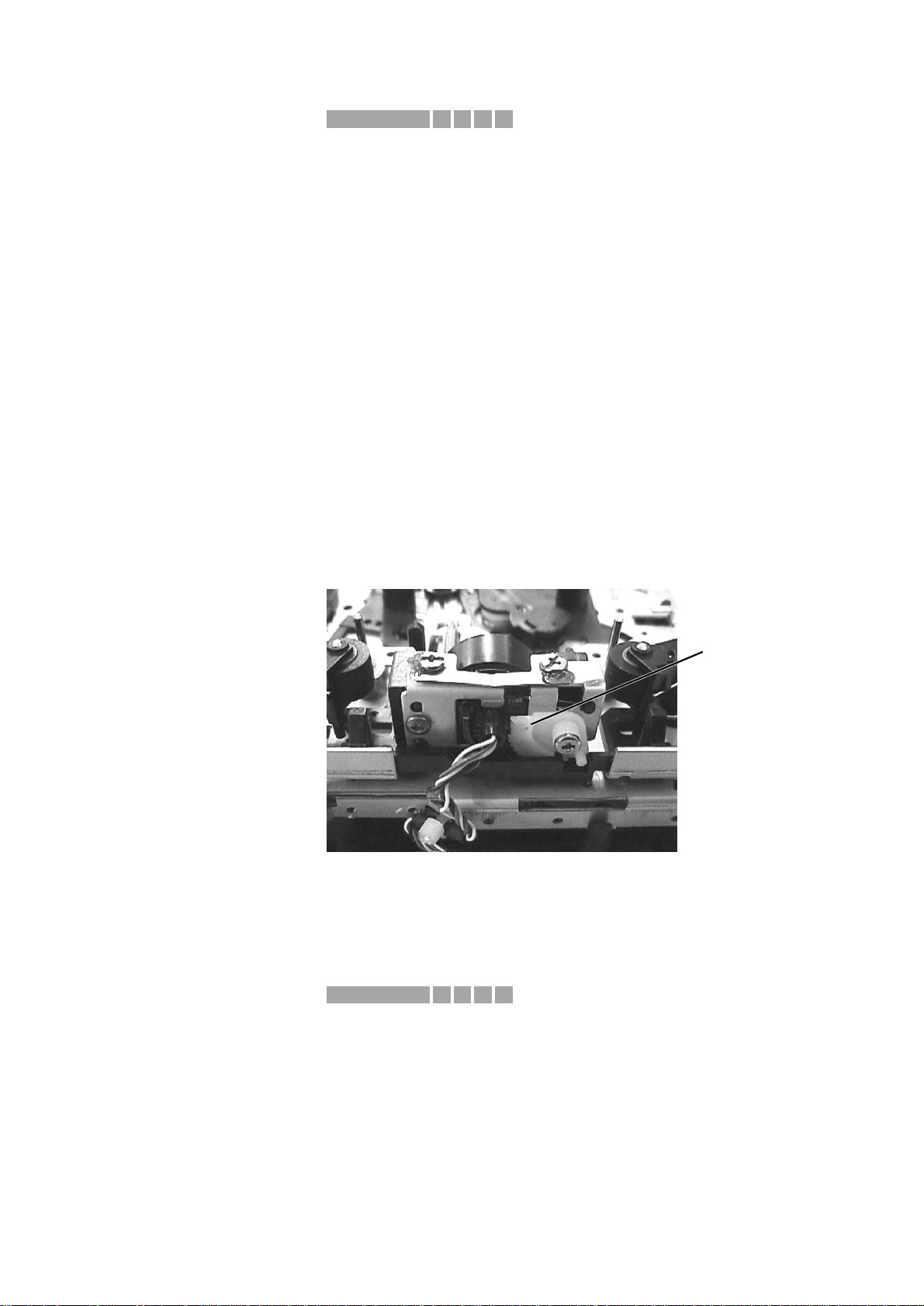

INFORMATION : Tape Deck Record/Playback head replacement tip.

After replacement of the Record/Playback head (pos 1) it is ver y
important to align it to the Forward position as given in picture below.
If this is not done, there is risk of damaging the gear.

REMARKS :

01.33 TYPENUMBER(S): MZ-3, MZ-33

SYMPTOM :

Hum noise picked up from transformer is audible.
CURE : Replace inductor 5553 by a jumper.
REMARKS : The modification has been implemented in production from week

0048 onwards.

1451IRIS CODE

Turn the Rec/Pb head
until the white gear rack
reaches this position

D611IRIS CODE

Service Newsletter 2001 – BCU Audio 13/16

01.34 TYPENUMBER(S): SA100, SA101, SA107, SA125, SA126
INFORMATION : The Instruction For Use is not available as ser vice spare par t.

It can be viewed or downloaded as PDF-file from the Rush Customer
Support inter net site http://www.rush.philips.com/support.html

REMARKS :

01.35 TYPENUMBER(S): SD100
INFORMATION : The SD100 has been produced with different Loader/CD-drive

combinations.When replacing the CD-drive it is essential to order the
correct type of drive. Both, Loaders and CD-drives, can be identified
by their type-labels (see pictures below).The corresponding
codenumbers can be found in the attached cross-table.

REMARKS :

tinUredaoL evirD-DC rebmunedoC

16/0121L )196207414013(
36/0121L )107207414013(

2021MAV

102022205039

J2021MAV

20/2021MAV

202022205039

J20/2021MAV

56/0121L )562023205039(
86/0121L )862023205039(

2021MAV102022205039

21/2021MAV212022205039

14/0121L )072207414013(
34/0121L )016207414013(

1021MAV101022205039

54/0121L )541023205039(
84/0121L )841023205039(

1021MAV101022205039

VAM label

Loader label

Service Newsletter 2001 – BCU Audio 14/16

01.36 TYPENUMBER(S): SD300
INFORMATION : The SD300 has been produced with different Loader/CD-drive

combinations.When replacing the CD-drive it is essential to order the
correct type of drive. Both, Loaders and CD-drives, can be identified
by their type-labels (see pictures below).The corresponding
codenumbers can be found in the attached cross-table.

REMARKS :

tinUredaoL evirD-DC rebmunedoC

11/3021C )195207414013(30/1021MAV301022205039

12/3021C )146207414013(

2021MAV

102022205039

J2021MAV

20/2021MAV

202022205039

J20/2021MAV

82/3021C )822024205039(

2021MAV102022205039

21/2021MAV212022205039

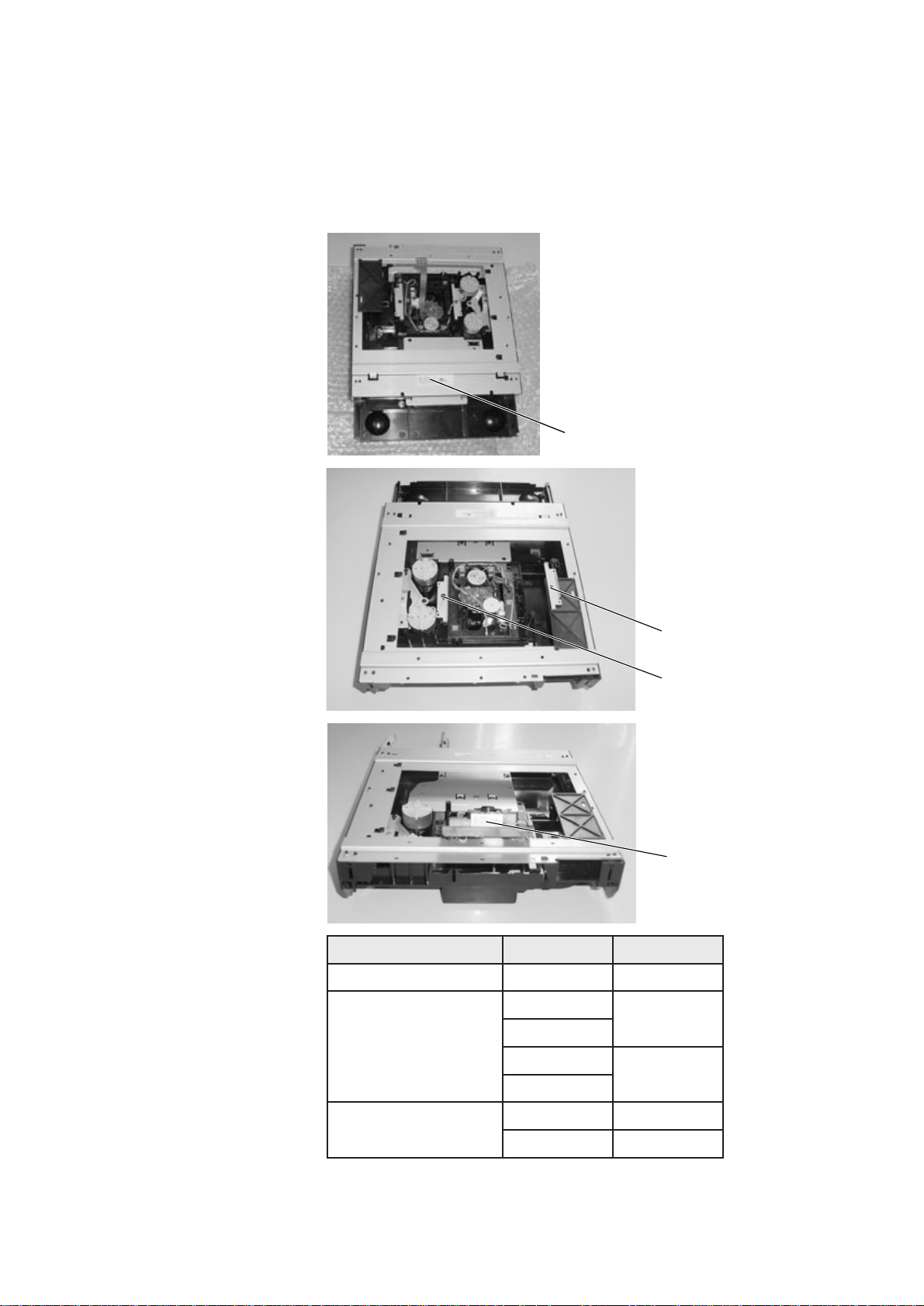

Pull out CD-drive to see
the VAM label

Remove screw

Remove the steel cover piece

To check the VAM label, the CD-drive
must be dismantled as follows:

SD300 Unit label

Service Newsletter 2001 – BCU Audio 15/16

01.37 TYPENUMBER(S): SD300
INFORMATION : Correction to the Service Manual, Partslist MPEG-board

The typenumber of the MPEG-2 A/V processor (item 7601) reads
“CL8830A” instead of “CL8860 QFP208”.
The codenumber remains unchanged:
7601 3141 018 50470 CL8830A (C-CUBE)

REMARKS :

Service Newsletter 2001 – BCU Audio 16/16
