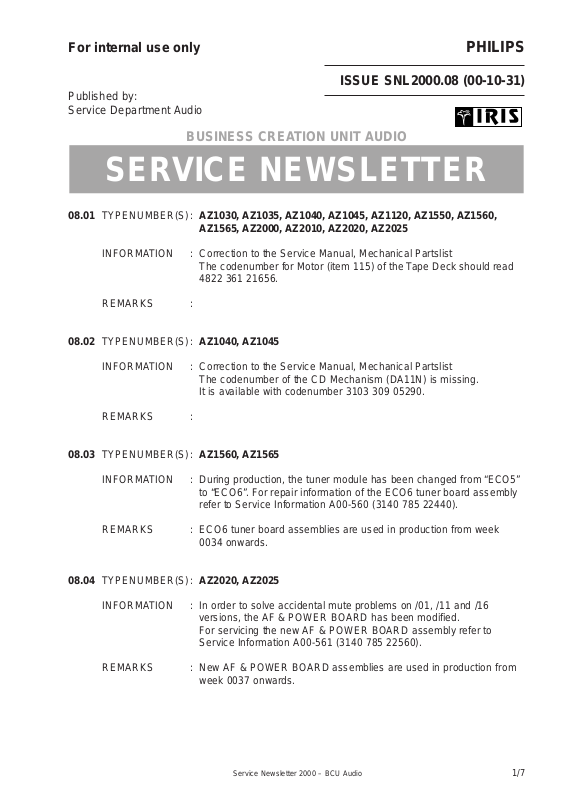

For internal use only PHILIPS

ISSUE SNL2000.08 (00-10-31)

Published by:
Service Depar tment Audio

BUSINESS CREATION UNIT AUDIO

08.01 TYPENUMBER(S): AZ1030, AZ1035, AZ1040, AZ1045, AZ1120, AZ1550, AZ1560,

AZ1565, AZ2000, AZ2010, AZ2020, AZ2025

INFORMATION : Correction to the Service Manual, Mechanical Partslist

The codenumber for Motor (item 115) of the Tape Deck should read
4822 361 21656.

REMARKS :

08.02 TYPENUMBER(S): AZ1040, AZ1045
INFORMATION : Correction to the Service Manual, Mechanical Partslist

The codenumber of the CD Mechanism (DA11N) is missing.
It is available with codenumber 3103 309 05290.

REMARKS :

08.03 TYPENUMBER(S): AZ1560, AZ1565
INFORMATION : During production, the tuner module has been changed from “ECO5”

to “ECO6”. For repair information of the ECO6 tuner board assembly
refer to Service Information A00-560 (3140 785 22440).

REMARKS : ECO6 tuner board assemblies are used in production from week

0034 onwards.

08.04 TYPENUMBER(S): AZ2020, AZ2025
INFORMATION : In order to solve accidental mute problems on /01, /11 and /16

versions, the AF & POWER BOARD has been modified.
For servicing the new AF & POWER BOARD assembly refer to
Service Information A00-561 (3140 785 22560).

REMARKS : New AF & POWER BOARD assemblies are used in production from

week 0037 onwards.

SERVICE NEWSLETTER

Service Newsletter 2000 – BCU Audio 1/7

08.05 TYPENUMBER(S): CDC775, CC3000, CC4000

SYMPTOM :

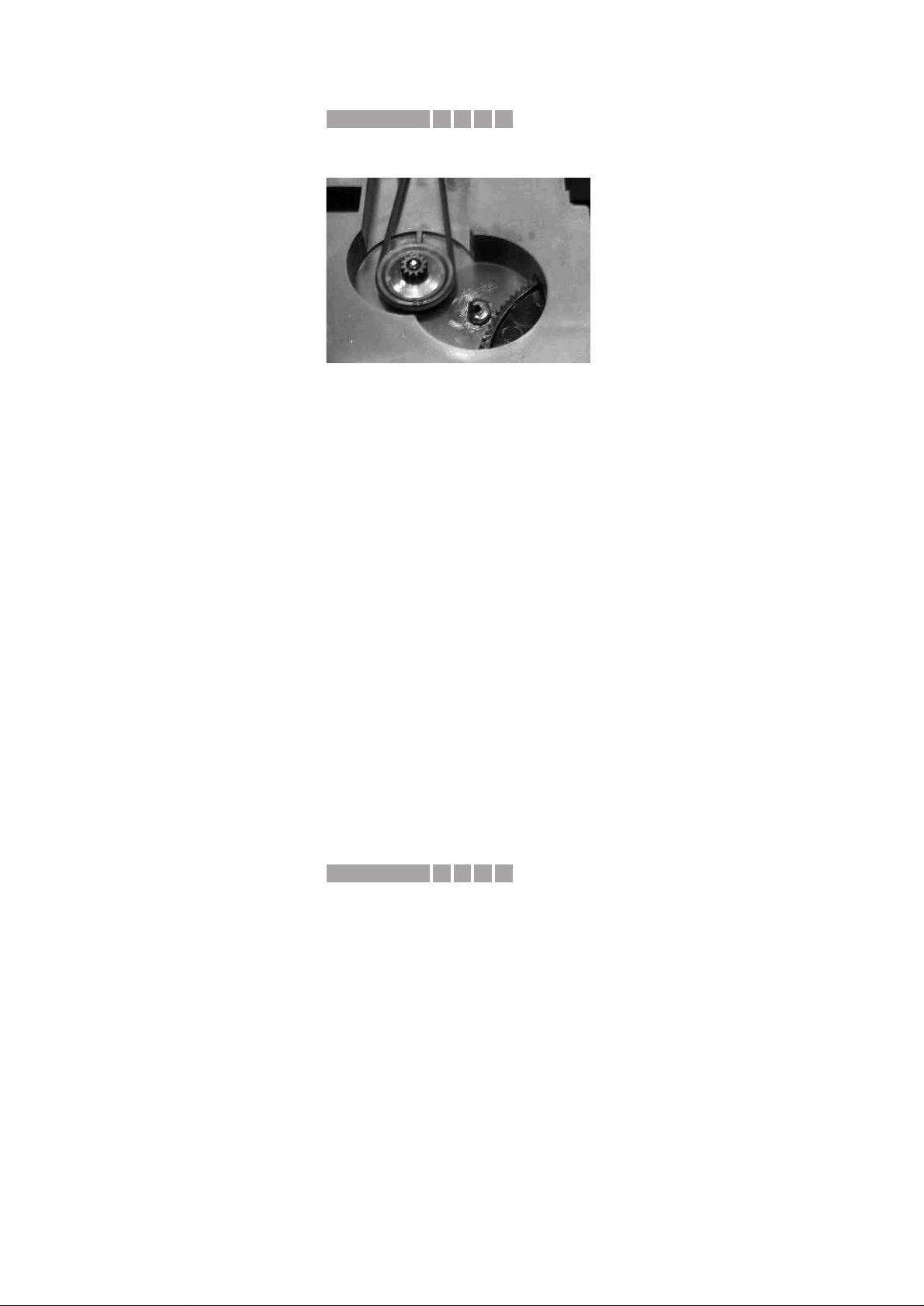

CDC Tray does not open, the spindle for the Gearwheel (pos 95) is
broken (see picture below).

CURE : For integral cost reasons it is advised to exchange the complete set.
REMARKS : Sets affected were produced before production week 0026.

08.06 TYPENUMBER(S): CDR570, CDR770, CDR775, CDR776, CDR785, CDR786, CDR930,

CDR950, CDR951, FW-R7, FW-R8

INFORMATION : For service purpose an extension flexfoil for the connection of CDR

mainboard connector 1000 to CD-drive has been taken on stock.It is
available with codenumber 3104 157 11510.

The extension flexfoil enables measurements on the top side of the
mainboard without disconnecting or damaging the flex-connection
from the mainboard. Please note that all important measuring points
are positioned on the bottom side of the mainboard.

REMARKS : Take care to remove the extension flexfoil before retur ning the set to

the customer.

08.07 TYPENUMBER(S): CDR775

SYMPTOM :

In dubbing mode, the first milliseconds of the track are not recorded.

CURE : New software version 3.6 for CD-mainboard.

Programmed IC 7202 (soldered) can be ordered with codenumber
3104 123 85630.

REMARKS : The built-in CD software version can be read out by the electrical

service diagnostics.This mode can be entered by holding
<PLAY/PAUSE> & <FFWD> keys depressed while switching power
on.

The new software has been implemented in production with factor y
change code VN05 from week 0037 onwards.

155CIRIS CODE

X611IRIS CODE

Service Newsletter 2000 – BCU Audio 2/7

08.08 TYPENUMBERS : CDR570, CDR770, CDR771, CDR775, CDR776

SYMPTOM :

The set is switched to stand-by after power on.

CURE : The problem occurs only with the recently introduced new power

supply unit “PSU CDR3 ECONOMY”.
It can be fixed with the following modification:

• change item 3127 (current sense resistor) from 1.5Ω to 1Ω
(4822 116 80176)

• change item 6141 (zener diode) from 18V to 20V (4822 130 10656)

REMARKS : The above modification has been implemented in production from

week 0034 onwards.

08.09 TYPENUMBER(S): CDR785, CDR786, FW-R7, FW-R8

SYMPTOM :

Clock jitter in DASP-IC item 7701 on CDR Mainboard can result in
hang-up of the microprocessor.After Power off, Power on the set will
normally star t but the phenomenon might return again.

CURE : To solve this problem in running production and as service solution,

the power supply of D3V3 has been improved by adding a resistor of
27Ω (CRB 1/6W A PM5 and codenumber 4822 116 52188) between
“disconnected” pin 1 of item 7535 and ground (hole 2 of item 1701).

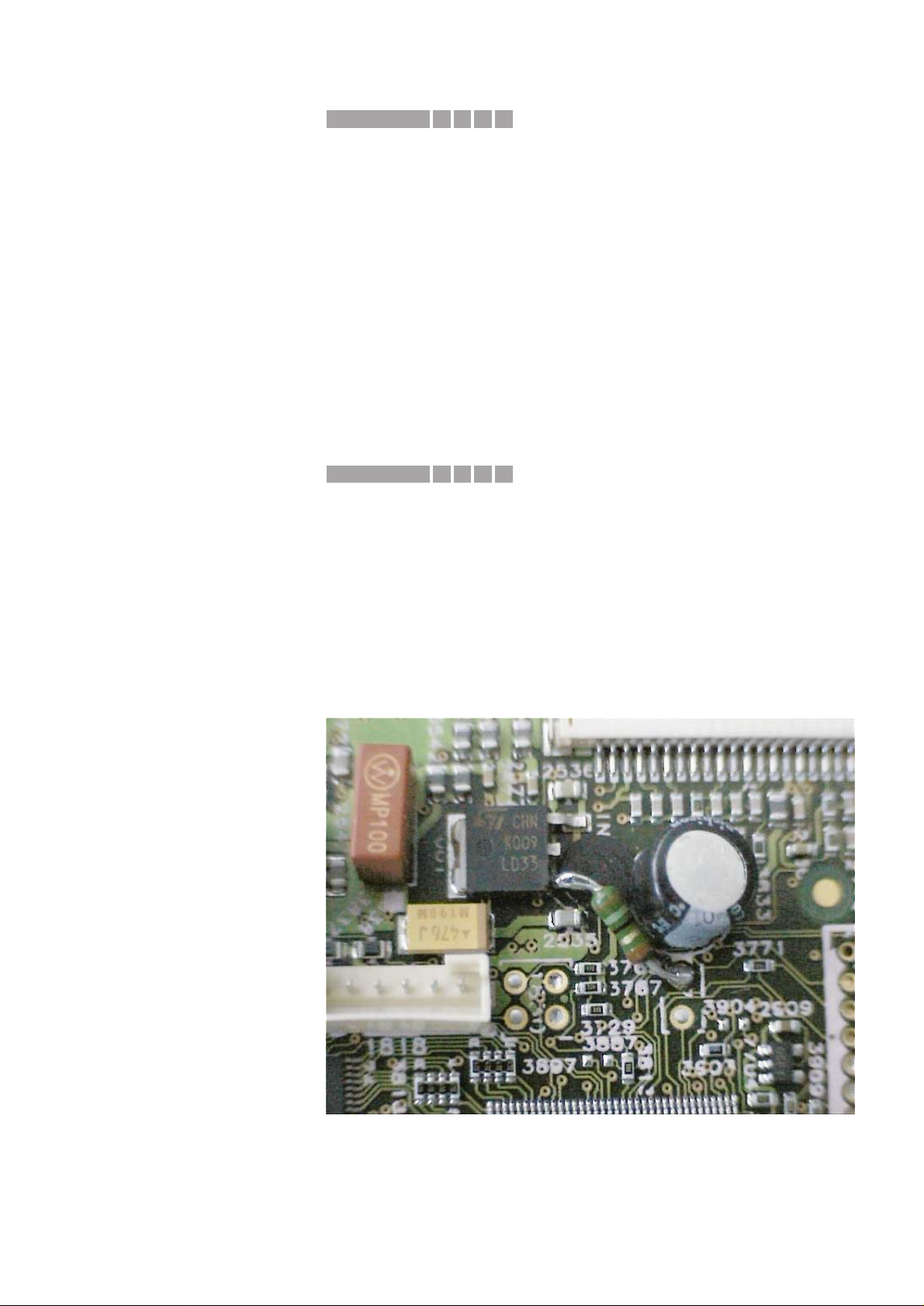

See part of the main board (top side view) for location of the resistor.

REMARKS : With release of the A9 version of CDR Mainboard this resistor is

implemented in printed board layout and mounted in production.

1652IRIS CODE

X11CIRIS CODE

Service Newsletter 2000 – BCU Audio 3/7

08.10 TYPENUMBER(S): CDR785, CDR786, FW-R7, FW-R8

SYMPTOM :

When source “AUX DIGITAL” is selected and no source is connected
or it is switched off, there is a burst of noise audible through the
speakers ever y 3 seconds. If a digital source is connected and
switched on, the noise disappears.

CURE : • change SMD resistor

3300 on Interface Board (CDR785, CDR786) resp.
3358 on Digital Switch Board (FW-R7, FW-R8)
to 6.8kΩ (4822 117 11507)

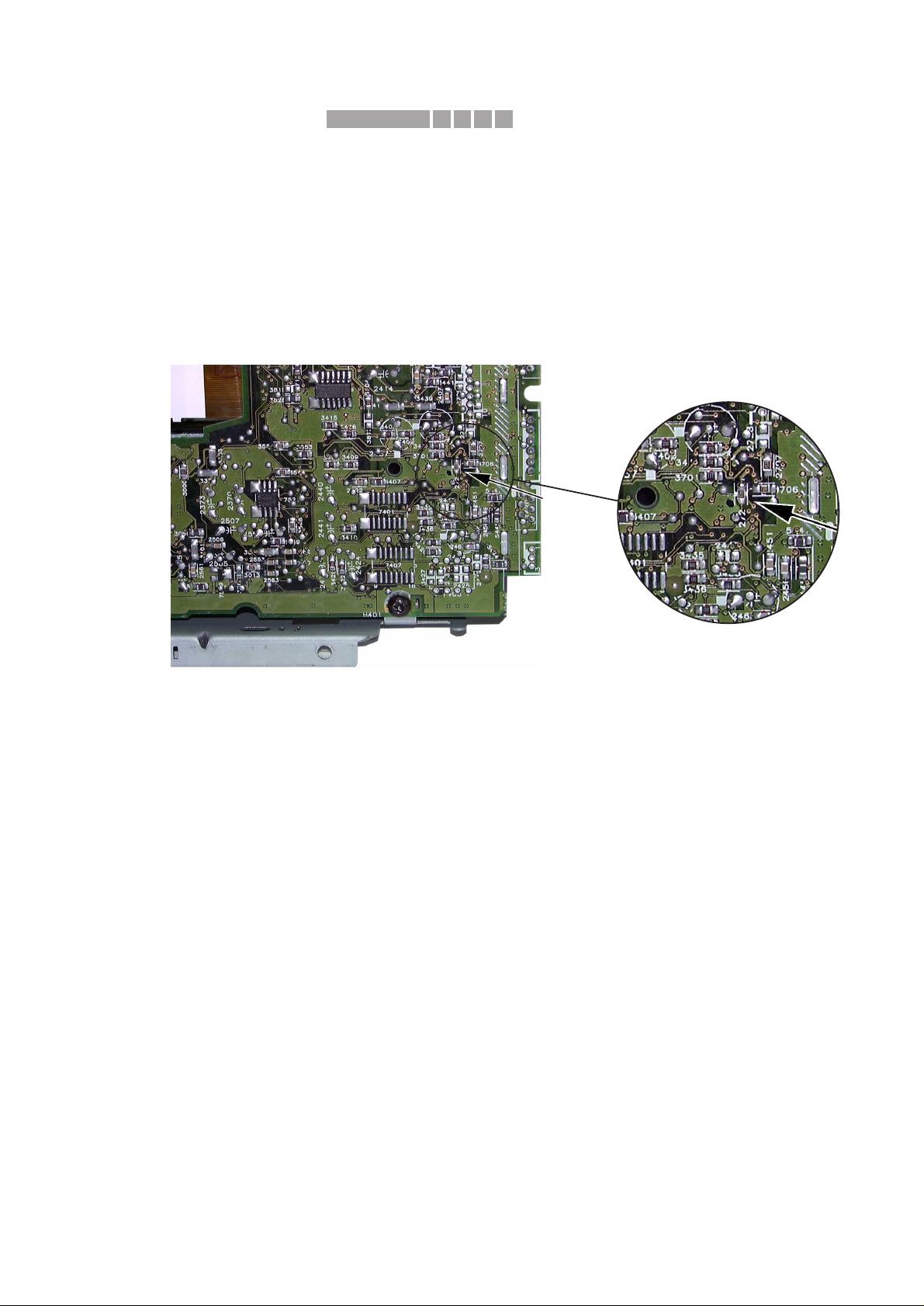

• add resistor 2721 (6.8kΩ 4822 117 11507) on the bottom side of
CDR Main Board → see picture below

REMARKS : This solution will also be implemented in production as a running

change.

08.11 TYPENUMBER(S): EXP101, EXP103
INFORMATION : Correction to the Instruction For Use

The description of chapter “Remote Control” is not clear.
The Remote Control AY3767 will work with EXP101 only.
It cannot be used with EXP103.

REMARKS :

945FIRIS CODE

Service Newsletter 2000 – BCU Audio 4/7

08.12 TYPENUMBER(S): FW-C50, FW-C55, FW-C58, FW-C70, FW-C71, FW-C72, FW-C80,

FW-C83, FW-C85, FW-C90, FW-C870, FW-M55, FW-P73, FW-P75,
FW-P78, FW-P88, FW-P880, FW-P900, FW-V55

SYMPTOM :

When a wireless heaphone (eg. SBC8320, SBCHC630, etc.) is
connected to the headphone socket, the headphone sound is
continuously interrupted.

CURE : The phenomenon is caused by a mis-match between the output

impedance of the heaphone amplifier (32Ω - 1kΩ) and the input
impedance of the wireless transmitter (10kΩ).
Due to the high input impedance of the transmitter the signal
becomes so high that the muting circuit is triggered.
The problem is solved by adding 2 resistors, 330Ω (4822 116 52219)
from the headphone switch pin 2 and 5 to common ground.

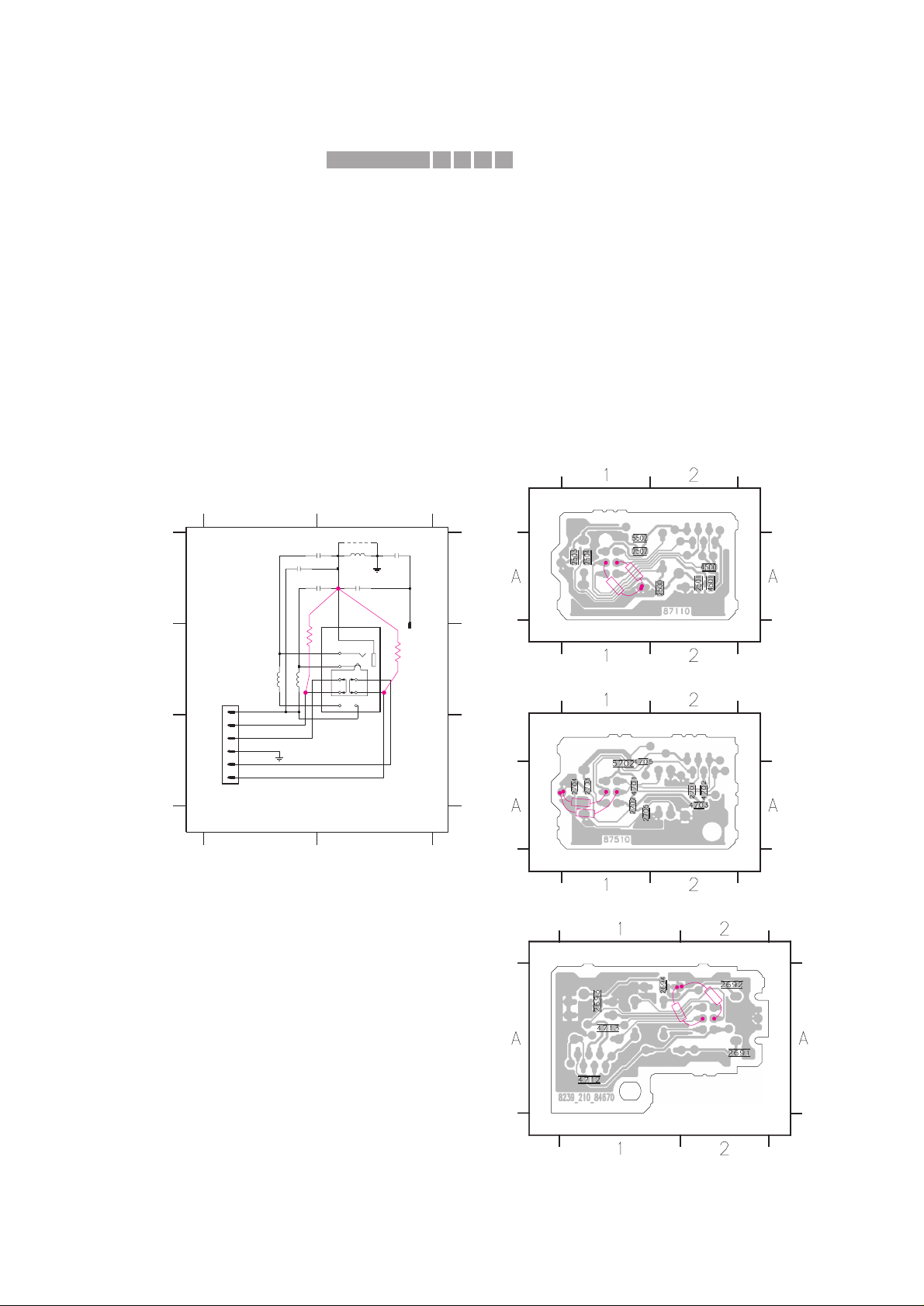

Headphone Circuit Headphone SMD layout (copper side view)
–––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––

REMARKS :

3139 113 3431 pt1 dd wk0023

For FW-D1 & FW-D5

Front - H/P Part - Copper Side View

This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.

For FW-C5..., FW-V5..., FW-M5...,

FW-C7... & FW-P7...

AF6 - H/P Part - Copper Side View

12

12

A

B

C

A

B

C

1500 B2
1501 A2

1502 B1
2500 A2

2501 A2
2502 A1

2503 A2
2504 A2

5500 A2
5501 B1

5502 B1
9500 A2

22n

2502

1

2

3

4

5

6

a

a

100n

2504

1501

1

FE-BT-VK-N

1502

TC38

9

8

7

1
2

3

4
5
6

2u2

5502

1500

# 9500

5501

2u2

2u2

5500 # 2501

22n

2503
100n

22n

2500

L

Lhp

DPL_SW

R

Rhp

GNDa

# : Provision

For FW-C8..., FW-P8..., FW-C9... & FW-P9

Front - H/P Part - Copper Side View

330R

330R

Note: This circuit illustrates the position to add the 330 ohm
resistors, the item numbering may be different in your circuit.
For actual location please refer to layout drawings.

330R

330R

3

3

0

R

330R

3

3

0

R

3

3

0

R

4551IRIS CODE

Service Newsletter 2000 – BCU Audio 5/7

08.13 TYPENUMBER(S): FW850C, FW855C, FW860P, FW880P, FW880W

(European versions only)

SYMPTOM :

Display shows “no RDS text” although the set is tuned to a radio
station transmitting RDS text messages.

CURE : The problem can been solved by upgrading microprocessor 7461 to

software version v27 (or higher).
New microprocessors can be ordered with codenumber
9965 000 06763 TMP87PS71F-FW850 V27

REMARKS : Microprocessor 7461 is located on the Front-Sandwich board.

The software version can be read out via the Service Test Program.

08.14 TYPENUMBER(S): MC118, MC148
INFORMATION : Correction to the Service Manual, Mechanical Partslist

The Cassette Door and CD Door are pre-assembled by the factor y.
The new codenumbers are:

CD Door Assembly (Items 442 + 443)
3140 117 59420 For MC118 and MC148

Cassette Door Assembly (Items 401 + 402)
3140 117 59430 For MC118
3140 117 59470 For MC148

REMARKS :

08.15 TYPENUMBER(S): MC118, MC148, MC-10, MC-20
INFORMATION : During production, the LCD (item 1425) has been changed to 3140

110 51000.To compensate the deviation of the LCD, resistor 3404
has also been changed.

1425 9360 280 30112 LCD OLD
3404 4822 051 20182 1.8kΩ

1425 3140 110 51000 LCD NEW
3404 4822 051 20332 3.3kΩ

REMARKS : The new LCD has been implemented in production from week 0044

onwards.

08.16 TYPENUMBER(S): MZ-3
INFORMATION : In course of production, the IR Receiver (item 7600) has been

changed to 9322 155 22667.

REMARKS : The new IR-Receiver 9322 155 22667 can replace the old one

without further modifications.

582CIRIS CODE

Service Newsletter 2000 – BCU Audio 6/7

08.17 TYPENUMBER(S): MZ7

SYMPTOM :

CD does not play and display shows “DISC NOT FINALIZED”.

CURE : This problem is resolved by upgrading the software of the Front

microprocessor IC.The service code for the new IC reads
9965 000 06733.

REMARKS :

08.18 TYPENUMBER(S): SA100, SA101, SA107, SA125, SA126
INFORMATION : Correction to the Service Manual, Accessories

In the Service Manual, some accessories are missing.
They are available with following codenumbers:

9965 000 06658 Headphone SBC HE-550
9965 000 06659 Carrying Case

REMARKS :

415CIRIS CODE
