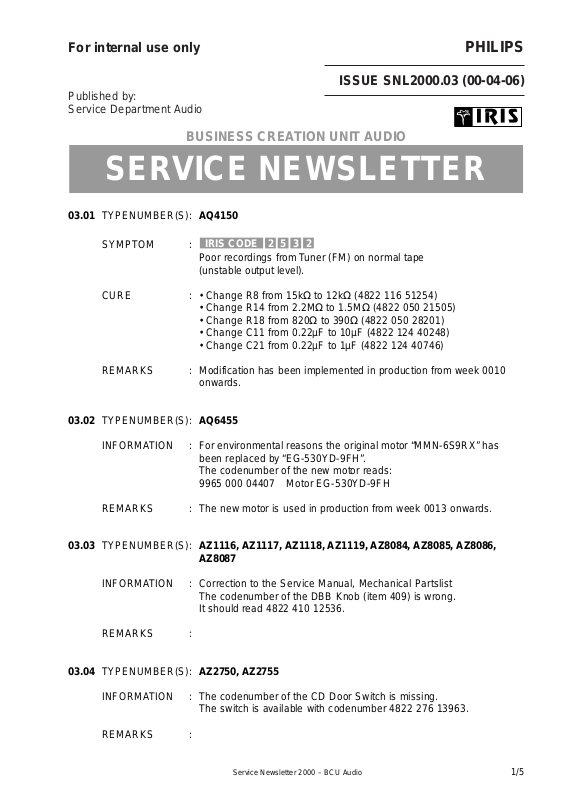

Page 1
For internal use only PHILIPS
ISSUE SNL2000.03 (00-04-06)
Published by:
Service Depar tment Audio
BUSINESS CREATION UNIT AUDIO
03.01 TYPENUMBER(S): AQ4150
SYMPTOM :
Poor recordings from Tuner (FM) on normal tape
(unstable output level).
CURE : • Change R8 from 15kΩ to 12kΩ (4822 116 51254)
• Change R14 from 2.2MΩ to 1.5MΩ (4822 050 21505)
• Change R18 from 820Ω to 390Ω (4822 050 28201)
• Change C11 from 0.22µF to 10µF (4822 124 40248)
• Change C21 from 0.22µF to 1µF (4822 124 40746)
REMARKS : Modification has been implemented in production from week 0010
onwards.
03.02 TYPENUMBER(S): AQ6455
INFORMATION : For environmental reasons the original motor “MMN-6S9RX” has
been replaced by “EG-530YD-9FH”.
The codenumber of the new motor reads:
9965 000 04407 Motor EG-530YD-9FH
REMARKS : The new motor is used in production from week 0013 onwards.
03.03 TYPENUMBER(S): AZ1116, AZ1117, AZ1118, AZ1119, AZ8084, AZ8085, AZ8086,
AZ8087
INFORMATION : Correction to the Service Manual, Mechanical Partslist
The codenumber of the DBB Knob (item 409) is wrong.
It should read 4822 410 12536.
REMARKS :
03.04 TYPENUMBER(S): AZ2750, AZ2755
INFORMATION : The codenumber of the CD Door Switch is missing.
The switch is available with codenumber 4822 276 13963.
REMARKS :
2352IRIS CODE
SERVICE NEWSLETTER
Service Newsletter 2000 – BCU Audio 1/5
Page 2
03.05 TYPENUMBER(S): AZ7894
INFORMATION : Correction to the Service Manual, Mechanical Partslist
The codenumber of the CD Door Assembly is wrong.
It should read 3140 119 02730.
REMARKS :
03.06 TYPENUMBER(S): AZ9899
SYMPTOM :
During Video CD playback the picture is frozen or skipping.

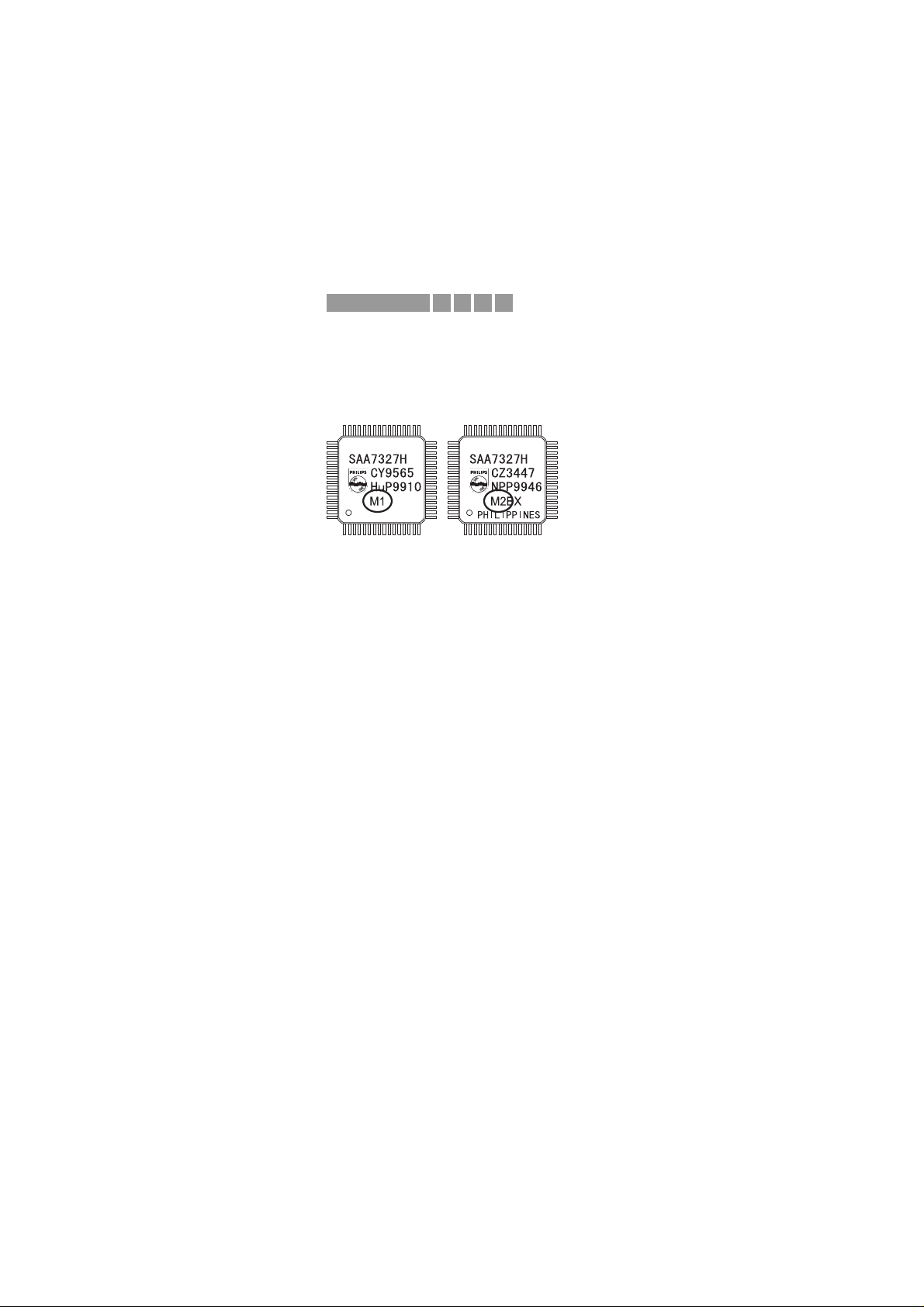

CURE : • Upgrade IC QD01 SAA7327H from version “M1” to version “M2BX”
(9352 616 71557)
• Change resistor RD39 from 22kΩ to 1kΩ (4822 051 30102)
REMARKS : Modification has been implemented in production from LOT 05
onwards.
03.07 TYPENUMBER(S): CD6660, D6560
INFORMATION : The impedance of the loudspeakers 1000 and 1001 has been
changed from 4Ω to 6Ω in order to reduce click noise at low
frequency.
The codenumbers of the new loudspeakers are:
1000 2422 264 00382 Woofer 6.5“
1001 2422 264 00383 Tweeter 2.5“
REMARKS : Modification has been implemented in production from week 0004
onwards.
The output power remains unchanged at AC supply mode.
03.08 TYPENUMBER(S): CDR200, CDR538, CDR560, CDR760, CDR765
INFORMATION : For price reasons the power supply service kit 3122 785 90130,
mentioned in Service Newsletter AS2000.02, will not be delivered.
Please order defective parts separately.
REMARKS :
A532IRIS CODE
Service Newsletter 2000 – BCU Audio 2/5
Page 3
03.09 TYPENUMBER(S): CDR570, CDR770, CDR930
SYMPTOM :
Stops during recording
Motor noise while recording CDR/W disc
CURE : Above problems can be solved by a hardware (1) and a software (2)
modification. Note that both changes must be implemented at the
same time.
1. Hardware modification at the topside of the main board
• Change item 2335 from 10nF to 47nF (3198 017 34730)
• Change item 3337 from 68kΩ to 56kΩ (4822 051 30563)

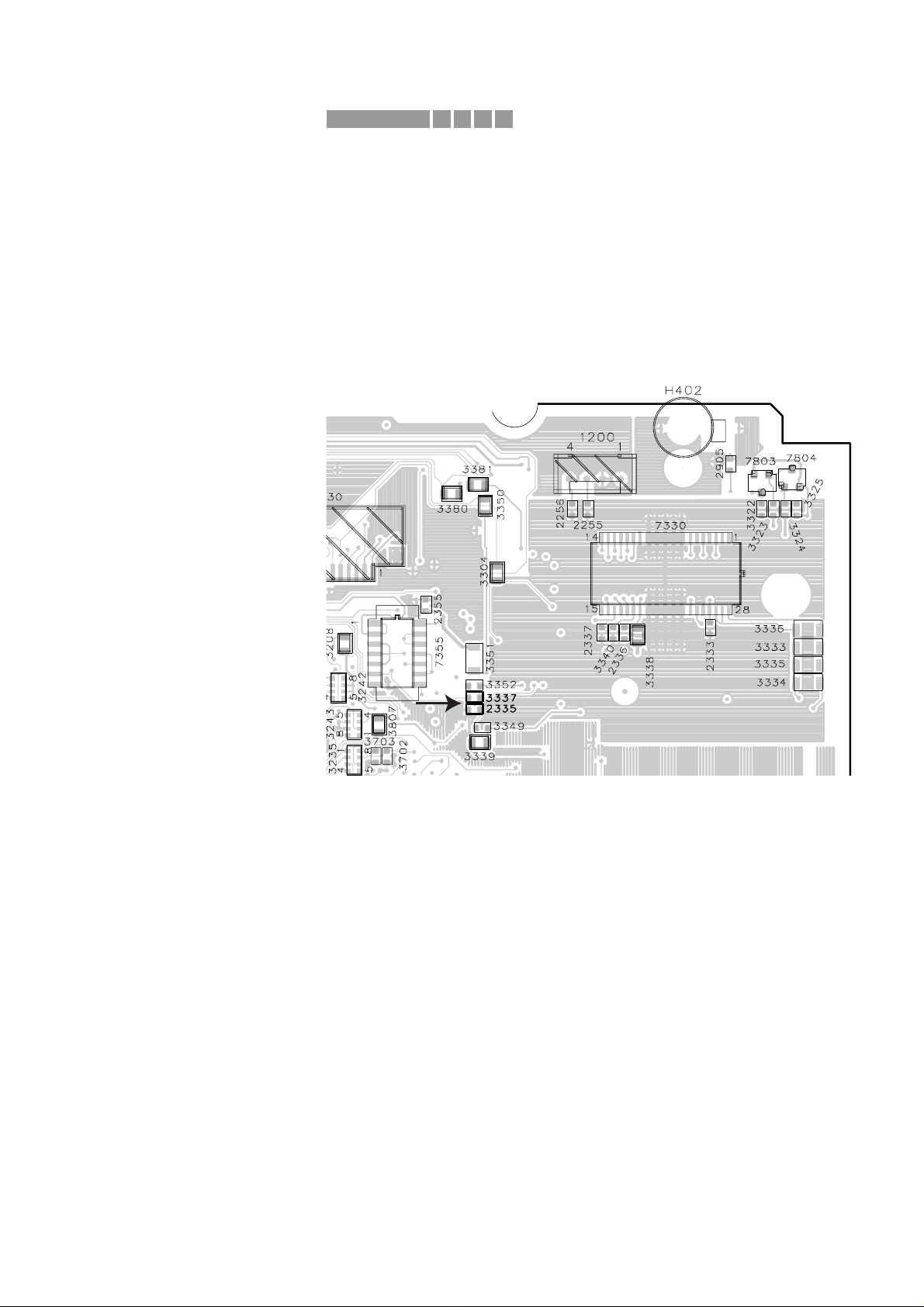

Portion of Main Board (top side) for location of 2335 / 3337
2. Software modification
• The software version of item 7208 at the topside (in socket) has to
be changed to version 91.80 or higher.
Programmed flash memory with version 91.80 can be ordered with
codenumber 3104 123 94850.
• The software version of item 7703 at the top side (soldered) has to
be changed to version R-1.34 or higher.
Programmed flash memory with version R-1.34 can be ordered with
codenumber 3104 123 85760.
X651IRIS CODE
Service Newsletter 2000 – BCU Audio 3/5
Page 4

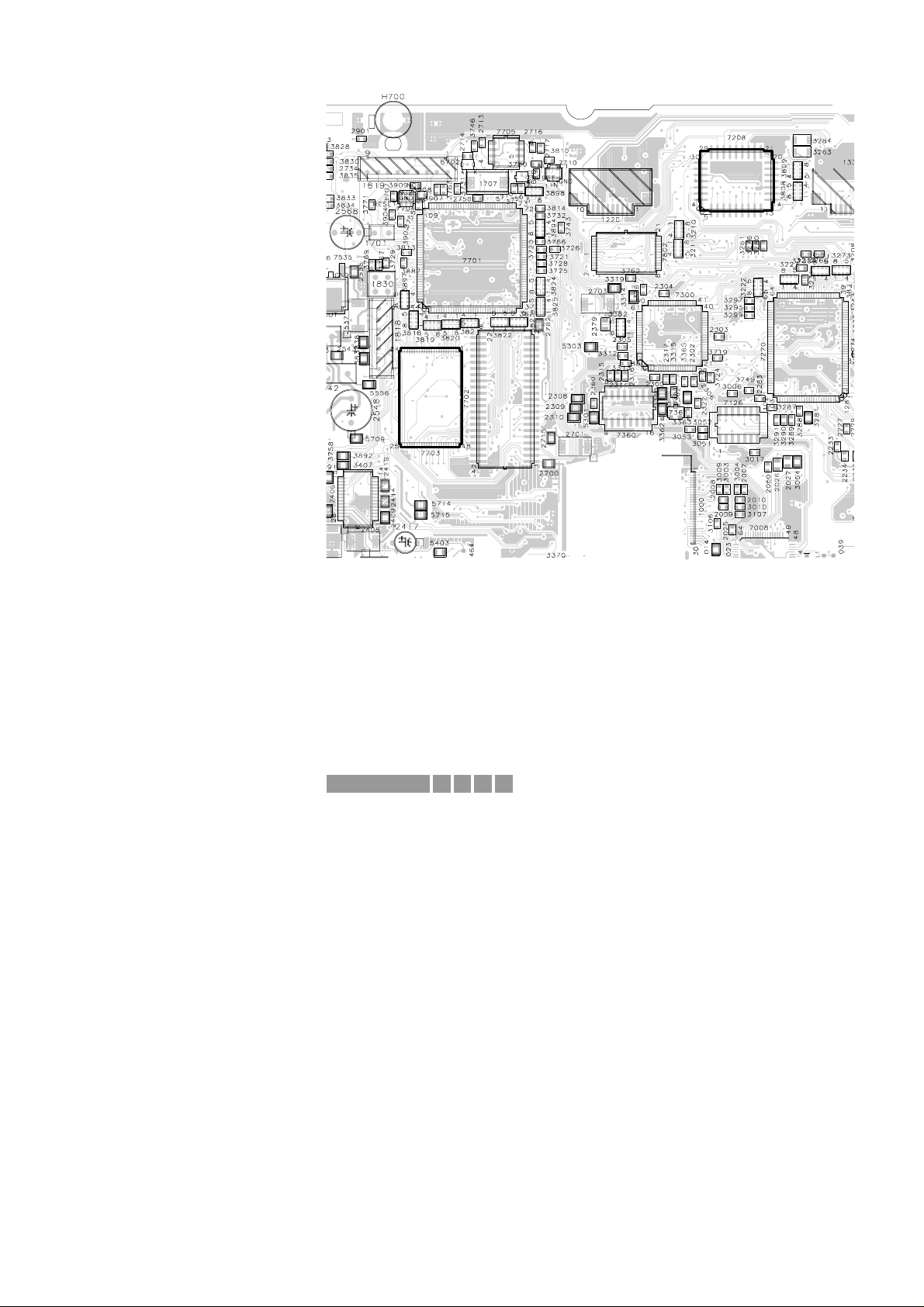

Portion of Main board for location of flash memories 7208 / 7703
REMARKS : The status of the main-board can be identified by the board label.
For board label F and lower :change 2335/3337, replace 7208/7703
For board label G : change 3337, replace 7208/7703
For board label H : replace 7208/7703
For board label I : no changes necessary
03.10 TYPENUMBER(S): FW350C, FW396C, FW545C, FW548C, FW555C, FW585C, FW590C
SYMPTOM :
Skips tracks periodically or slide motor does not start-up at all.
CURE : In regions with high environmental pollution the problem might be
caused by erosion of the slide motor’s collector.
Erosion will permanently worsen the start-up behaviour of the slide
motor, up to an extent where the slide servo does not respond fast
enough to recover the track actuator from its outer position → tracks
will be skipped periodically.
Defective sets should be repaired as follows:
1. Replace CD-dr ive VAM2201 (4822 691 10772)
2. Increase the gain of the slide ser vo loop in order to increase the
start-up voltage at the slide motor (preventive action)
• Change resistor 3849 to 82kΩ 5% 1/6W (4822 116 52304)
• Change resistor 3850 to 5.6kΩ 5% 1/6W (4822 116 52289)
REMARKS :
X761IRIS CODE
7703
7208
Service Newsletter 2000 – BCU Audio 4/5
Page 5
03.11 TYPENUMBER(S): FW388V, FW399V, FW548V
INFORMATION : The Flex Foil Cable 15p, 19cm for connection between the Servo
Board connector 1805 and the Connector Board connector 1806 in
the 3-Video CD Module has been added to the partslist.
Pos Codenumber Article description
––––––––––––––––––––––––––––––––––––––––––––––
8002 4822 320 11974 Flex Foil Cable 15p, 19cm
REMARKS :
03.12 TYPENUMBER(S): FW748P, FW768P, FW798W, FW-P73, FW-P75, FW-P78
SYMPTOM :
DPL test tone is distorted (“motor-boating” & lower frequency).
CURE : The problem is caused by insufficient capacitor value at pin 1
(noise sequencer) of the DPL IC M62460FP.
It is solved by changing capacitor 2769 to 47µF 20% 25V
(4822 124 40433)
REMARKS :
03.13 TYPENUMBER(S): FW890P, FW898W
INFORMATION : Correction to Service Manual, Electrical Partslist page 11-12.
The article description of item 7930 should read:
4822 209 16166 STK407-040B
REMARKS :
03.14 TYPENUMBER(S): MC136
INFORMATION : Correction to the Service Manual, Mechanical Partslist
The codenumber of the Control Panel (item 52) is wrong.
It should read 4822 426 10655.
REMARKS :
03.15 TYPENUMBER(S): MC165, MC175
SYMPTOM :
The CD Tray cannot be closed and the display shows “BLOCK”.
CURE : The gears of the CD loader are out of coupling because of external
force or physical block of the tray during sliding out.
If it cannot be resumed, the gears must be re-aligned as shown on
page 14-2 of Service Manual 4722 725 26195 resp. 4822 725 26213.
REMARKS :
A562IRIS CODE
2351IRIS CODE
Service Newsletter 2000 – BCU Audio 5/5
