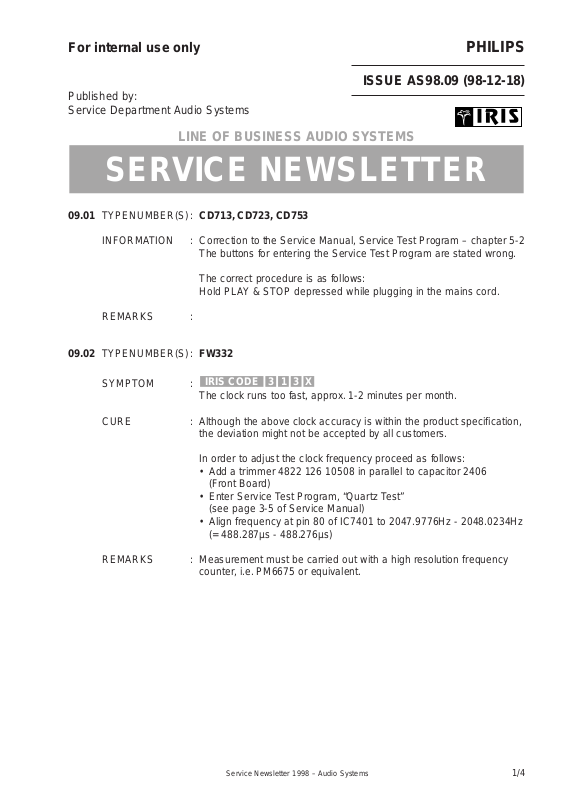

For internal use only PHILIPS
ISSUE AS98.09 (98-12-18)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
09.01 TYPENUMBER(S): CD713, CD723, CD753
INFORMATION : Correction to the Service Manual, Service Test Program – chapter 5-2
Hold PLAY & STOP depressed while plugging in the mains cord.
REMARKS :
09.02 TYPENUMBER(S): FW332
SYMPTOM :
The clock runs too fast, approx. 1-2 minutes per month.

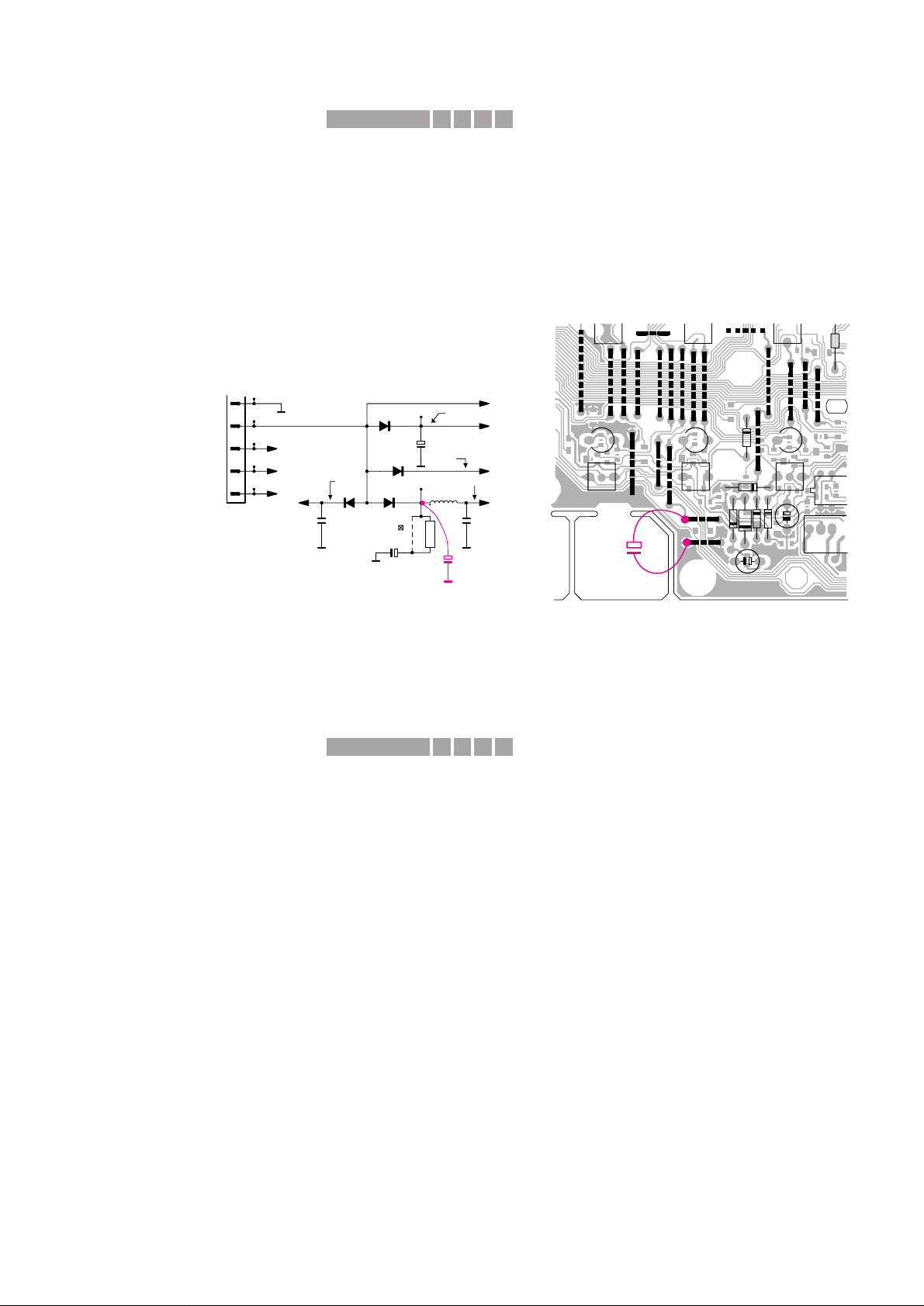

CURE : Although the above clock accuracy is within the product specification,
the deviation might not be accepted by all customers. In order to adjust the clock frequency proceed as follows:
• Add a trimmer 4822 126 10508 in parallel to capacitor 2406 (Front Board)
• Enter Service Test Program, “Quartz Test” (see page 3-5 of Service Manual)
• Align frequency at pin 80 of IC7401 to 2047.9776Hz - 2048.0234Hz (= 488.287µs - 488.276µs)
REMARKS : Measurement must be carried out with a high resolution frequency
counter, i.e. PM6675 or equivalent.
X313IRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/4
Page 2
09.03 TYPENUMBER(S): FW72C, FW346C, FW356C, FW358C, FW359C, FW388V, FW530C,
FW535C, FW538, FW550C, FW570C, FW575C, FW765P, FW775P, FW795W, FW850C, FW855C, FW860P, FW880P, FW880W
SYMPTOM :

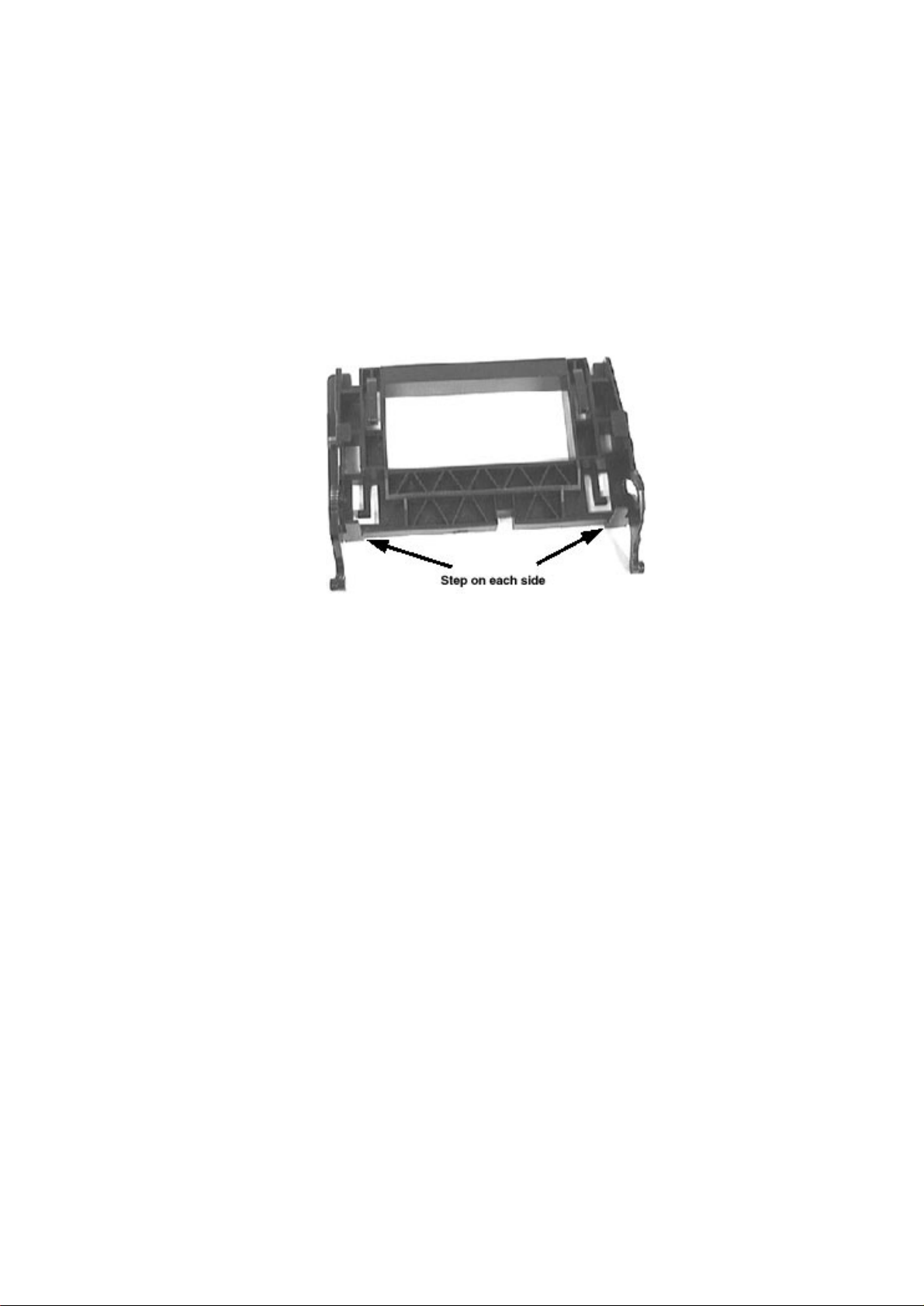

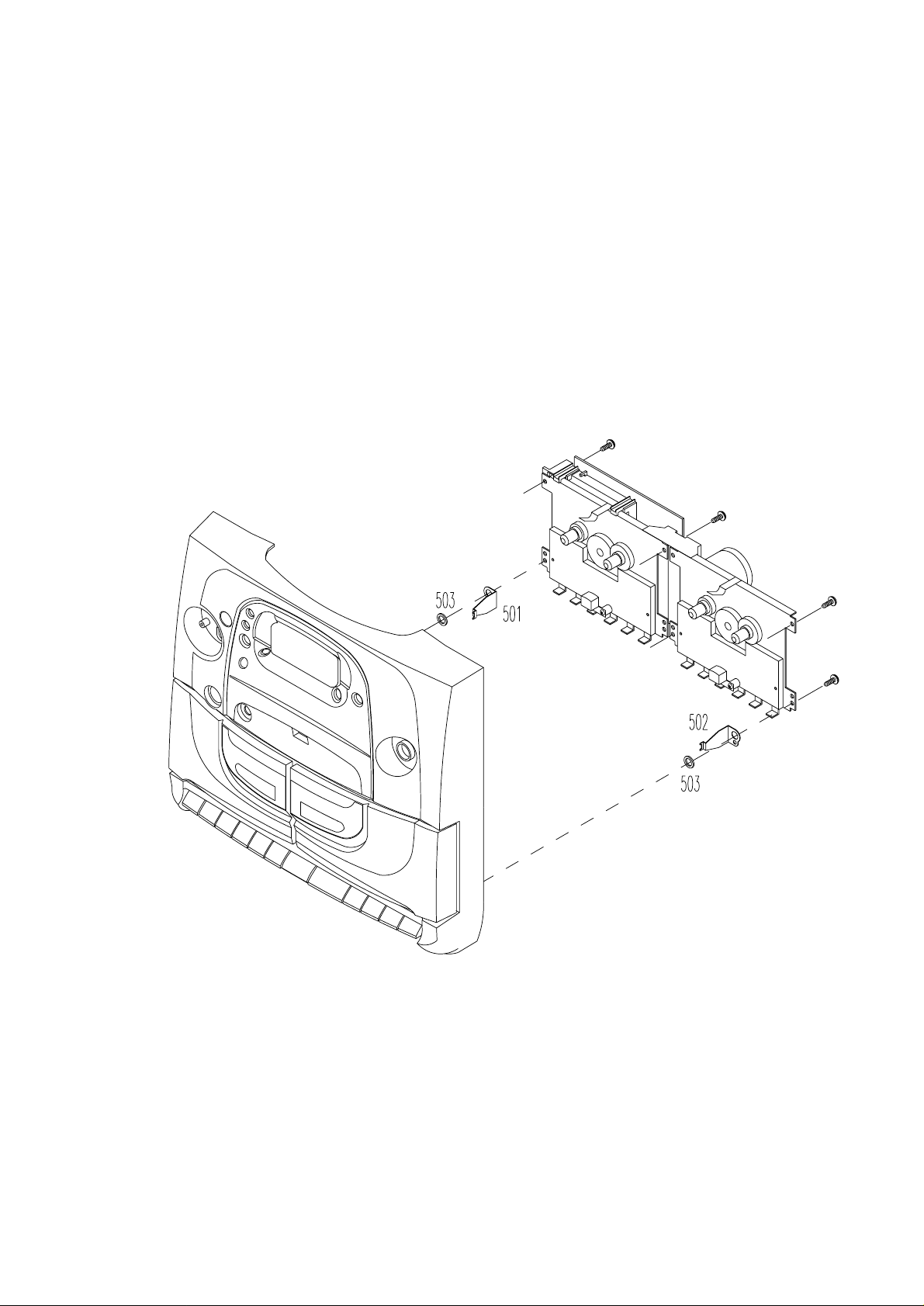

The cassette doors (especially the left door) do not close properly.

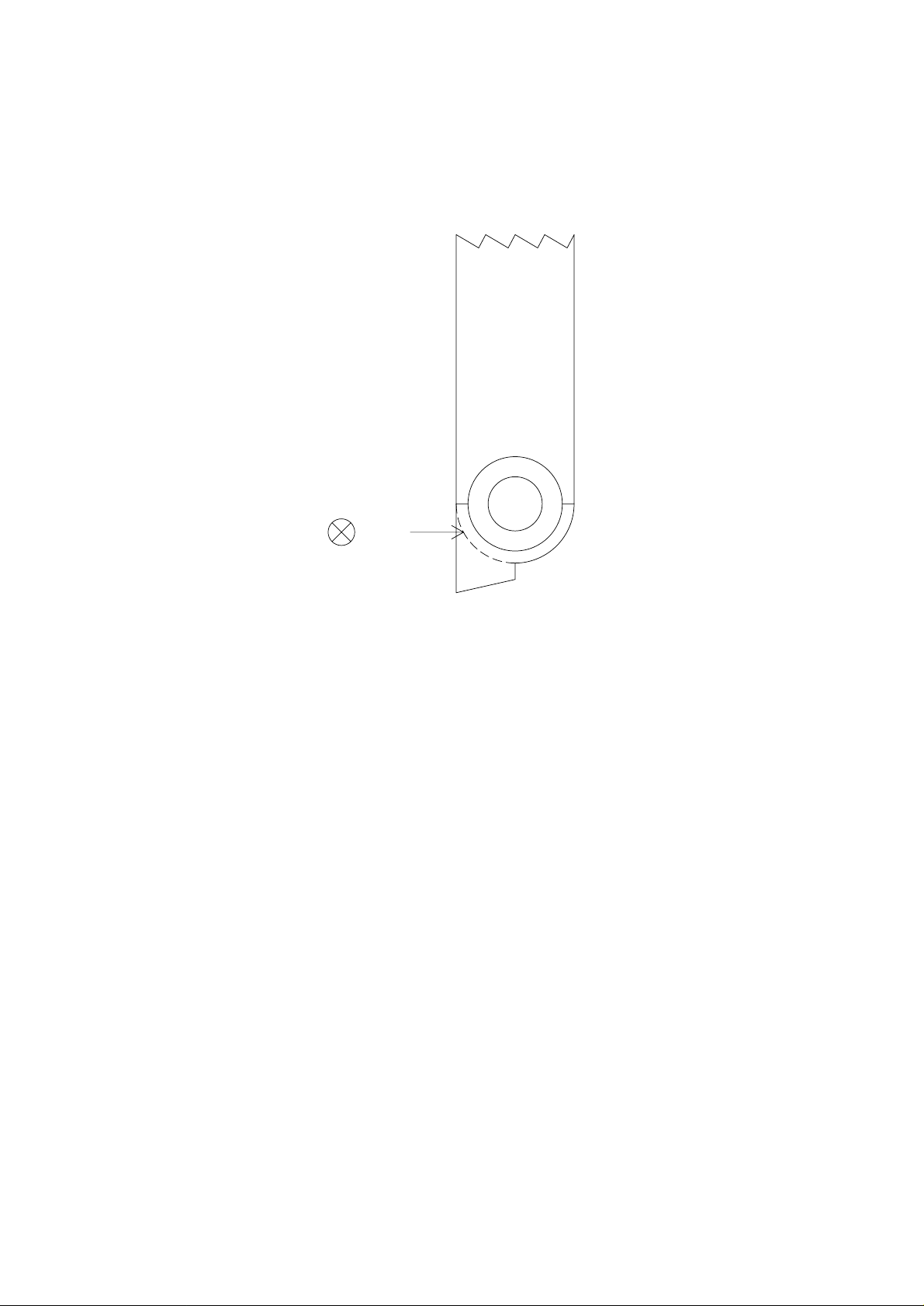

CURE : The problem is most probably caused by:
• Tolerance in dimensions of door catches
• Deformation of plastic brackets of catches
In course of production the catch & plastic brackets have been modified.The service codenumbers for the new parts read as follows:
FW72C, FW530C, FW535C, FW538, FW550C, FW570C, FW575C, FW765P, FW775P and FW795W ––––––––––––––––––––––––––––––––––––––––––––––––––––––– Pos 244 - 4822 402 10621 Push Catch Pos 246 - 4822 402 11246 Bracket, Right Pos 247 - 4822 402 11245 Bracket, Left
FW346C, FW356C, FW358C, FW359C and FW388V ––––––––––––––––––––––––––––––––––––––––––––––––––––––– Pos 275 - 4822 402 10621 Push Catch Pos 276 - 4822 402 11246 Bracket, Right Pos 277 - 4822 402 11245 Bracket, Left
FW850C, FW855C, FW860P, FW880P and FW880W ––––––––––––––––––––––––––––––––––––––––––––––––––––––– Pos 248 - 4822 402 10621 Push Catch Pos 249 - 4822 402 11245 Bracket, Left Pos 250 - 4822 402 11246 Bracket, Right
REMARKS : Modified parts have been implemented in production from week 9835
onwards.
09.04 TYPENUMBER(S): FW392C, FW395C INFORMATION : Correction to the Service Manual, Power Board – chapter 11-2
The item number for the Mains Transformer should read 5011 instead of 5001.
REMARKS :
5161IRIS CODE
Service Newsletter 1998 – Audio Systems 2/4
Page 3
09.05 TYPENUMBER(S): FW538, FW850C, FW855C, FW860P, FW880P, FW880W
SYMPTOM :
During digital optical recordings from the above mentioned Mini Systems to a CD-Recorder (i.e. FW538 to CDR538), “DIG” flashes on the CDR, indicating a communication error. The problem usually occurs when recordings are started immediately after switching to an analog source (i.e.Tuner or Tape).
CURE : Customer is advised to follow the instructions for
CD-Recordings, given in Service Newsletter AS98.08.04.
REMARKS : When switching to an analog source, the Mini System will reset the
CD-part and mute the digital output signal for about 130ms. This mute is interpreted as communication error and causes a stop of the CD-Recording.
09.06 TYPENUMBER(S): FW670P
SYMPTOM :
In CD-mode the beginning part of each track is muted. The time constant for releasing the mute signal is too long.
CURE : Replace capacitor 2550 (2,2µF) on the Combi AF-part by a capacitor
of 1µF (4822 124 40242).
REMARKS :
09.07 TYPENUMBER(S): FW730C, FW750C, FW770P, FW780P, FW790P INFORMATION : The set does not read a specific CD:
“Ready to Go, Women of the 90’s” (74321 568712 BMG Ariola). This happens on versions with the CDC3-DH module only.
The problem can be solved by changing capacitor 2820 from 180pF to 330pF or adding a capacitor of 150pF in parallel to resistor 2820.
REMARKS : The CDC3-DH module can be identified by the printed board
codenumber “3104 113 3109”, located on both sides of the CDC3-board.
3551IRIS CODE
8272IRIS CODE
Service Newsletter 1998 – Audio Systems 3/4
Page 4
09.08 TYPENUMBER(S): MC135
SYMPTOM :
The set does not work at all.
CURE : One possibility of error is that leads of components on the Pre-amp
board are too long.When the PCB is bent due to mechanical tensions, the leads might touch the metal bracket and short-circuit certain par ts of the electronics.
Take care to cut the leads of replaced components as shor t as possible.
REMARKS : In course of production the lead cutting machine has been adjusted
for mininum lead-length, and a piece of rubber has been added between the Pre-amp board and the metal bracket.
0151IRIS CODE
Service Newsletter 1998 – Audio Systems 4/4
Page 5
For internal use only PHILIPS
ISSUE PA98.07 (98-12-16)
Published by: Service Depar tment Portable Audio
LINE OF BUSINESS PORTABLE AUDIO
07.01 TYPENUMBER(S): AZ1020
INFORMATION : In course of production, following modifications have been
implemented:
1. Prevent residual images on LCD in tape mode Resistor 3863 changed to 470Ω (4822 116 83883)
2. Improved muting function in tuner search mode Resistor 3400 changed to 4.7kΩ (4822 116 52283)
3. Improved sound quality Capacitors 2301 and 2302 changed to 22nF (4822 121 70619) Resistors 3303 and 3304 changed to 820Ω (4822 116 52231)
REMARKS :
07.02 TYPENUMBER(S): AZ1200, AZ1202 INFORMATION : In order to reduce the distortion of CD-recordings, following
modification has been implemented in production:
1. Resistors 3529 and 3530 changed to 22kΩ (4822 116 52257)
2. Resistors 3578 and 3579 changed to 22kΩ (4822 116 52257)
REMARKS :
07.03 TYPENUMBER(S): AZ2000 INFORMATION : Correction to the mechanical partslist (Exploded View diagram):
The service codenumber of item 444 should read: 4822 442 01499 Cabinet-Top (not for /17) 4822 442 01689 Cabinet-Top (for /17 only)
REMARKS :
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/3
Page 6
07.04 TYPENUMBER(S): AZ7381, AZ7382, AZ7383, AZ7384, AZ7385, AZ7386, AZ7387,
AZ7388, AZ7481, AZ7482, AZ7483
INFORMATION : Due to delivery problems of the 4Mbit DRAM IC, the printed board of
the above mentioned sets had to be changed from “PB2” to “PB2+”. The major difference between these two boards is the number and
size of the DRAMs used:While PB2 is designed for two DRAMs (2x4Mbit max.), PB2+ can only handle one DRAM (1x16Mbit max.).
As a result the ESA buffer of sets with PB2+ will now store 43.2s of music (technical value).The commercial values of 12s for AZ738x resp.25s for AZ748x remain untouched.
PB2+ is alrady known from Mable Platform 5A – AZ7582, AZ7583. For servicing please refer to the following Service Manuals:
Board 12-digit PB-code DRAM Service Manual ––––––––––––––––––––––––––––––––––––––––––––––––––––––– PB2 3103 303 3394.x 7810 + 7811 4822 725 26021 PB2+ 3103 303 3406.x 7811 4822 725 26022
REMARKS : The 12-digit PB-code is located on the component side of the board.
07.05 TYPENUMBER(S): AZ7381, AZ7382, AZ7383, AZ7384, AZ7385, AZ7386, AZ7387,
AZ7388, AZ7481, AZ7482, AZ7483, AZ7582, AZ7583
SYMPTOM :
Ni-Cd battery pack cannot be recharged.

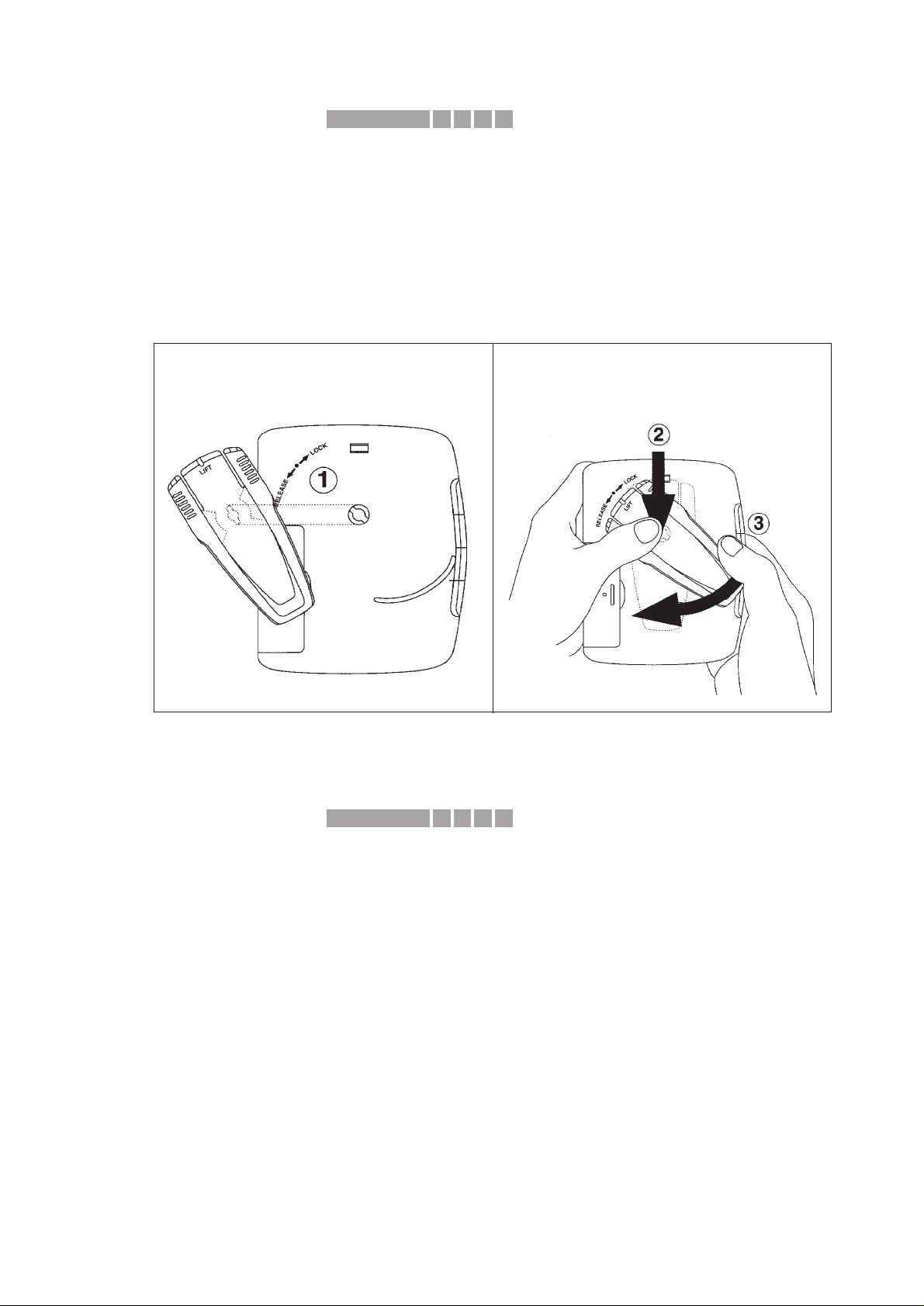

CURE : The ACTUATING PIN-CHARGE (item 431) does not connect properly.
The pin has to be replaced by a modified one – 4822 535 10522.
REMARKS : New part has been used in production from week 9809 onwards.
1212IRIS CODE
Service Newsletter 1998 – Portable Audio 2/3
Page 7
07.06 TYPENUMBER(S): AZ9898
SYMPTOM :
Short batter y lifetime (less than 40 min. with some Alkaline batter ies).
CURE : Short battery lifetime is caused by high internal impedance of some
Alkaline batteries. It can be improved by the following modification:
1. Replace LD09 by a 10Ω resistor (4822 051 30109)
2. Replace MPU IC QM03 by the updated version (4822 209 17367)

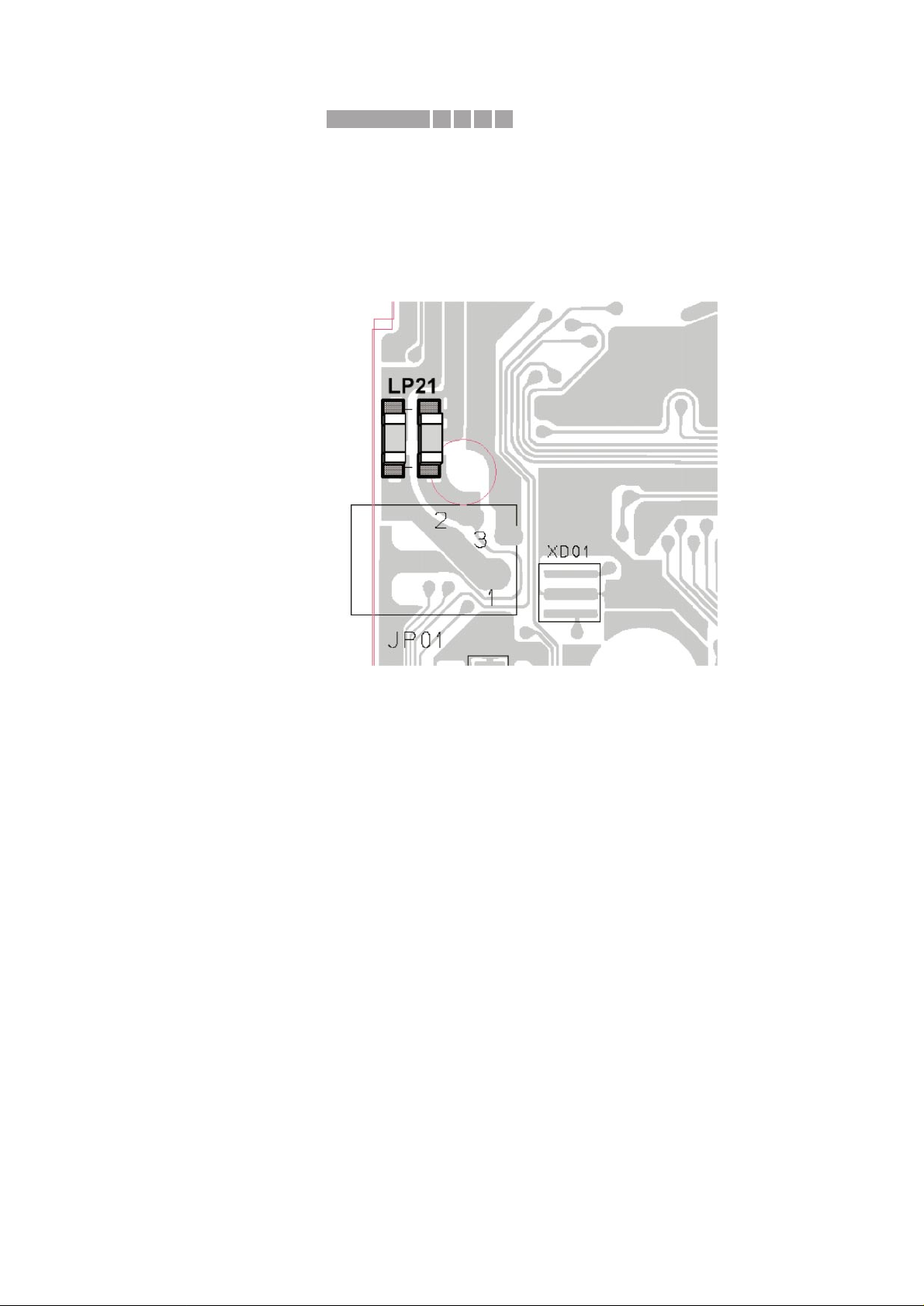

3. Remove filter LP21
4. Add 2 SMD jumpers (4822 051 10008) at posistion LP21
REMARKS : Above modification is implemented in production with production LOT
number “21”, production code “MZ01 xxxx21xxxx” onwards.
711DIRIS CODE
Service Newsletter 1998 – Portable Audio 3/3
Page 8
For internal use only PHILIPS
ISSUE AS98.08 (98-10-30)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
08.01 TYPENUMBER(S): AS660C, AS665C, AS760C, AS765C
INFORMATION : The play button of the tape mechanism can be activated even in
standby mode.If the button is pressed the tape will move, but no sound is audible via the Loudspeakers. This problem can be solved by changing resistor 3510 on Front board from 4,7kΩ to 1kΩ (4822 050 11002).
REMARKS : Above modification has been implemented in production from week
9832 onwards.
08.02 TYPENUMBER(S): CDR538, CDR560, CDR760
SYMPTOM :
Stops recording when connected to CD713, CD723 or CD753 via digital in/out.
CURE : On manual recordings the digital output signal of the above
mentioned CD players is muted for a short time during star t-up. The mute causes a stop of the CDR recorder. The problem can only be solved by a software upgrade for IC7322. Service codenumber reads 4822 900 11306.
REMARKS : The problem does not occur when using the CD-sync function.
New software has been implemented in production from week 9841 onwards. Software program version reads V2.1 (4822 900 11306) and can be applied in CDR538, CDR560 and CDR760 recorders.
165FIRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/6
Page 9
08.03 TYPENUMBER(S): CDR538, CDR560, CDR760, CDR765, FW538
SYMPTOM :
Howling occurs during analog recording from FW538 to one of the above mentioned CDRs when the user has accidentally switched the source of FW538 to AUX.
CURE : The problem is caused by a “closed loop” which is formed via
CDR line-out → FW538 AUX-IN → FW538 line out → CDR line-in. When the REC-level is adjusted to above a certain level howling occurs.This is the same phenomenon as known from recordings via microphone.
There is no other solution available as to advise the customer:
Do not select the AUX-mode on the FW538 during analog recording!
REMARKS : An addendum sheet will be added to the Instruction For Use.
08.04 TYPENUMBER(S): CDR538, CDR560, CDR760, CDR765 INFORMATION : Recording from FW538 (CD-Changer)
Customer is advised to apply the following instructions:
To duplicate a CD via [CD SYNCRO] or [CD SYNC] function
Make sure that the digital connection has been completed. Using the CD SYNCRO button on the CD Recorder it will allow to make a duplicate of the desired CD.
1 Make sure the CDR- or CDRW-disc is absolutely free of scratches
and dust particles.
2 Load the blank CD Recordable (Digital Audio) disc into the
CD Recorder and the original CD into the mini system FW538.
3 Press SOURCE on the CD Recorder to select DIG OPTICAL
mode.
4 Press CD SYNCRO on the CD Recorder.
• CD SYNC, SYNC appears on the display.
• RECORD starts flashing.
• If now DIG starts flashing, the digital connection is incorrect. If DIG remains flashing check if there is an input signal or STOP the CDR-recorder and press OPEN/CLOSE on the CD-changer and start again at step 3.
5 Press PLAY on the mini system to star t recording.
• RECORD stops flashing.
!! Do not change source on the CD Recorder or mini system
during CD Synchro recording.
!! Do not press PAUSE, PREVIOUS, NEXT or SEARCH button
during CD Synchro recording.
When recording is completed, the display will show UPDATE. Customer needs to finalise the recorded disc before he can play it on
a regular (no recording) CD player.
655FIRIS CODE
Service Newsletter 1998 – Audio Systems 2/6
Page 10
To record CD tracks one by one
Make sure that the digital connection has been completed. 1 Make sure the CDR- or CDRW-disc is absolutely free of scratches
and dust particles.
2 Load a blank CD Recordable (Digital Audio) disc into the
CD Recorder and the original CD into the mini system.
3 Press SOURCE on the CD Recorder to select DIG OPTICAL
mode.
4 Press AUTO/MANUAL on the CD Recorder to select AUTO.
• The track numbers are increased automatically.
5 Press PLAY on the mini system FW538.
• This is to verify whether the disc and track are correct.
6 Press PREVIOUS on the mini system FW538.
• It will jump to the beginning of the current track.
7 Press PAUSE on the mini system FW538.
• Playing of the track is temporary interrupted.
8 Press RECORD on the CD Recorder
• WAIT appears on the display
• RECORD starts flashing.
9 Press PLAY on the CD Recorder and the mini system
simultaneously to start recording
• RECORD stops flashing.
10 Press STOP on the CD Recorder and the mini system to
stop recording.
• When recording is completed, the display will show UPDATE.
11 Repeat steps 5 to 10 for new tracks. You need to finalise the recorded disc before you can play it on a
regular (no recording) CD player.
!! Customer can program the track sequence he desires from a
particular disc. Programming of tracks from more than one disc is not advisable.
REMARKS :
Service Newsletter 1998 – Audio Systems 3/6
Page 11
08.05 TYPENUMBER(S): CDR538, CDR560, CDR760, CDR765 INFORMATION : When an external CD player or CD changer is in PAUSE function and
NEXT or PREVIOUS keys are pressed the CDR recorder can get in a recording function which records many tracks on a disc with a muted signal and all tracks are about 3 or 4 seconds long.
In case of recording from CD-changers: To avoid long pauses or a full recorded disc with silence the CD-recorders CDR765, CDR760, CDR560 and CDR538 have a 3 seconds auto stop mode built in. As CD changers most often need more than 3 seconds to start or switch over from one disc to another the muted input signal is recorded and automatically stopped.
To prevent this fault condition the recording has to be executed in the following way:
Recording one disc:
Start recording with the CD-sync function, digitally connected.
Recording a program over more than one disc:
Select the analog input with SOURCE and start recording manually by pushing RECORD & PLAY sequential on the CD-recorder. After that Start playing the CD-changer.
REMARKS :
08.06 TYPENUMBER(S): CDR765
SYMPTOM :
Shocksensitivity CD Player part

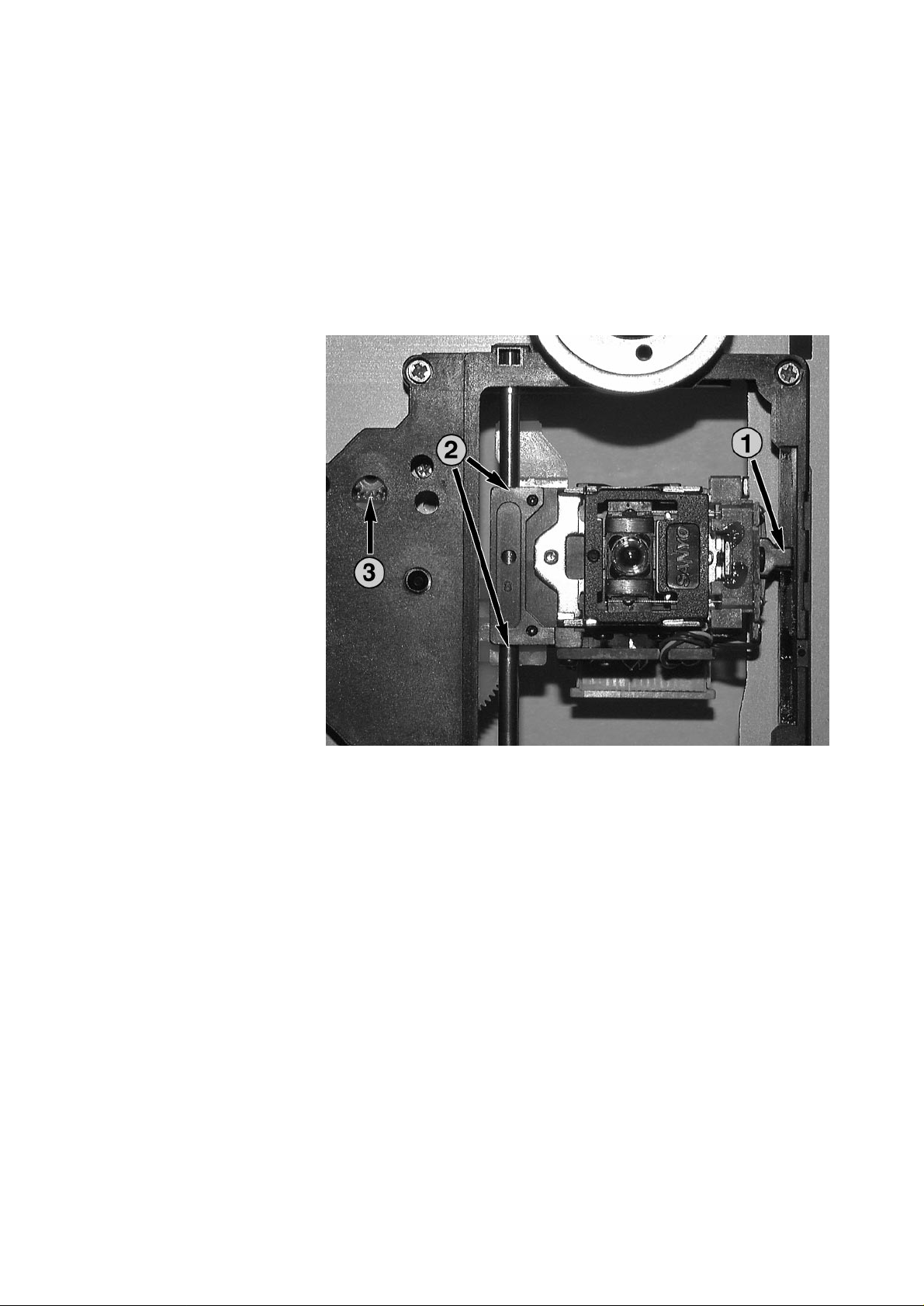

CURE : Under certain conditions it may occur that the CD-Player module is
very sensitive to shocks.This is very annoying in case of recording discs, because this hick-up will be recorded on the new disc. By using several separates composed to a tower it is advised to place the recorder on top of it. If this does not solve the problem the damping grommets of the CDM12.4 (items 42, 43, 44, 45 in the exploded view on page 5-3 of the Service Manual) have to be replaced by 4822 404 10987.
REMARKS : New damping gromments have been implemented in production from
week 9842 onwards.
3557IRIS CODE
Service Newsletter 1998 – Audio Systems 4/6
Page 12
08.07 TYPENUMBER(S): FW306, FW325, FW326, FW52C, FW62C, FW316C, FW318C,
FW338C, FW339C, FW346C, FW356C, FW358C, FW359C
SYMPTOM :

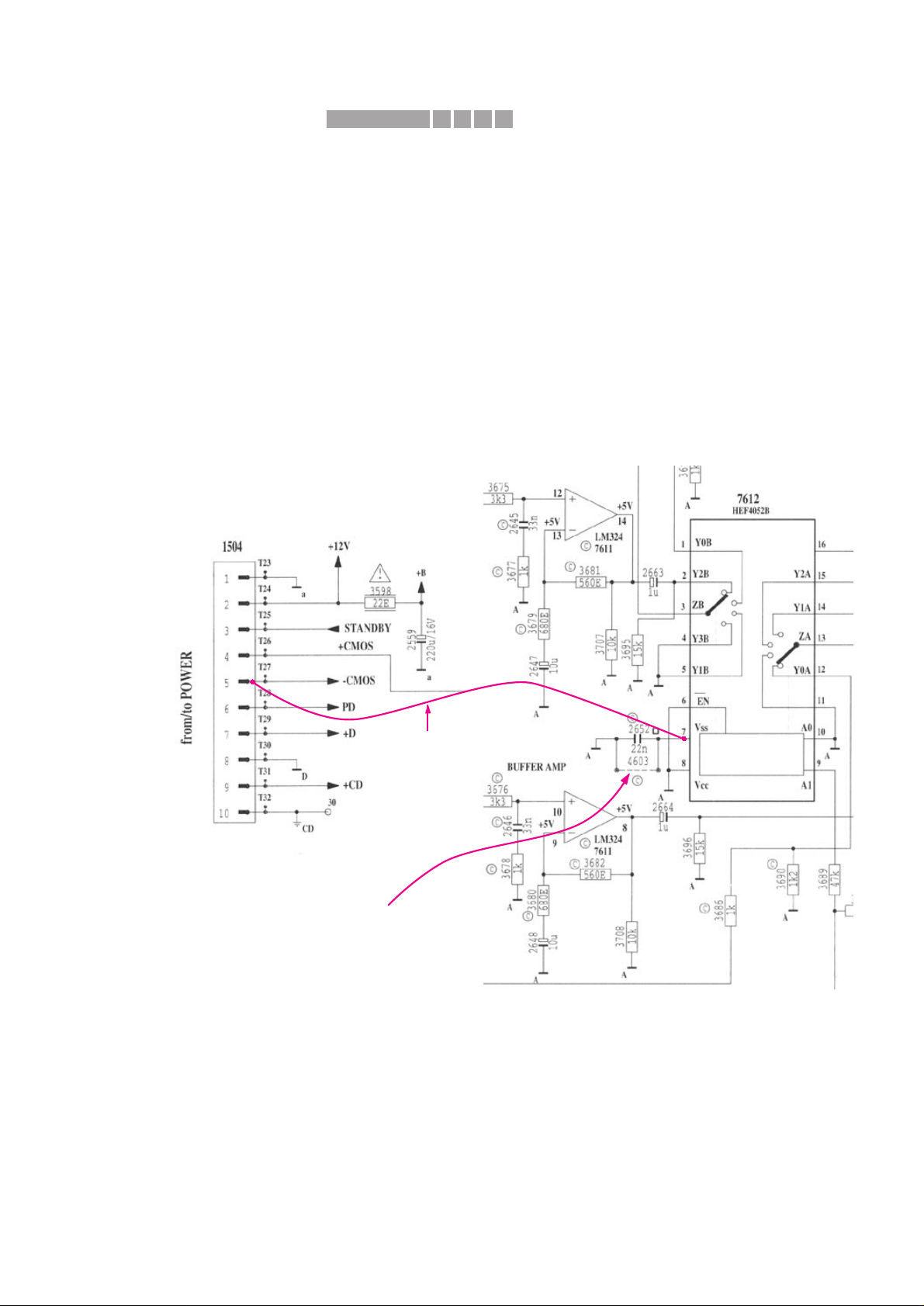

When during High Speed Dubbing (HSD) the volume is adjusted to “MIN”, the set may become muted permanently. In this case the volume control will not operate anymore until the set is unplugged and reconnected to the mains supply.
CURE : The problem can only be solved by a software upgrade of
microprocessor 7401. The service codenumbers for the new processors are as follows: a) 4822 900 11282 for FW52C, FW62C, FW316C, FW318C,
FW338C, FW339C b) 4822 900 11283 for FW306, FW325 and FW326 c) 4822 900 11284 for FW346C, FW356C, FW358C, FW359C
REMARKS :
08.08 TYPENUMBER(S): FW388V INFORMATION : To solve the problem “No Disc” displayed when a disc is loaded,
following components on the Servo board have to be changed: a) change 3867 from 22kΩ to 470kΩ (4822 116 52285) b) replace jumper 9022 with resistor 3880 470Ω (4822 116 83883)
REMARKS : Above modification has been implemented in production from week
9837 onwards.
08.09 TYPENUMBER(S): FW388V INFORMATION : The solve the problem “CD interrupted due to mains failure”, change
elcap 2232 on the Combi board (Power supply part) to 6800µF 20% 25V (4822 124 11581).
REMARKS : Above modification has been implemented in production from week
9838 onwards.
X152IRIS CODE
Service Newsletter 1998 – Audio Systems 5/6
Page 13

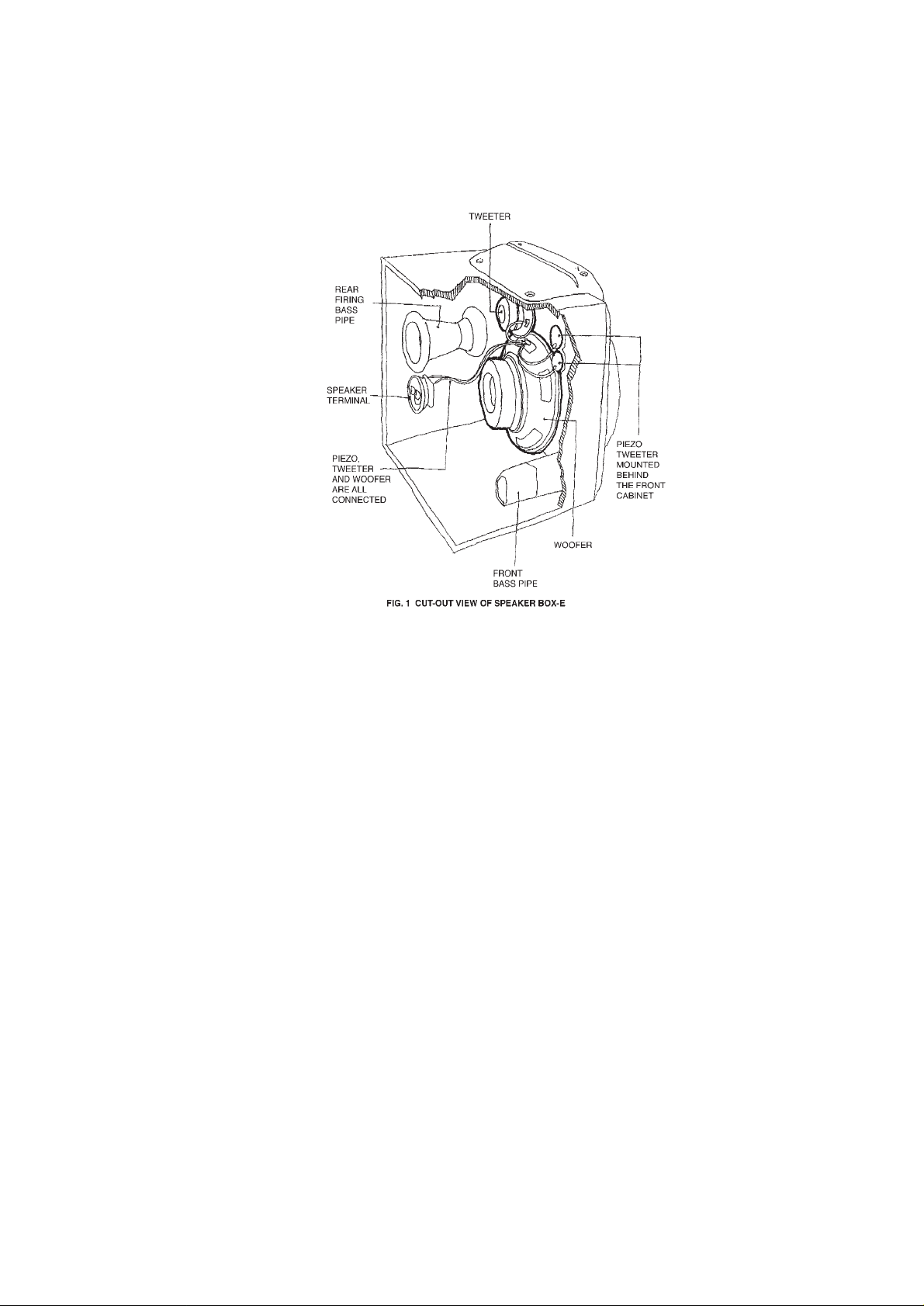

08.10 TYPENUMBER(S): FW570C, FW775P INFORMATION : The 2 tweeters at the upper part of the 4-way Loudspeaker Box are
dummies and for ornamental reasons only. The piezo tweeters are mounted behind the Front cabinet (see fig. 1) instead of the top part. There is no acoustical difference between mounting piezo tweeters on top or on front.
REMARKS :
08.11 TYPENUMBER(S): FW754P, FW765P, FW775P, FW795W INFORMATION : Following modification on the Front Display board will increase the
brightness of the DPL LEDs (NORMAL, PHANTOM, 3 STEREO): Change 3545 from 390Ω to 220Ω (4822 117 11503) Change 3546 from 390Ω to 220Ω (4822 117 11503) Change 3591 from 390Ω to 220Ω (4822 117 11503)
REMARKS : Above modification has been implemented in production from week
9844 onwards.
Service Newsletter 1998 – Audio Systems 6/6
Page 14
For internal use only PHILIPS
ISSUE PA98.06 (98-10-22)
Published by: Service Depar tment Portable Audio
LINE OF BUSINESS PORTABLE AUDIO
06.01 TYPENUMBER(S): AJ3930
SYMPTOM :
Noise is audible when microprocessor IC 7400 has been replaced.
CURE : When IC 7400 has been replaced by the latest software version
(4822 209 32849), the following 2 parts should be added: 2253 4822 121 51387 10nF/16V 20% 6251 4822 130 34173 Zener diode 5.6V
REMARKS : Above mentioned components are located on the CD board.
For details see Service Information A93-584 (4822 725 24559).
06.02 TYPENUMBER(S): AJ3940
SYMPTOM :
Disc clamper is loosen out of CD door.
CURE : The latch which fixes the clamper on the CD Door is out of
specification. Service solution is to add glue onto the latch.
REMARKS : Mould of CD Door has been modified and has been implemented in
production from week 9838 onwards.
06.03 TYPENUMBER(S): AQ6688 INFORMATION : Additional information to Service Manual:
The Cassette Door Assembly 4822 443 11087 includes the following items: 4, 6, 7, 9, 10, 15, 18, 19, 30, 31, 32, E3
REMARKS :
X61AIRIS CODE
145CIRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/4
Page 15
06.04 TYPENUMBER(S): AW7720, AW7730, AW7820 INFORMATION : If the telescopic aerial 4822 303 30423 is not available, it can be
replaced by 4822 303 14065. Mount the new aerial with an M3 hexagonal nut.
REMARKS :
06.05 TYPENUMBER(S): AZ1000, AZ1001, AZ1002 INFORMATION : Correction to Service Information A98-560 (4822 725 26175):
The service codenumber of the CD-Mechanism “CD94V5” should read 4822 691 10776.
REMARKS :
06.06 TYPENUMBER(S): AZ1200, AZ1202, AZ1205
SYMPTOM :
Tuning cord loose because one pulley is loose from its axle.
CURE : The diameter of the centre hole of pulley is 0.2mm larger than the
specification. As a ser vice solution, we suggest to add a fibre washer on the top of pulley and melt the axle with a soldering iron in order to secure the pulley.
REMARKS : The mould of the pulley is modified and implemented in production
from week 9839 onwards.
06.07 TYPENUMBER(S): AZ1208, AZ1209
SYMPTOM :
Remote control does not work when battery voltage is low.
CURE : Change resistor 3452 on front board from 220Ω to 33Ω
(4822 116 52191).
REMARKS : Modification is implemented in production from week 9836 onwards.
06.08 TYPENUMBER(S): AZ2407 INFORMATION : In course of production, resistor 3452 has been changed from 220Ω
to 33Ω (4822 116 52191). Reason: Improve sensitivity of remote control at battery low condition.
REMARKS :
4512IRIS CODE
X61AIRIS CODE
Service Newsletter 1998 – Portable Audio 2/4
Page 16
06.09 TYPENUMBER(S): AZ726x, AZ727x, AZ736x, AZ737x, AZ746x, AZ747x, AZ756x,
AZ757x
INFORMATION : A survey of available service codenumbers for “Battery Door” and
“Door Hinge” is given below:
REMARKS :
06.10 TYPENUMBER(S): AZ7381, AZ7382, AZ7383, AZ7481, AZ7482, AZ7483 INFORMATION : Two different printed boards have been used in these models.
“PB3”: Assembled with combined headphone/RC-socket “PB2”: Assembled with standard headphone-socket As the headphone sockets differ in diameter (6.6mm vs. 6mm), different cabinet/bottom parts are in use. The spare parts are delivered with 6mm hole only. For older sets the hole has to be enlarged manually.
REMARKS : PB2 is used in sets with factory change code KT02 onwards.
ROODYRETTABEGNIHROODRUOLOCSLEDOM
791013442284ylbmessa
YERGKRAD
30RS
7647ZA,6647ZA,3647ZA,6637ZA
632013442284ylbmessaKCALBSPILIHP
,5627ZA,3627ZA,1627ZA,0627ZA ,1637ZA,0637ZA,8627ZA,6627ZA ,2647ZA,1647ZA,0647ZA,3637ZA
4647ZA
59101344228474311714228420RSYERG5647ZA,5637ZA,2637ZA
703013442284ylbmessa
NWORBSPILIHP
300
7627ZA,4627ZA,2627ZA
975013442284843117142284YERGDERKRAD5657ZA
185013442284743117142284KCALBLRAEP
,5727ZA,4727ZA,2727ZA,1727ZA ,8637ZA,7337ZA,3337ZA,8727ZA ,2657ZA,4747ZA,3547ZA,2737ZA
6757ZA,6657ZA
156013442284343117142284
EULBKRAD
YERG
6747ZA,7547ZA,6737ZA
805013443384ylbmessaREVLISS../5647ZA,S../2657ZA,3347ZA
137013442284653117142284)075PS(REVLIS51DC
766013442284453117142284EULBB../6647ZA,3447ZA 586013442284986013442284NEERGG../6647ZA
708013442284ylbmessaREVLISS../6647ZA
196013442284496013442284WOLLEYLRAEPL../6647ZA
298013442284ylbmessaETIHWLRAEP1337ZA
Service Newsletter 1998 – Portable Audio 3/4
Page 17
06.11 TYPENUMBER(S): AZ8262, AZ8267 INFORMATION : Correction to Newsletter PA97.05.06:
4822 459 04783 is not the Front Cabinet of AZ8262 and AZ8267. There is no Front Cabinet available for AZ8262 and AZ8267.
REMARKS:
Service Newsletter 1998 – Portable Audio 4/4
Page 18
For internal use only PHILIPS
ISSUE AS98.07 (98-09-08)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
07.01 TYPENUMBER(S): GENERAL
SYMPTOM :
Various failures disappear when the set is opened or when connectors are reconnected – see Service Newsletter AS97.03.02.
CURE : Replacement of connector wires as given in Service Newsletter
AS97.03.02.
REMARKS : Reliability of EH-type connector was bad due to wrong material used
in the connector. 3 main actions were taken at the production centers from production week 9830 onwards:
1. Mater ial Phosphor Bronze is used for the connector
2. Split length of the wires has been increased from 20mm to 35mm in order to improve the flexibility of the wire
3. Training of operators on proper insertion and removal of connectors
07.02 TYPENUMBER(S): AS440/xxG, AS445/xxG, AS540/xxG INFORMATION : Correction to Service Manuals 4822 725 24929 and 4822 725 24936.
On page 74 the service codenumbers for the button sets of the tape decks are mixed up. Correct is:
pos. codenumber description –––––––––––––––––––––––––––––––––––––– 426 4822 410 62619 Button set deck B 431 4822 410 62621 Button set deck A
REMARKS :
07.03 TYPENUMBER(S): AS785C/41 INFORMATION : From production week 9836 onwards, the Instruction For Use has
been changed to 4822 736 16482.
REMARKS :
X312IRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/3
Page 19
07.04 TYPENUMBER(S): CDC751/17B INFORMATION : From production week 9840 onwards, the mains cord has been
changed from 4822 321 10849 to 4822 321 11464. Reason: Meet the new UL requirement for USA/Canada, valid from December 1998 onwards.
REMARKS :
07.05 TYPENUMBER(S): FW48/37, FW340C/37, FW315/37, FW345/37, FB209W/17 INFORMATION : From production week 9840 onwards, the mains cord has been
changed from 4822 321 10882 to 4822 321 11466. Reason: Meet the new UL requirement for USA/Canada, valid from December 1998 onwards.
REMARKS :
07.06 TYPENUMBER(S): FW52C, FW62C, FW72C, FW316C, FW318C, FW338C, FW339C,
FW346C, FW356C, FW358C, FW359C, FW510C, FW520C, FW530C, FW535C, FW538, FW550C, FW560C, FW570C, FW575C, FW710C, FW725C, FW730C, FW745C, FW750C, FW754P, FW755P, FW765P, FW770P, FW775P, FW780P, FW790P, FW795W, FW850C, FW855C, FW860P, FW880P, FW880W
INFORMATION : During production (around July 1998), elcap 2891 on the CD main
board has been changed from 10µF to 22µF (4822 124 81152). Reason: Avoid distorted sound during the initial 200 - 300 milliseconds after starting the disc.
Service Test Program – Service Play Test Due to the changed delay time, error codes like E1003 & E1011 might also be displayed on some good sets.This is caused by the test software which checks the status of the inner switch after certain milliseconds.
REMARKS : The Service Test Program will be adapted in the next software mask.
07.07 TYPENUMBER(S): FW355C
INFORMATION :

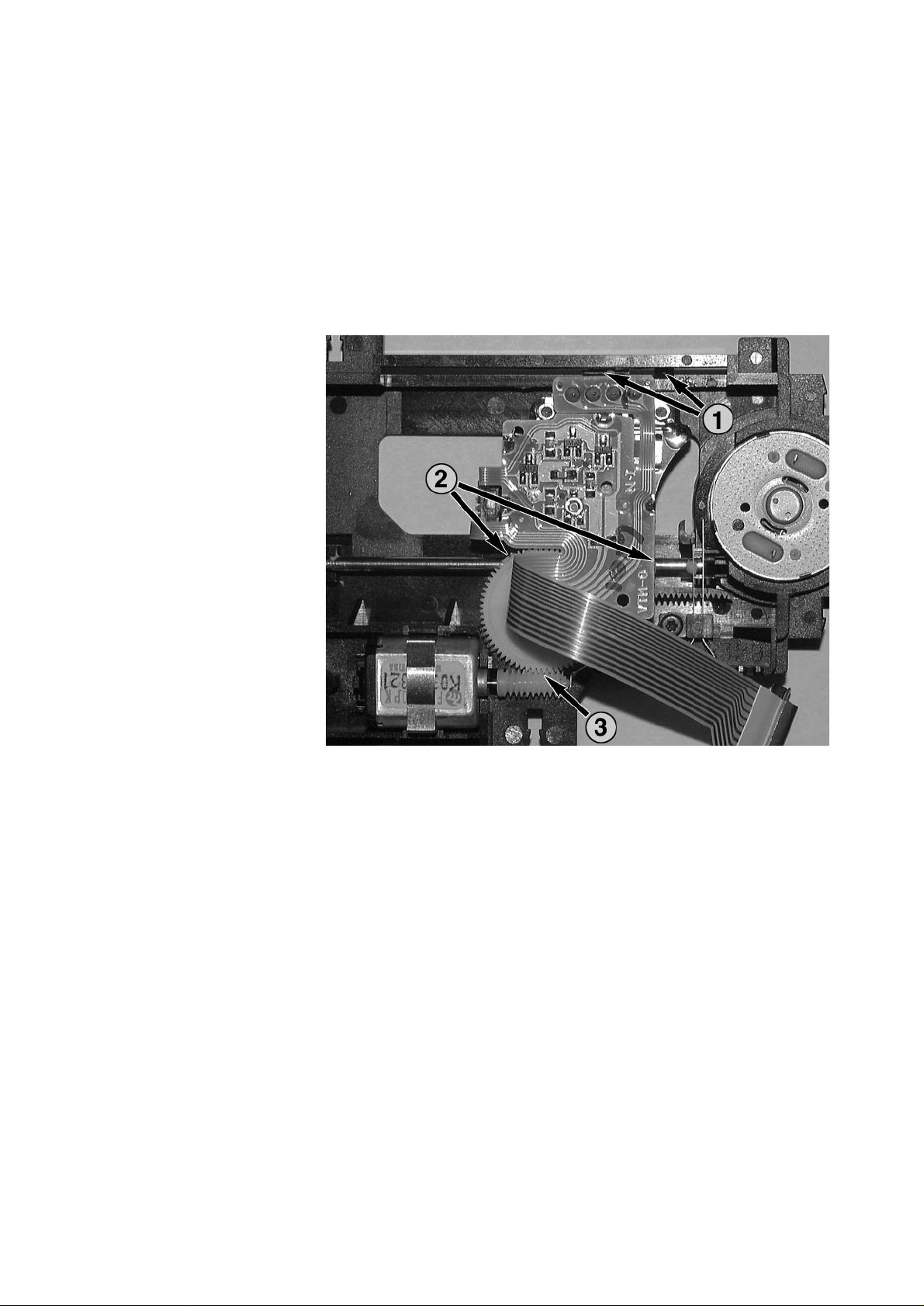

CD stops playing after some time due to a defective laser diode. The failure is most probably caused by ESD damage.
As preventive action additional ESD measures (storage, handling and packaging) have been implemented on the production floor in weeks 9813 to 9827.
REMARKS :
5753IRIS CODE
Service Newsletter 1998 – Audio Systems 2/3
Page 20
07.08 TYPENUMBER(S): FW375P/37, FW385P/37 INFORMATION : Correction to the Service Manual, Power 4 Module
The service codenumber for the Rucksack for 4 Loudspeaker terminals (Matrix Surround) reads 4822 426 10608.
REMARKS :
07.09 TYPENUMBER(S): FW725C, FW730C
SYMPTOM :
Transformer hum is too high.
CURE : Hum is due to high exciting current of about 95mA.
Improved mains transformer (item 1008) of less than 85mA exciting current has been introduced from week 9810 onwards.It can be recognized by the week code on the top of the mains transformer body.
REMARKS :
07.10 TYPENUMBER(S): FW725C, FW730C
SYMPTOM :
Mains transformer 38V coil is defective.
CURE : Unintentional bending of pin 9 and 10 causes the wire to break
because the wires are wound too tight around the pins. Process improvement has been introduced by the supplier from week
9810 onwards. Improved transformer can be recognized by the week code on the top of the transformer body.
REMARKS :
07.11 TYPENUMBER(S): FW730V INFORMATION : Correction to the Mechanical partslist:
The service codenumber for pos 239 should read 4822 442 00845.
REMARKS :
X111IRIS CODE
1451IRIS CODE
Service Newsletter 1998 – Audio Systems 3/3
Page 21
For internal use only PHILIPS
ISSUE PA98.05 (98-08-31)
Published by: Service Depar tment Portable Audio
LINE OF BUSINESS PORTABLE AUDIO
05.01 TYPENUMBER(S): AJ3940
INFORMATION : Correction to the Electrical Partslist:
The Service codenumber of the Voltage Selector for /01 version should read 4822 272 10366.
REMARKS :
05.02 TYPENUMBER(S): AZ1412, AZ1518
SYMPTOM :
After switching the set ON, the “POP” indicator is activated, but there is no “POP” sound effect.
CURE : The problem is caused by a software bug.

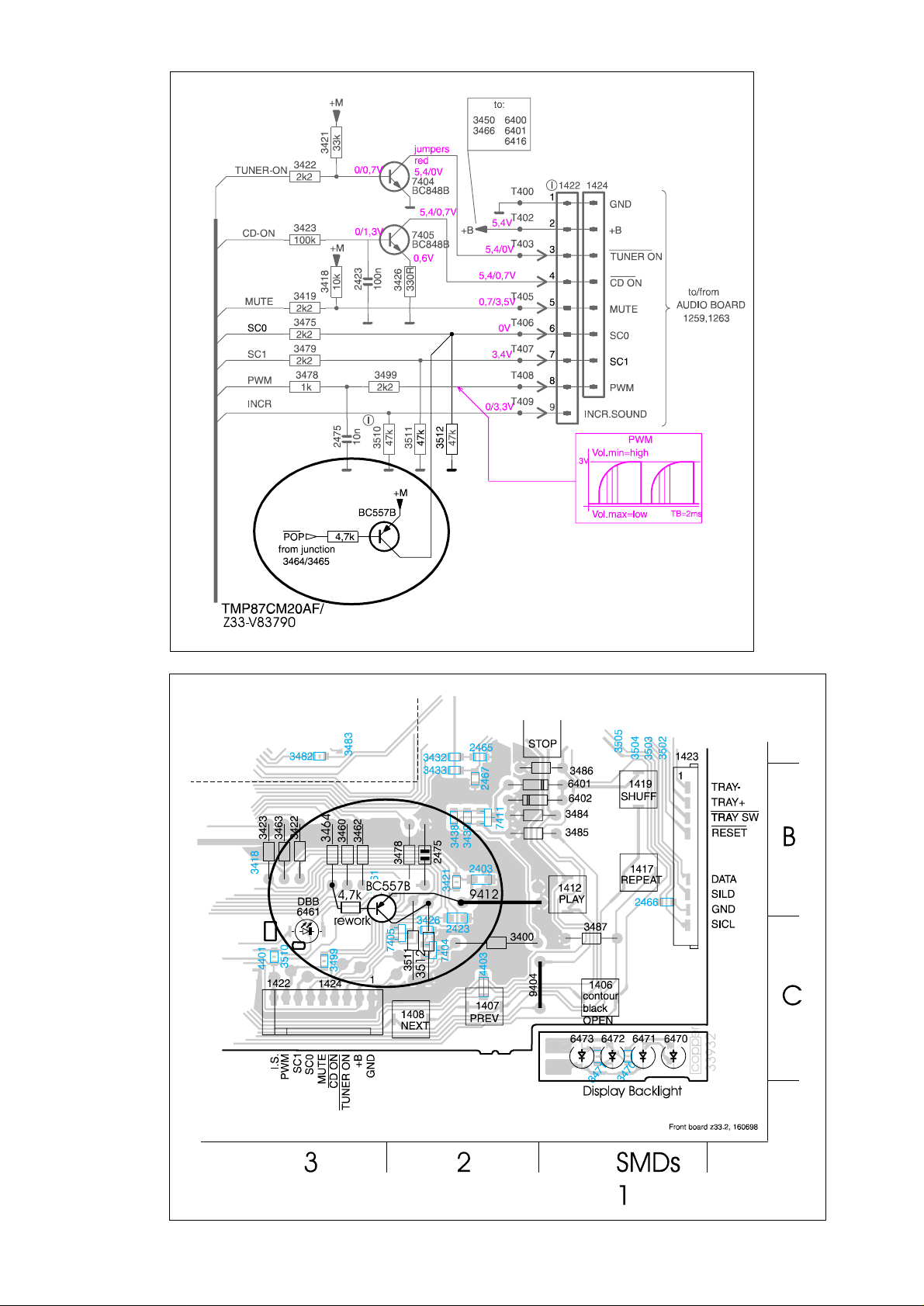

There are two solutions available: Shor
t term (service) solution: Add a transistor BC557C (4822 130 42231) and a resistor 4.7kΩ (4822 116 52283). Connect the collector (C) of BC557B to the junction of 3512 and 3475, the emitter (E) to +M and the base (B) via a 4.7kΩ resistor to junction of 3464 and 3465. For details on this rework, see circuit and layout diagram below.
Long term solution: Replace microprocessor IC 7400 by 4822 209 17228.
REMARKS : Short ter m solution has been implemented in production from week
9830 onwards. New microprocessors will be used from week 9842 onwards.
5756IRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/4
Page 22

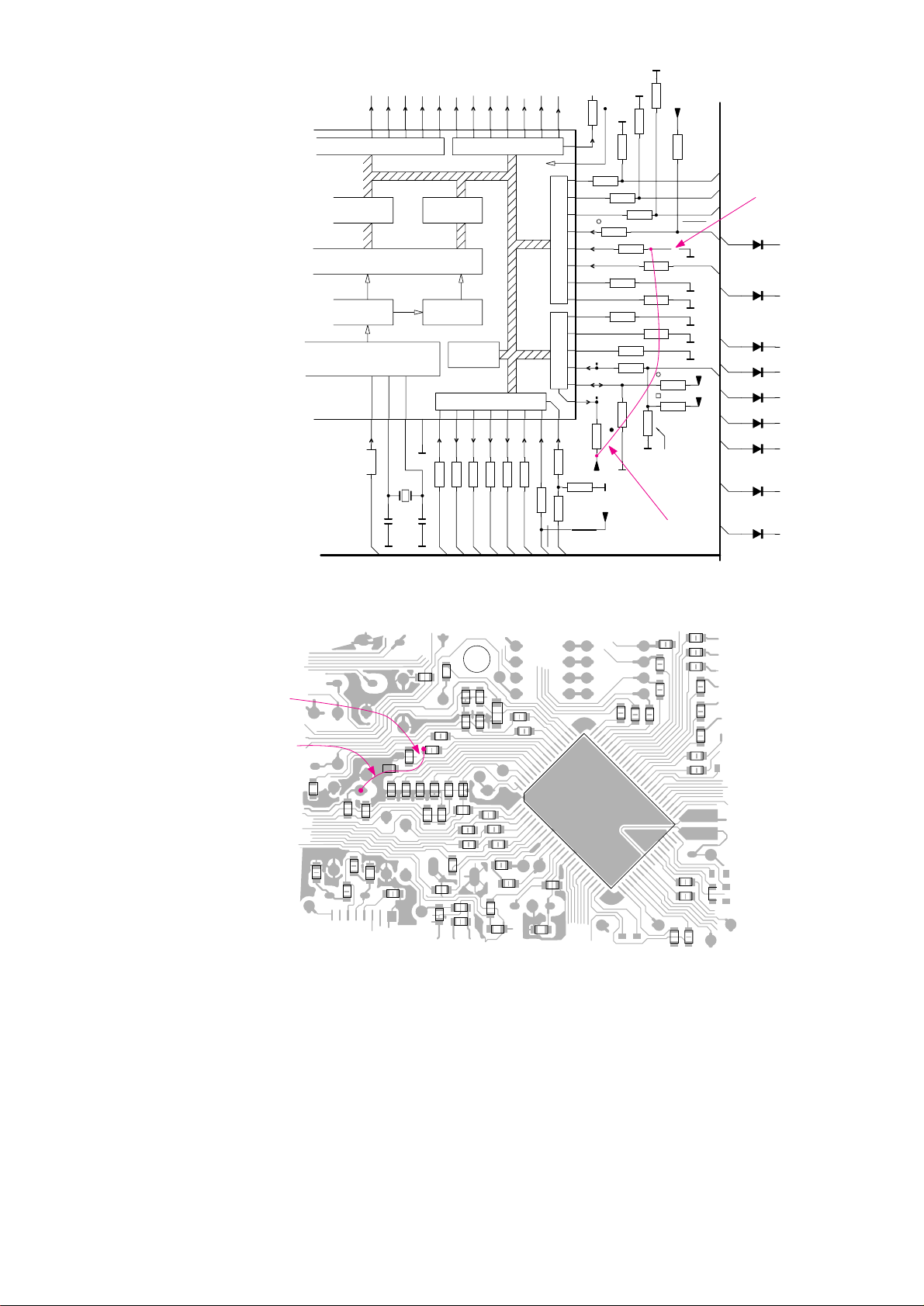

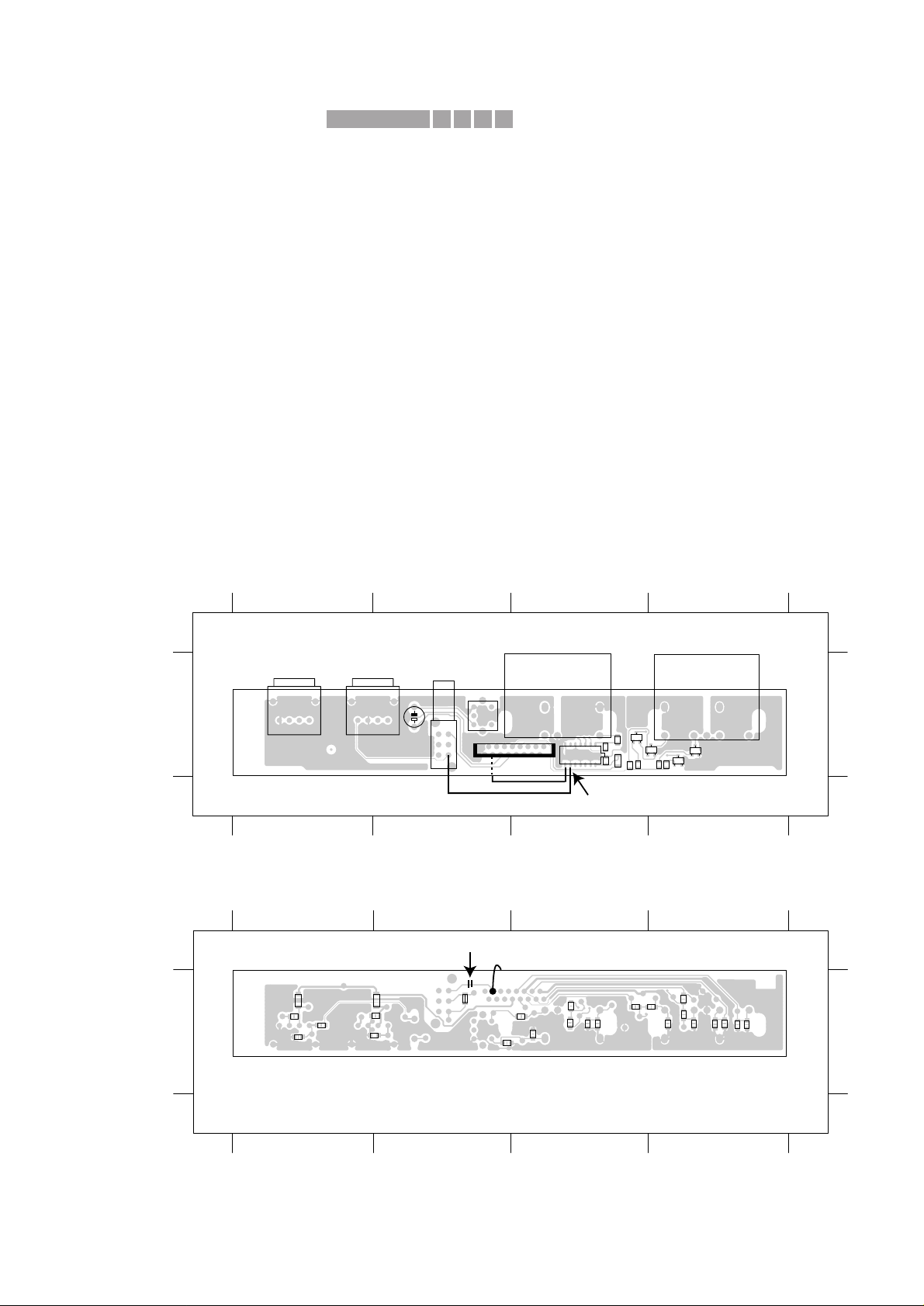

Front board, Copperside view
Service Newsletter 1998 – Portable Audio 2/4
Page 23
05.03 TYPENUMBER(S): AZ2000 INFORMATION : Correction to the Electrical Partslist:
Item 2304 (22nF) on the Combi Board should be a polyester film capacitor.Service codenumber is 4822 121 70619.
REMARKS :
05.04 TYPENUMBER(S) AZ2700, AZ2710, AZ2725 INFORMATION : Strong pressure applied on the edges can loosen the Cassette Door.
To improve this behaviour two metal brackets have been added to protect the hinges. For details see diagram below.
REMARKS : The modification has been implemented in production from week
9836 onwards.
Service Newsletter 1998 – Portable Audio 3/4
Page 24
05.05 TYPENUMBER(S): AZ8310, ND7500, RD7050 INFORMATION : The Handle Bracket Left (pos. 34, 4822 498 10501) is no longer
available as service spare par t. We suggest to use Handle Bracket Right (pos. 36, 4822 498 10502) as a substitute. The stopper end has to be cut as shown in the diagram below.
REMARKS :
CUT
Service Newsletter 1998 – Portable Audio 4/4
Page 25
For internal use only PHILIPS
ISSUE AS98.06 (98-07-24)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
06.01 TYPENUMBER(S): 70FW2019
INFORMATION : Correction to the Service Manual, Accessories page 4.
Below mentioned codenumbers refer to the “flat cables for the system connectors” and not to the “connectors” itself, as stated in the maual.
Service code Description –––––––––––––––––––––––––––––––––––––––––––– 4822 267 31371 flat cable for system connector 1 4822 267 31372 flat cable for system connector 2 4822 267 31373 flat cable for system connector 3
REMARKS :
06.02 TYPENUMBER(S): AS660C, AS665C, AS670C, AS675C, AS760C, AS765C, AS780C,
AS785C, FW48, FW58, FW315C, FW322C, FW332, FW335, FW340C, FW342C, FW345C, FW352C, FW355C, FW361C, FW365C, FW375P, FW385P, FW391C
INFORMATION : Following spare parts for the tape mechanism have been added:
pos. Ser vice code Description –––––––––––––––––––––––––––––––––––––– 61 4822 528 11275 Flywheel assembly 62 4822 532 13047 Washer
REMARKS :
06.03 TYPENUMBER(S): AS670C, AS675C, AS780C, AS785C INFORMATION : In order to deactivate the DBB LED in OFF mode, change resistor
3525 from 33kΩ to 10kΩ 5% 0,5W 4822 116 83864.
REMARKS :
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/4
Page 26
06.04 TYPENUMBER(S): CD887V INFORMATION : Correction to the parts list:
Servo Board: Cap 2843 should be 4822 122 33848 47pF 5% 50V instead of 22pF Cap 2845 4822 122 33195 100pF 10% 50V is added (missing) Cap 2856 and 2857 are deleted (not required)
MPEG Board: The service codenumber for the complete MPEG Board is 4822 214 12851.
REMARKS :
06.05 TYPENUMBER(S): CDR870 INFORMATION : Correction to the Service Manual, Service tools page 10.
The service codenumber for the maximum diameter disc (58.0mm) should read 4822 397 60141 instead of 4822 397 30144.
REMARKS :
06.06 TYPENUMBER(S): FW316C/21/21M INFORMATION : The service codenumber for the Instruction For Use should read
4822 736 16179 instead of 3139 116 18140.
REMARKS :
06.07 TYPENUMBER(S): FW332
SYMPTOM :
When using the remote control, the set sometimes switches to tuner mode (i.e. pressing NEXT in CD mode).
CURE : The problem is caused by the controller inside the remote control and
occurs whenever 2 buttons are pressed simultaneously. The only solution is to replace the original remote control by another type, i.e. RC07801 (4822 219 10181).
REMARKS :
2511IRIS CODE
Service Newsletter 1998 – Audio Systems 2/4
Page 27
06.08 TYPENUMBER(S): FW392C
SYMPTOM :
The CD tray opens at any of the undermentioned conditions:
• switching on the set
• starting the FM radio
• changing of input selection
CURE : The problem is caused by a software bug and can be solved by a
software upgrade.New microprocessors are available under service codenumber 4822 900 11254.
REMARKS :
06.09 TYPENUMBER(S): FR732, FR752
SYMPTOM :
The set reacts on remote control of other equipment.
CURE : The problem is caused by a software bug and can be solved by a
software upgrade.New microprocessors (OTP) are available under service codenumber 4822 209 16956.
REMARKS : Above service solution will not be implemented in production.
06.10 TYPENUMBER(S): FW780P, FW783P, FW788P INFORMATION : Correction to the Service Manual, Specification chapter 1-3.
The power consumption for above mentioned sets is given as follows: < 2W at power off for /22 < 16W at standby, FTD on (other versions) < 80W at 1/8 rated power out
REMARKS :
2511IRIS CODE
X762IRIS CODE
Service Newsletter 1998 – Audio Systems 3/4
Page 28
06.11 TYPENUMBER(S): FW790P/22
SYMPTOM :
The set switches to DEMO Mode intermittently, when
• changing from CD to Tuner mode by remote control
• switching to Standby and then back to Tuner mode
CURE : The problem is caused by mains supply interruptions, which can lead
to a system reset. It can be solved by adding a 1000µF 6,3V elcap on the copper side across wire jumper 9509 (+H) and 9577 (GND). For details see drawing below.
REMARKS :
06.12 TYPENUMBER(S): MX900
SYMPTOM :
Audio Output IC TDA7262 gets damaged frequently due to over-voltage of the mains (higher than 240V) at some places.
CURE : Besides the replacement of IC TDA7262 with service codenumber
4822 209 15422, it is recommended to replace also the power transformer with new service codenumber 4822 146 11034.
REMARKS : The new power transformer 4822 146 11034 is for service purpose
only, as production of the set has already been stopped.
0151IRIS CODE
-30V
+5V6
GND D
F1
F2
D
D
D
D
D
2424
4u7
2448
4u7
680R
3536
4410
12 13
15
14
16
1
T026
1
T027
1
T029
1
T030
1
T031
T032
T028
+G
F2
F1
-30V
+F
+H
5V6
+K
2423
100u
2421
100u
6412
1N4148
6402
1N4148
6401
1N4002
6449
1N4148
2u2
5403
5V
5V
5V
5V
5.6V
TUNER
CD
TAPE
A
K
A
K
A
K
9628
6428
1451
2423
6401
6402
6451
9577
9600
9610
9542
9543
9544
9546
9548
9557
9562
9585
6454
9509
9519
9520
9541
6452
6427
1450
2446
9597
1455
6449
9621
9547
9568
7436
6429
1462
1000uF 6,3V
1000uF 6,3V
X112IRIS CODE
Service Newsletter 1998 – Audio Systems 4/4
Page 29
For internal use only PHILIPS
ISSUE PA98.04 (98-07-24)
Published by: Service Depar tment LOBPA Hong Kong
LINE OF BUSINESS PORTABLE AUDIO
04.01 TYPENUMBER(S): AJ3925
INFORMATION : Following parts are changed from production start onwards to
improve distortion and amplification reserve: Capacitor 2210 and 2213 are changed to 4.7nF (4822 126 11714)
Resistor 3201 and 3204 are changed to 6.8kΩ (4822 116 83961)
3202 and 3205 are changed to 27kΩ (4822 116 52264) 3221 and 3222 are changed to 18kΩ (4822 116 52251)
REMARKS : Changes are applied to sets of new generation with production code
“KT-02” only.
04.02 TYPENUMBER(S): AJ3940 INFORMATION : Correction to the Instruction Fof Use:
To set WEEKEND SLEEPER, only following steps are necesary:
1. Select the alar m you wish to deactivate by pressing the ALM 1 or 2 button.Within 5 seconds the display shows the set alarm time. Br iefly press the WEEKEND SLEEPER once.
→ If the weekend sleeper is activated, zz will appear in the display
for ALARM 1 or 2.
2. To cancel the weekend sleeper function, repeat step 1 until zz no longer appears in the display.
REMARKS : Errata sheet will be inserted from week 9831 onwards.
The IFU will also be updated.
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/3
Page 30
04.03 TYPENUMBER(S): AQ6485, AQ6581, AQ6585, AQ6681
SYMPTOM :
The Belt Clip is broken.
CURE : The belt clip will be broken if it is not properly pressed into the
mounting hole on the rear cabinet before turning to LOCK position. The Belt Clip is available via service codenumber 4822 401 11734.
REMARKS : An addendum sheet with diagrams showing how to fix the Belt Clip
was added to the set from week 9815 onwards.The belt Clip has also been modified (dimple added and letter “PUSH” engraved).
1. Align clip with hole 2. Press down....
3. and tur n clip
04.04 TYPENUMBER(S): AZ2000
SYMPTOM :
Pop noise is audible when Cassette buttons are pressed.
CURE : The problem can be solved by the following modification:
Change 3302 from 4.7kΩ to 5.6kΩ (4822 116 52289) Change 3312 from 1kΩ to 8.2kΩ (4822 116 52303) Add Cap.100µF/10V (4822 124 42446) connected (+) from base of 7263 and (-) to ground.
REMARKS : Modification is implemented in production from week 9828 onwards.
4452IRIS CODE
X612IRIS CODE
Service Newsletter 1998 – Portable Audio 2/3
Page 31
04.05 TYPENUMBER(S): AZ2000 INFORMATION : Resistor 3575 is replaced by a jumper REMARKS : Change is implemented from production start onwards.
04.06 TYPENUMBER(S): AZ2402, AZ2407 INFORMATION : The Electrical partslist of ECO5 Tuner board is missing.
It is given in following Service Informations: A98-562 4822 725 26185 for AZ2407 A98-563 4822 725 26186 for AZ2402
Following service codenumber is also missing in the Electrical partslist: IC 7400 4822 209 16661 TMP87C22-AZ2402
REMARKS :
04.07 TYPENUMBER(S): CD6660, D6560 INFORMATION : Correction to the Mechanical partslist:
The service codenumber of item 74 (Eject Hook on the Tape Deck) should read 4822 403 30792.
REMARKS :
Service Newsletter 1998 – Portable Audio 3/3
Page 32
For internal use only PHILIPS
ISSUE PA98.03 (98-06-19)
Published by: Service Depar tment LOBPA Hong Kong
LINE OF BUSINESS PORTABLE AUDIO
03.01 TYPENUMBER(S): AJ3920, AJ3925
SYMPTOM :
Noise is audible in stand-by mode.
CURE : Additional to newsletter issue PA98.01.01:
In order to improve the distortion at maximum volume, capacitors items 2210 and 2213 are changed to 4.7nF (4822 126 11714).
REMARKS :
03.02 TYPENUMBER(S): AJ3925 INFORMATION : From May 1998 onwards, the new CD board “CD97 MK2” and new
CD-drive “CD94V5” are used. For the new generation a new Service Manual 4822 725 26193 will be published.
REMARKS : The production change code of the new generation is “KT02”.
03.03 TYPENUMBER(S): AZ1111 INFORMATION : Correction to mechanical partslist:
The service codenumber of the Tuning Knob (pos. 407) should read 4822 410 11843.
REMARKS :
03.04 TYPENUMBER(S): AZ1202, AZ1207, AZ1209
SYMPTOM :
CD does not function. CURE : The copper track at capacitor item 2836 peels off. REMARKS : Capacitor 2836 is fixed by glue from production week 9819 onwards.
X151IRIS CODE
045HIRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/3
Page 33
03.05 TYPENUMBER(S): AZ1203, AZ1208, AZ1209 INFORMATION : Correction to electrical partslist:
On the Front board, the service codenumber of IC 7400 was changed to 4822 209 16811. 4822 209 15839 can still be used except for /14 versions.
REMARKS :
03.06 TYPENUMBER(S): AZ1205 INFORMATION Correction to mechanical partslist:
The service codenumber of the Tray-CD (pos. 437) should read 4822 418 10352.
REMARKS :
03.07 TYPENUMBER(S): AZ1302, AZ1307, AZ1308, AZ1402, AZ1407, AZ1508 INFORMATION : Correction to mechanical partslist:
In the Exploded view diagram of the tape transport, the service codenumber of the Eject Hook (pos. 74) should read 4822 403 70968.
REMARKS :
03.08 TYPENUMBER(S): AZ2415 INFORMATION : Correction to mechanical partslist:
The service codenumber of the Battery Spr ing (pos. 443) should read 4822 492 11566.
REMARKS :
03.09 TYPENUMBER(S): AZ8051 INFORMATION : Correction to mechanical partslist:
The service codenumber of the Ornamental Foils of blue versions are wrongly stated.They should read: 4822 466 10744 FOIL ORNAMENTAL, LEFT 4822 466 10743 FOIL ORNAMENTAL, RIGHT
REMARKS :
03.10 TYPENUMBER(S): AZ8055, AZ8056, AZ8057, AZ8068, AZ8075 INFORMATION : The following mechanical part is now available.
pos. 522 4822 410 11912 Volume Up/Down Button
REMARKS :
Service Newsletter 1998 – Portable Audio 2/3
Page 34
03.11 TYPENUMBER(S): AZ8262, AZ8267, AZ8289 INFORMATION : The following mechanical parts are now available.
pos. 522 4822 410 11912 Volume Up/Down Button pos. 523 4822 410 11913 Tuning Up/Down Button
REMARKS :
Service Newsletter 1998 – Portable Audio 3/3
Page 35
For internal use only PHILIPS
ISSUE PA98.02 (98-05-20)
Published by: Service Depar tment LOBPA Hong Kong
LINE OF BUSINESS PORTABLE AUDIO
In this special edition of the Service Newsletter Audio, instructions for lens cleaning and lubrication of various CD-drives are given.The drives have been spitted-up into two groups:
GROUP A : 4822 691 30278 CDM12.1
4822 691 30359 CDM12.3BL 4822 691 10487 CDM12.3BLC 4822 691 10615 VAM1201 4822 691 10665 VAM2103
GROUP B : 4822 691 30319 CD90V1Q
4822 691 10535 CD93V4 4822 691 10654 CD94V5T1
WARNING !
PRINCIPLE: AVOID CLEANING THE LENS !
Cleaning the lens is not completely harmless. Only if the lens is obviously polluted with
fingerprints or soild, it can be cleaned with a cleaning solvent.
The objective lens of the CD-mechanism is an optical component that is exposed to the
environment. It is clear that the environment of a Juke-Box application is not comparable with
normal home use. Permanent dust, steam or nicotine from cigarette smoke will
(sooner or later) soil the lens and influence the playability of the system –
Cleaning of the lens becomes necessary.
Analysis of exchanged CD-drives has shown, that in a considerable quantity of drives the
malfunctions were caused by dirty lens. Before replacing a CD-drive it is therefore
recommended to clean the lens and check the functionality of the system again.
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/4
Page 36

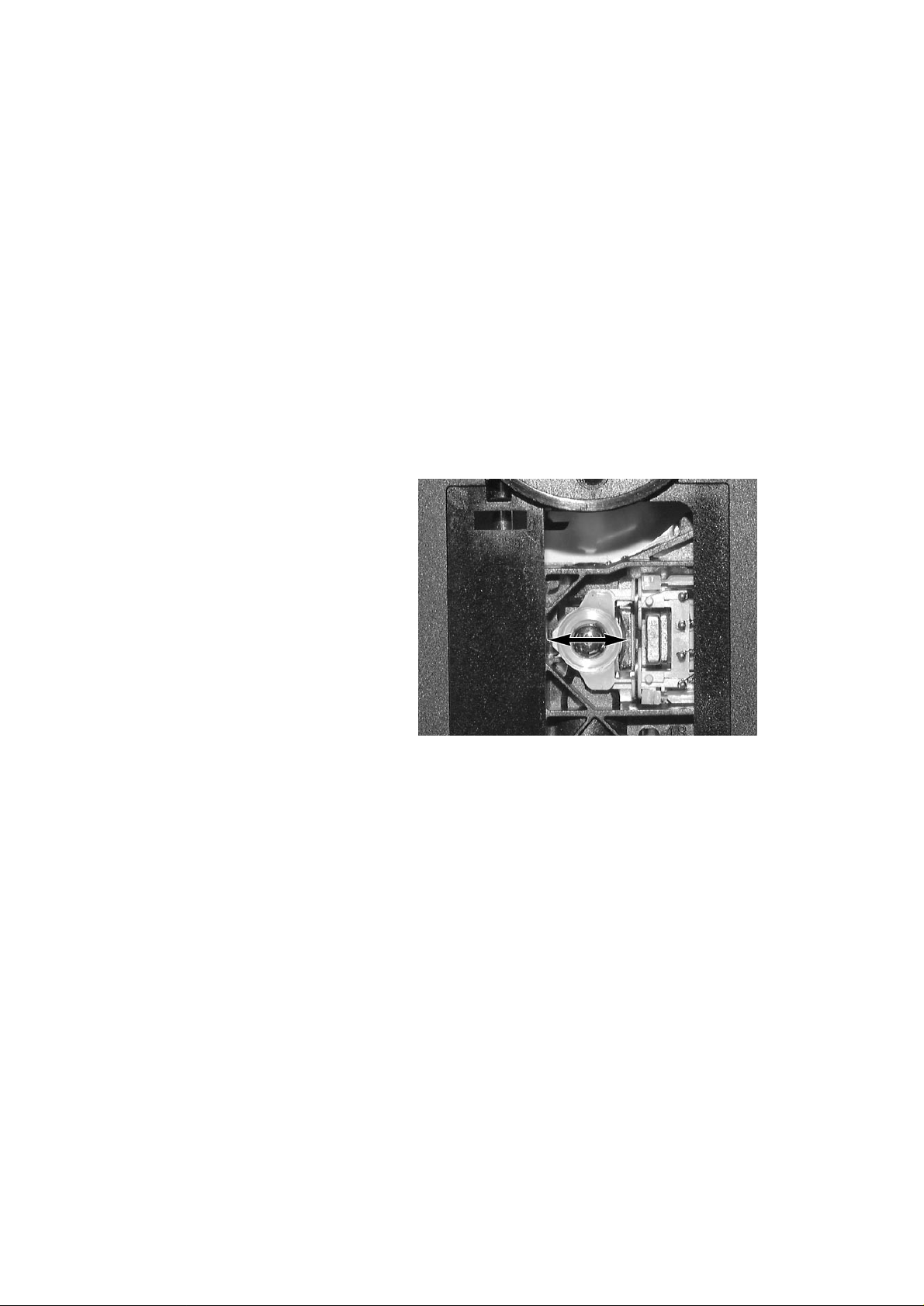

02.01 TYPENUMBER(S): GROUP A INFORMATION : Cleaning the objective lens
Before touching the lens it is advised to clean the surface of the lens by blowing clean air over it in order to avoid that little particles make scratches on the lens.
Because the material of the lens is synthetic and coated with a special anti-reflectivity layer, cleaning must be done with a non­aggressive cleaning fluid.It is advised to use lens cleaner “KODAK LENS CLEANER CAT 176 71 36”, available in normal photo shops.
The actuator is a very precise mechanical component and may not be damaged in order to guarantee its full function. It is advised to clean the lens gently (don’t press too hard) with a soft and clean cotton swab moistened with the special lens cleaner. The direction of cleaning must be in the way as indicated in the picture below.
REMARKS : See also newsletter issues 58.01 and 96.09.01.
02.02 TYPENUMBER(S): GROUP B INFORMATION : Cleaning the Objective lens
Cover a padstick with a piece of lens cleaning paper, i.e. “KODAK CAT 154 2067” or “DUSTER TK-3”. Put 2 to 3 drops of alcohol (99% or above) to the padstick. Rotate it slowly and gently on the surface of the lens.The solvent will dissolve fingerprints, grease etc... Finally the lens will be filled with the dirty cleaning solvent. Suck up the solvent with the edge of a piece of absorbing paper until the fluid has been removed.The remnants of the solvent will evaporate.
REMARKS : Never use cleaning solvents containing isopropanol!
Service Newsletter 1998 – Portable Audio 2/4
Page 37
02.03 TYPENUMBER(S): GROUP A INFORMATION : Cleaning and lubricating instructions
Lubrication of the CD-drive is needed in case of symptom “skipping tracks”.The reason can be dirt which sticks to the grease or the grease is getting aged.
Use grease “Tribol 9890-2” or equivalent. Before greasing the mechanism first remove the old grease from the
mechanism. Use a cotton swab dipped in alcohol to clean the mechanism.
Cleaning the mechanism
1. Clean the lower and upper sledge guidance plane (optical pick-up).
2. Clean the spindle shaft.
3. Clean the area between the wor m gear, idler wheel and clamping spring.
Lubricating the mechanism
1. Put onto the upper sledge guidance plane one dot of grease on each side of the sledge. Move the sledge to the inner and outer position to spread the grease. Put onto the lower sledge guidance plane one dot of grease on each side of the sledge. Move the sledge to the inner and outer position to spread the grease.
2. Put onto the spindle shaft one dot of grease on both sides of the sledge. Move the sledge to the inner and outer position to spread the grease.
3. Put one dot of grease between the worm gear and the clamping spring.
REMARKS :
Service Newsletter 1998 – Portable Audio 3/4
Page 38
02.04 TYPENUMBER(S): GROUP B INFORMATION : Cleaning and lubricating instructions
Lubrication of the CD-drive is needed in case of symptom “skipping tracks”.The reason can be the dirt which sticks to the grease or the grease is getting aged.
Use grease “Dow Corning PG-671”or equivalent. Before greasing the mechanism first remove the old grease from the
mechanism. Use a cotton swab dipped in alcohol to clean the mechanism.
Cleaning the mechanism
1. Clean the lower and upper sledge (optical pick-up) guidance plane.
2. Clean the spindle shaft.
3. Clean the area between the toothed bar and idler wheels.
Lubricating the mechanism
1. Put onto the upper sledge guidance plane one dot of grease on each side of the sledge. Move the sledge to the inner and outer position to spread the grease. Put onto the lower sledge guidance plane one dot of grease on each side of the sledge. Move the sledge to the inner and outer position to spread the grease.
2. Put onto the spindle shaft one dot of grease on both sides of the sledge. Move the sledge to the inner and outer position to spread the grease.
3. Put one dot of grease between the toothed bar and the idler wheels.
REMARKS :
Service Newsletter 1998 – Portable Audio 4/4
Page 39
For internal use only PHILIPS
ISSUE AS98.05 (98-04-28)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
05.01 TYPENUMBER(S): AS785C, FW610, FW620C, FW630, FW650C, FW680V, FW750C
SYMPTOM :
Tweeter in Loudspeaker Box blown.
CURE : The paper coil former cannot withstand the heat generated by the
voice coil and get burnt and torn. Replace the tweeter with an aluminium coil former tweeter, service codenumber 4822 240 10257.
REMARKS :
05.02 TYPENUMBER(S): CDR870, CDR880 INFORMATION : Analogue input sensitivity has been changed to 500mV.
The following parts have been changed on the level board: R3350 changed from 15kΩ into 10kΩ (4822 117 10833) R3351 changed from 15kΩ into 10kΩ (4822 117 10833) R3352 changed from 5,6kΩ into 10kΩ (4822 117 10833) R3353 changed from 5,6kΩ into 10kΩ (4822 117 10833)
REMARKS :
05.03 TYPENUMBER(S): CS1600, SC1060 INFORMATION : Correction to Electrical partslist:
The service codenumber of the Volume Control VR204 is 4822 101 11905.
REMARKS :
H611IRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/4
Page 40
05.04 TYPENUMBER(S): FW18
SYMPTOM :
1. Distortion is audible during playback of certain pre-recorded cassettes.
2. Continuous crackling (or clipping) sound is audible during playback of certain CDs (i.e. CDV – Spice Girls/Spiceworld, no.CDV 2850 7243 8 45111 2 8, track 10).
CURE : The pre-recorded cassettes or CDs contain over-modulated signals,
which are too large to be handled by the multiplex IC 7612, HEF4052B.
The problem can be solved by the following hardware modification on the Combi board:
1. Remove chip jumper 4603.
2. Connect VSS of IC 7612 to -5V DC by wire from pin 7 of IC7612 to pin 5 of connector 1504.
For details on this rework, see circuit diagram below.
05.05 TYPENUMBER(S): FW315C/22 INFORMATION : Correction to Electrical partslist:
The service codenumber for microprocessor IC 7401 should read 4822 209 15959 with printing mark “322S51471” instead of 4822 209 15436.
REMARKS :
Delete Chip Jumper 4603
Add this wire
235CIRIS CODE
Service Newsletter 1998 – Audio Systems 2/4
Page 41
05.06 TYPENUMBER(S): FW316C/21/21M INFORMATION : Correction to Service Manual:
In the Version Variation Table on page 1-2, FW316C/21/21M should be stated without Karaoke feature.
05.07 TYPENUMBER(S): FW316C/37 INFORMATION : Correction to Mechanical partslist:
On commercial request the color (and thus the codenumbers) of below mentioned parts have been changed: 205 4822 442 01358 Cover Tray CDC1 209 4822 459 04973 Cabinet Front 211 4822 410 11796 Button Set DSC/DBB 217 4822 410 11797 Button Set HSD/Power 221 4822 410 11798 Knob Volume 225 4822 410 11799 Button Set Controls 245 4822 442 01355 Cover Door Cassette Left 246 4822 442 01356 Cover Door Cassette Right
REMARKS : New parts are used from production start onwards.
05.08 TYPENUMBER(S): FW372C, FW395C
SYMPTOM :
The CD tray opens at any of the undermentioned conditions:
• switching on the set
• starting the FM radio
• changing of input selection
CURE : The problem is caused by a software bug and can only be solved by
a software upgrade.New microprocessors are available under service codenumber 4822 900 11235.
REMARKS :
05.09 TYPENUMBER(S): FW730V, FW780V INFORMATION : Missing in partslist of Power Board:
The service code for the Cinch Socket - Audio/Video is 4822 267 11342.
REMARKS :
X762IRIS CODE
Service Newsletter 1998 – Audio Systems 3/4
Page 42
05.10 TYPENUMBER(S): FW850C
SYMPTOM :
Wrong RDS message is displayed for 1-2 seconds (i.e.“RADIELL IMMEO AKTUR” iso.“RADIO-N IMMER AKTUELL”).
CURE : There is no solution available, the phenomenon has been
commercially accepted.
REMARKS : This problem is not always present when the set is tuned from
another station to the problem station via the presets.
05.11 TYPENUMBER(S): FW850C/34 INFORMATION : Correction to Service Manual:
In the Version Variation Table on page 1-2, FW850C/34 should refer to “ECO5 Sys” tuner instead of “Tuner 95”.
REMARKS :
05.12 TYPENUMBER(S): FW860P INFORMATION : Correction to Mechanical partslist:
Pos Service code Description 349 4822 445 10768 Center Loudspeaker Box 349 4822 445 10769 Surround Loudspeaker Box 386 4822 736 15978 Portuguese IFU (for /21 only)
REMARKS :
05.13 TYPENUMBER(S): MC135, MC155 INFORMATION : Correction to Electrical partslist:
Correct type number of IC200 and IC501 is BA4558N. Service codenumber is 4822 209 16265.
REMARKS :
582CIRIS CODE
Service Newsletter 1998 – Audio Systems 4/4
Page 43
For internal use only PHILIPS
ISSUE PA98.01 (98-04-20)
Published by: Service Depar tment LOBPA Hong Kong
LINE OF BUSINESS PORTABLE AUDIO
01.01 TYPENUMBER(S): AJ3920, AJ3925
SYMPTOM :
Noise is audible in stand-by mode.
CURE : The noise level can be reduced by following modification:
1. Change 3214 and 3216 from 10kΩ to 1kΩ (4822 050 21002)
2. Change 2209 and 2212 from 1µF to 10µF (4822 124 40248)
3. Relocate 3217. Solder it to the -ve pole of 2214 and the ground pin of 3215.
REMARKS : Above mentioned modification will be implemented in production from
week 9818 onwards.
01.02 TYPENUMBER(S): AZ1000, AZ1001, AZ1002 INFORMATION : From April 1998 onwards, with factory code starting from KZ019814..,
CD-drive CD94V5 (4822 691 10654) is used in production to supersede the original CD90V1Q. For servicing please refer to Service Information A98-560 (4822 725 26175).
REMARKS :
01.03 TYPENUMBER(S): AZ1100, AZ1101, AZ1102, AZ1103, AZ1104 INFORMATION : During production, the motor on the tape deck has been changed.
The type of the new motor is EG-530AD-2B with service codenumber 4822 361 21599.
REMARKS : Both motors EG-530AD-2B and M9T12U24-1 are interchangeable.
01.04 TYPENUMBER(S): AZ1202, AZ1207, AZ1209, AZ1602 INFORMATION : The flex foil cable (15-pins), connecting the CD light-pen to CD97
board, is now available via following service codenumber: pos 1800 4822 320 12178 FFC/15P/65mm
REMARKS :
045HIRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1998 – Portable Audio 1/2
Page 44
01.05 TYPENUMBER(S): AZ1207, AZ1209 INFORMATION : Correction to electrical partslist, Audio Board:
2264 4822 126 13581 0.22µF 20% 50V 2265 4822 126 13581 0.22µF 20% 50V 2596 4822 121 51387 10nF 20% 50V 3666 4822 116 52175 100Ω 5% 0.5W 3667 4822 116 52175 100Ω 5% 0.5W
REMARKS :
Service Newsletter 1998 – Portable Audio 2/2
Page 45
For internal use only PHILIPS
ISSUE AS98.04 (98-03-17)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
04.01 TYPENUMBER(S): AS660C, AS665C, AS670C, AS675C, AS760C, AS765C,
AS785C, FW315C, FW340C, FW352C, FW355C, FW365C, FW372C, FW373C, FW375P, FW392C, FW395C, FW710C, FW725C, FW730C, FW745C, FW750C, FW770P, Fw780P, FW790P
INFORMATION : In above mentioned sets the 3CD Carousel Changer module
“3CDC DH” has been replaced by the “3CDC MG” module. This has been published with following Service Informations: A97-164 for FW725C, FW730C A97-165 for FW745C, FW750C A97-166 for FW770P A97-167 for FW780P A97-168 for FW790P A97-169 for FW710C A97-170 for FW365C A97-172 for FW355C A97-173 for FW375P A97-174 for AS660C, AS665C A97-175 for AS760C, AS765C A97-180 for FW352C A97-182 for FW372C A97-183 for FW392C A97-184 for FW395C A97-185 for FW373C A97-187 for AS670C, AS675C A97-188 for AS785C A97-189 for FW315C A97-190 for FW340C
In all Service Informations the service codenumber for the flex-foil, pos. 8002, is missing: 8002 4822 320 11974 flex-foil 15pole (length=190mm)
Attention: Above mentioned flex-foil is not compatible to the flex-foil
used in the old 3CDC DH module!
REMARKS :
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/5
Page 46
04.02 TYPENUMBER(S): CDR870 INFORMATION : The Recording Test disc
Problems concerning the recording facilities of the CDR870 can be checked by using a blank Digital Audio CD-ReWritable disc.This disc can be re-used afterwards and the CD-RW recording strategy does not deviate strong from the CD-R writing process.To define whether the set is working proper this disc can be read after recording and even after finalising. To ERASE complete disc use the ser vice test program and actuate simultaneously <ERASE> and <RECORD> keys together with <POWER ON>.This will take about 37 minutes because erasing is done at double disc speed.
REMARKS :
04.03 TYPENUMBER(S): CDR870 INFORMATION : CDR870 is not able to play CD R/W discs, recorded and finalised via
a computer.The CDR870 display shows “No Audio”. Explanation:
The audio bit, standing in the ATIP pregrove, is checked before starting up. In case of a final finalised CDR disc, the ATIP (Engine) is switched off. So the application can not reach this information anymore. In case of CD R/W, ATIP must always be active (to allow Erase DISC). So the audio bit will be detected by the application when starting up this disc. Because the audio bit is not detected in this case, the display shows the message "NO AUDIO". This is not an error but a too strong implementation of the law. In fact you may not record audio on a general purpose disc with a CDR870.
REMARKS : In the future reading audio from a general purpose disc will be
allowed. (CDR760 ....)
Service Newsletter 1998 – Audio Systems 2/5
Page 47
04.04 TYPENUMBER(S): CDR870
SYMPTOM :
Bad recording when using optical input of set
CURE : This problem is caused by the optical input device PLR102
(item 1520 on the connector PCB). In case the r isetime specification is worse than 50ns, the optical input signal may result in a bad recording.There are 2 solutions possible:
1. Replace PLR102 by TORX174 (Toshiba) with service codenumber 4822 130 91224. C2508 has to be replaced by a short circuit to ground.The risetime specifications of this device are <30ns.
2. Use one of the free inverter por ts of device 74HCU04N (item 7500) to improve the optical in signal.This can be done as follows:
• Connect output 4 of optical device to pin 9 of IC7500.
This pin must be lifted from the PCB.
• Connect pin 8 of IC7500 to pin 14 of connector 1500.
• Interrupt copper track between pin 14 of connector 1500 to pin 4
of switch 1522 (not mounted). With this solution, steep flanks will be created on the signal. Note that inverting is no problem for a biphase signal. See also picture of the modified PCB below.
REMARKS : An improved connector PCB will be introduced in course of
production. See Ser vice Information A98-250 (4822 725 25244).
2510
3509
3515
3517
3508
3510
3511
3513
2511
2512
2513
2505
3506
2502
2503
2507
3503
4500
3500
3501
3502
3507
2500
2508
2509
1234
1234
A A
2500 A 1 2502 A 2
2503 A 3 2505 A 3
2507 A 3 2508 A 2
2509 A 2 2510 A 4
2511 A 4 2512 A 4
2513 A 4 3500 A 1
3501 A 1 3502 A 1
3503 A 3 3506 A 3
3507 A 2 3508 A 3
3509 A 4 3510 A 4
3511 A 4 3513 A 3
3515 A 4 3517 A 4
4500 A 2
cut track
1
2
1530
1531
7501
7502
7503
7504
3516
3518
3512
3514
3504
35052504
2506
7500
5450
1522
1500
2501
15201521
1234
1234
A A
1500 A 3 1520 A 1
1521 A 1 1522 A 2
1530 A 4 1531 A 3
2501 A 2 2504 A 3
2506 A 3 3504 A 3
3505 A 3 3512 A 4
3514 A 3 3516 A 4
3518 A 3 5450 A 2
7500 A 3 7501 A 4
7502 A 4 7503 A 3
7504 A 4
4T
1S
2S
MT
1T
2T
3T
1
5
4
2
3
16
T
1
44
1
R
lift pin from PCB
6652IRIS CODE
Service Newsletter 1998 – Audio Systems 3/5
Page 48

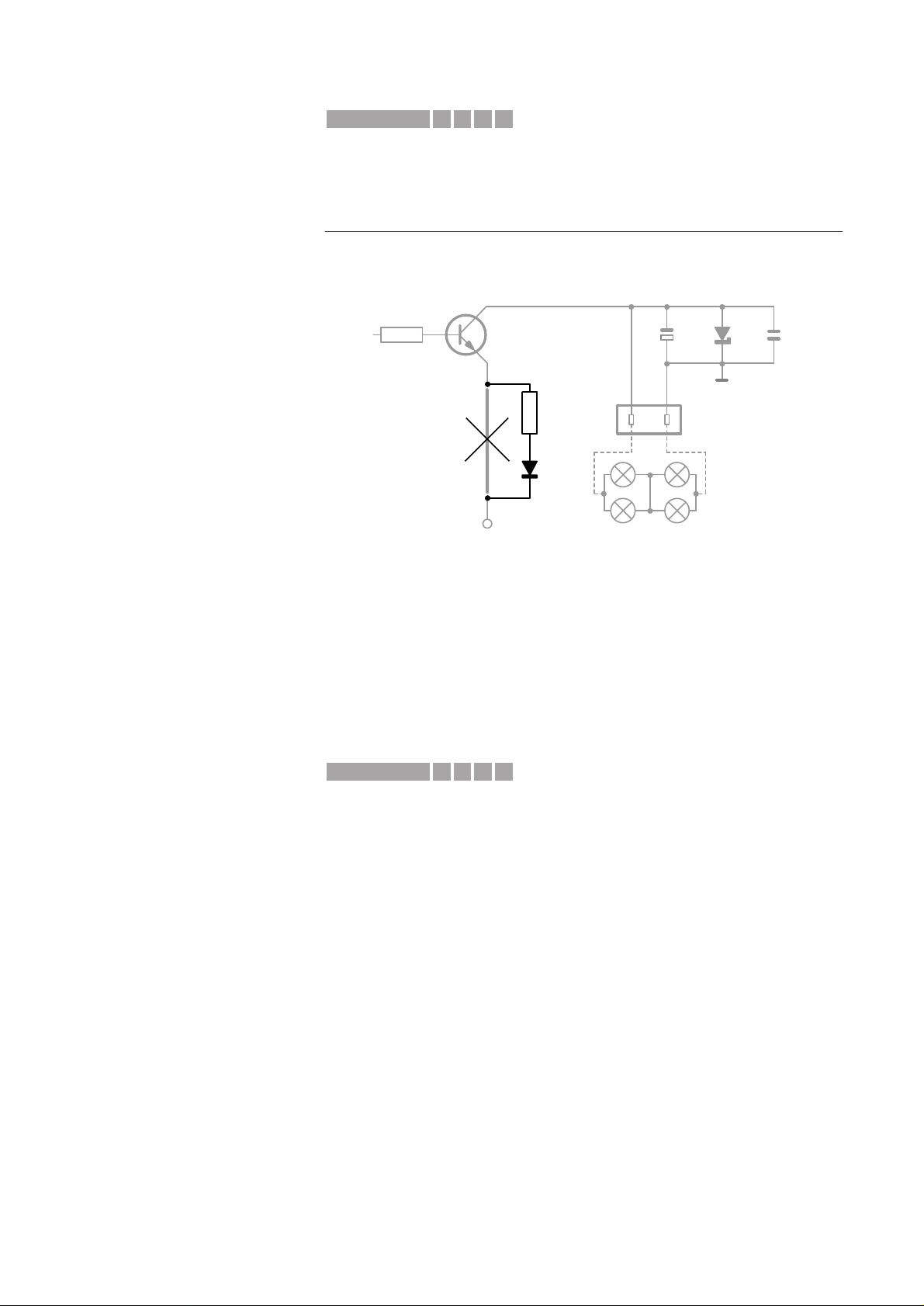

04.05 TYPENUMBER(S): MC135, MC155
SYMPTOM :
Display backlight lamps are defective.
CURE : The problem is caused by overvoltage.
F
ollowing modification on the MAIN BOARD limit the supply voltage: Replace jumper JP626 by a diode 1N4002 (5322 130 30684) in series with a resistor 3,3Ω 5% 0,33W (4822 052 10338).
––––––––––––––– IMPORTANT INFORMATION ––––––––––––––– As preventive action above modification must be implemented in all sets brought in for repair!!
REMARKS :
04.06 TYPENUMBER(S): MC135, MC155
SYMPTOM :
RDS information is displayed in fragments of letters and words.
CURE : Solution is to shift the VCO frequency of IC505 by changing the value
of the following capacitors: C527 : changed from 82pF to 33pF (5322 122 32072) C528 : changed from 47pF to 22pF (5322 122 32143) Measure the frequency at pin 14 of IC505 to be within
4.33204MHz ±200Hz.
REMARKS : This is a correction to Service Newsletter AS98.02.02 (symptom
description and tolerance of frequency changed). Modification has been implemented in production from week 9749 onwards.
582CIRIS CODE
-12V
JP626
Q531
CON507
LCD BACKLIGHT
CE502
100µF
C581
0.1µF
ZD501
3.3Ω
0.33W
R570
1N4002
1
B311IRIS CODE
Service Newsletter 1998 – Audio Systems 4/5
Page 49
For internal use only PHILIPS
ISSUE IRIS98.01 (98-03-12)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
EACEM IRIS is an INTERNATIONAL REPAIR INFORMATION SYSTEM of the EUROPEAN ASSOCIATION OF CONSUMER ELECTRONICS MANUFACTURERS.
The system was developed by several companies and had been evolving for many years in different countries in different variations before it was finally standardized by the EACEM IRIS committee in May 1995. EACEM IRIS is kept up to date and reviewed periodically. New innovations and new product categories lead to the current revision 02, finalized in September 1997.
EACEM IRIS CODING
The “heart” of EACEM IRIS is a standardized coding structure. The full IRIS coding system consists of a set of five codes:
• The CONDITION CODE (under which condition does the defect occur)
• The SYMPTOM CODE (what was the symptom perceived by the user)
• The SECTION CODE (where was the defect located)
• The DEFECT CODE (which part and type of defect).
• The REPAIR CODE (what action was taken to correct the problem). Example of use:
Tables on next pages give a survey of available codes in EACEM IRIS.
Note that IRIS codes, published in Service Newsletters,
are only related to the Condition/Symptom codeset.
B311IRIS CODE
symptom
code
condition
code
SYMPTOM SECTION PCB PART REF. NO.
SECTION CODE
PART CODE NO. DEF.CODE QTY REP.CODECONDITIONFLAG
EACEM IRIS CODING
Service Newsletter 1998 – Audio Systems 5/5
Page 50
CONDITION
CODE
MAINSYMPTOMCODE
EXTENDEDSYMPTOMCODE
(*1)
EACEM - IRIS REPAIR CODING SYSTEM
‘BROWN’ GOODS
SYMPTOM CODE TABLE
1 CONSTANTLY
2 INTERMITTENTLY
3 AFTER A WHILE
4 IN A HOT ENVIRONMENT
5 IN A COLD ENVIRONMENT
6 WHEN SWITCHING
7 UNDER VIBRATION
IN A DAMP/WET
8
ENVIRONMENT
9 IN A DRY ENVIRONMENT
A AFTER BEING DROPPED
B AFTER LIGHTNING STRIKE
ONLY CERTAIN STATIONS/SOFTWARE/
C
MODE/CHANNELS/ FREQUENCY BAND
ONLY ON CERTAIN
D
STANDARDS
E ONLY ON ONE CHANNEL
ONLY WITH CERTAIN
F
INPUT(S)
ONLY ON CERTAIN
G
OUTPUT(S)
H IN STANDBY/OFF MODE
J AT EDIT POINT
K WHEN INTERCONNECTED
L LIQUID CONTAMINATION
FOR A SHORT WHILE
M
AFTER SWITCH-ON
N AFTER MAKING A COPY
(*1)
CAUTION
THE ‘X’ EXTENDED SYMPTOM CODES (*-**X) SHOULD ONLY BE USED TO INDICATE THAT A SUITABLE SYMPTOM DESCRIPTION IS NOT AVAILABLE IN THE CONCERNED SYMPTOM GROUP
REV 02 - JUNE 1997
1 NO ACTION 2 LEVEL 3 QUALITY 4 NOISE 5 UNSTABLE 6
RECORDING & PHYSICAL
PROBLEMS
7 SPECIAL FUNCTIONS 8 OTHER CONDITIONS
110 POWER PROBLEM 120 CHARGING PROBLEM 130 DISPLAY FUNCTION PROBLEM 140 ABNORMAL NOISE 150 REMOTE CONTROL PROBLEM 160 PHYSICAL DAMAGE 170 GENERAL FUNCTION PROBLEM 180 SPECIAL REQUIREMENTS
111
NO POWER ON AC
112
NO POWER WHEN USING AC-ADAPTER
113
NO POWER WHEN USING DRY BATTERIES
114
NO POWER WHEN USING RECHARGEABLE
BATTERIES
115
NO POWER FROM SOLAR CELL
116
NO POWER WHEN USING A CAR BATTERY
117
SHORT OPERATION TIME/SHORT BATTERY
1
LIFE
118
POWER-OFF FUNCTION NOT WORKING
119
NO SWITCH-ON FROM STANDBY
11A
POWERS UP, BUT NO OPERATION
11B
CYCLIC POWER ON/OFF
11C
BLOWING EXTERNAL FUSE
11D
SET SWITCHES OFF BY ITSELF
11X
OTHER ‘POWER’ PROBLEM
210 NO RECEPTION 220 POOR RECEPTION 230 TRANSMISSION PROBLEM 240 NOISY RECEPTION/TRANSMISSION 250 UNSTABLE
211
NO AM RECEPTION
212
NO FM RECEPTION
213
NO SW RECEPTION
214
2
NO VHF RECEPTION
215
NO UHF RECEPTION
216
NO BS RECEPTION
217
NO CS RECEPTION
218
NO HDTV RECEPTION
219
NO GPS RECEPTION
21X
OTHER ‘NO RECEPTION’ PROBLEM
310 NO PICTURE 320 PICTURE LEVEL PROBLEM 330 PICTURE QUALITY PROBLEM 340 PICTURE NOISE 350 UNSTABLE PICTURE 360 POOR PICTURE RECORDING 370 SPECIAL PICTURE FUNCTION
311
NO PICTURE IN E TO E MODE
312
NO PICTURE IN PLAYBACK MODE
313
NO PICTURE IN VIEWFINDER
314
NO PICTURE, ONLY RASTER
315
NO RASTER, BLACK PICTURE
316
ONLY HORIZONTAL LINE
317
3
ONLY VERTICAL LINE
318
NO PICTURE IN LCD
31X
OTHER ‘NO PICTURE’ PROBLEM
410 NO COLOUR 420 COLOUR LEVEL PROBLEM 430 POOR COLOUR QUALITY 440 NOISY COLOUR 450 UNSTABLE COLOUR 460 POOR COLOUR RECORDING 470 SPECIAL COLOUR FUNCTION
411
NO COLOUR IN E TO E MODE
412
NO COLOUR IN PLAYBACK MODE
413
NO COLOUR IN VIEWFINDER
414
4
NO COLOUR IN PART OF PICTURE
41X
OTHER ‘NO COLOUR’ PROBLEM
510 NO AUDIO 520 AUDIO LEVEL PROBLEM 530 AUDIO QUALITY 540 NOISY AUDIO 550 UNSTABLE AUDIO 560 POOR AUDIO RECORDING 570 POOR SPECIAL AUDIO FUNCTION 580 STEREO/MULTI MODE OPERATION
511
NO SOUND IN E TO E MODE
512
NO PLAYBACK OF OUTGOING MESSAGE(S)
513
NO PLAYBACK OF INCOMING MESSAGE(S)
514
5
NO AUDIO PLAYBACK
515
NO SOUND FROM HANDSET
516
NO SOUND FROM SPEAKER
517
NO SOUND FROM EARPHONE/HEADPHONE
518
NO MICROPHONE SOUND
51X
OTHER ‘NO AUDIO’ PROBLEM
610 NO MECHANICAL OPERATION 620 IRREGULAR MECHANICAL
611
NO DISC ROTATION
612
NO FORWARD OPERATION
613
NO REVERSE OPERATION
614
NO FAST FORWARD OR REWIND FUNCTION
615
NO LOADING
616
6
NO UNLOADING OR EJECTING OF TAPE
617
NO AUTO SHUT-OFF OPERATION
618
TONEARM DOES NOT MOVE
619
DISC NOT BEING EJECTED
61A
MAGAZINE OR MODULE
LOADING/UNLOADING
61X
OTHER ‘NO MECHANICAL OERATION’
PROBLEM
710 NO DATA PROCESSING OPERATION 720 FAULTY DATA PROCESSING
711
NO INITIAL SCREEN
712
SYSTEM DOES NOT RESET
713
SYSTEM DOES NOT BOOT UP
714
7
NO OPERATION FROM PLUG-IN MODULE
715
NO KEYBOARD OPERATION
716
NO OPERATION FROM OTHER
INPUT/OUTPUT DEVICE
717
NO DATA STORAGE OPERATION
718
NO DATA COMMUNICATION
71X
OTHER ‘NO DATA PROCESSING’ PROBLEM
810 NO PRINTER OPERATION 820 ERRONEOUS PRINTER OPERATION 830 POOR PRINT QUALITY 840 NOISY PRINTING 850 UNSTABLE PRINTER OPERATION 860 RIBBON/PAPER PROBLEMS 870 880 FAULTY FONT/CHARACTER
811
NOT PRINTING
812
8
NO COMMUNICATION WITH PRINTER
813
PAPER NOT LOADING
814
NO PAPER FEED
815
NO IMAGE FIXATION
81X
OTHER ‘NO PRINTER OPERATION’ PROBLEM
121
NO BATTERY CHARGING
122
INCOMPLETE BATTERY CHARGE
123
CHARGING TIME TOO LONG
12X
OTHER ‘CHARGING’ PROBLEM
221
POOR AM RECEPTION
222
POOR FM RECEPTION
223
POOR SW RECEPTION
224
POOR VHF RECEPTION
225
POOR UHF RECEPTION
226
POOR BS RECEPTION
227
POOR CS RECEPTION
228
POOR HDTV RECEPTION
229
POOR GPS RECEPTION
22X
OTHER ‘POOR RECEPTION’ PROBLEM
321
PICTURE TOO DARK
322
PICTURE TOO BRIGHT
323
CONTRAST TOO LOW
324
CONTRAST TOO HIGH
325
SATURATED WHITE OR BLACK LEVEL
326
SHADING ON PICTURE
327
ONLY PARTIAL PICTURE
32X
OTHER ‘PICTURE LEVEL’ PROBLEM
421
WEAK COLOUR
422
EXCESSIVE COLOUR
42X
OTHER ‘COLOUR LEVEL’ PROBLEM
521
LOW AUDIO LEVEL
522
EXCESSIVE AUDIO LEVEL
523
BALANCE PROBLEM
524
FADER PROBLEM
525
AUDIO LEVEL REMAINING
52X
OTHER ‘AUDIO LEVEL’ PROBLEM
OPERATION
621
IRREGULAR ROTATION
622
IRREGULAR FORWARD MODE
623
IRREGULAR REVERSE OPERATION
624
IRREGULAR FAST FORWARD OR REWIND
FUNCTION
625
IRREGULAR LOADING
626
IRREGULAR UNLOADING OR EJECTING OF
TAPE
627
IRREGULAR AUTO SHUT-OFF OPERATION
628
IRREGULAR TONEARM MOVEMENT
629
IRREGULAR EJECTION OF DISC
62A
IRREGULAR DIRECTION CHANGE
62X
OTHER ‘IRREGULAR MECHANICAL
OPERATION’ PROBLEM
OPERATION
721
INCORRECT DATA
722
SYSTEM RESET WHILE BEING USED
723
SYSTEM LOCKS OUT/CRASHES
724
FAULTY OPERATION OF PLUG-IN MODULE
725
FAULTY KEYBOARD OPERATION
726
FAULTY OPERATION OF OTHER
INPUT/OUTPUT DEVICE
727
FAULTY DATA STORAGE OPERATION
728
FAULTY DATA COMMUNICATION
72X
OTHER ‘FAULTY DATA PROCESSING’
PROBLEM
821
PRINT IMAGE REVERSED
(NEGATIVE/POSITIVE)
822
IRREGULAR PAPER FEED
823
ERRONEOUS PRINT MODE SWITCHING
82X
OTHER ‘PRINTER OPERATION’ PROBLEM
131
FAULTY TIMER/COUNTER DISPLAY
132
FAULTY LAMP/LED OPERATION
133
FAULTY LEVEL METER OPERATION
134
FAULTY ON-SCREEN DISPLAY OPERATION
135
ELECTRONIC TUNING DISPLAY FAULT
136
MECHANICAL TUNING DISPLAY FAULT
137
FAULTY TIME CODE DISPLAY
138
FAULTY ALARM/ERROR DISPLAY
139
DISPLAY DIM/TOO DARK
13A
UNUSUAL OR INCORRECT MESSAGE IN
DISPLAY
13B
NO BACKLIGHT
13X
OTHER ‘DISPLAY FUNCTION’ PROBLEM
231
NO TRANSMISSION
232
POOR TRANSMISSION
233
TRANSMISSION LEVEL TOO HIGH
234
NO TRANSMISSION BETWEEN BASE UNIT
(OR NETWORK) AND HANDSET
235
POOR TRANSMISSION BETWEEN BASE UNIT
(OR NETWORK) AND HANDSET
23X
OTHER ‘TRANSMISSION’ PROBLEM
331
POOR PICTURE RESOLUTION
332
POOR FOCUS
333
RINGING ON PICTURE
334
EXCESSIVE SMEAR/LAG
335
POOR LINEARITY OR GEOMETRY
336
PICTURE SIZE INCORRECT
337
INCORRECT CENTRING OF PICTURE
338
PICTURE SLANTED
339
V-SIZE INCORRECT
33A
H-SIZE INCORRECT
33X
OTHER ‘PICTURE QUALITY’ PROBLEM
431
SOME OR ALL COLOURS MISSING
432
POOR WHITE BALANCE
433
HUE PROBLEM
434
PURITY ERROR
435
LANDING ERROR/WHITE UNIFORMITY
436
CONVERGENCE ERROR
437
REGISTRATION ERROR
438
PITCH MOIRÉ
439
COLOUR SHIFT
43X
OTHER ‘COLOUR QUALITY’ PROBLEM
141
CRT DISCHARGING NOISE
142
EHT DISCHARGING NOISE
143
NOISY CABINET
144
NOISY TRANSFORMER
145
NOISY COMPONENT(S)
146
RATTLE
14X
OTHER ‘ABNORMAL’ NOISE
241
LINE NOISE
242
OSCILLATION
243
INTERSTATION INTERFERENCE
24X
OTHER ‘NOISY RECEPTION/TRANSMISSION’
PROBLEM
341
SNOWY PICTURE
342
DOT NOISE OR DROPOUT ON PICTURE
343
NOISE BARS ON PICTURE
344
BLANKING LINES ON PICTURE
345
BEATING ON PICTURE
346
GHOSTING ON PICTURE
347
VCR HEAD SWITCHING NOISE ON PICTURE
348
OVERMODULATION NOISE
349
MOIRÉ
34A
MOSAIC NOISE
34X
OTHER ‘PICTURE NOISE’ PROBLEM
441
COLOUR NOISE ON A BLACK & WHITE
442
COLOUR STREAKING
44X
OTHER ‘COLOUR NOISE’ PROBLEM
151
NO REMOTE CONTROL OPERATION
152
INCORRECT REMOTE CONTROL OPERATION
153
REMOTE CONTROL PROGRAMMING/
LEARNING MODE PROBLEM
154
POOR REMOTE CONTROL SENSITIVITY
15X
OTHER ‘REMOTE CONTROL’ PROBLEM
RECEPTION/TRANSMISSION
251
TUNING DRIFT
252
FADING
253
INTERMITTENT LINE
25X
OTHER ‘UNSTABLE
RECEPTION/TRANSMISSION’ PROBLEM
351
SYNC PROBLEM
352
PICTURE PUMPING
353
PICTURE JITTER
354
PICTURE SHAKING (HORIZONTAL OR
VERTICAL)
355
FLICKERING PICTURE
356
FLASHING PICTURE
357
CYCLIC PICTURE MUTING
358
HEAD IMPACT ERROR CAUSING UNSTABLE
359
VCR SKEW/H-SHIFT ERROR
35A
FROZEN PICTURE
35B
JUMPING/REPEATING PICTURE
35X
OTHER ‘UNSTABLE PICTURE’ PROBLEM
451
COLOUR FLASHING
452
HUE CONSTANTLY CHANGING
453
FLICKERING COLOUR
454
COLOUR NOT LOCKED
45X
OTHER ‘UNSTABLE COLOUR’ PROBLEM
161
DAMAGED CABINET
162
DAMAGED HANDLE/CLIP
163
DAMAGED CONTROL KNOB(S)/BUTTON(S)
164
DAMAGED DOOR/COVER
165
DAMAGED SEAL
166
DAMAGED PLUG/SOCKET/TERMINAL
167
DAMAGED LENS
168
DAMAGED CARTRIDGE OR STYLUS
169
DAMAGED ANTENNA
16A
DAMAGED CRT OR VIEWFINDER
16B
MISSING COMPONENT(S) OR ORNAMENTAL
PARTS
16C
PRINTED MARKINGS ERASED/PEELED OFF
16D
SET BURNING/EMITS SMOKE
16E
BUBBLING/PEELING/RUSTING
16F
SMELL
16G
WEAK/DAMAGED STAND
16H
DAMAGED SPEAKER
16J
SET GETS VERY HOT
16X
OTHER PHYSICAL DAMAGE
171
FAULTY CLOCK FUNCTION
172
FAULTY SLEEP FUNCTION
173
FAULTY TIMER PROGRAMMING
174
FAULTY TIMER RECORDING
175
SOFTWARE PROGRAMMING/USER
ADJUSTMENT PROBLEM
176
FAULTY RECORD MUTE OPERATION
177
FAULTY PROGRAMMED PLAYBACK
OPERATION
178
FAULTY MEMORY FUNCTION
179
FAULTY INPUT SWITCHING
17A
FAULTY OUTPUT SWITCHING
17B
ELECTRIC SHOCK
17C
FAULTY INDEX SEARCH
17D
WRONG LANGUAGE/CHARACTER SET
17E
ERROR CODE APPEARS
17X
OTHER ‘GENERAL FUNCTION’ PROBLEM
181
TEST AND CHECK
182
GENERAL OVERHAUL
183
SYSTEM/FREQUENCY CONVERSION
184
INITIAL SETUP REQUESTED
185
MODIFICATION/CIRCUIT CHANGE
186
WRONG SET IN CARTON
187
ACCESSORY MISSING
18X
OTHER SPECIAL REQUIREMENTS
18Z
SYMPTOM NOT AVAILABLE
260 TUNING PROBLEM 270 SPECIAL COMMUNICATION PROBLEM 280 SPECIAL RECEPTION PROBLEM
261
MANUAL TUNING PROBLEM
262
AUTOMATIC TUNING PROBLEM
263
INCORRECT TUNING
264
TUNING MEMORY PROBLEM
26X
OTHER ‘TUNING’ PROBLEM
361
NO PICTURE RECORDING
362
NO ERASURE PROTECTION FOR VIDEO
363
PREVIOUS VIDEO RECORDING NOT BEING
ERASED
364
UNWANTED ERASURE OF PICTURE
365
NO CAMERA RECORDING
366
ONLY ONE FIELD PER FRAME BEING
RECORDED
36X
OTHER ‘PICTURE RECORDING’ PROBLEM
461
NO COLOUR RECORDING
462
NOISY COLOUR RECORDING
46X
OTHER ‘COLOUR RECORDING’ PROBLEM
271
FAULTY DIALLING
272
FAULTY CHANNEL SELECTION
273
FAULTY AUTO-ANSWER OPERATION
274
FAULTY MESSAGE READ-OUT FUNCTION
275
FAULTY AUTODIAL/REDIAL MEMORY
276
FAULTY SPEECH PROCESSING
277
NO RINGING TONE
278
LOUD/WEAK RINGING TONE
27X
OTHER ‘SPECIAL COMMUNICATION’
PROBLEM
PROBLEM
371
EDITING PROBLEM
372
FAULTY FADING/WIPER OPERATION
373
FAULTY NEGATIVE/POSITIVE SWITCHING
FUNCTION
374
FAULTY SUPERIMPOSE/TELOP OPERATION
375
FAULTY PICTURE IN PICTURE/DIGITAL
PICTURE OPERATION
376
FAULTY PICTURE TRANSMISSION
377
FAULTY DIGITAL SHUTTER FUNCTION
378
FAULTY GENLOCK FUNCTION
379
FAULTY FLASH/STROBE FUNCTION
37A
FAULTY DIGITAL PICTURE FUNCTION
37B
FAULTY AUTO-EDIT FUNCTION
37C
FAULTY PICTURE STABILIZER FUNCTION
37X
OTHER ‘SPECIAL PICTURE FUNCTION’
PROBLEM
PROBLEM
471
FAULTY AUTOMATIC WHITE BALANCE
472
FAULTY COLOUR EFFECTS FUNCTION
47X
OTHER ‘SPECIAL COLOUR FUNCTION”
PROBLEM
281
FAULTY STEREO RECEPTION
282
FAULTY MAIN CHANNEL (A) FUNCTION
283
FAULTY SUB-CHANNEL (B) FUNCTION
284
FAULTY SSB RECEPTION
285
FAULTY RDS/VPS/PDC OPERATION
286
FAULTY TELETEXT RECEPTION
287
FAULTY SATELLITE/RTTY RECEPTION
288
FAULTY FAX OPERATION
28X
OTHER ‘SPECIAL RECEPTION’ PROBLEM
380 PICTURE DISPLAY/PICKUP PROBLEM
381
BURN MARK ON DISPLAY/PICKUP
382
SCRATCH ON DISPLAY/PICKUP
383
DUST/DIRT ON DISPLAY/PICKUP
384
PHOSPHOR/PIXEL MISSING ON
DISPLAY/PICKUP
385
BRIGHT POINT(S) IN PHOSPHOR/PIXEL
386
LINES ACROSS/DOWN IMAGE
38X
OTHER ‘PICTURE DISPLAY/PICKUP’
PROBLEM
480
PROBLEM
531
POOR FREQUENCY RESPONSE
532
DISTORTED AUDIO
533
NO OR POOR TREBLE
534
NO OR POOR BASS
535
EARPHONE/HEADPHONE AUDIO POOR
53X
OTHER ‘AUDIO QUALITY’ PROBLEM
541
HUM
542
HISS
543
CROSSTALK
544
STATIC, POP OR CLICK NOISE
545
BUZZ
546
SCRATCHING NOISE
547
IGNITION NOISE
548
WHISTLING NOISE
549
DATA/DIGITAL NOISE
54X
OTHER ‘AUDIO NOISE’ PROBLEM
551
JUMPING OR REPEATING AUDIO
552
AUDIO PUMPING OR BREATHING
553
AUDIO DROPOUTS
554
CYCLIC AUDIO MUTING
555
WOW AND FLUTTER
556
HOWLING/ACOUSTIC FEEDBACK
55X
OTHER ‘UNSTABLE AUDIO’ PROBLEM
561
AUDIO NOT BEING RECORDED
562
NO ERASURE PROTECTION FOR AUDIO
563
PREVIOUS AUDIO RECORDING NOT BEING
ERASED
564
UNWANTED ERASURE OF AUDIO
565
MESSAGE NOT BEING RECORDED
566
DISTORTED AUDIO RECORDING
56X
OTHER ‘AUDIO RECORDING’ PROBLEM
571
FAULTY FADE OPERATION
572
FAULTY ECHO OPERATION
573
FAULTY MIXING OPERATION
574
FAULTY REPEAT MODE OPERATION
575
FAULTY AUDIO PROCESSING
576
FAULTY SYNC RECORDING OPERATION
577
FAULTY DBB/DOL OPERATION
578
FAULTY NOISE REDUCTION OPERATION
579
FAULTY AUDIO DUB FUNCTION
57X
OTHER ‘SPECIAL AUDIO FUNCTION’
PROBLEM
581
NO STEREO OPERATION
582
POOR CHANNEL SEPARATION
583
DIFFERENCE IN PHASE BETWEEN
CHANNELS
584
PROBLEM WITH SURROUND SOUND MODE
585
PROBLEM WITH PCM AUDIO MODE
58X
OTHER ‘STEREO/MULTI MODE’ PROBLEM
630 SPEED PROBLEM 640 MECHANICAL NOISE 650 MECHANICALY UNSTABLE 660 DAMAGE TO SOFTWARE 670 MECHANICAL OPERATION PROBLEM 680 LENS PROBLEM
631
SPEED TOO FAST
632
SPEED TOO SLOW
63X
OTHER ‘SPEED’ PROBLEM
730 DATA DISPLAY PROBLEM 740 750 760 DATA READ/WRITE PROBLEM 770 SPECIAL DATA PROCESSING
731
INCORRECT CHARACTER DISPLAY
732
MISSING DISPLAY CHARACTERS
733
FAULTY GRAPHIC DISPLAY
734
FAULTY SWITCHING BETWEEN GRAPHIC/
CHARACTER MODE
735
FAULTY PROMPT/CURSOR OPERATION
736
DATA DISPLAY COLOUR INCORRECT
737
NO PAGING OR SCROLL MODE
73X
OTHER ‘DATA DISPLAY’ PROBLEM
641
ROTATION NOISE
642
MOTOR NOISE
643
WIND NOISE
644
TAPE SQUEALING
645
FAN NOISE
646
DISC SCRAPING
647
NOISY TAPE LOADING
648
GEAR NOISE
64X
OTHER ‘MECHANICAL NOISE’ PROBLEM
651
UNEVEN FEET
652
FAULTY HINGE
65X
OTHER ‘MECHANICAL INSTABILITY’
PROBLEM
661
TAPE GETS SCRATCHED
662
DISC GETS SCRATCHED
663
TAPE GETS CHEWED/WRINKLED
664
TAPE JAMMED OR BROKEN
665
TAPE GETS CURLED
666
SLACK TAPE
667
TAPE STICKING
66X
OTHER ‘SOFTWARE DAMAGE’ PROBLEM
761
FORMATTING PROBLEM
762
DATA ON STORAGE MEDIUM BEING LOST
763
FRAME MEMORY PROBLEM
76X
OTHER ‘DATA READ/WRITE’ PROBLEM
671
FAULTY START/STOP OPERATION
672
FAULTY PAUSE OPERATION
673
FAULTY AUTOMATIC PROGRAM SEARCH
674
FAULTY CUE/REVIEW MODE
675
FAULTY SLOW MOTION OPERATION
676
FAULTY HIGH-SPEED SCANNING MODE
677
FAULTY SPEED COPY FUNCTION
678
FAULTY REPEAT OPERATION
679
FAULTY RECORD REVIEW MODE
67A
FAULTY AMS OPERATION
67B
AUTO-REVERSE MALFUNCTION
67C
FAULTY END DETECTION
67X
OTHER ‘MECHANICAL OPERATION’
PROBLEM
FUNCTION PROBLEM
771
FAULTY SELF-DIAGNOSTIC MODE
772
FAULTY WORD PROCESSING FUNCTION
773
FAULTY GRAPHIC EDIT FUNCTION
77X
OTHER ‘SPECIAL DATA FUNCTION’ PROBLEM
681
FOCUS PROBLEM
682
ZOOM PROBLEM
683
IRIS PROBLEM
684
MACRO PROBLEM
68X
OTHER ‘LENS’ PROBLEM
780
FUNCTIONS
831
INCORRECT PRINTING POSITION
832
LOW PRINT CONTRAST
833
EXCESSIVE PRINT CONTRAST
834
BLURRED PRINT IMAGE
835
PRINT IMAGE NOT SHARP
836
DOTS MISSING IN PRINT IMAGE
83X
OTHER ‘PRINT QUALITY’ PROBLEM
841
PRINTING NOISE LINES
842
DIRTY PRINTING
84X
OTHER ‘NOISY PRINTING’ PROBLEM
851
UNSTABLE PAPER LOADING
852
UNSTABLE MULTI-PAPER LOADING
853
INCORRECT LINE-UP OF CHARACTERS
85X
OTHER ‘UNSTABLE PRINTER OPERATION’
PROBLEM
861
RIBBON BROKEN
862
RIBBON STUCK/STICKING
863
RIBBON DERAILED
864
PAPER STUCK/STICKING TO MECHANISM
865
PAPER JAM
86X
OTHER ‘RIBBON/PAPER’ PROBLEM
881
INCORRECT CHARACTERS OR IMAGE
882
INCORRECT CHARACTER SIZE
883
FONT LOADING PROBLEM
88X
OTHER ‘FAULTY FONT/CHARACTER
FUNCTION’ PROBLEM
Page 51
EACEM - SECTION CODES
ANT ANTENNA SECTION APA AUDIO PROCESSING/ANALOG APD AUDIO PROCESSING/DIGITAL APR SIGNAL PROCESSING (ANALOG)
ARM ARM MECHANISM
BCH BATTERY CHARGE BZL BEZEL CBT CABINET CHA CHASSIS CLK CLOCK/TIMER SECTION CPA COLOUR PROCESSING/ANALOG CPD COLOUR PROCESSING/DIGITAL CRT PICTURE TUBE CTR CONTROL PANEL
DDM DISC DRIVE MECHANISM
DFL DEFLECTION CIRCUIT DPR SIGNAL PROCESSING (DIGITAL) ERA ERASE CIRCUIT EXC EXTERNAL CONNECTOR FDD FLOPPY DISC DRIVE FLX FLEXIBLE PRINTED CIRCUIT BOARD
FMW FIRMWARE
FPK FOCUS PACK
HCM HEAD CARRIAGE MECHANISM
HDD HARD DISC DRIVE HFS HIGH FREQUENCY SECTION (RF) HOL CASSETTE HOLDER
IDS INFORMATION DISPLAY SECTION
IFC IF-CIRCUIT IMG IMAGE DISPLAY UNIT INC INTERNAL CONNECTOR
INP SIGNAL INPUT SECTION
KBD KEYBOARD (SEPARATE) LDG LOADING MECHANISM LNM LENS MECHANISM MEM MEMORY CIRCUIT
MIC MICROPHONE SECTION
OUT SIGNAL OUTPUT SECTION PFM PAPER FEED MECHANISM
PIN PINCH ROLLER/LEVER
PRG PROGRAMMING SECTION
PRI PRINT BLOCK
PRT PROTECTION CIRCUIT PSU POWER SUPPLY PUD PICK-UP DEVICE PWA POWER AMP SECTION REM REMOTE CONTROL SECTION RFM RIBBON FEED MECHANISM
RFU BOOSTER,RF UNIT
RHD ROTARY HEAD(S)
SFT SOFTWARE (TAPE, DISC, ETC.) SHD STATIONARY HEAD(S) SLD SLED MECHANISM SNS SENSOR UNIT SPK SPEAKER SRS SUPPLY REEL SECTION STA STATIC BLOCK SVO SERVO SECTION SYS SYSTEM CONTROL SECTION TDM TAPE DRIVE MECHANISM THR THREADING MECHANISM TNR TENSION REGULATOR
TPT TAPE PATH TRS TAKE-UP REEL SECTION TUN TUNING SECTION
TXT TEXT PROCESSING VPA VIDEO PROCESSING/ANALOG VPD VIDEO PROCESSING/DIGITAL VWF VIEWFINDER
WIR LEAD WIRE XXX CABINET/COSMETIC PARTS
DEFECT CODES
MECHANICAL ELECTRICAL
A WORN OUT N DEFECTIVE ELECTRICAL COMPONENT/MODULE B DIRTY, CLOGGED O BURNT, ARCING, MISSING PIXELS C MISALIGNED P MISALIGNED D CUT, BROKEN Q SHORT E DEFORMED R OPEN F SNAPPED S LEAKING G SCRATCHED T BAD CONTACT, CONNECTION H CRACKED, PEELED, CORRODED U OPEN PATTERN
I LOOSE V CRACKED PRINTED CIRCUIT BOARD J SHAKY, UNSTABLE W COLD OR NO SOLDERING K LEAKING X BRIDGED SOLDERING L DRY (NO LUBRICANT) Y WRONG COMPONENT M FOREIGN OBJECT Z MISSING COMPONENT
1 SOFTWARE PROBLEM 2 EXHAUSTED, LOW EMISSION 3 NO PROBLEM FOUND (SET WITHIN SPEC) 4 NO PROBLEM FOUND - CUSTOMER MISUNDERSTANDING 5 NO PROBLEM FOUND - LOCAL CONDITIONS
REPAIR CODES
A REPLACEMENT N MAINTENANCE B MECHANICAL ALIGNMENT O REFURBISHING C ELECTRICAL ALIGNMENT P PREVENTIVE PARTS REPLACEMENT D RESOLDERING Q PREVENTIVE ACTION WITHOUT PARTS REPLACEMENT E CLEANING U EXPLANATION FOR CUSTOMER F LUBRICATION V ESTIMATION REFUSED G REPAIRED ELECTRICAL PARTS W ESTIMATION WITH PARTS H REPAIRED MECHANICAL PARTS X ESTIMATION WITHOUT PARTS
I S/B MODIFICATION Y RETURN WITHOUT REPAIR J REMOVED COMPONENT(S) Z SET EXCHANGE K ADDED COMPONENTS 1 SOFTWARE CORRECTION L FUNCTIONAL CHECK 2 SOFTWARE UPGRADE M SPECIFICATION MEASUREMENT 3 PRODUCT UPGRADE (ON REQUEST)
REV02 - JUNE 1997
9-948-427-10
Page 52
For internal use only PHILIPS
ISSUE AS98.03 (98-02-24)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
03.01 TYPENUMBER(S): ALL TYPENUMBERS
SYMPTOM : POS stickers on cassette doors & loudspeaker boxes cannot be
removed.
CURE : The stain-mark left behind from POS stickers can be removed by any
cleaning fluid that does not attack plastic surfaces. One effective remover is the “Contact Cleaner Spray”, available in most service workshops. The spray can be ordered with service codenumber 4822 389 50091.
REMARKS :
03.02 TYPENUMBER(S): AS660C, AS665C, FW332, FW335, FW340C, FW342C, FW345C,
FW352C, FW362, FW363, FW372C, FW373C, FW710C, MC130, MC150
INFORMATION : Correction Service Manual, partslist:
The service codenumber for the loudspeaker socket (pos. 1290) on the Power Board is missing.The socket can be ordered with 4822 265 10967.
REMARKS :
03.03 TYPENUMBER(S): FW36, FW56, FW360C, FW650C SYMPTOM : The 7-disc changer is jamming. CURE : The problem is caused by poor engagement between the worm gear
of motor (pos. 30) and gear H (pos. 33) due to alignment between the 2 parts. The alignment is improved by modifying the metal bracket (pos. 31) for the motor. The improved metal bracket is now available with service codenumber 4822 466 11893.
REMARKS : See also Service Newsletter AS98.01.04.
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/5
Page 53
03.04 TYPENUMBER(S): FW332 SYMPTOM : Cassette door jams with cassette inside during eject CURE : The problem is caused by deformation of the cassette door’s plastic
springs. For repair the cassette door must be replaced by an improved
cassette door.Improved cassette doors can be recognized by a step at the bottom edge of the door (see picture).
REMARKS : Improved cassette doors have been implemented in production from
week 9802 onwards (sets with serial no. MA....).
See also Service Newsletter AS97.01.17.
03.05 TYPENUMBER(S): FW332/25 SYMPTOM : The CD is still spinning when the CD door is opened and thus the CD
gets damaged.
CURE : The problem is caused by software design.
Repair on the old CD module is not feasible because of complicated re-work (exchange of CD board). New improved CD modules (with new CD board) have been implemented in production from week 9729 onwards.
REMARKS : Inproved CD module information is published in Service Information
A97-179.
Service Newsletter 1998 – Audio Systems 2/5
Page 54
03.06 TYPENUMBER(S): FW362, FW363, FW372C, FW373C, FW382V, FW383V, FW395C,
FW710C, FW725C, FW730C, FW745C, FW750C, FW770P, FW780P, FW790P, M7C, M17C, M18C, M27C, M28C, M37DC, M38C, M48DC, MX545, MX555
SYMPTOM : Cassette door jams because the R/P-head is fully retracted after
“STOP”.
CURE : The likely cause is that the cam gear screw-hole is cracked.
The problem can only be solved by replacing the complete deck. Improved tape mechanisms have been implemented in production from week 9743 onwards.
REMARKS : See also Service Newsletters AS97.03.08 and AS97.04.07.
03.07 TYPENUMBER(S): FW372C INFORMATION : High failure rate of power amplifier AN7164 when used continuously
on high volume setting. For service repair AN7164N (4822 209 16327) should be used because of its higher supply voltage working range (Vcc=8.3V to 30.0V).
REMARKS :
03.08 TYPENUMBER(S): FW391C SYMPTOM : When the set is tuned to an FM-station and power is switched off and
on again after 3 seconds, the display shows the last tuned FM­frequency, but actually an AM-station is audible.
CURE : The phenomenon is caused by mismatch of software and hardware
timing.The problem can be solved by the following hardware modification on the front board:
1. Cut a copper track between resistor 3459 (10kΩ) and ground D.
2. Connect a short wire between resistor 3459 to +F supply (+5V). For details on this rework, see circuit and layout diagram below.
REMARKS :
Service Newsletter 1998 – Audio Systems 3/5
Page 55
03.09 TYPENUMBER(S): FW750C SYMPTOM : Set switches automatically to DEMO mode, and the clock is reset to
00.00hr
CURE : The problem occurs most likely due to a bad connection between
connectors CN1401 to CN1501 (contaminated contact pins). Solution: Remove and plug back the connectors.
REMARKS :
1
2
5
4
1
6
5
3500
3501
503
505
7
4
0
1
4
3440
3480
3510
3512
3484
3442
2407
3
3416
3417
3428
3429
3430
3482
3418
2408
2409
3425
3426
3427
7404
3459
3479
2445
3443
4432
3543
3537
3544
3481 3483
2430
2406
3478
3470
3471
3472
3477
3469
3460
3468
3467
3466
3461
3465
3441
3538
488
2415
3490
2444
2403
3485
3486
2443
3437
3438
3439
3431
Portion of Layout diagram
RESET
C P UC P U
C P U
KK
V
I/O PORT 5 I/O PORT 4
I/O PORT 1
CONVERTER
6 BIT A/D-
(I/O PORT 2)
CLOCK/TIMING CONTROLLER
8 BIT
TIMER/COUNTERCONTROLLER
INTERRUPT
COUNTER
PROGRAM
48kX8 BIT
(ROM)
PROGR MEMORY
C P U
I/O PORT 9I/O PORT 8
PB_Info
CD_SW_INFO
CD_SILD
FADER
NTC
RC5
KEY1
KEY0
CLIPPING
CD_PORE
CD_OE_LATCH
CD_SICL
KEY2
P09
PW_DN
reset
P07
P06
P05
P04
P03
P02
P08
P10
(EXCEPT MINI 4+)
(EXCEPT MINI 4+)
Int2
Int1
Open Source w.80k pull down to VKK
Open Drain` Open Drain w.prog.pull down (70k)
Tri-State
1
T040
1
T039
33p
15p
2406
15p
2407
D
D
D
D
D
D
D
D D
D
D
D
D D
D
4550
+F
+F
+F
+F
+F
10k
3473
1k
3483
1k
3484
1k
34861k3485
10k
3459
680k
3478
1k
3477
1M
3479
10k
3472
10k
3471
1k
1k
3431
10k
3469
10k
3475
1k
34821k3481
10k
3480
1k
3461
10k
3468
10k
3467
10k
3466
10k
3465
100E
3470
10k
3460
10k
3442
10k
3440
10k
3438
470k
3439
470k
3441
470k
3443
10k
3474
10k
3511
6457
1N4148
6449
1N4148
6450
1N4148
6451
1N4148
6452
1N4148
6453
1N4148
6454
1N4148
6455
1N4148
6456
1N4148
1
2
3
4
5
6
7
8
9
10
11
12
5354555657585960616263
64
65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
5402
32.768kHz
Portion of Circuit diagram
Cut here
Cut here
Add wire here
Add wire
Service Newsletter 1998 – Audio Systems 4/5
Page 56
03.10 TYPENUMBER(S): FW780P SYMPTOM : Set does not read the particular CD
“Indian Sound – ANUBHAVAM PUDUMAI”.
CURE : The 3-CDC module in the set was unable to read the CD because it
does not fulfil the generic CD standards according to the Optical Recording Lab at Philips Eindhoven. However, sets with the 3-CDC MG module can read the CD. 3-CDC MG modules have been introduced in production from week 9738 onwards (see Service Information A97-167).
REMARKS :
03.11 TYPENUMBER(S): FW790P SYMPTOM : Power transistor 7302 (BD242BF1) and
Dolby Pro-logic decoder 7501 (M69032) are defective.
CURE : The metal bracket, clamping transistor 7302 onto the heatsink for
proper heat dissipation, is missing.This causes the C-E-line of the transistor to short circuit. As a result the supply voltage of the Dolby Pro-logic decoder becomes 18V, which damages the device.
Working procedure for mounting of metal bracket:
1. Dismantle the set and take out the Power 1 Module.

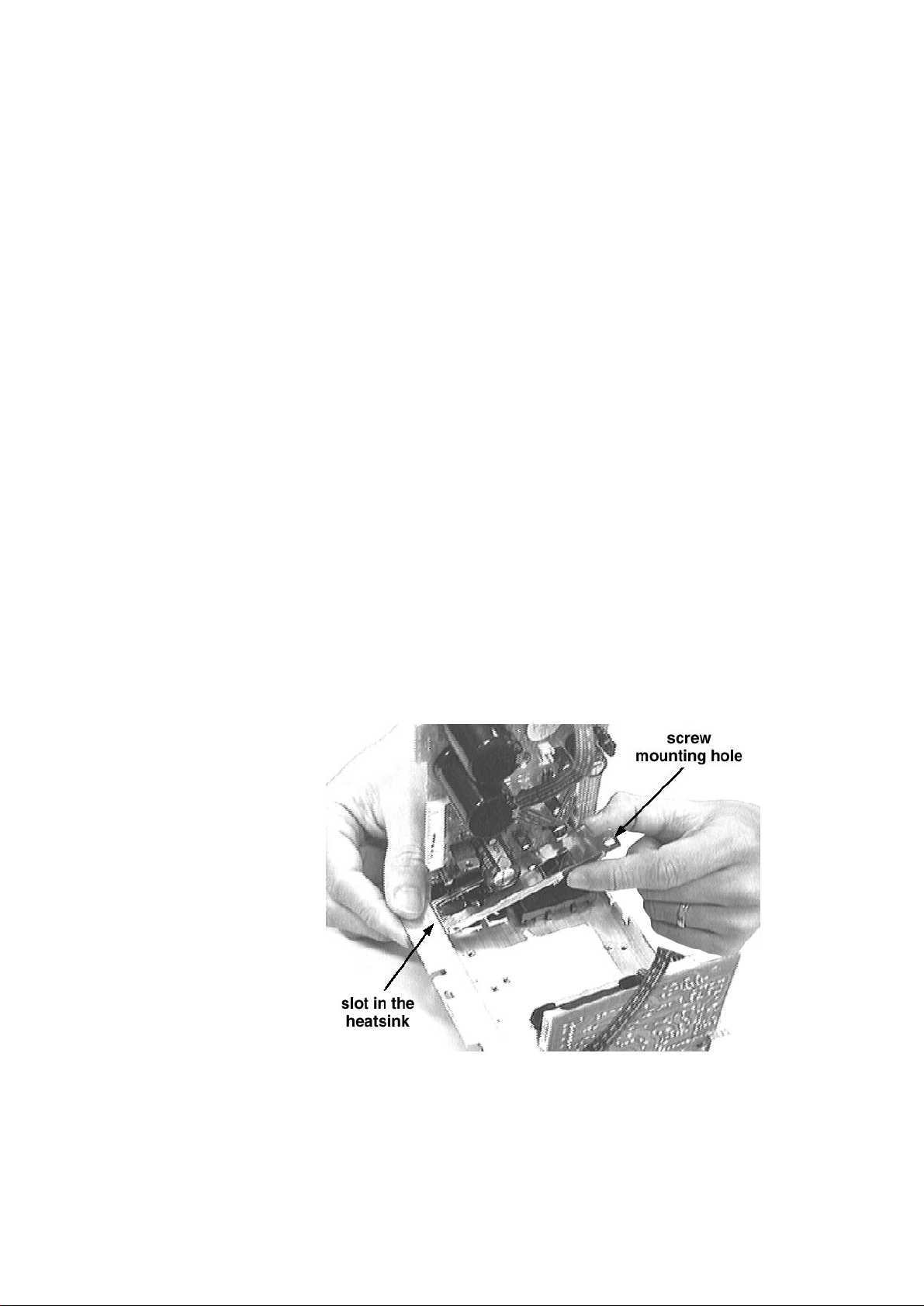

2. Insert one end of the metal bracket (4822 402 10969) into the slot provided in the heatsink (see picture below). Use a self-tapping screw D2.9x13 to mount the other end of the bracket onto the heatsink.The bracket will press transistor and bridge rectifier onto the heatsink for max. heat dissipation.
Note: In the picture one pc board and the fan/bracket is removed for
photographing purpose only.This is not necessary for mounting of metal bracket.
––––––––––––––– IMPORTANT INFORMATION ––––––––––––––– All sets brought in for repair must be checked if the metal bracket is assembled !!
REMARKS :
Service Newsletter 1998 – Audio Systems 5/5
Page 57
For internal use only PHILIPS
ISSUE AS98.02 (98-01-26)
Published by: Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
02.01 TYPENUMBER(S): MC135
SYMPTOM : Hum is audible in standby mode CURE : In Addition to Service Newsletter AS98.01.09, mechanical noise from
power transformer might also be audible.To solve this problem, following actions have been taken in production:
1) The construction of the power transformer has been modified. The code number of the improved transformer remains unchanged. It can be recognized by the metal band which is grey in colour.
2) 4 fibre washers between the power transformer and the bottom chassis have been added.The size (id x od x t) of the fibre washer is 4 x 8 x 1mm. It is also available from PCS via service code 4822 532 12975
REMARKS : Modification has been implemented in production from week 9801
onwards.
02.02 TYPENUMBER(S): MC135, MC155 SYMPTOM : RDS information cannot be displayed in area with crowded stations. CURE : Solution is to shift the VCO frequency of IC505 by changing the value
of the following capacitors: C527 : changed from 82pF to 33pF (5322 122 32072) C528 : changed from 47pF to 22pF (5322 122 32143) Measure the frequency at pin 14 of IC505 to be within
4.33204MHz ±200kHz.
REMARKS : Modification has been implemented in production from week 9749
onwards.
SERVICE NEWSLETTER
Service Newsletter 1998 – Audio Systems 1/2
Page 58
02.03 TYPENUMBER(S): FR732, FR752 SYMPTOM : Sound is too loud at first volume step. CURE : Problem occurs only when Dolby Prologic Surround is activated.
It cannot be solved by an ordinary repair procedure.We suggest to advise customer to switch the Dolby Prologic Surround OFF when enjoying quiet programmes. Dolby Prologic Surround is intended to be used for home theatre entertainment.
REMARKS :
Service Newsletter 1998 – Audio Systems 2/2
Page 59
For internal use only PHILIPS
ISSUE AS98.01 (98-01-09)
Published by: Service Department Audio Systems
LINEOFBUSINESSAUDIOSYSTEMS
SERVICENEWSLETTER
01.01TYPENUMBER(S):AS670C,AS675C,AS785C,FW315C,FW340C,FW355C,FW365C,
FW373C,FW375P,FW385P,FW710C,FW725C,FW730C,FW745C, FW750C,FW770P,FW780P,FW790P
INFORMATION :Error in parts list for (old) CDC-3 changer module
On page 10-12 of the Service Manual the service codenumber for flexfoil 17p is published.This cable is not used in the module. The correct flexfoil (15 pins instead of 17 pins) is published on page 10-14 as item 8002, service codenumber 4822 320 11313.
REMARKS :This correction is only valid for old CDC-3 changer modules with pc
board printing 3104 113 3109.
01.02TYPENUMBER(S):AS670C,FW355C,FW375P,FW385P,FW725C,FW730C,FW780P INFORMATION :Power4 module
Following changes have been introduced in course of production:
1.Capacitor 2251 has been changed from 470µF to 100µF (482212440225).The capacitor has been rotated by 90° from layout change stage .5 to .6.
2.To reduce risk of destroying power amplifier in worst case, diodes 6301 and 6351 (4-channel set only) have been changed from 24V type to 22V (4822 130 34441).
3.Layout stage has been changed from .6 to .7 to include possiblility to stuff a fuse instead of resistor 3204 (3,3ΩNFR).
4.Elcaps 2205 and 2214 for 4-channel set have been deleted because they are no longer required.
REMARKS :
Service Newsletter 1998 – Audio Systems 1/4
Page 60
01.03 TYPENUMBER(S): FR931 SYMPTOM : Fluorescent display blinks at 75% power output level.
The problem arises when the set is loaded with 2 loudspeaker boxes FB850 but it does not happen when loaded with 4 same loudspeaker boxes. No fault is found on the set.
CURE : The problem can be resolved by changing Zener diode D305 from
39V to 30V (4822 130 34328).
REMARKS :
01.04 TYPENUMBER(S): FW36, FW56, FW360C, FW650C SYMPTOM : The 7-disc changer is jamming. CURE : The cause of jamming is unclear but the changer works again when
the mechanism is re-adjusted. When the problem re-occurs it is recommended to replace the entire mechanism.The service codenumber for the mechanism is 4822 691 10684.
REMARKS :
01.05 TYPENUMBER(S): FW315, FW340C INFORMATION : Missing service codenumber in Mechanical partslist
pos 216 4822 462 40683 Plate (Foot)
REMARKS :
01.06 TYPENUMBER(S): FW352C INFORMATION : The following service codenumbers for the mains transformer are
missing in the Service Manual. Service code Description
––––––––––––––––––––––––––––––––––––––– 4822 146 10443 Mains transformer /21/30 4822 146 10712 Mains transformer /37 4822 146 10465 Mains transformer /22/25
REMARKS :
01.07 TYPENUMBER(S): FW383V INFORMATION : Correction to the parts list
Pos 224 should be 4822 492 11086 Spring Compression instead of 4822 492 11046 Cassette door spring.
REMARKS :
Service Newsletter 1998 – Audio Systems 2/4
Page 61
01.08 TYPENUMBER(S): FW670P SYMPTOM : Distortion when playing back a recording made on this set. CURE : ALC feedback capacitors 2737 and 2738 on combi board are missing.
2737 4822 126 10002 100nF 20% 25V 2738 4822 126 10002 100nF 20% 25V
REMARKS :
01.09 TYPENUMBER(S): MC135 SYMPTOM : Hum is audible in standby mode. CURE : Cut the copper track which passes through the pins of CE556.
Connect the grounding point of C523 to JP560 with a wire. For details see Service Information A97-588 (4822 725 25646).
REMARKS : Modification has been implemented in production from week 9742
onwards.
01.10 TYPENUMBER(S): MC172/30 INFORMATION : Correction to the partslist
The service codenumber for the microprocessor should be 4822 209 15766 with marking “170S51551” instead of 4822 209 15767 published on page 6-6 in the Service Manual.
REMARKS :
Service Newsletter 1998 – Audio Systems 3/4
Page 62
For internal use only PHILIPS
ISSUE AS98.01 (98-01-09)
Published by: Service Department Audio Systems
LINEOFBUSINESSAUDIOSYSTEMS
DCC
01.11TYPENUMBER(S):DCC730,DCC951
INFORMATION :A small quantity of complete Digital Deck Units is available with
service codenumber 482269110666.
REMARKS :
Service Newsletter 1998 – Audio Systems 4/4
Loading...
