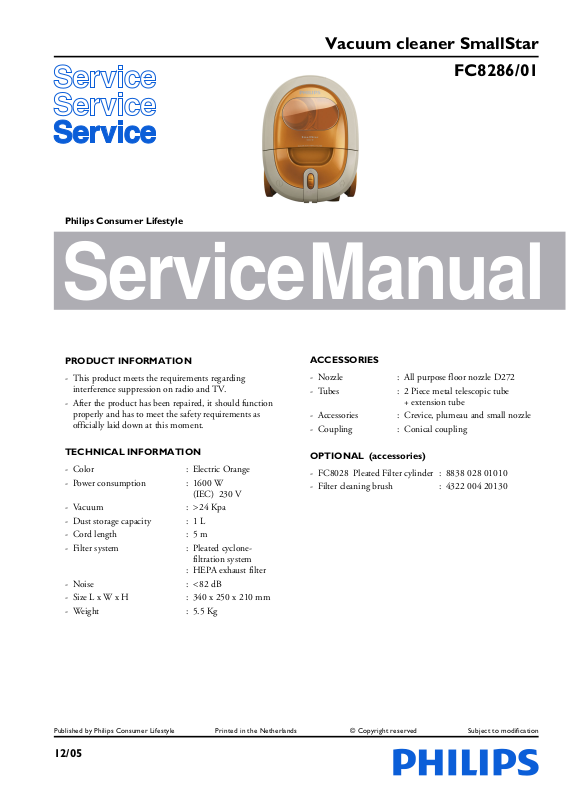

Page 1
Vacuum cleaner SmallStar
FC8286/01
Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Color : Electric Orange
- Power consumption : 1600 W
(IEC) 230 V
- Vacuum : 24 Kpa
- Dust storage capacity : 1 L
- Cord length : 5 m
- Filter system : Pleated cyclone filtration system
: HEPA exhaust filter
- Noise : 82 dB
- Size L x W x H : 340 x 250 x 210 mm
- Weight : 5.5 Kg
ACCESSORIES
- Nozzle : All purpose floor nozzle D272
- Tubes : 2 Piece metal telescopic tube
+ extension tube
- Accessories : Crevice, plumeau and small nozzle
- Coupling : Conical coupling
OPTIONAL (accessories)
- FC8028 Pleated Filter cylinder : 8838 028 01010
- Filter cleaning brush : 4322 004 20130
Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
12/05
Page 2

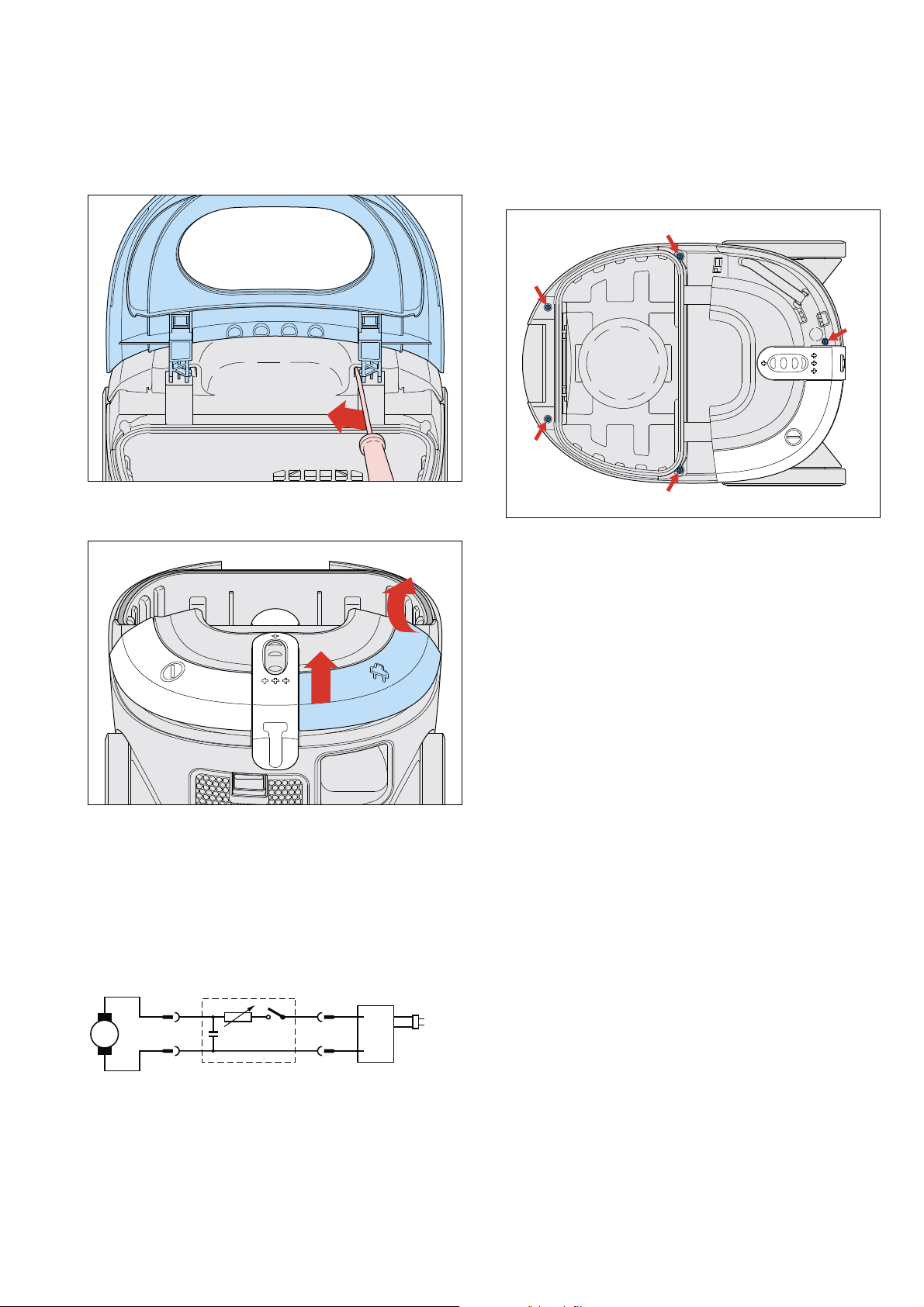

DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- First remove the dust bucket.
- Remove the dustcover using a screwdriver (see picture).
FC8286/01
- When the dustcover and the cord winder button have been
removed, the 5 screws A that need to be unscrewed to
disassemble the upper housing, are accessible (see picture).
A
A
A
A
- Remove the Cord Winder Button by pulling it upwards
(see picture).
B
A
ELECTRICAL DIAGRAM
A
- To disassemble the cord winder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).
- During re-assembling, take care the wires are positioned in
the guides correctly.
REPAIR INSTRUCTION
- The spare parts have been standardized as much as possible.
- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn.
- Item 6, air valve, opens to cool the motor if the air
displacement is too low or if the airfl ow is blocked.
M
SPEED
CONTROL UNIT
C
CORD WINDER
2-7
Page 3
PARTS LIST
Pos Service code Description
1
2
3*
4*
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
4222 459 50031
4222 459 50071
4222 459 50391
4322 005 20850
4222 459 49981
4222 459 50831
4222 459 50321
4222 459 50191
4222 459 50141
4222 459 49911
4222 459 50661
4222 459 50621
4222 459 50341
4222 459 48841
4222 459 49851
4222 459 49861
4222 459 49881
4222 459 50701
4222 459 50501
4222 459 50681
Dustbucket cover Electric Orange
Dustbucket sealing ring
Filter case Lime Yellow
Filter Spectra Yellow
Dustbucket assy Electric Orange
Safety valve assy BL
Dustcover sealing
Dustcover panel Electric Orange SmallStar BL
Dustcover base assy Greige BL
Cordwinder pedal Greige
Pedal spring
On/Off pedal Greige
Exhaust grille assy Electric Orange
HEPA exhaust fi lter
Cordwinder lever
Cordwinder without cordset
Cover speed control Greige
Rear cover Electric Orange
Knob speed control Electric Orange
Potmeter assy
FC8286/01
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
4222 459 50651
4222 459 49781
4222 459 49821
4222 459 50581
4222 459 50871
4222 459 50591
4222 459 50091
4222 459 50521
4222 459 49721
4222 459 50421
4222 459 50401
4322 006 97732
4322 009 09400
4222 459 50461
4222 459 50571
4222 459 50751
4222 459 49701
4222 459 50921
4222 459 50811
4222 459 50771
4322 006 01400
4322 004 21121
4222 459 49671
4222 459 49901
4222 459 50841
PCB assy speed control
Cord outlet cover Electric Orange
Cord outlet Electric Orange
Motor cover
Suction inlet case Electric Orange
Motor cover seal
Dustchamber Electric Orange
Lower housing Electric Orange
Casterwheel assy Greige
Front motor seal
Front motor cover Domel
Motor Domel 1600 W / 230 V
Global motor 1462 220 V; 50 - 60 Hz
Inner motor cover Domel
Motor buffer
Rear silencer
Bottom silencer
Wire socket
Rear wheel bush
Rear wheel assy Electric Orange
Cordset 6.3 m Europe
Hose assy incl. Dragon Bend
2 piece Telescopic metal tube incl. extension
Crevice nozzle Dark Raven
Small nozzle Dark Raven
= changed
45
4222 459 49711
46
4222 459 49691
* Standardized color
Brush nozzle Dark Raven
All Purpose nozzle D272 conical Dark Raven
3-7
Page 4

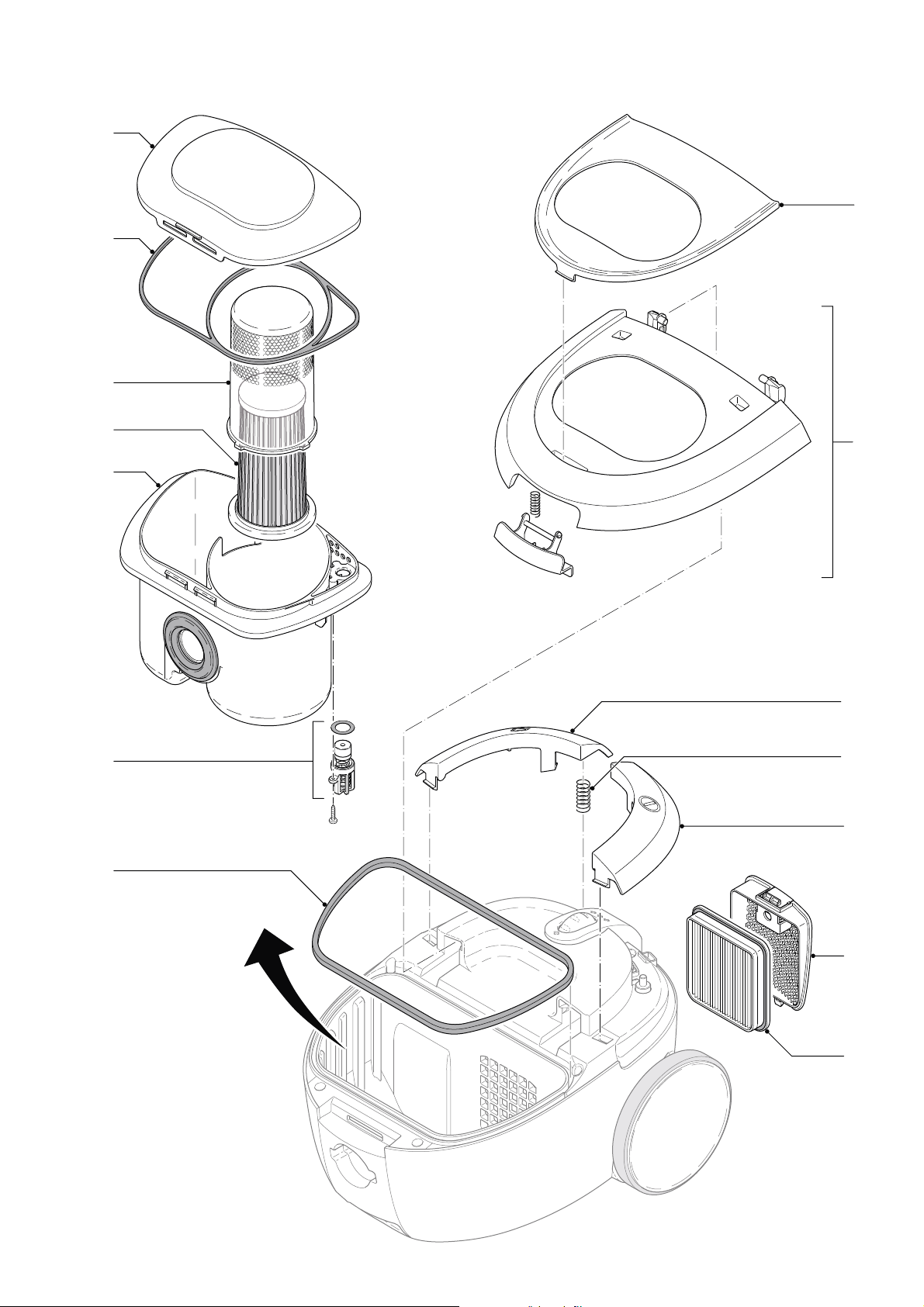

EXPLODED VIEW
1
2
3
FC8286/01
8
4
5
6
7
9
10
11
2x
12
13
14
4-7
Page 5

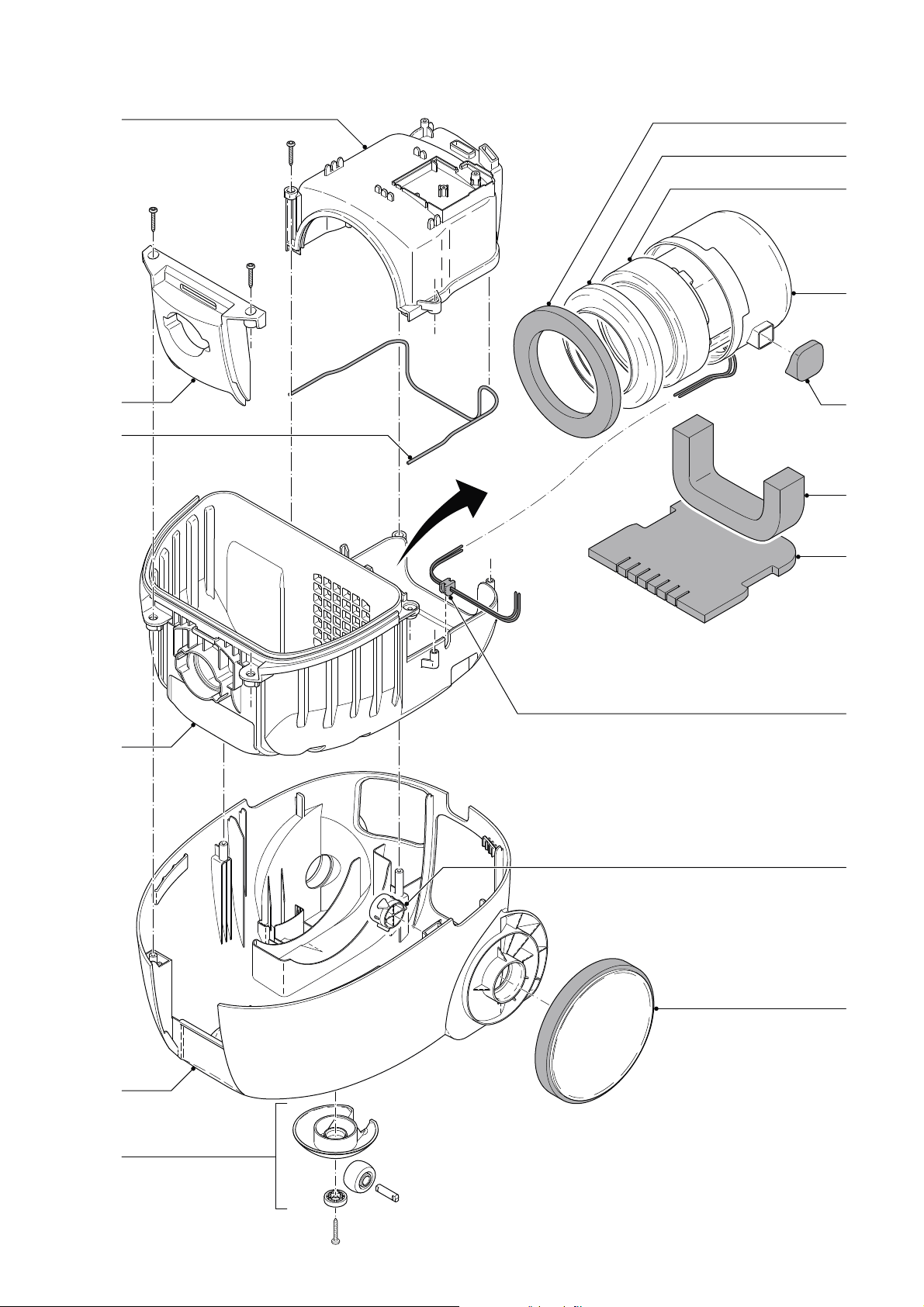

EXPLODED VIEW
15
FC8286/01
17
A
A
18
A
19
16
20
21
22
Z
23
5-7
Page 6

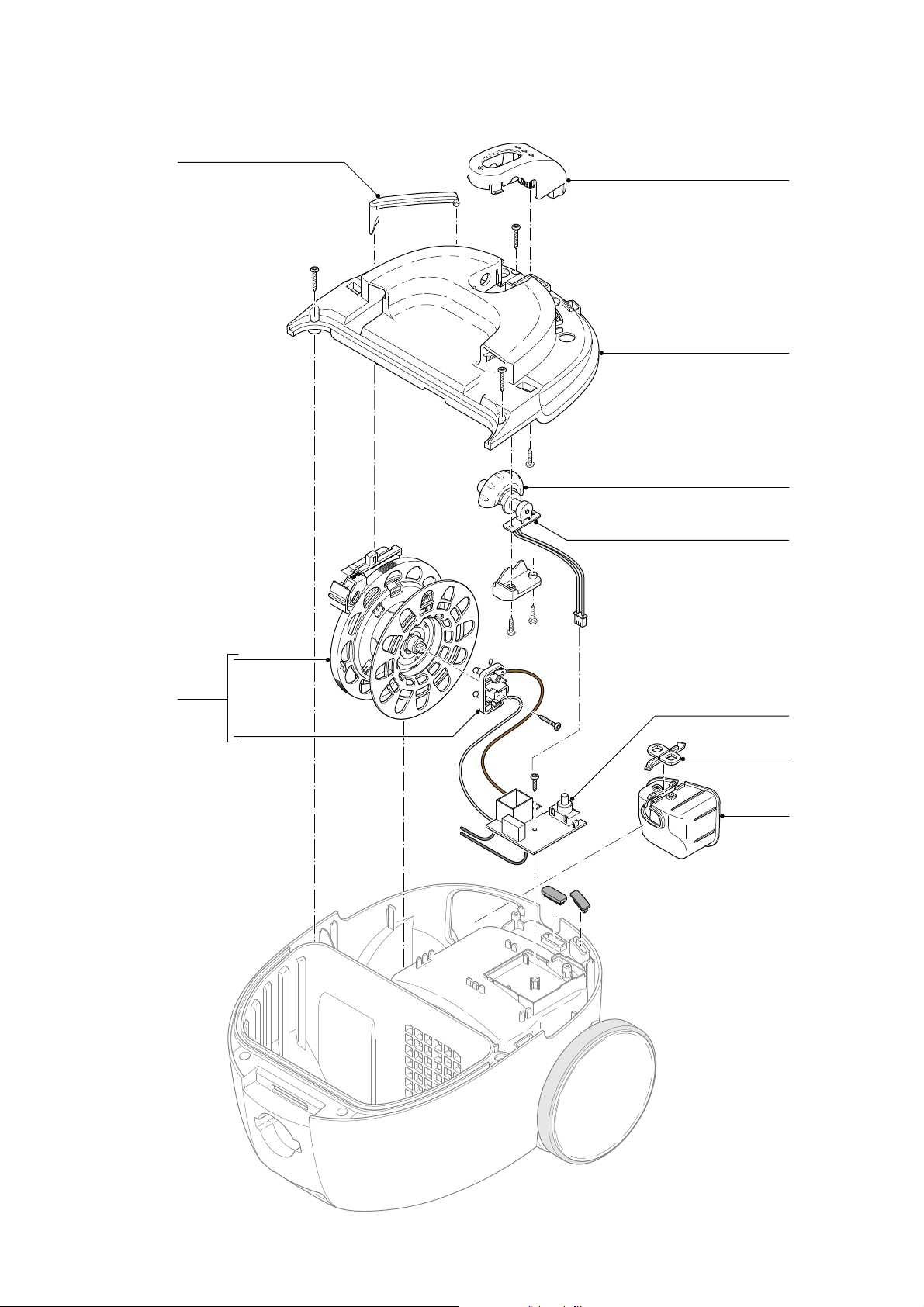

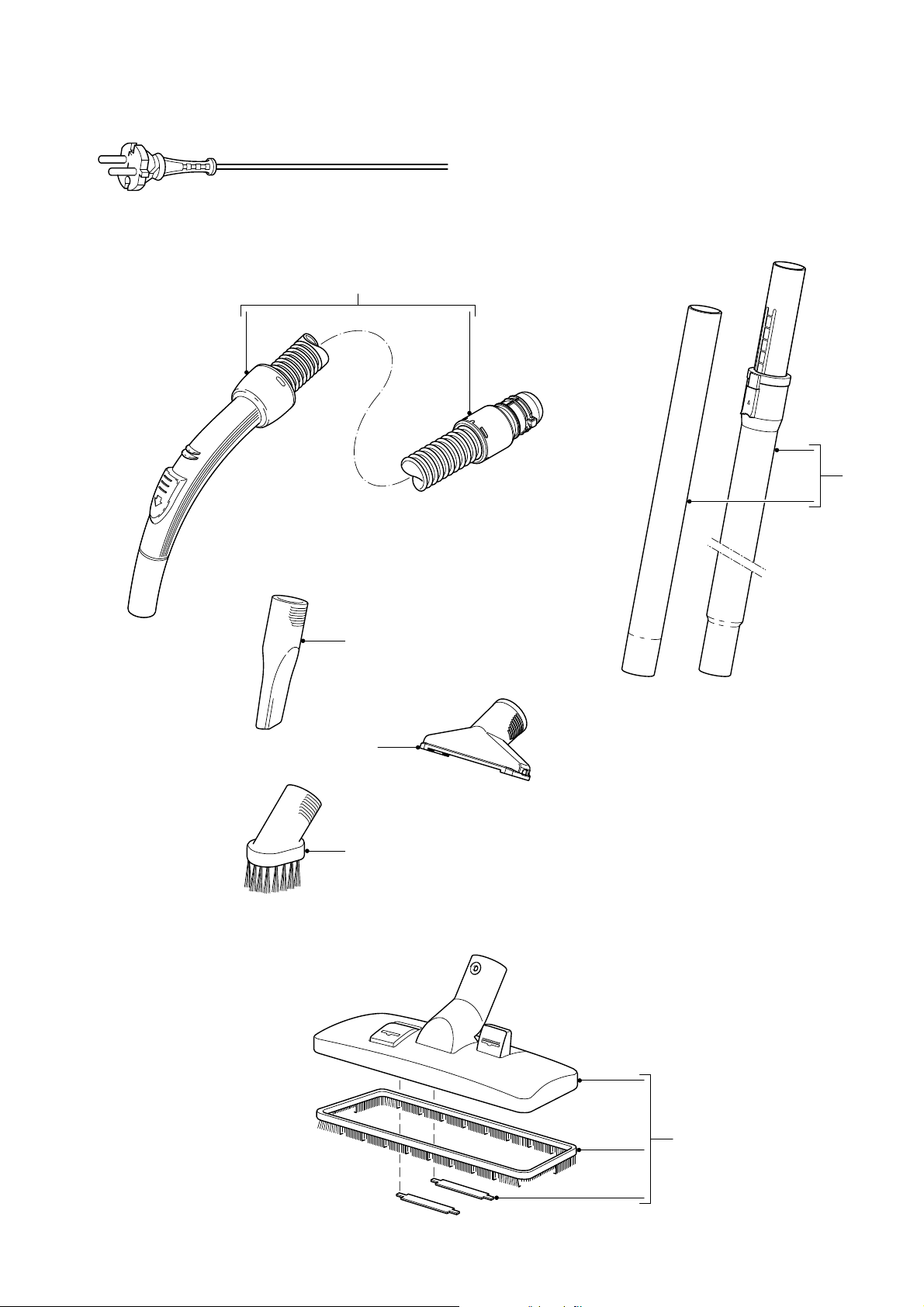

EXPLODED VIEW
FC8286/01
24
25
26
A
A
B
4x
30
31
32
33
34
2x
35
36
Z
27
28
29
37
38
2x
39
2x
6-7
Page 7
EXPLODED VIEW
FC8286/01
Europe 40
41
42
43
44
45
46
7-7
