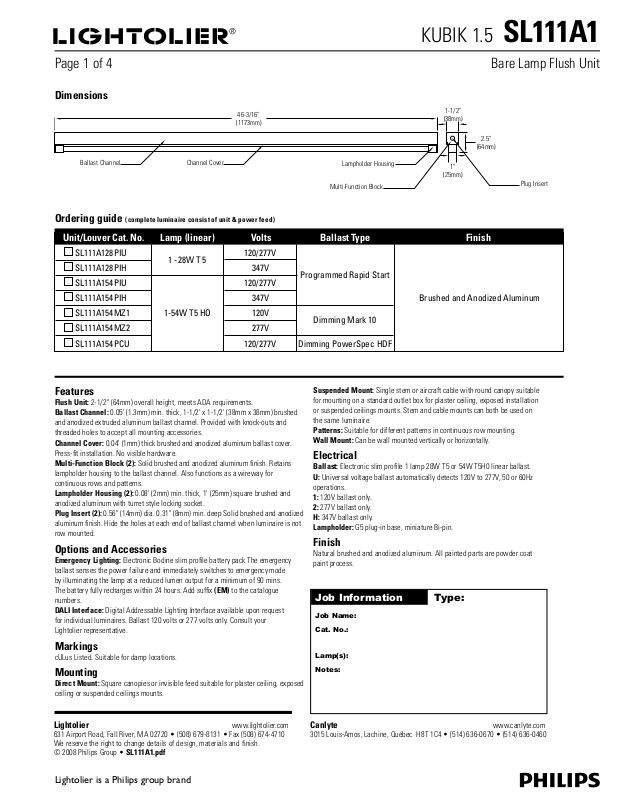

Philips SL111A1 User Manual

KUBIK 1.5 SL111A1

46-3/16"

(1173mm)

1-1/2"

(38mm)

1"

(25mm)

2.5"

(64mm)

Ballast Channel

Channel Cover

Lampholder Housing

Multi-Function Block

Plug Insert

Page 1 of 4 Bare Lamp Flush Unit

Dimensions

Ordering guide (complete luminaire consist of unit & power feed )

Unit/Louver Cat. No. Lamp (linear) Volts Ballast Type Finish

SL111A128PIU 120/277V

SL111A128PIH

SL111A154PIU 120/277V

SL111A154PIH 347V Brushed and Anodized Aluminum

SL111A154MZ1 1-54W T5 HO 120V

SL111A154MZ2 277V

SL111A154PCU 120/277V Dimming PowerSpec HDF

1 -28W T 5

347V

Programmed Rapid Start

Dimming Mark 10

Features

Flush Unit: 2-1/2" (64mm) overall height, meets ADA requirements.
Ballast Channel: 0.05' (1.3mm) min. thick, 1-1/2' x 1-1/2' (38mm x 38mm) brushed

and anodized extruded aluminum ballast channel. Provided with knock-outs and
threaded holes to accept all mounting accessories.
Channel Cover: 0.04' (1mm) thick brushed and anodized aluminum ballast cover.
Press-fit installation. No visible hardware.
Multi-Function Block (2): Solid brushed and anodized aluminum finish. Retains
lampholder housing to the ballast channel. Also functions as a wireway for
continuous rows and patterns.
Lampholder Housing (2): 0.08' (2mm) min. thick, 1' (25mm) square brushed and
anodized aluminum with turret style locking socket.
Plug Insert (2): 0.56" (14mm) dia. 0.31" (8mm) min. deep Solid brushed and anodized
aluminum finish. Hide the holes at each end of ballast channel when luminaire is not
row mounted.

Options and Accessories

Emergency Lighting: Electronic Bodine slim profile battery pack The emergency

ballast senses the power failure and immediately switches to emergency mode
by illuminating the lamp at a reduced lumen output for a minimum of 90 mins.
The battery fully recharges within 24 hours. Add suffix (EM) to the catalogue
numbers.
DALI Interface: Digital Addressable Lighting Interface available upon request
for individual luminaires. Ballast 120 volts or 277 volts only. Consult your
Lightolier representative.

Markings

cULus Listed. Suitable for damp locations.

Mounting

Direct Mount: Square canopies or invisible feed suitable for plaster ceiling, exposed

ceiling or suspended ceilings mounts.

Suspended Mount: Single stem or aircraft cable with round canopy suitable
for mounting on a standard outlet box for plaster ceiling, exposed installation
or suspended ceilings mounts. Stem and cable mounts can both be used on
the same luminaire.

Patterns: Suitable for different patterns in continuous row mounting.
Wall Mount: Can be wall mounted vertically or horizontally.

Electrical

Ballast: Electronic slim profile 1 lamp 28W T5 or 54W T5H0 linear ballast.
U: Universal voltage ballast automatically detects 120V to 277V, 50 or 60Hz

operations.

1: 120V ballast only.
2: 277V ballast only.
H: 347V ballast only.
Lampholder: G5 plug-in base, miniature Bi-pin.

Finish

Natural brushed and anodized aluminum. All painted parts are powder coat
paint process.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

© 2008 Philips Group • SL111A1.pdf

Lightolier is a Philips group brand

Canlyte www.canlyte.com

3015 Louis-Amos, Lachine, Québec H8T 1C4 • [phone] • [phone]

KUBIK 1.5 SL111A1

4-1/2"

(114 mm)

Square

Page 2 of 4 Bare Lamp Flush Unit

Accessories/Options

Cat. No. Finish Feed Canopy Kit

SL003JLG
SL003JWH

Cat. No. Finish Invisible Feed Kit

SL003K Corrosion Protected Accepts conduit or cable with 3/8" (10mm) or 1/2" (13mm)

Cat. No. Finish Grid Ceiling Feed Kit

SL003LLG
SL003LWH

Textured Light Grey
White

Textured Light Grey
White

Mounts to end or middle of the channel for power feed from
3" (76mm) or 4" (102mm) octagonal outlet box. Kit includes
one 0.05" (1.3mm) thick, 4-1/2" (114mm) grounded square steel
plate. Comes with 4 wires 18 AWG, 10 Amps max.

electrical connector (by others). Kit includes one 0.06" (1.5mm)
thick wall by 1/2" (13mm) dia. seamless steel stem and,
one 0.09" (2.3mm) thick by 5/8" (16mm) by 15/16" (24mm) dia.
aluminum connector. (20 Amps max.)

Mounts along runner or at the intersection of runners. Kit
Includes one 2-1/8" (54mm) deep by 4" (102mm) grounded
octagonal outlet box, one 0.05” (1.3mm) thick universal
crossbar, one 4-1/2" (114mm) white plastic square, and two
t-bar clips 5/32" (4mm) thick spacer, one 0.04" (1 mm) thick
aluminum canopy and two t-bar wrap around clips. Comes
with 4 wires 18 AWG, 10 Amps max.

Cat. No. Finish Power Feed Stem Kit

SLO03M18LG
SLO03M36LG
SLO03M48LG
SLO03M72LG
SLO03M18WH
SLO03M36WH
SL003M48WH
SLO03M72WH

18" Textured Light Grey
36" Textured Light Grey
48" Textured Light Grey
72" Textured Light Grey
18" White
36" White
48" White
72" White

Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box
Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel
canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless
steel stem, available in 4 different lengths and two decorative
cylinder head screws. Complete installation of Power Feed
Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS. Comes
with 5 pre-assembled wires. 10 Amps max.

Cat. No. Finish Stem Mounting Kit (non-electrical)

SLO04M18LG
SLO04M36LG
SLO04M48LG
SLO04M72LG
SLO04M18WH
SLO04M36WH
SLO04M48WH
SLO04M72WH

18" Textured Light Grey
36" Textured Light Grey
48" Textured Light Grey
72" Textured Light Grey
18" White
36" White
48" White
72" White

Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box
Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel
canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless
steel stem, available in 4 different lengths and two decorative
cylinder head screws. Complete installation of Power Feed
Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS.

Job Information Type:

Lightolier www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

© 2008 Philips Group • SL111A1.pdf

Lightolier is a Philips group brand

Canlyte www.canlyte.com

3015 Louis-Amos, Lachine, Québec H8T 1C4 • [phone] • [phone]

KUBIK 1.5 SL111A1

46-3/16"

(1173 mm)

Kubik 1.5

1.5"

(38 mm)

Page 3 of 4 Bare Lamp Flush Unit

Cat. No. Finish Power Feed Cable Kit

SL003NLG
SL003NWH

Cat. No. Finish Cable Mounting Kit (non-electrical)

SL004NLG
SL004NWH

Textured Light Grey
White

Textured Light Grey
White

Mounts to a 3" (76mm) or 4" (102mm) octogonal outlet box.
Kit includes one 0.024" (0.6mm) thick, 5" (127mm) round steel
canopy, one 0.05" (1.3mm) thick grounded crossbar threaded
stud, one 0.046" (1.2mm), 96" (2438mm) long aircraft galvanized
cable with zinc plated hanger adjusting glider hardware,
two white plastic cable stay and one 18 AWG (AWM), 10 feet
(3048mm) long white cord, 10 Amps max.

Mounts to a 3" (76mm) or 4" (10mm) octagonal outlet box.
Kit includes one 0.024" (0.6mm) thick , 5" (127mm) round steel
canopy, one 0.05" (1 3mm) thick grounded crossbar, threaded
stud, one 0.046" (1.2mm) , 96' (24 38mm) long galvanized
aircraf t galvanized cable with zinc plated hanger and
adjusting glider hardware. Can be used with either Cable
or Stem Power Feed Kit.

Cat. No. Finish Extension Blank (4')

SL003P4 Brushed Aluminum Permits power feed between two 1.5" x 1.5" (38mm x 38mm)

brushed and anodized units in a straight run with supplied
extra wires 18 AWG, 10 Amps max, and wire connectors
to energize them. Includes one 46-3/16" (1173mm) long
extruded aluminum channel and cover, two solid aluminum
multi-function blocks as a wireway, plug inserts and wire
connectors.

Cat. No. Finish Invisible Coupler

SL003Q Zinc plated Invisible coupler for joining two Kubik 1.5 units together

mechanically or/and electrically. Recommended for direct
surface mounting. Comes with 4 wires 18 AWG, 10 Amps max.

Cat. No. Finish 5 Face Connector

SL003R Brushed Aluminum Kubik 1.5 units coupled with exclusive solid brushed and

anodized aluminum 5-face connectors and power feed can
satisfy virtually any layout requirement. The connector permits
you to create square, rectangular, continuous rows, L, T,
X configurations. Includes four threaded couples, plug insert
(3), four wires 18 AWG and wire connectors, 10 Amps max.

Lightolier www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

© 2008 Philips Group • SL111A1.pdf

Lightolier is a Philips group brand

Job Information Type:

Canlyte www.canlyte.com

3015 Louis-Amos, Lachine, Québec H8T 1C4 • [phone] • [phone]

KUBIK 1.5 SL111A1

0°

90°90°

180°

200

400

800

Page 4 of 4 Bare Lamp Flush Unit

Performance

CANDLEPOWER CURVE

REPORT NO: C9932
CAT. NO: SL111A128PI

1 x 28W T5 at 2610 Lumens
Efficiency: 99.9 %
Candela at Nadir: 326cd

ZONE
DEG

ALONG 22.5 45 67.5 ACROSS

0 326 326 326 326 326
5 339 330 331 331 322
15 323 325 335 341 339
25 300 309 331 347 345
35 261 285 318 337 343
45 215 251 296 320 329
55 162 209 262 302 318
65 111 165 234 289 308
75 59 125 217 279 303
85 22 96 198 268 292
90 15 88 191 251 270
95 16 94 197 269 295
105 15 115 206 269 294
115 13 147 220 275 295
125 16 136 238 281 294
135 16 95 247 281 296
145 17 44 165 256 277
155 13 14 78 146 164
165 16 14 11 28 41
175 16 15 9 1 1
180 9 9 9 9 9

CANDLEPOWER

ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50

Wall Reflectance

70 50 30 10 70 50 30 10 50 30 10

0 1.09 1.09 1.09 1.09 1.02 1.02 1.02 1.02 .88 .88 .88
1 .97 .91 .86 .82 .90 .85 .81 .76 .73 .70 .67
2 .87 .78 .71 .64 .81 .73 .66 .60 .62 .57 .53
3 .79 .68 .59 .53 .73 .63 .56 .50 .55 .49 .44
4 .72 .60 .51 .44 .66 .56 .48 .41 .48 .41 .36
5 .65 .52 .43 .36 .60 .49 .41 .34 .42 .35 .30
6 .60 .47 .38 .31 .55 .43 .35 .29 .37 .31 .26
7 .55 .42 .33 .27 .51 .39 .31 .25 .34 .27 .22
8 .51 .37 .29 .23 .47 .35 .27 .22 .30 .24 .19
9 .47 .34 .25 .20 .43 .31 .24 .19 .27 .21 .17

Room Cavity Ratio

10 .43 .31 .23 .17 .40 .28 .21 .16 .25 .19 .15

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

LUMINAIRE INPUT WATTS = 26.4

DISTRIBUTION

ZONE LUMENS % LAMP % LUMINAIRE

0-30 277 10.62 10.63
0-40 471 18.07 18.08
0-60 918 35.18 35.20
0-90 1548 59.33 59.36
40-90 1076 41.25 41.28
60-90 630 24.15 24.16
90-180 1060 40.62 40.64
0-180 2608 99.95 100.00

COEFFICIENTS OF UTILIZATION

Patterns

SL003R

SL004N

SL111A1

SL004N

SL111A1

SL111A1

SL003M

SL111A1

SL111A1

SL111A1

SL004M

SL003R

SL111A1

SL003N
SL003R

SL003R

SL003Q

SL111A1

SL003P4

SL111A1

SL003J

SL004N

SL003R

SL003K SL111A1

SL003Q SL111A1

SL111A1

SL003K

SL003R

SL111A1

SL111A1

SL003L

SL111A1

SL003R

SL111A1

SL003J

Job Information Type:

SL111A1

SL003J

SL111A1

Lightolier www.lightolier.com

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

Canlyte www.canlyte.com

3015 Louis-Amos, Lachine, Québec H8T 1C4 • [phone] • [phone]

SL003J

We reserve the right to change details of design, materials and finish.

© 2008 Philips Group • SL111A1.pdf

Lightolier is a Philips group brand
