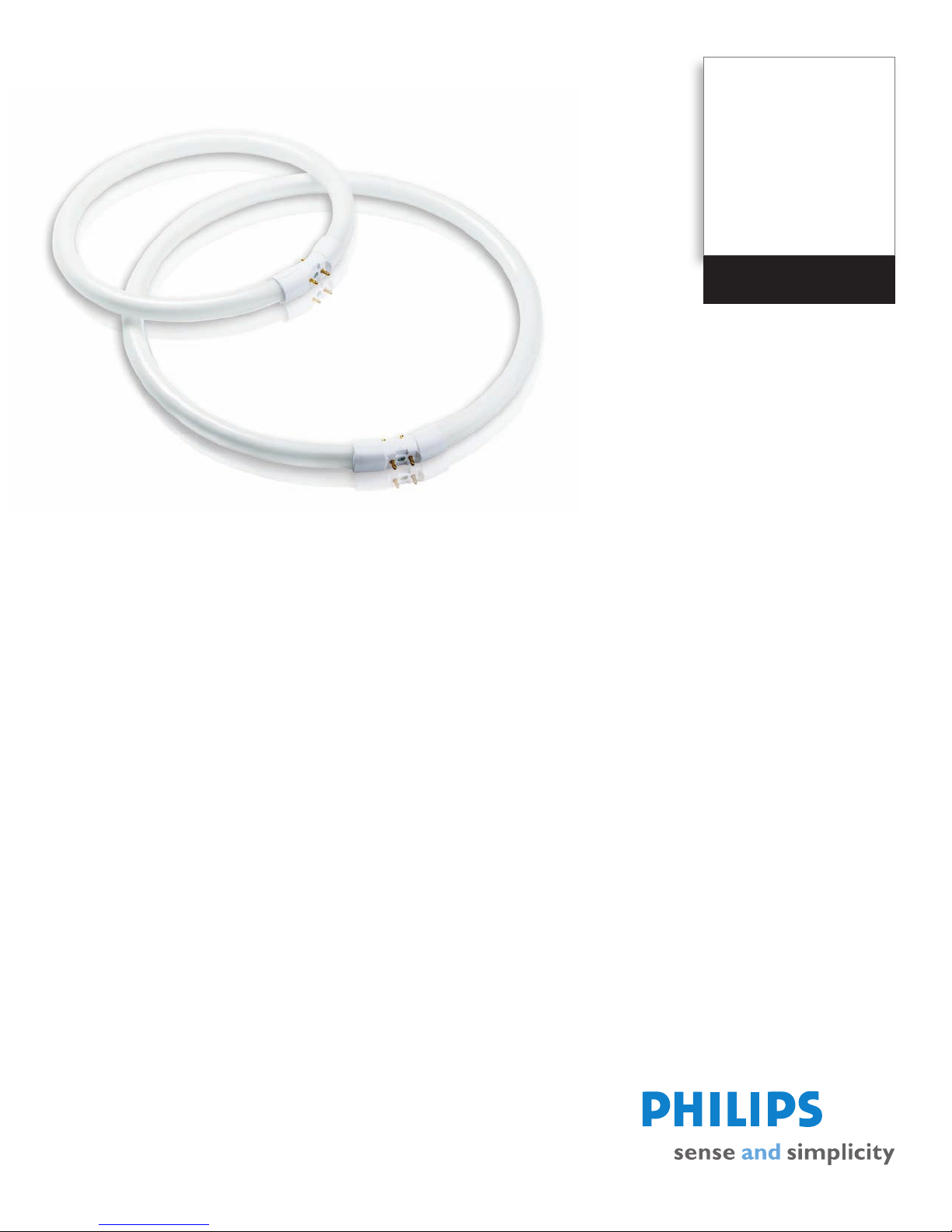

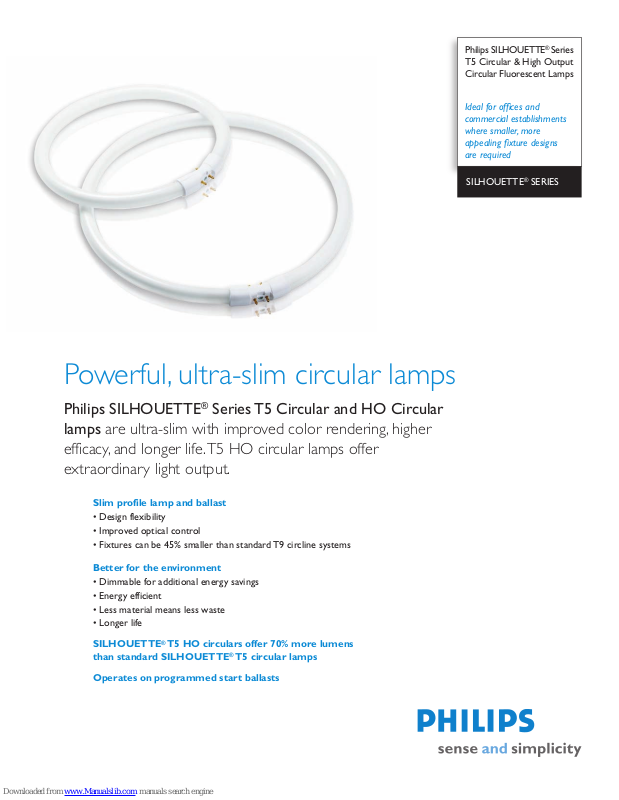

Philips SILHOUETTE®Series
T5 Circular & High Output
Circular Fluorescent Lamps
Ideal for offices and
commercial establishments
where smaller, more
appealing fixture designs
are required
SILHOUETTE®SERIES
Powerful, ultra-slim circular lamps
Philips SILHOUETTE®Series T5 Circular and HO Circular
lamps are ultra-slim with improved color rendering, higher
efficacy, and longer life.T5 HO circular lamps offer
extraordinary light output.
Slim profile lamp and ballast
• Design flexibility
• Improved optical control
• Fixtures can be 45% smaller than standardT9 circline systems
Better for the environment
• Dimmable for additional energy savings
• Energy efficient
• Less material means less waste
• Longer life
®
SILHOUETTE
than standard SILHOUETTE
T5 HO circulars offer 70% more lumens
®
T5 circular lamps
Operates on programmed start ballasts
Page 2
Philips SILHOUETTE®SeriesT5 Circular and High Output (HO) Circular Fluorescent Lamps

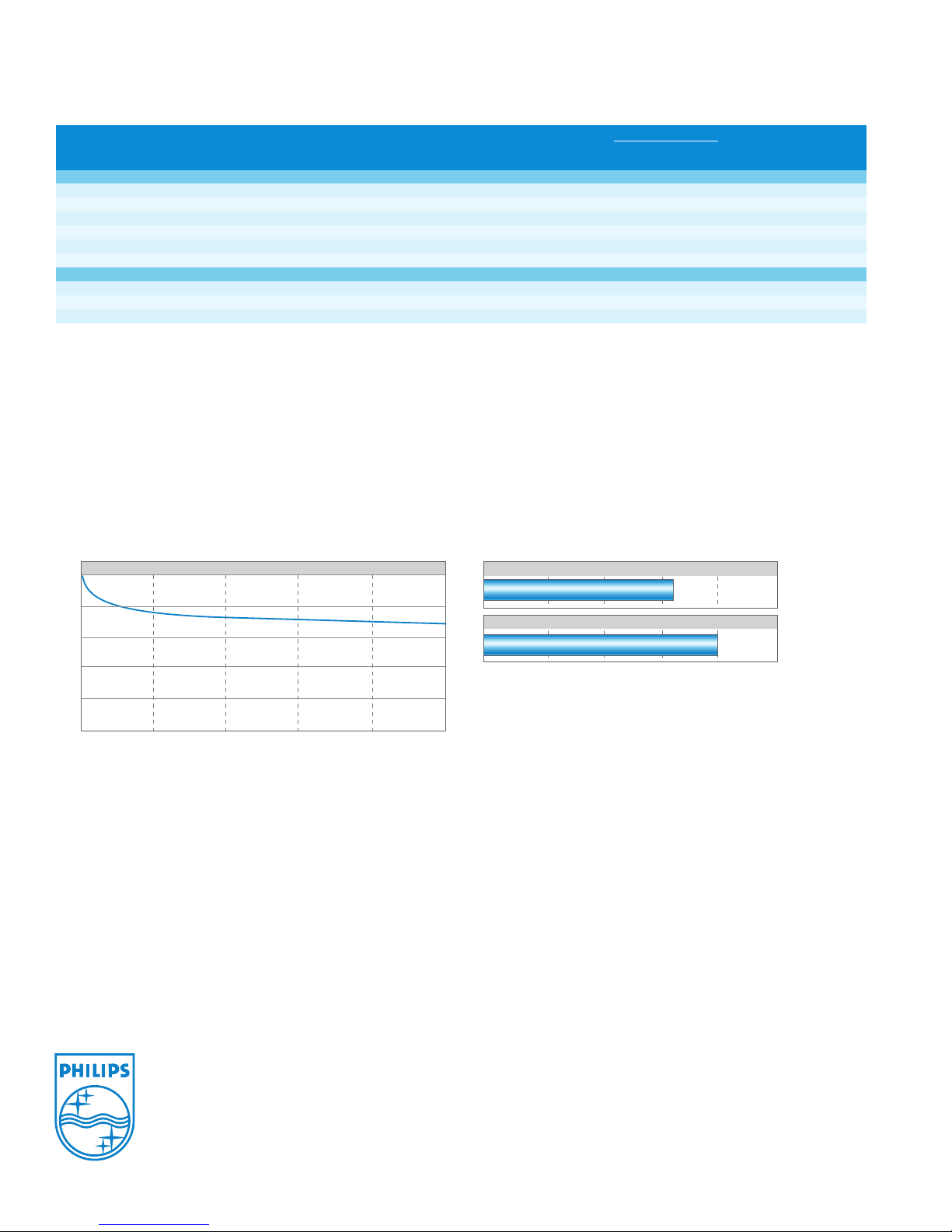

0 4,000 8,000 12,000 16,000 20,0000 4,000 8,000 12,000 16,000 20,000
1
00%
9
0%
8
0%
7
0%
60%
50%
1
00%
9
0%
8
0%
7
0%
60%
50%
Lamp Operating HoursLamp Operating Hours
Lumen Output Percent (%)Lumen Output Percent (%)
0 5,000 10,000 15,000 20,000 25,000 0 5,000 10,000 15,000 20,000 25,000
Rated Average Life in HoursRated Average Life in Hours
BASED ON 3 HOURS PER START
2
1
6,000
20,000
BASED ON 12 HOURS PER START
3
Ordering, Electrical and Technical Data
Std. Color Outer Rated Avg. Life (Hrs)
Max.
Product Nom. Pkg. Temp. Diam. 3-Hour 12 Hour Initial Design
Number Description Watts Bulb Base Qty. (Kelvin) CRI (In.) Start2Start
SILHOUETTE™Series T5 Circular Fluorescent Lamps
16601-7 TL5C 22W/830 22 T5 2GX13 10 3000 85 9 16,000 20,000 1800 1530
14856-9 TL5C 22W/835 22 T5 2GX13 10 3500 85 9 16,000 20,000 1800 1530
16600-9 TL5C 22W/840 22 T5 2GX13 10 4000 85 9 16,000 20,000 1800 1530
16596-8 TL5C 40W/830 40 T5 2GX13 10 3000 85 12 16,000 20,000 3300 2805
14859-3 TL5C 40W/835 40 T5 2GX13 10 3500 85 12 16,000 20,000 3300 2805
16598-4 TL5C 40W/840 40 T5 2GX13 10 4000 85 12 16,000 20,000 3300 2805
SILHOUETTE
™
Series T5 High Output (HO) Circular Fluorescent Lamps
16593-6 TL5C 55W/830 55 T5 2GX13 10 3000 85 12 16,000 20,000 4200 3580
14862-7 TL5C 55W/835 55 T5 2GX13 10 3500 85 12 16,000 20,000 4200 3580
16592-8 TL5C 55W/840 55 T5 2GX13 10 4000 85 12 16,000 20,000 4200 3580
1) Rated average life is the length of operation (in hour s) at which point an average of 50% of a large sample of lamps will still be oper ational and 50% will not.
2) Average life under specified test conditions with lamps turned off and restar ted no more frequently than once every 3 operating hour s.
Lamp life is appreciably longer if lamps are started less frequently.
3) Average life under engineering data with lamps turned off and restar ted once ever y 12 operating hours.
4) Approximate initial lumens. The lamp lumen output is based upon lamp performance after 100 hours of operating life, when the output is measured during operation on a reference ballast under
standard laborator y conditions.
5) For expected lamp lumen output, commercial ballast manuufacturers can advise the appropr iate ballast factor for each of their ballasts when they are informed of the designated lamp.The ballast factor
is a multiplier applied to the designated lamp lumen output.
6) Design lumens are the approximate lamp lumen output at 40% of the lamp’s rated average life.This output is based upon measurements obtained during lamp operation on a reference ballast under
standard laborator y conditions.
1
Approx.
3
Lumens
4,5
Lumens
6
85% Lumen Maintenance
SILHOUETTE®Series T5 Circular and HO Circular Fluorescent Lamp
Rated Average Life
SILHOUETTE®Series T5 Circular and HO Circular Fluorescent Lamp
