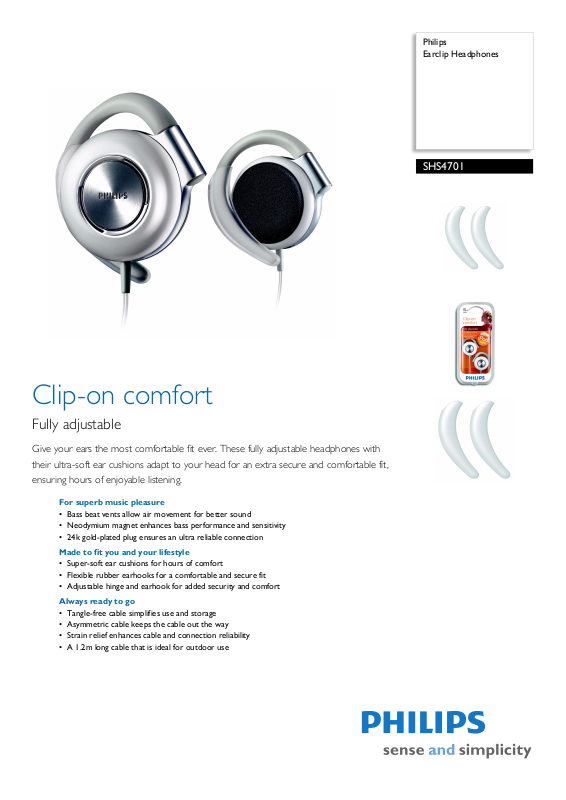

Philips SHS4701 User Manual

Philips
Earclip Headphones

SHS4701

Clip-on comfort

Fully adjustable

Give your ears the most comfortable fit ever. These fully adjustable headphones with
their ultra-soft ear cushions adapt to your head for an extra secure and comfortable fit,
ensuring hours of enjoyable listening.

For superb music pleasure

• Bass beat vents allow air movement for better sound

• Neodymium magnet enhances bass performance and sensitivity

• 24k gold-plated plug ensures an ultra reliable connection

Made to fit you and your lifestyle

• Super-soft ear cushions for hours of comfort

• Flexible rubber earhooks for a comfortable and secure fit

• Adjustable hinge and earhook for added security and comfort

Always ready to go

• Tangle-free cable simplifies use and storage

• Asymmetric cable keeps the cable out the way

• Strain relief enhances cable and connection reliability

• A 1.2m long cable that is ideal for outdoor use

Earclip Headphones

SHS4701/37

Specifications Product highlights

Sound

• Acoustic system: Open

• Magnet type: Neodymium

• Voice coil: CCAW

• Diaphragm: Mylar dome

• Frequency response: 12 - 24 000 Hz

• Impedance: 24 Ohm

• Maximum power input: 100 mW

• Sensitivity: 104 dB

• Speaker diameter: 32 mm

• Type: Dynamic

Connectivity

• Cable Connection: Two-parallel, asymmetric

• Cable length: 1.2m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold-plated

• Type of cable: OFC

Inner Carton

• Gross weight: 1.36 lb

• Inner carton (L x W x H): 9.2 x 7.4 x 4.4 inch

• Nett weight: 1.012 lb

• Tare weight: .348 lb

Outer Carton

• Gross weight: 18.96 lb

• Outer carton (L x W x H):

19.2

x 15.7 x 14.9 inch

• Nett weight: 5.397 lb

• Tare weight: 13.563 lb

Packaging dimensions

• Packaging dimensions (W x H x D):

3.9

x 8.7 x 1.1 inch

• Gross weight: .17 lb

• Nett weight: .075 lb

• Tare weight: .095 lb

•

Bass Beat vents

Bass beat vents allow air movement for better sound with
a deep rich bass.

Neodymium magnet

Neodynium is the best material for producing a strong
magnetic field for greater sensitivity in a voice coil, better
bass response and higher overall sound quality.

24k Gold-plated plug

Rest assured that the precious metal gold finishing on the
plug will give you a more reliable connection for better
quality audio.

Super-soft ear cushions

The ear cushions are very soft, and enclose the speakers
around the ears to create great sound. With very little
pressure on the ears, you can use the headphones
comfortably for long periods.

Flexible rubber earhooks

The rubber earhooks provide a non-slip grip for an extra
secure and comfortable fit, ensuring that the headphones
remain in place for hours of comfort. Ideal for active use.

Fully adjustable

Th e ad just abl e hi nge and earh ook cre ate s added s ecu rit y
and comfort, by adapting to the shape and size of your
ear. This helps make a perfect fit that is highly
comfortable and also keeps the headphones in place.

Tangle-free cable

The tangle-free cable helps you save time since it is less
likely to become tangled. This is because it is made from
a material that is more rigid material yet maintains its
flexibility.

Asymmetric cabling system

This simple yet highly effective solution to cable tangling
works effectivly by enabling you to hang the cable behind
your neck instead of under your chin.

Strain relief

A soft, flexible sleeve protects the cable connection from
damage that otherwise would occur from repeated
bending, extending the product life.

1.2 meter cable

Th e idea l cable lengt h to giv e you th e free dom to p ut you r
audio device where you want.

Issue date 2008-11-15

Version: 5.0.8

12 NC: 9082 100 07117
UPC: 6 09585 11438 8
