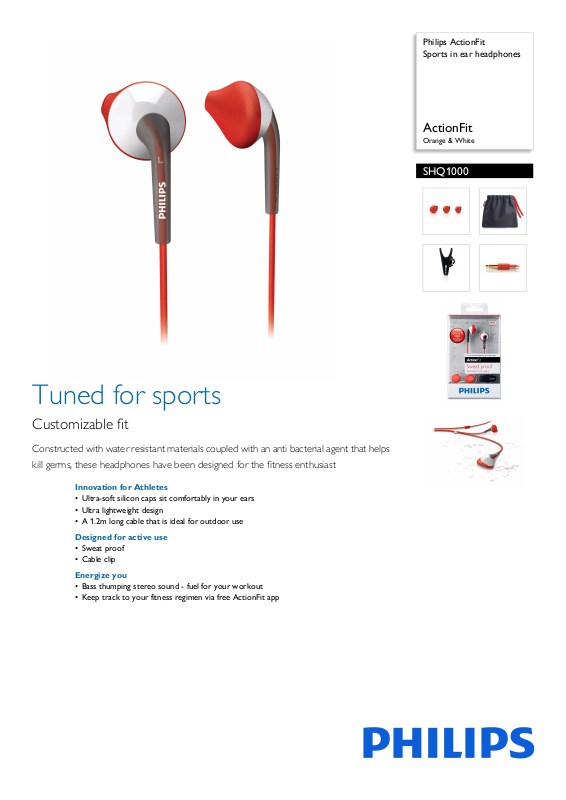

Philips SHQ1000-28 User Manual

Philips ActionFit Sports in ear headphones

ActionFit

Orange & White

SHQ1000

Tuned for sports

Customizable fit

Constructed with water resistant materials coupled with an anti bacterial agent that helps kill germs, these headphones have been designed for the fitness enthusiast

Innovation for Athletes

• Ultra-soft silicon caps sit comfortably in your ears

• Ultra lightweight design

• A 1.2m long cable that is ideal for outdoor use

Designed for active use

• Sweat proof

• Cable clip

Energize you

• Bass thumping stereo sound - fuel for your workout

• Keep track to your fitness regimen via free ActionFit app

Sports in ear headphones

ActionFit Orange & White

SHQ1000/28

Highlights

Sweat proof

Designed with a water resistant seal to protect your headphones from sweat related damage

Bass thumping stereo sound

Acoustics finely tuned to enhance the sporting experience - fuel for your workout

Cable clip

3-size ultra-soft silicon caps

The 3 sizes of ultra-soft silicon caps of these Philips earphones sit comfortably in your ears without adding pressure to them whilst blocking out unwanted noise.

Ultra lightweight design

Ultra lightweight design for a comforable fit designed for sports

1.2m cable

The ideal cable length to give you the freedom to put your audio device where you want.

Free ActionFit application

Specifications

Sound

• Diaphragm: Mylar dome

• Frequency response: 30 - 20 000 Hz

•Impedance: 16 ohm

• Maximum power input: 10 mW

• Sensitivity: 110 dB

• Speaker diameter: 13.5 mm

•Type: Dynamic

• Voice coil: CCAW

• Magnet type: Neodymium

Connectivity

• Cable Connection: two-parallel, symmetric

• Cable length: 1.2 m

• Connector: 3.5 mm

• Finishing of connector: gold-plated

•Type of cable: OFC

Accessories

• Included: transport case

Packaging dimensions

• Packaging dimensions (W x H x D):

9.5 x 17.5 x 3 cm

• Packaging dimensions (W x H x D):

3.7 x 6.9 x 1.2 inch

• UPC: 6 09585 18743 6

• Number of products included: 1

• Gross weight: 0.064 kg

• Gross weight: 0.141 lb

• Nett weight: 0.046 lb

• Nett weight: 0.021 kg

• Packaging type: Box

• Tare weight: 0.043 kg

• Tare weight: 0.095 lb

Clip helps fix cable securely

Keep track of your fitness regimen with this smart, simple and free app - created by Philips just for you. The ActionFit app lets you create customized workouts that include time, distance and calorie goals - and you can even assign your favorite music to each target. Once you've completed your workout, use the app to share your results with friends on Twitter and Facebook. You'll need GPS for your distance and calorie goals, so download it for free from the App Store - and you're good to go!

Outer Carton

• GTIN: 1 06 09585 18743 3

• Number of consumer packagings: 24

• Gross weight: 5.198 lb

• Gross weight: 2.358 kg

•Outer carton (L x W x H): 15.4 x 9.1 x 9.8 inch

•Outer carton (L x W x H): 39.2 x 23.2 x

• Nett weight: 0.504 kg

• Nett weight: 1.111 lb

• Tare weight: 4.087 lb

• Tare weight: 1.854 kg

25 cm

Inner Carton

• GTIN: 2 06 09585 18743 0

• Number of consumer packagings: 3

• Gross weight: 0.545 lb

• Gross weight: 0.247 kg

• Inner carton (L x W x H): 7.3 x 4.1 x 4.1 inch

• Inner carton (L x W x H): 18.5 x 10.5 x 10.4 cm

• Nett weight: 0.063 kg

• Nett weight: 0.139 lb

• Tare weight: 0.406 lb

• Tare weight: 0.184 kg

•

Issue date 2014-03-14

Version: 3.0.6

12 NC: 8670 000 61232 UPC: 6 09585 18743 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
