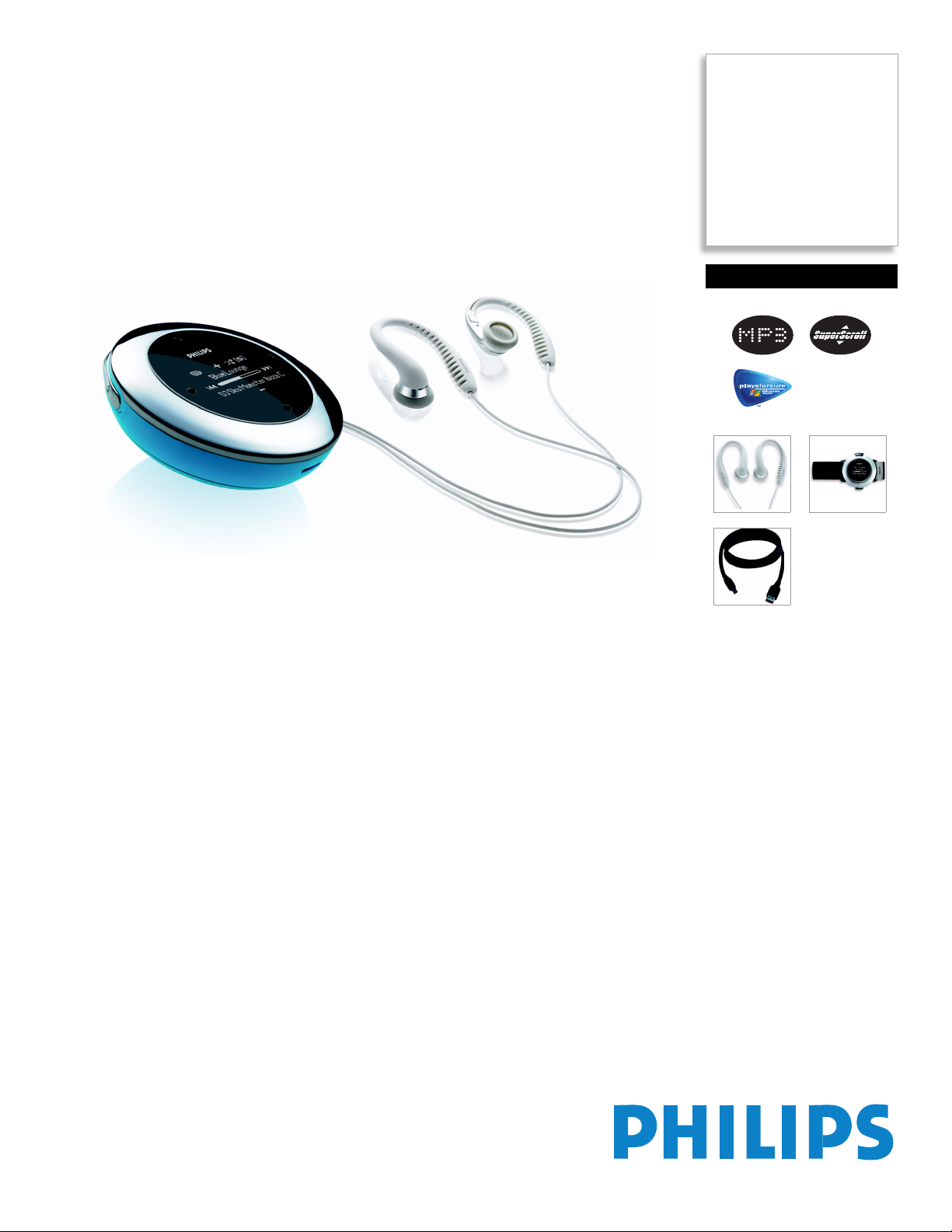

Philips
Sport audio player
PSA612
Designed for movement
Designed for freedom of movement, the 4GB* PSA612 with FM radio lets you enjoy
up to 2000 songs for all your favorite sports moments. With a shock-absorbing design,
enjoy your favorite music even during the most vigorous workouts.
On the move - always
• Built-in talking stopwatch
• Intuitive 'no-look' music control via the rocking lens
• Shock absorbing design
• ShockLock for 100% shock-free music
• Comes with sport armband and sport headphones
Your music, your moves
• Plays up to 2000 songs*
• 4GB* built-in memory
• Enjoy more music with built-in FM tuner
• Enjoy up to 12-hour music playback
• Navigation based on track, artist, album, genre or playlist
• SuperScroll™ navigation finds songs in a simple, fast way
• Fast downloads from your PC via USB2.0
• PlaysForSure* with Windows XP only
Page 2
For preview purpose only
Sport audio player
Technical specifications Product highlights
Picture/Display
• Backlight
• Backlight color: Blue
• Indications: ar tis t name, Bat ter y st atu s, DBB,
frequency, pre-set station, time, track,
volume
• Resolution: 96 x 64 pixels
• Type: LCD
Sound
• Bass enhancement: Digital Bass Boost
• Equalizer settings: RnB, Classic, Hip Hop,
Jazz, Rock
• Frequency response: 20 - 20 000 Hz
• Output power (RMS): 2 - 5mW
• Signal to noise ratio: >80
• Volume Control: digital
Audio Playback
• Compression format: MP3, Windows
Media™ Audio
• ID3 Tag support: Album title and artist
name, Track title and artist name
• MP3 bit rates: 32-320 kbps and VBR
• ShockLock
• WMA bit rates: 32-192 kbps
Storage Media
• Hard Disk Capacity: 4GB
• Music memory capacity, MP3: up to 1000
MP3 (128kbps & 4 min.)
• Music memory capacity, WMA: up to 2000
WMA (64kbps & 4min.)
• Built-in memory type: Hard disk
Convenience
• Function: Keypad lock
• Lines of text: 4
Accessories
• Armband: AY4224
• CD-ROM: AY4498
• Headphones: HJ025
• USB cable: AY3915
• AC/DC Adaptor/Charger: AY4107
Software
•Device manager
• Windows Media Player 10
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Internet connection
• Microsoft Internet Explorer: 6.0 or later
• PC OS: Windows® XP (SP1 or higher)
• Sound card
• USB: Free USB port
•Video card
Power
• Adaptor type: 100 - 240V
• Battery capacity: 610 mAh
• Battery Type: Li-ion
• Charging time: 4 hrs full, 1 hr fast charge hr
• Rechargeable
Dimensions
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108 MHz
• Station presets: 10
• Tuner Bands: FM Stereo
Connectivity
• Headphone: 3.5 mm
• USB: USB 2.0
• Packaging type: Clamshell
• Product dimensions (W x H x D):
70.5 x 29.9 x 70.5 mm
• Product weight: 0.092 kg
• Master carton quantity: 3
• Master carton dimensions:
262x269x300mm
• Packaging dimensions (WxHxD):
226x234x84mm
•
PSA612/17
Built-in talking stopwatch
Activate the built-in talking stopwatch feature via the
strategically positioned button on the top left of the
player. The stopwatch relays the elapsed running time via
your headphones. You don't even need to look at your
player. To keep you motivated in any mode, the talking
stopwatch can be used either with or without music
playback.
'No-look' rocking lens
Enjoy a hassle free workout and take accurate control of
yo ur mu sic o n t he mov e v ia you r p layer 's intui ti ve 'no -l ook'
rocking lens. Designed to keep you moving and
motivated, the rocking lens provides discreet and easy
access to multiple functions on the player without
disrupting your workouts. For a true 'no look' experience,
simply tap on the guiding points of the rocking lens
marked with a small bump for convenient and accurate
music control.
ShockLock
Enjoy 100% shock-free music on the go and even during
the most vigorous workouts. No need to worry about
da magi ng th e har d dis c of yo ur HD D pla yer. Once you' ve
selected your favorite songs to motivate your workout,
simply press the 'Hold' button on your HDD player and
select the ShockLock mode. Your music selection will be
automatically loaded into the HDD player's buffer
memory. From this moment on, the hard disc will be
locked in ShockLock mode to protect it from shock and
vibration. Enjoy your workouts free from shock.
Date of issue 2006-07-03
Version: 7.0
12 NC: 9073 101 02158
UPC: 0 37849 96353 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
* Storage capacity based on 4 minutes per song and 64 kbps WMA or
128 kbps MP3 encoding.
* The PlaysForSure, Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
* Actual transfer speed may vary based on your operating system and
software configuration.
* FM Radio is only available to some regional versions. FM radio is
currently not available in an European version.
