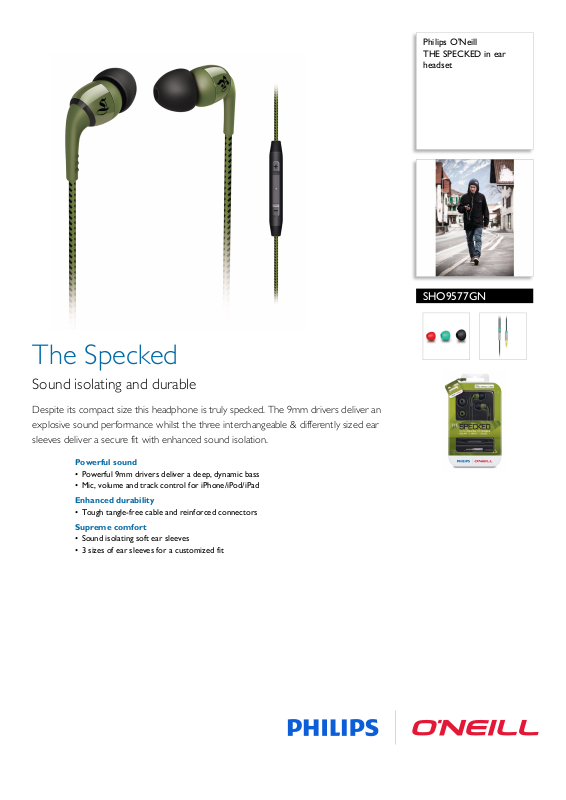

Philips SHO9577GN-10 User Manual
Philips O'Neill
THE SPECKED in ear
headset
SHO9577GN
The Specked
Sound isolating and durable
Despite its compact size this headphone is truly specked. The 9mm drivers deliver an
explosive sound performance whilst the three interchangeable & differently sized ear
sleeves deliver a secure fit with enhanced sound isolation.
Powerful sound
• Powerful 9mm drivers deliver a deep, dynamic bass
• Mic, volume and track control for iPhone/iPod/iPad
Enhanced durability
• Tough tangle-free cable and reinforced connectors
Supreme comfort
• Sound isolating soft ear sleeves
• 3 sizes of ear sleeves for a customized fit
THE SPECKED in ear headset
SHO9577GN/10
Specifications
Product dimensions
• Product dimensions (W x H x D):
1,22 x 2,35 x 2,55 cm
• Weight: 0,014 kg
Sound
• Acoustic system: Semi-open
• Magnet type: Neodymium
• Voice coil: CCAW
• Diaphragm: Mylar dome
• Frequency response: 6 - 23 500 Hz
•Impedance: 16 Ohm
• Maximum power input: 50 mW
• Sensitivity: 105 dB
• Speaker diameter: 8.6 mm
•Type: Dynamic
Connectivity
• Cable Connection: Symmetrical
• Cable length: 1.2 m
• Connector: 3.5 mm stereo
• Finishing of connector: 24k Gold-plated
•Type of cable: OFC
Packaging dimensions
• Type of shelf placement: Dummy
• EAN: 69 23410 70968 1
• Number of products included: 1
• Packaging dimensions (W x H x D):
9 x 16,5 x 3 cm
• Gross weight: 0,069 kg
• Nett weight: 0,014 kg
• Packaging type: Dummy
• Tare weight: 0,055 kg
Outer Carton
• EAN: 87 12581 59991 1
• Gross weight: 2,334 kg
•Outer carton (L x W x H): 37,5 x 22,7 x 24,8 cm
• Nett weight: 0,336 kg
• Number of consumer packagings: 24
• Tare weight: 1,998 kg
Inner Carton
• EAN: 87 12581 59992 8
• Gross weight: 0,249 kg
• Inner carton (L x W x H): 17,6 x 10,2 x 10,5 cm
• Nett weight: 0,042 kg
• Number of consumer packagings: 3
• Tare weight: 0,207
•
kg
Highlights
Powerful sound
With powerful 9mm drivers these headphones
deliver a balanced sound experience coupled with a
punchy bass performance.
Smart reinforcement
Thanks to the tough tangle-free fabric cable and
reinforced connectors these headphones are built to
stand up to the wear and tear of your active lifestyle.
Customized fit
Three sizes of soft ear sleeves enable you to
customize the fit to your ears.
Comfortable for long wear
The deluxe ear sleeves enable you to wear your
headphones for as long as you like without
discomfort.
Issue date 2014-03-14
Version: 1.2.5
12 NC: 8670 000 75483
EAN: 69 23410 70968 1
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
