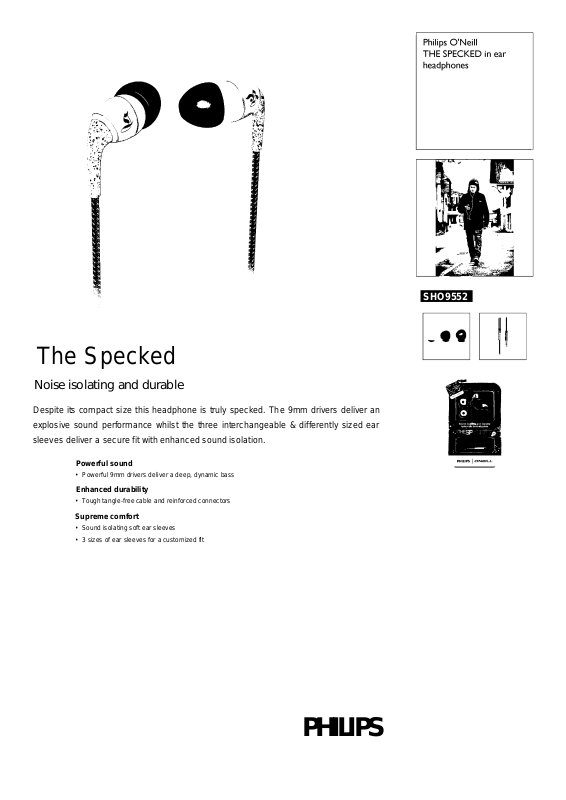

Philips SHO9552-28 User Manual

The Specked

Noise isolating and durable

Despite its compact size this headphone is truly specked. The 9mm drivers deliver an explosive sound performance whilst the three interchangeable & differently sized ear sleeves deliver a secure fit with enhanced sound isolation.

Powerful sound

• Powerful 9mm drivers deliver a deep, dynamic bass

Enhanced durability

• Tough tangle-free cable and reinforced connectors

Supreme comfort

• Sound isolating soft ear sleeves

• 3 sizes of ear sleeves for a customized fit

SHO9552

PHILIPS

THE SPECKED in ear headphones

SHO9552/28

Specifications Highlights

Product dimensions

• Product dimensions (W x H x D):

1,22 x 2,35 x 2,55 cm

• Product dimensions (W x H x D):

0,5 x 0,9 x 1,0 inch

• Weight: 0,012 kg

• Weight: 0,026 lb

Sound

• Acoustic system: Semi-open

• Magnet type: Neodymium

• Voice coil: CCAW

• Diaphragm: Mylar dome

• Frequency response: 6 - 23 500 Hz

• Impedance: 16 ohm

• Maximum power input: 50 mW

• Sensitivity: 105 dB

• Speaker diameter: 8.6 mm

• Type: Dynamic

Connectivity

• Cable Connection: symmetrical

• Cable length: 1.2 m

• Connector: 3.5 mm

• Finishing of connector: gold-plated

• Type of cable: OFC

Packaging dimensions

• Type of shelf placement: Dummy

• Number of products included: 1

• UPC: 6 09585 19024 5

• Packaging dimensions (W x H x D):

9,5 x 17,2 x 3 cm

• Packaging dimensions (W x H x D): 3,7 x 6,8 x 1,2 inch

• Gross weight: 0,066 kg

• Gross weight: 0,146 lb

• Nett weight: 0,026 lb

• Nett weight: 0,012 kg

• Packaging type: Dummy

• Tare weight: 0,120 lb

• Tare weight: 0,054 kg

Outer Carton

• GTIN: 1 06 09585 19024 2

• Gross weight: 2,285 kg

• Gross weight: 5,038 lb

• Outer carton (L x W x H): 14,8 x 8,9 x 9,8 inch

• Outer carton (L x W x H): 37,5 x 22,7 x 24,8 cm

• Nett weight: 0,288 kg

• Nett weight: 0,635 lb

• Number of consumer packagings: 24

• Tare weight: 4,403 lb

• Tare weight: 1,997 kg

Inner Carton

• GTIN: 2 06 09585 19024 9

• Gross weight: 0,243 kg

• Gross weight: 0,535 lb

• Inner carton (L x W x H): 6,9 x 4,0 x 4,1 inch

• Inner carton (L x W x H): 17,6 x 10,2 x 10,5 cm

• Nett weight: 0,036 kg

• Nett weight: 0,079 lb

• Number of consumer packagings: 3

• Tare weight: 0,456 lb

• Tare weight: 0,207 kg

Powerful sound

With powerful 9mm drivers these headphones deliver a balanced sound experience coupled with a punchy bass performance.

Smart reinforcement

Thanks to the tough tangle-free fabric cable and reinforced connectors these headphones are built to stand up to the wear and tear of your active lifestyle.

Customized fit

Three sizes of soft ear sleeves enable you to customize the Philips headphones to fit to your ears.

Comfortable for long wear

The deluxe ear sleeves enable you to wear your headphones for as long as you like without discomfort.

Issue date 2014-03-14

Version: 5.0.9

12 NC: 8670 000 62833 UPC: 6 09585 19024 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
