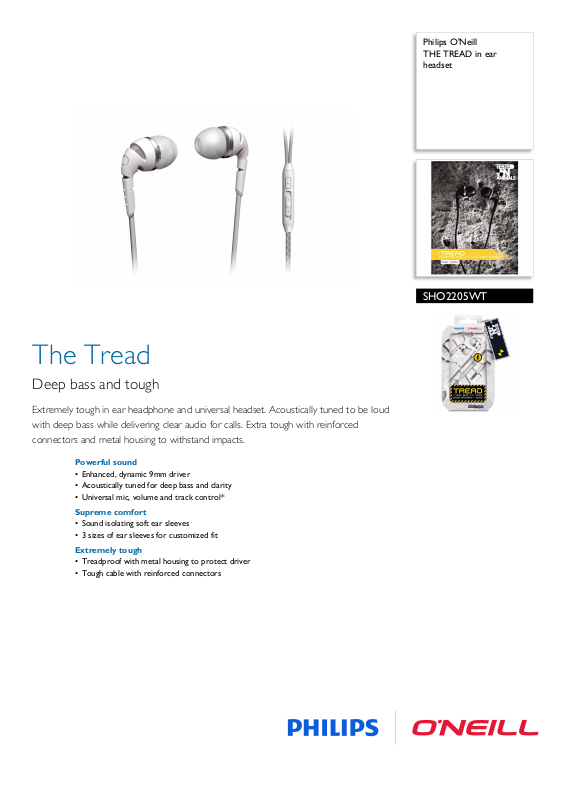

Philips SHO2205WT-28 User Manual

Philips O'Neill THE TREAD in ear headset

SHO2205WT

The Tread

Deep bass and tough

Extremely tough in ear headphone and universal headset. Acoustically tuned to be loud with deep bass while delivering clear audio for calls. Extra tough with reinforced connectors and metal housing to withstand impacts.

Powerful sound

• Enhanced, dynamic 9mm driver

• Acoustically tuned for deep bass and clarity

• Universal mic, volume and track control*

Supreme comfort

• Sound isolating soft ear sleeves

• 3 sizes of ear sleeves for customized fit

Extremely tough

• Treadproof with metal housing to protect driver

• Tough cable with reinforced connectors

THE TREAD in ear headset

SHO2205WT/28

Specifications

Sound

• Acoustic system: Semi-open

• Magnet type: Neodymium

• Voice coil: CCAW

• Diaphragm: Mylar dome

• Frequency response: 6 - 23 500 Hz

•Impedance: 16 Ohm

• Maximum power input: 50 mW

• Sensitivity: 105 dB

• Speaker diameter: 8.6 mm

•Type: Dynamic

Connectivity

• Cable Connection: Symmetrical

• Cable length: 1.2 m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold-plated

•Type of cable: OFC

• Cable Connection: symmetrical

• Remote and mic compatilbe with: Blackberry, C, iPhone, LG, Motorola, Nokia, Palm,

HT Samsung, Sony Ericsson

• *Track control compatible with: iPhone 3GS,

ne4

iPho

Packaging dimensions

• Number of products included: 1

• UPC: 6 09585 22040 9

• Packaging dimensions (W x H x D):

9.5 x 17.2 x 3 cm

• Gross weight: 0.07 kg

• Nett weight: 0.014 kg

• Tare weight: 0.056 kg

• Packaging type: Blister

• Packaging dimensions (W x H x D):

3.7 x 6.8 x 1.2 inch

• Gross weight: 0.154 lb

• Nett weight: 0.031 lb

• Tare weight: 0.123 lb

Outer Carton

• Gross weight: 2.426 kg

•Outer carton (L x W x H): 37.5 x 22.7 x 24.8 cm

• Nett weight: 0.336 kg

• Number of consumer packagings: 24

• Tare weight: 2.09 kg

• Gross weight: 5.348 lb

• GTIN: 1 06 09585 22040 6

•Outer carton (L x W x H): 14.8 x 8.9 x 9.8 inch

• Nett weight: 0.741 lb

• Tare weight: 4.608 lb

Inner Carton

• Gross weight: 0.258 kg

• Inner carton (L x W x H): 17.6 x 10.2 x 10.5 cm

• Nett weight: 0.042 kg

• Number of consumer packagings: 3

• Tare weight: 0.216 kg

• Gross weight: 0.569 lb

• GTIN: 2 06 09585 22040 3

• Inner carton (L x W x H): 6.9 x 4.0 x 4.1 inch

• Nett weight: 0.093 lb

• Tare weight: 0.476 lb

•

Highlights

Customized fit

Three sizes of soft ear sleeves enable you to customize the fit to your ears.

Treadproof with metal housing

Treadproof: metal housing and premium rubber casing withstands impacts including somebody stepping on the product

Powerful sound

With powerful 9mm drivers these headphones deliver a balanced sound experience coupled with a punchy bass performance.

Issue date 2014-03-14

Version: 1.1.4

12 NC: 8670 000 82617 UPC: 6 09585 22040 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

Remote and mic

Remote and mic for Blackberry, HTC, iPhone, LG, Motorola, Nokia, Palm, Samsung, Sony Ericsson

Smart reinforcement

Thanks to the tough tangle-free fabric cable and reinforced connectors these headphones are built to stand up to the wear and tear of your active lifestyle.

Comfortable for long wear

The deluxe ear sleeves enable you to wear your headphones for as long as you like without discomfort.
